A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Tire Pressure Warning System
Tire Pressure Warning System
DIAGNOSTIC TROUBLE CODE CHART

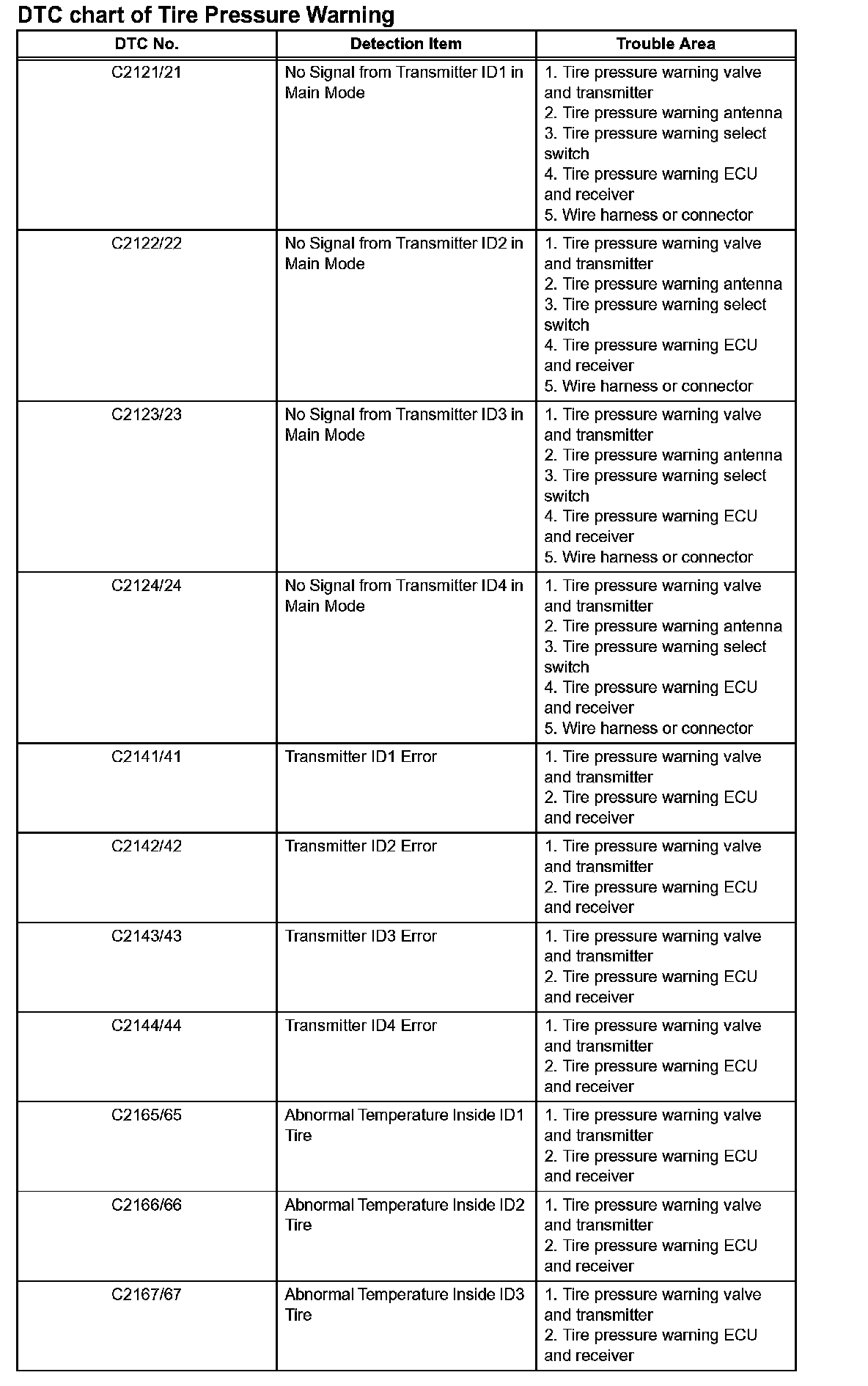

DTC chart of Tire Pressure Warning
C2121/21-C2167/67:
C2168/68-C2131/31:

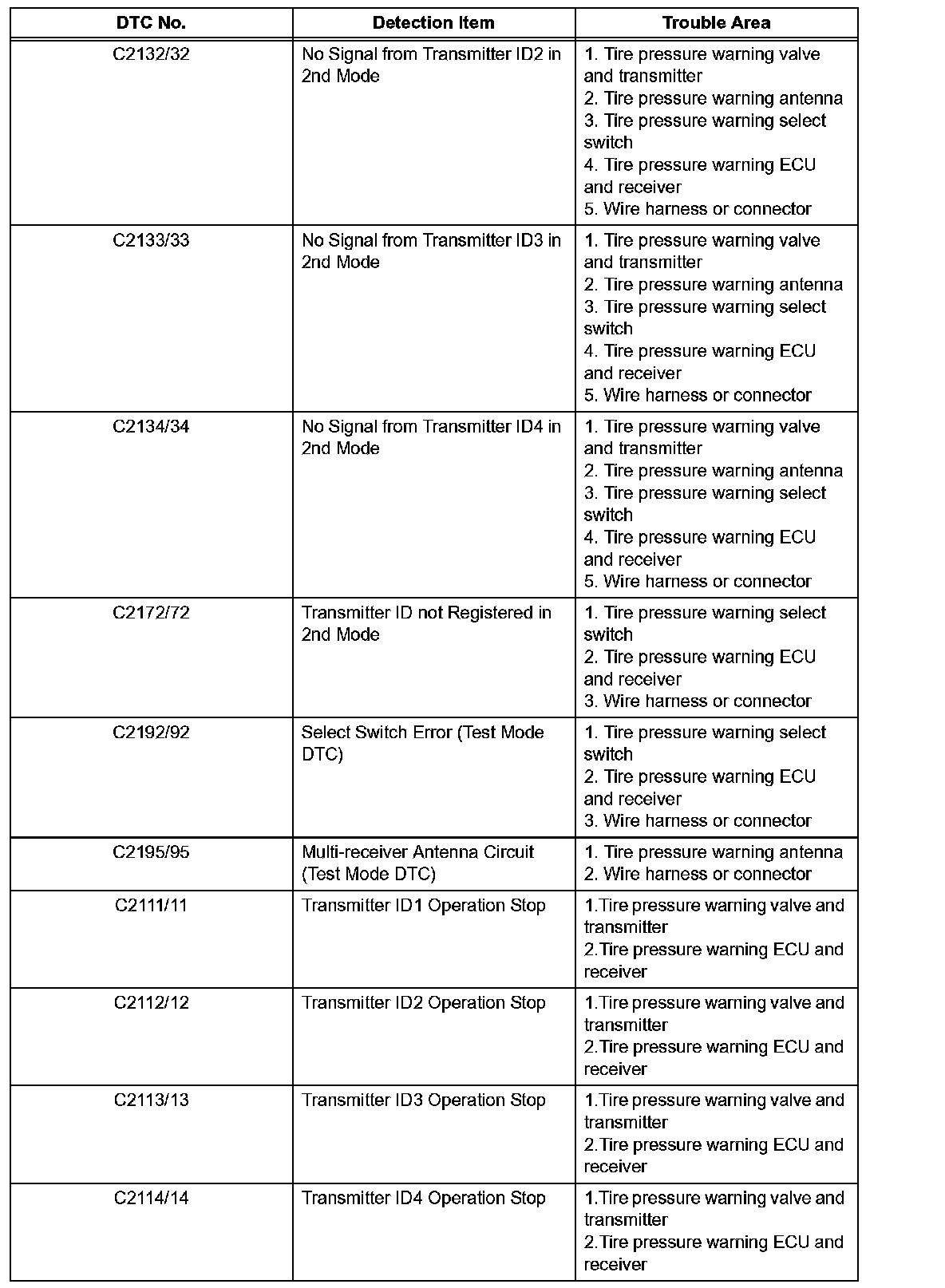

C2132/32-C2114/14:
