SFI System

DIAGNOSTIC TROUBLE CODE CHART

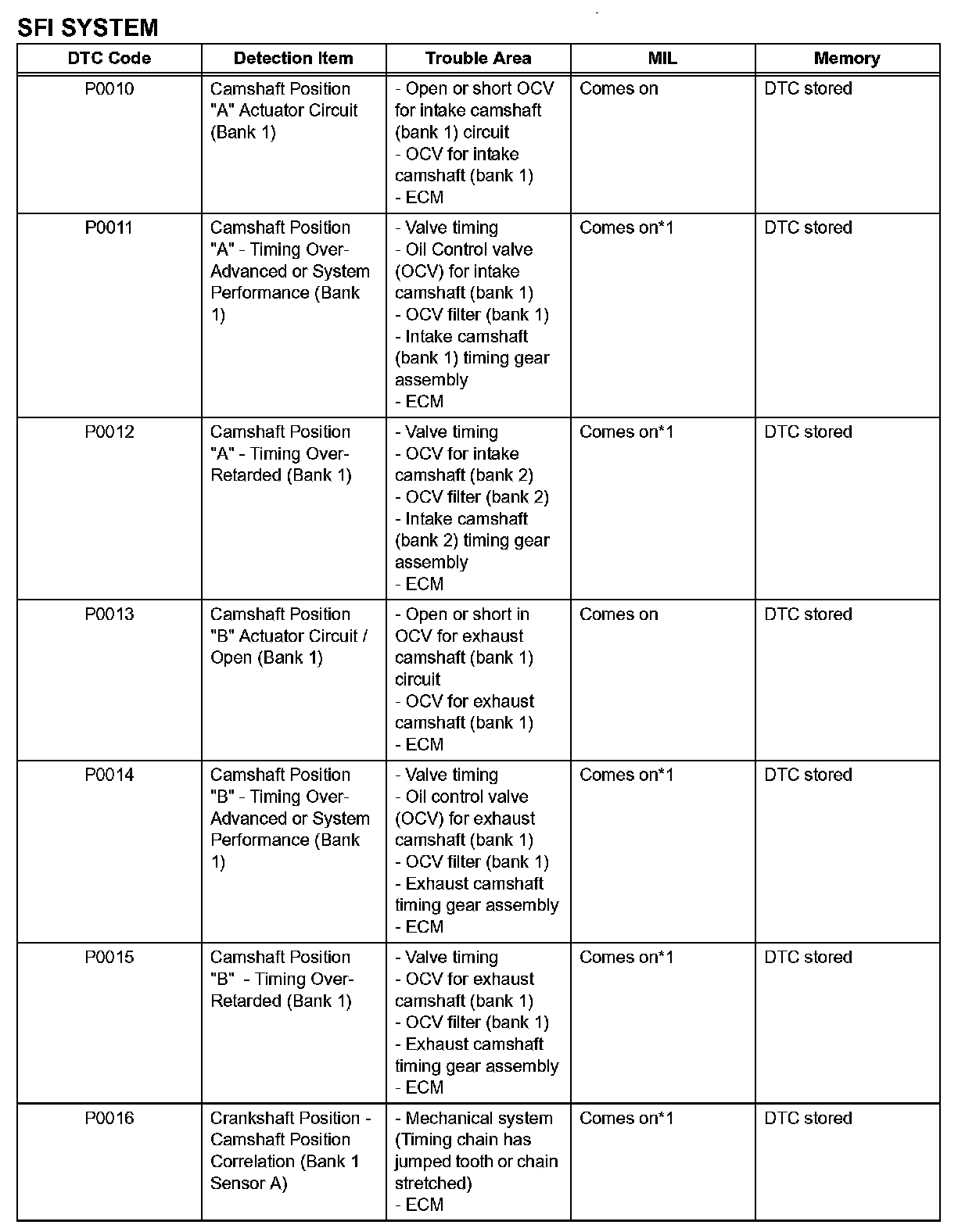

P0010-P0016:

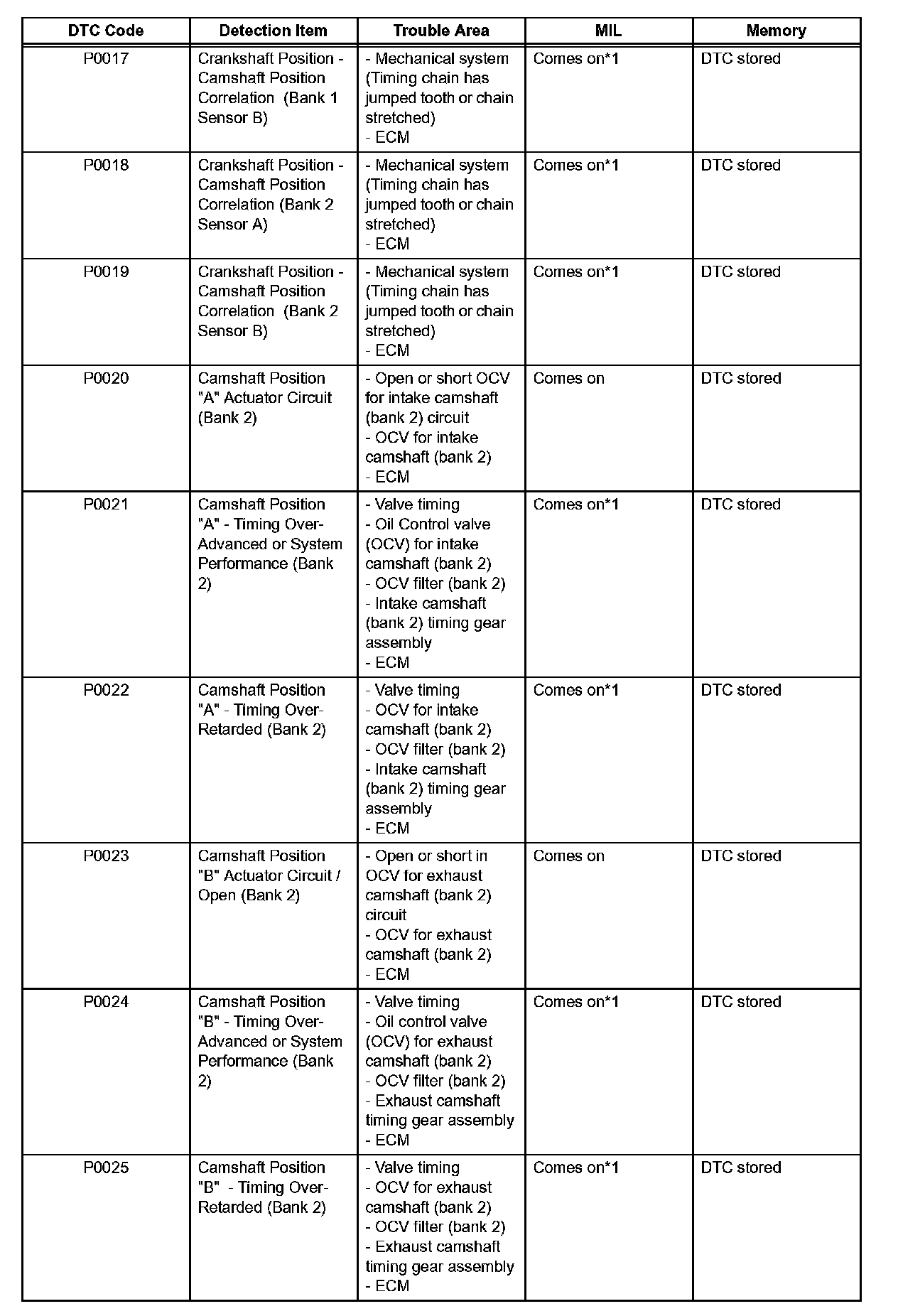

P0017-P0025:

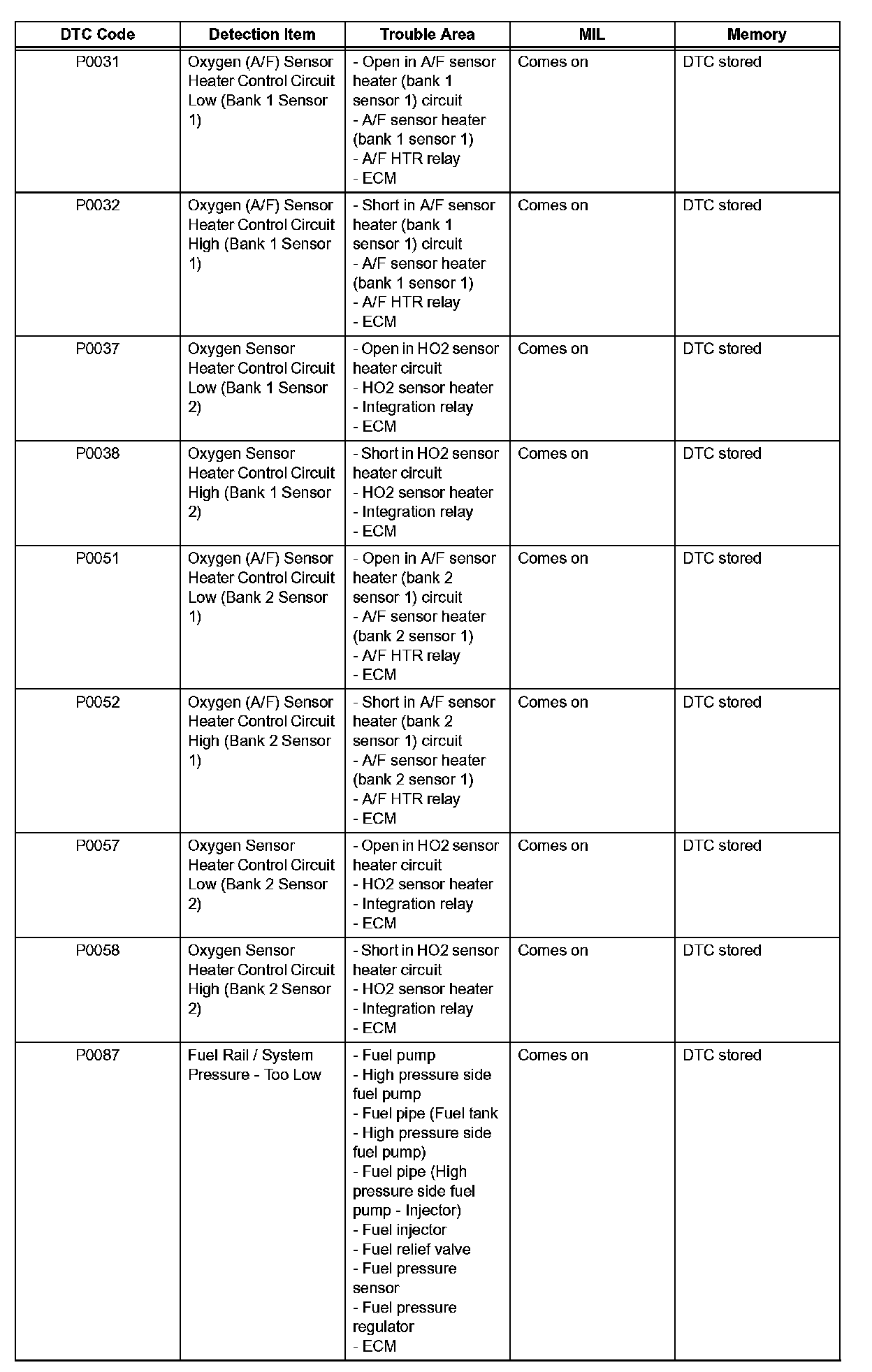

P0031-P0087:

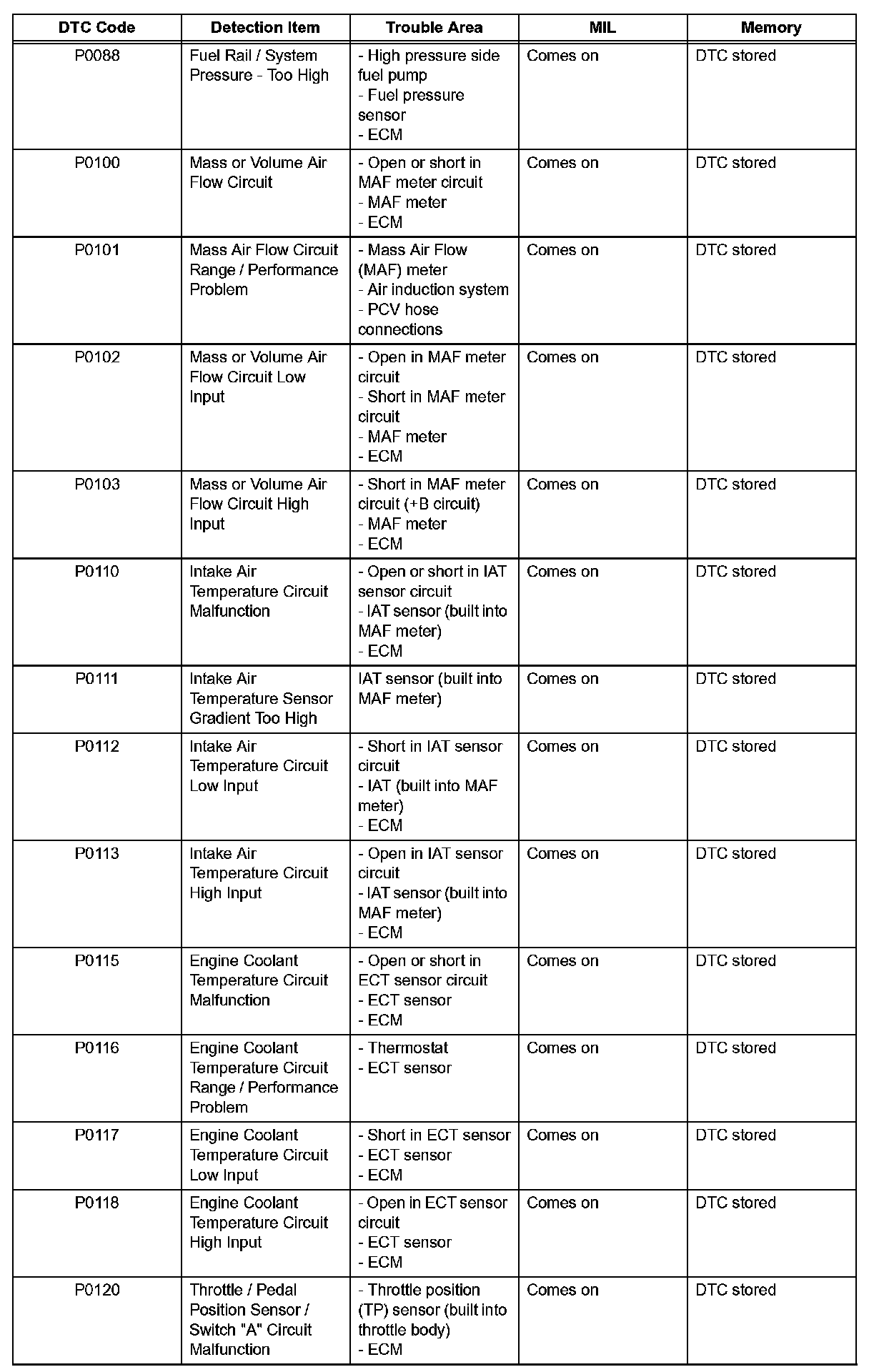

P0088-P0120:

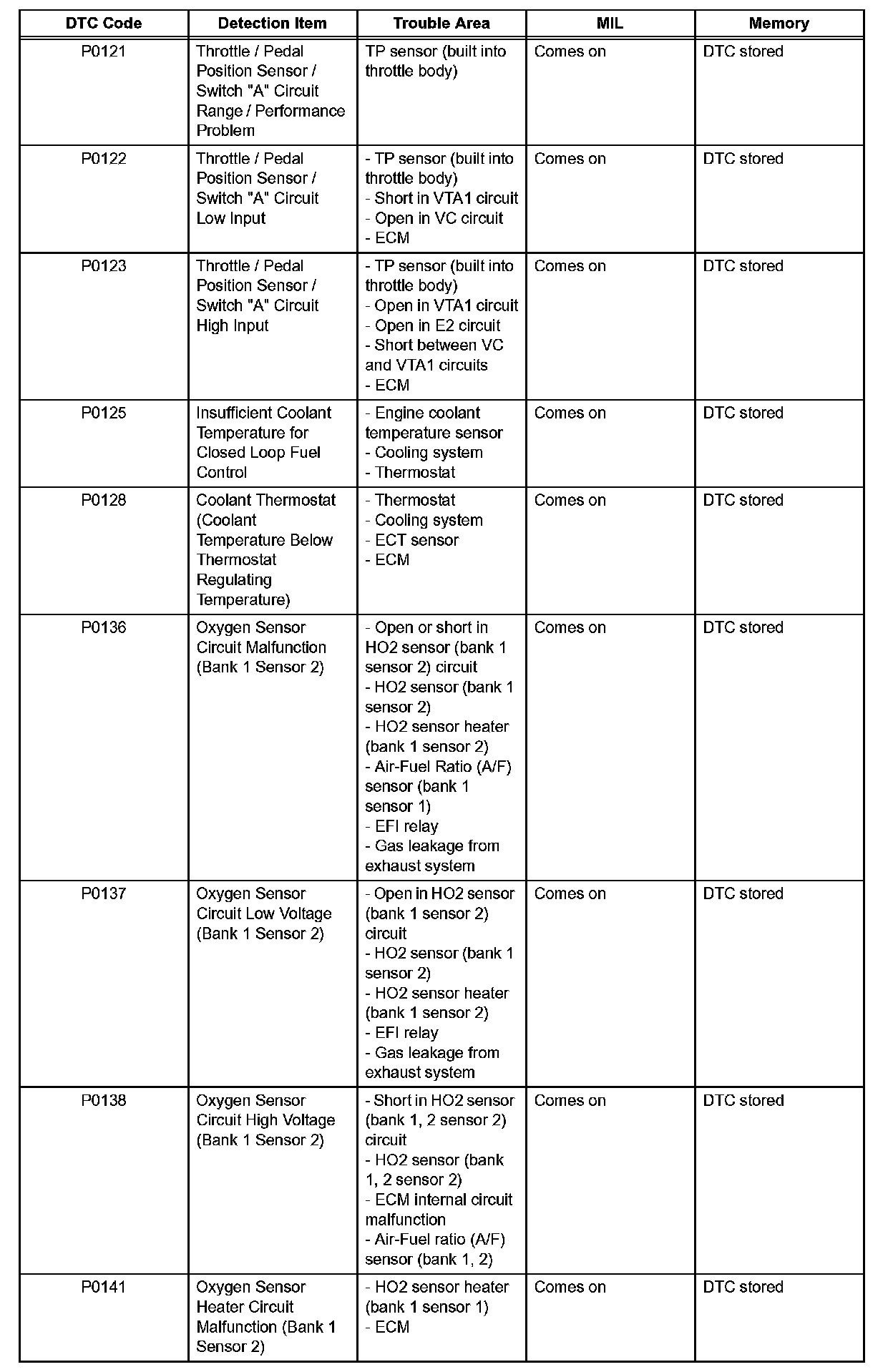

P0121-P0141:

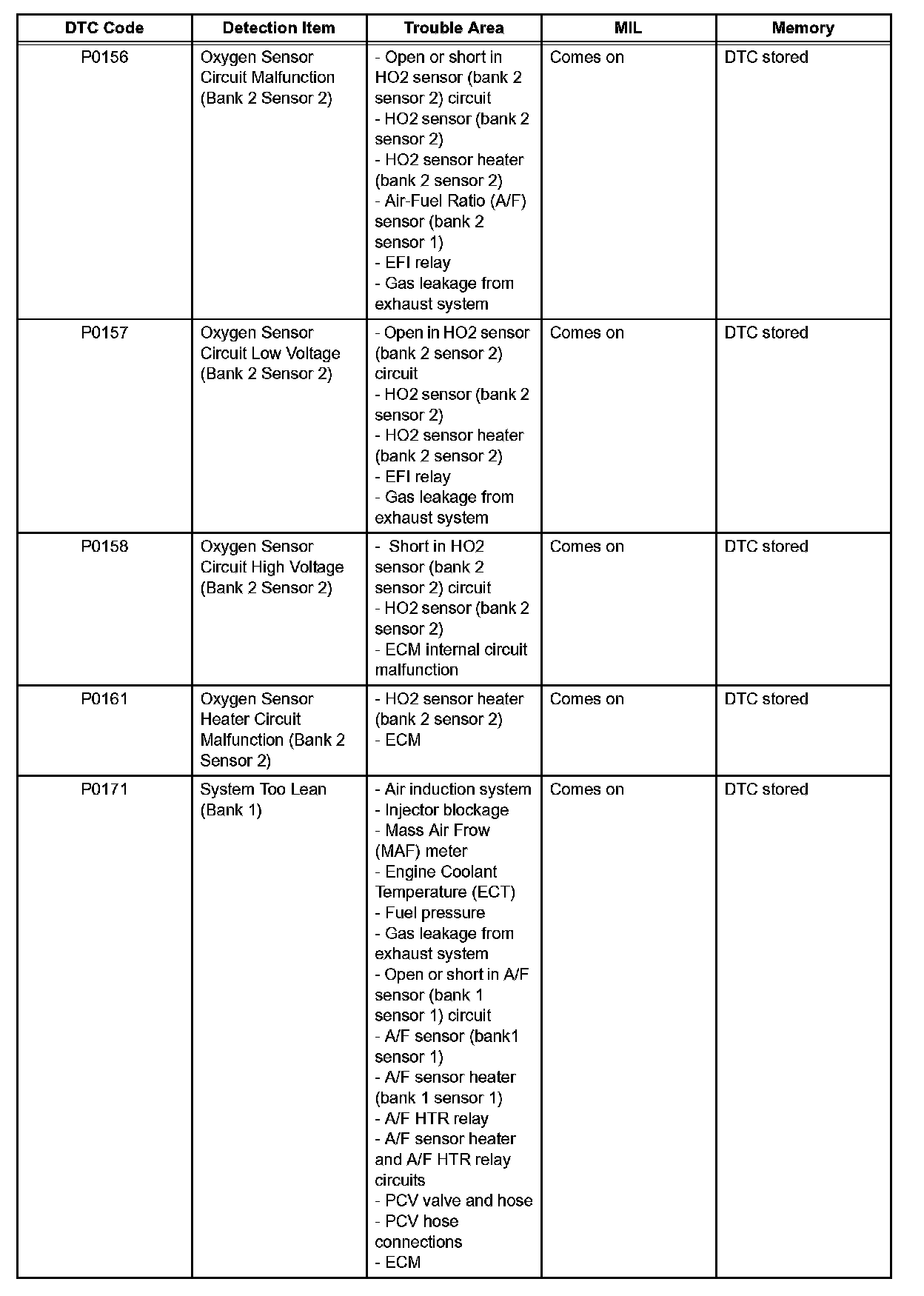

P0156-P0171:

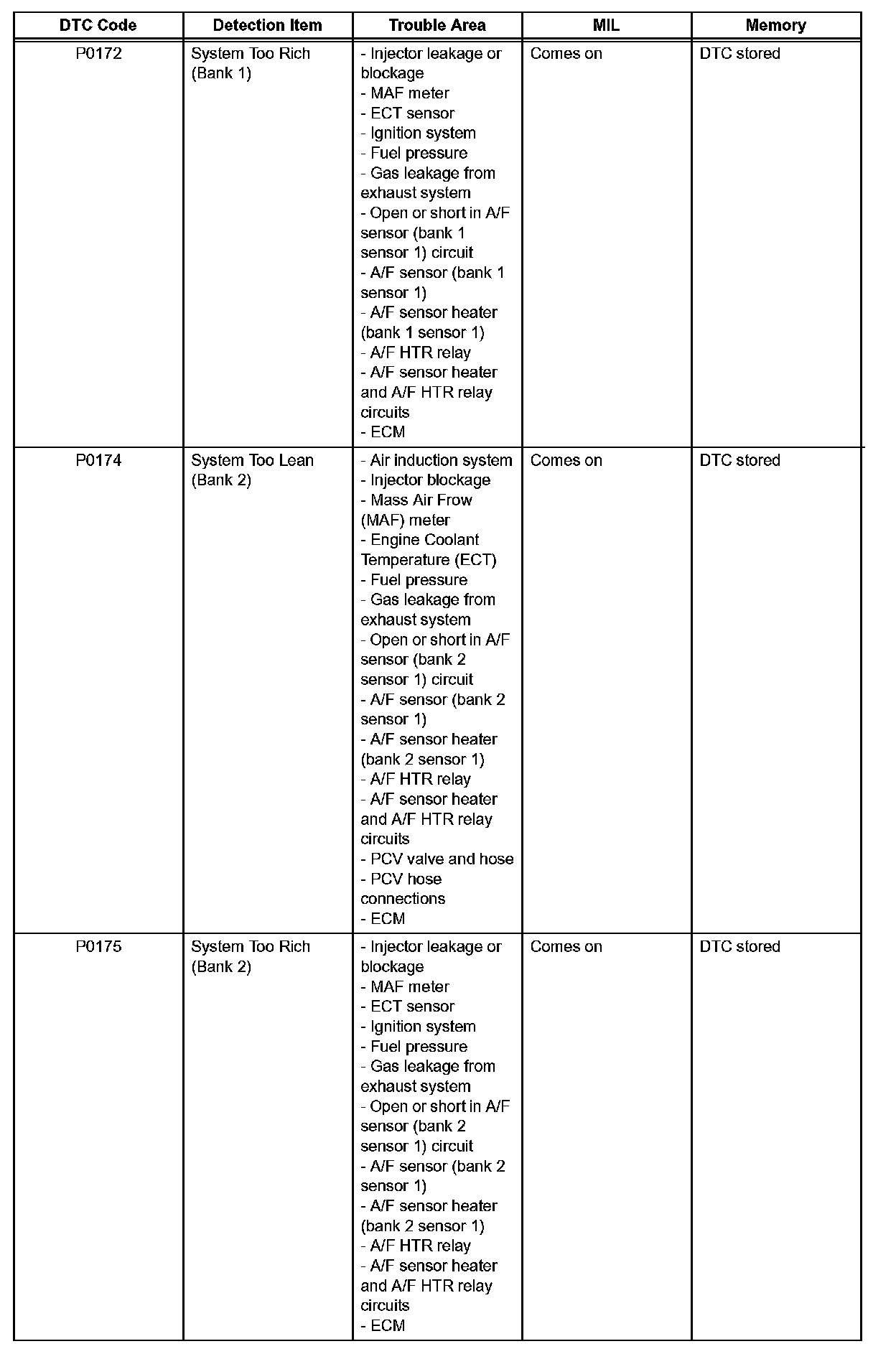

P0172-P0175:

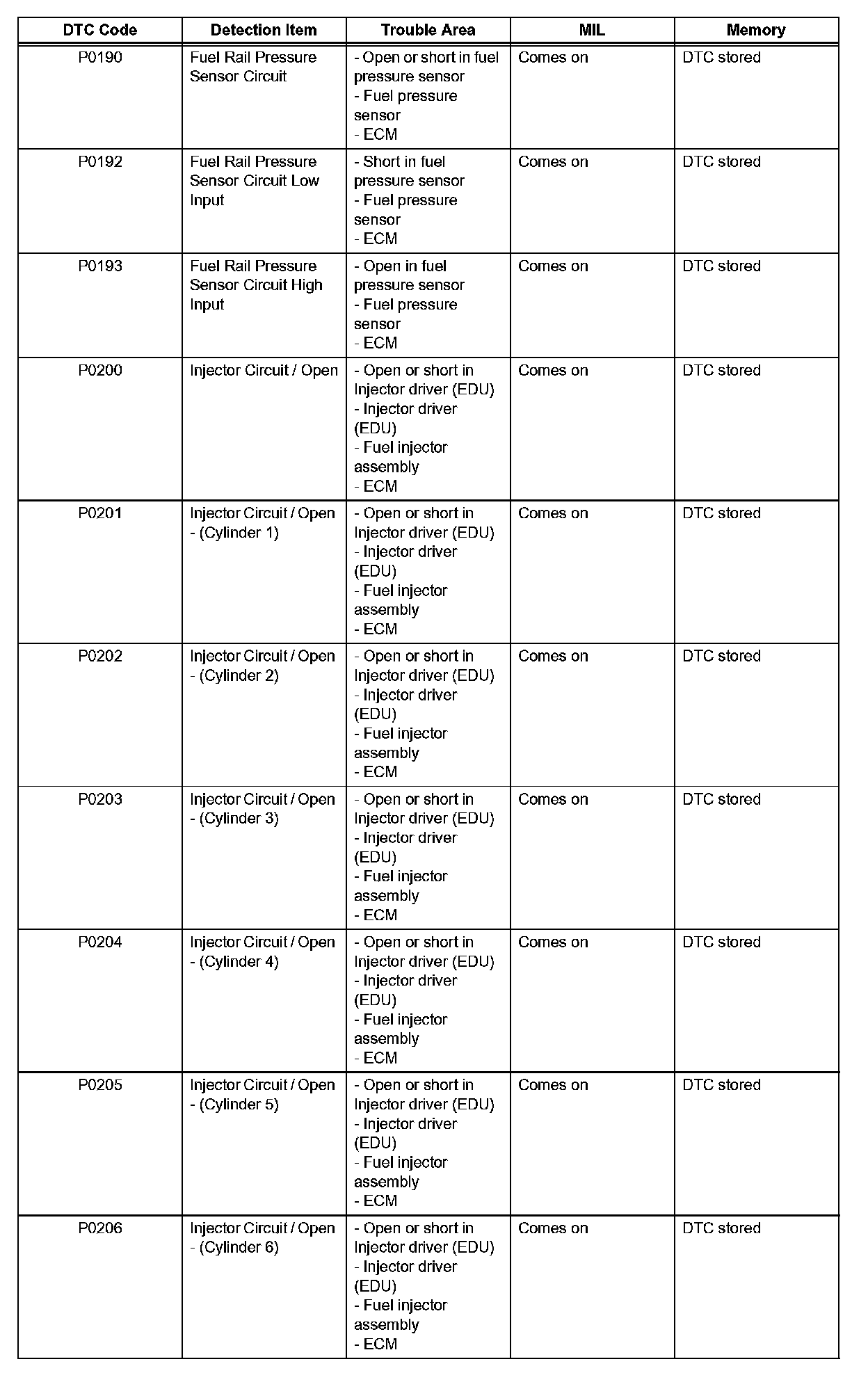

P0190-P0206:

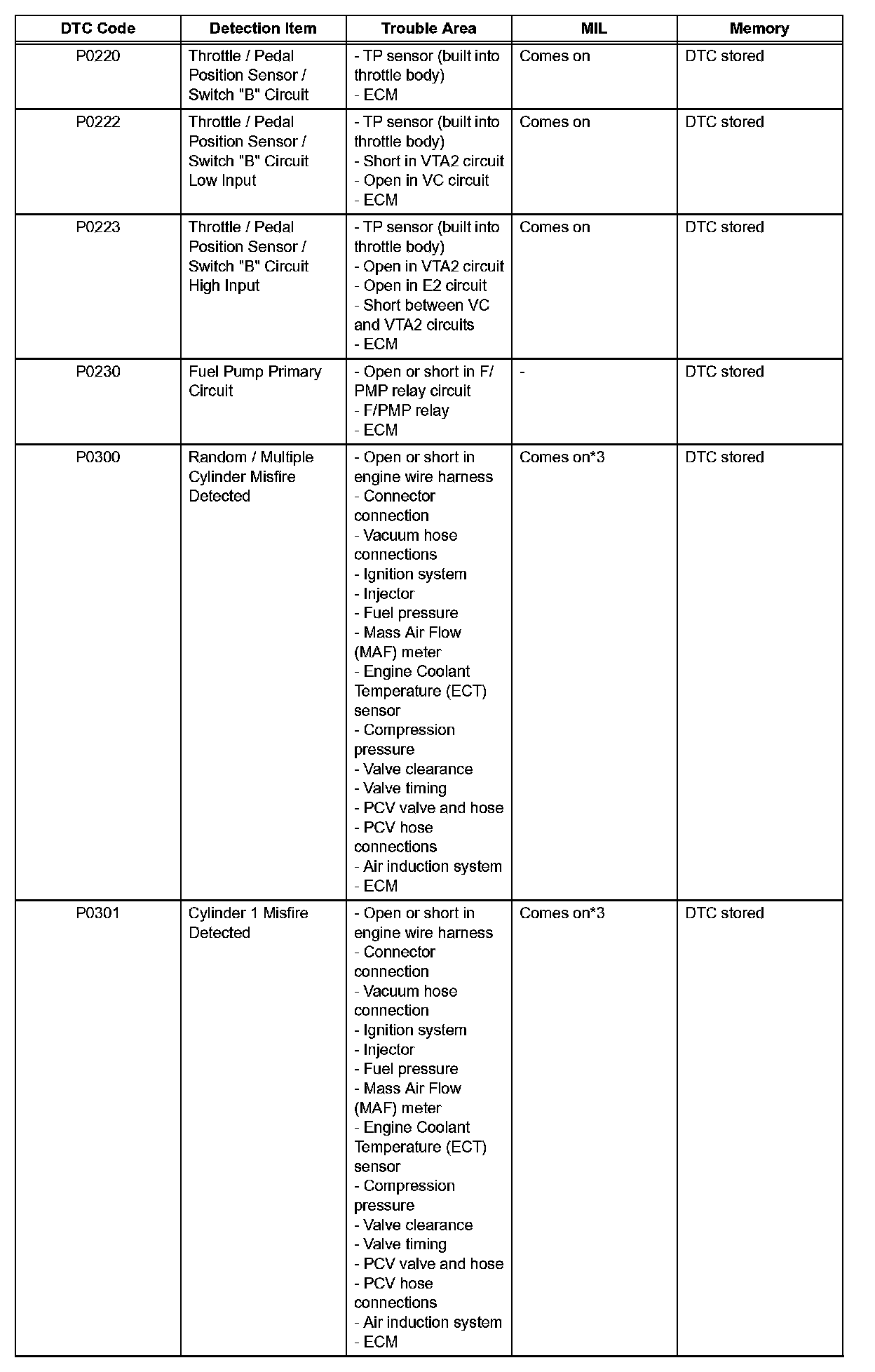

P0220-P0301:

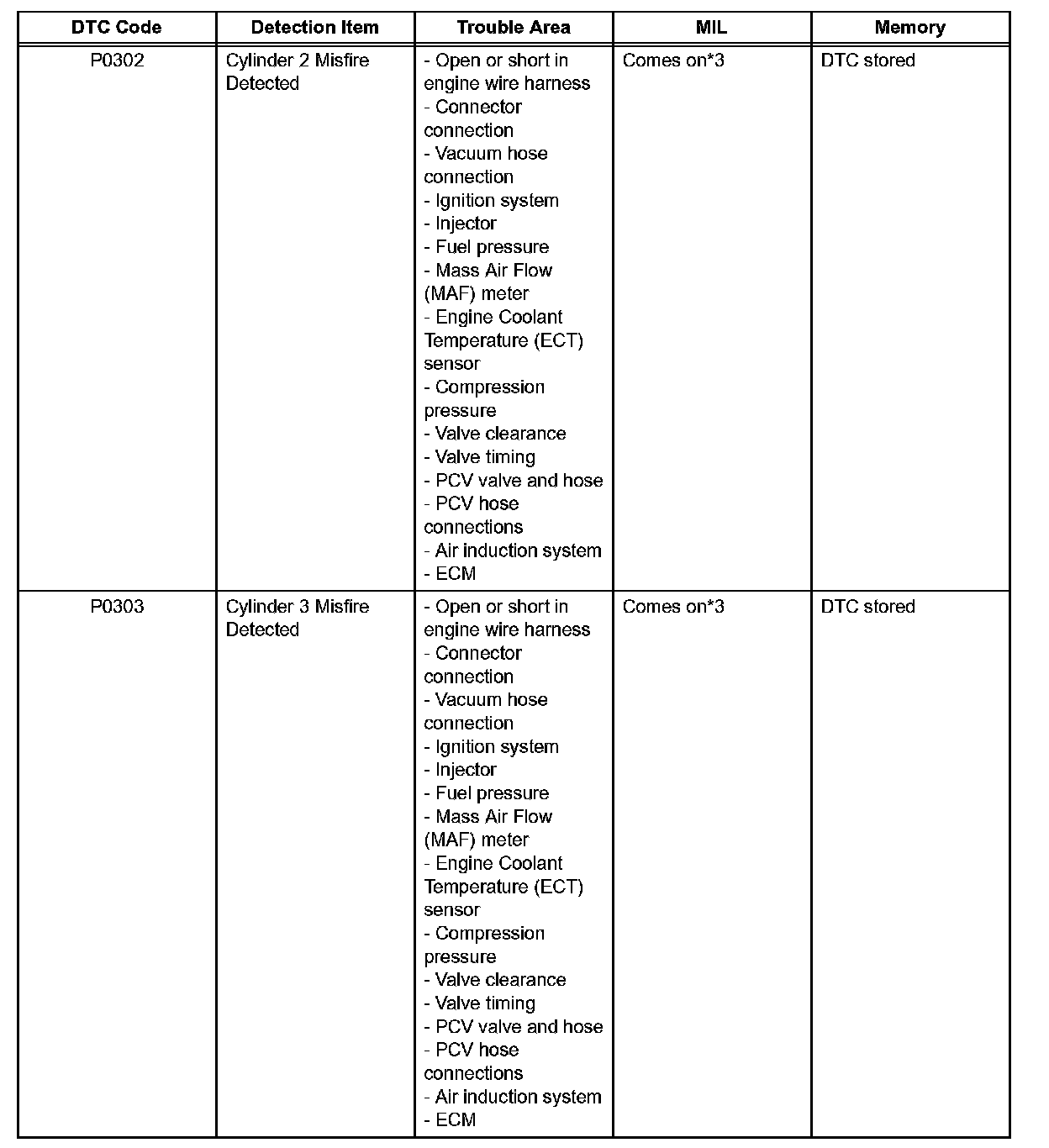

P0302-P0303:

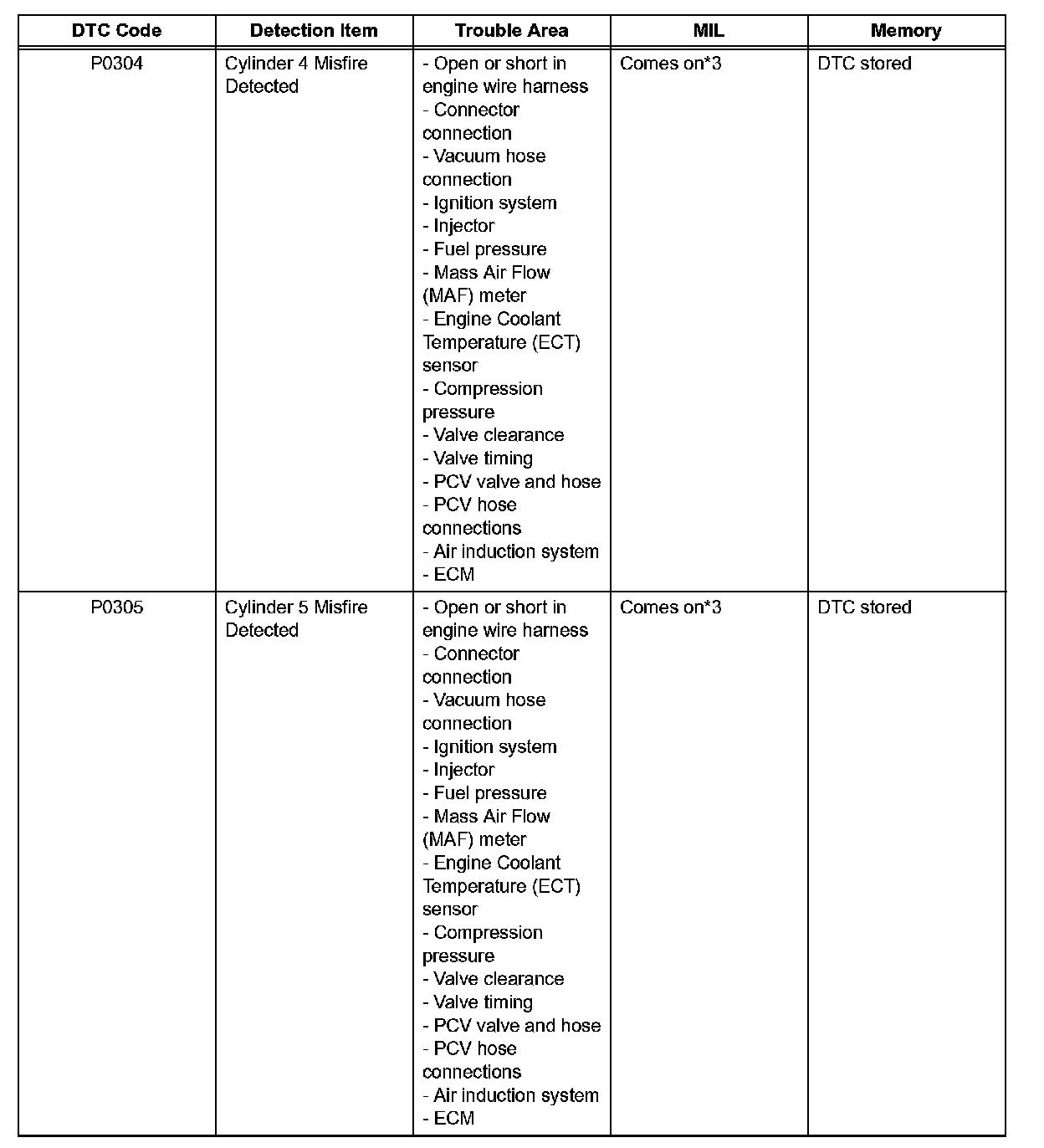

P0304-P0305:

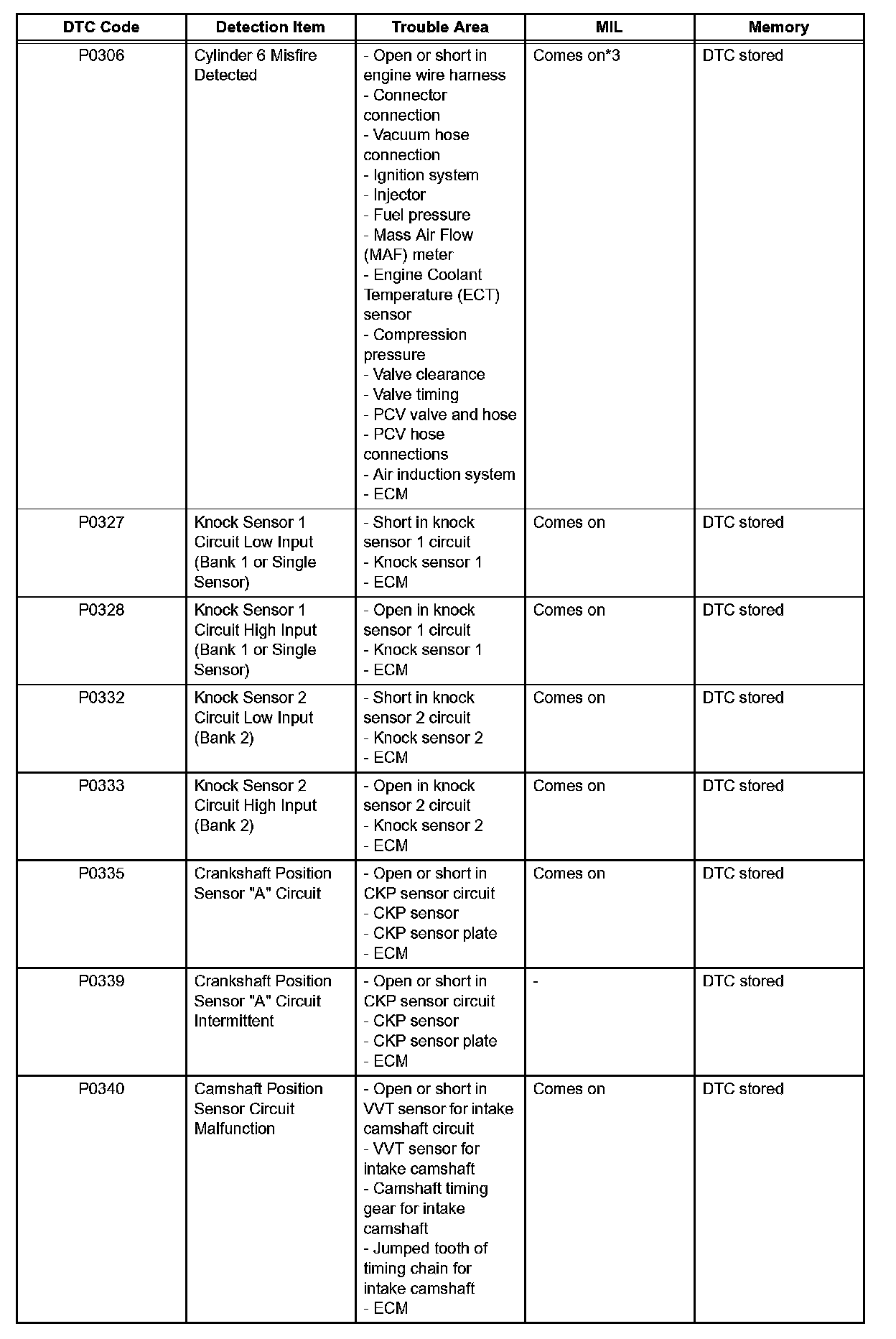

P0306-P0340:

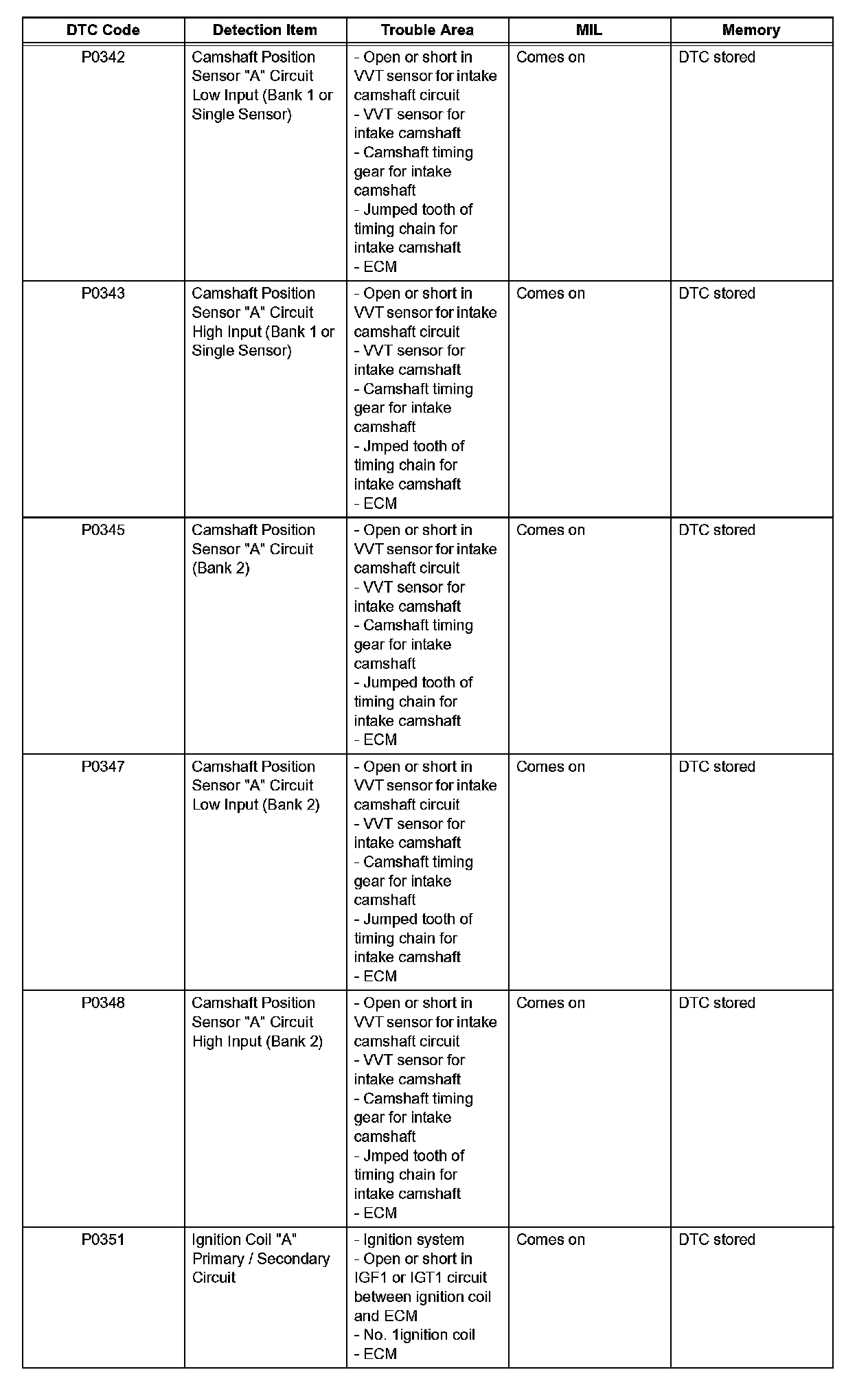

P0342-P0351:

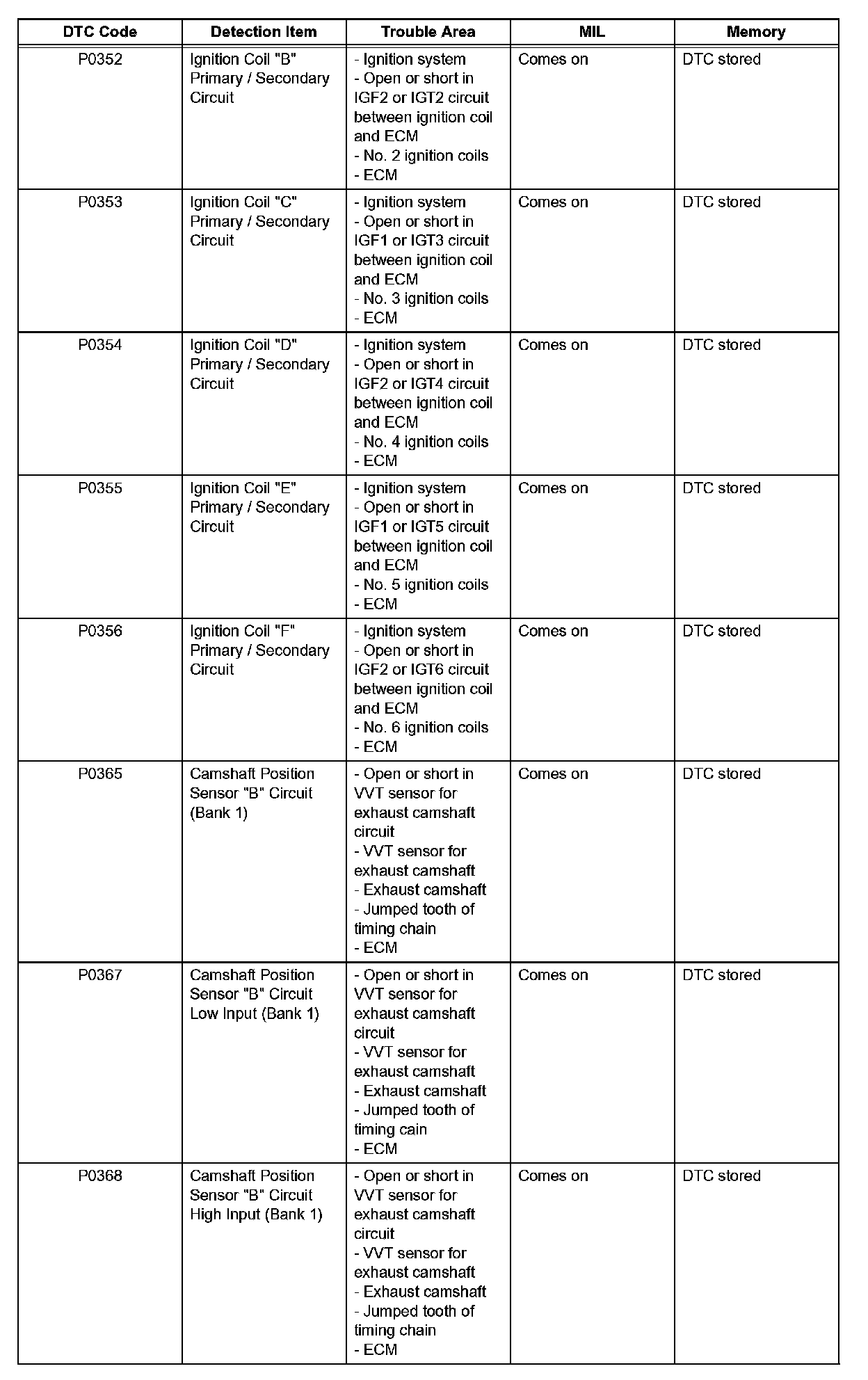

P0352-P0368:

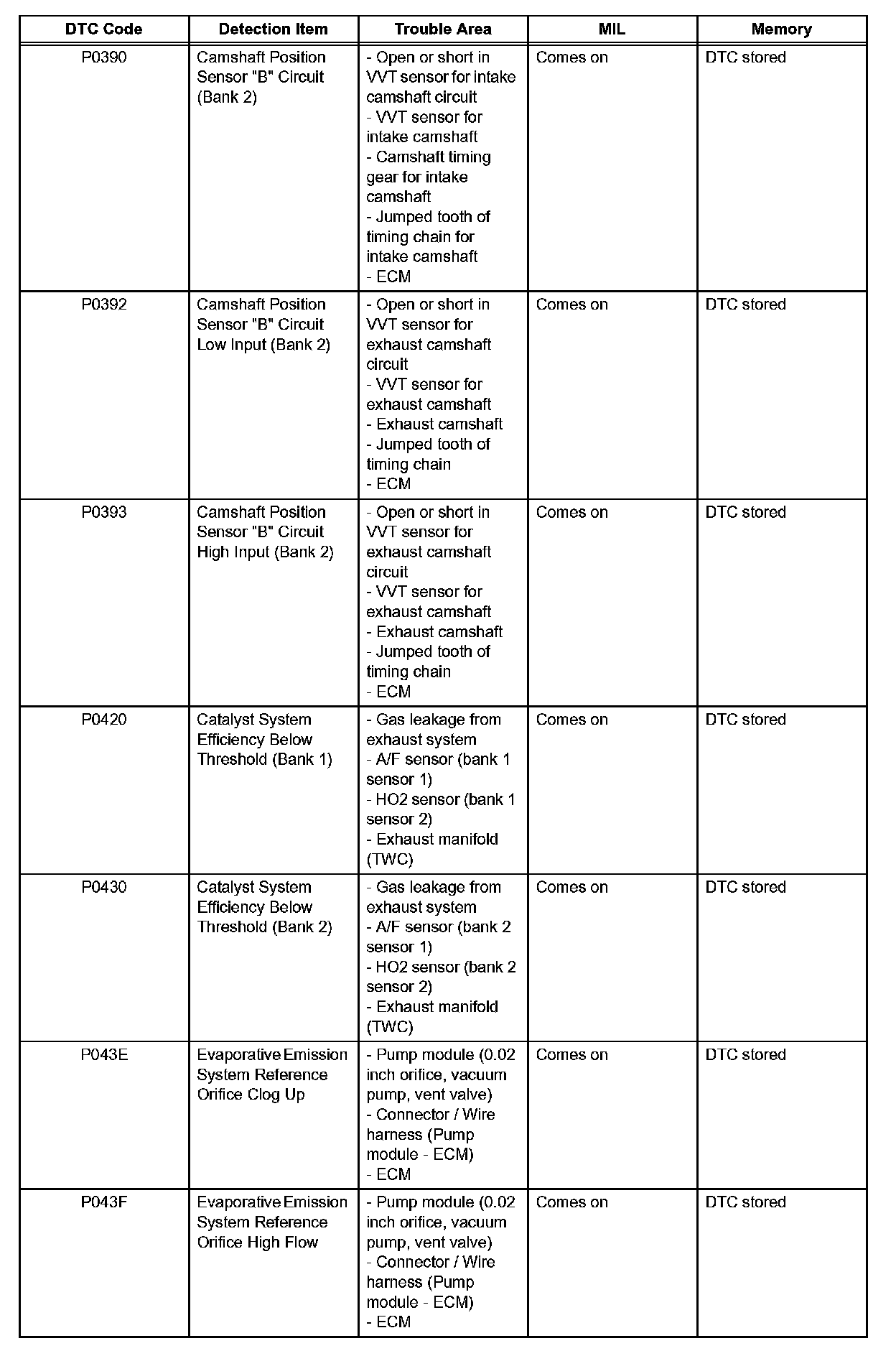

P0390-P043F:

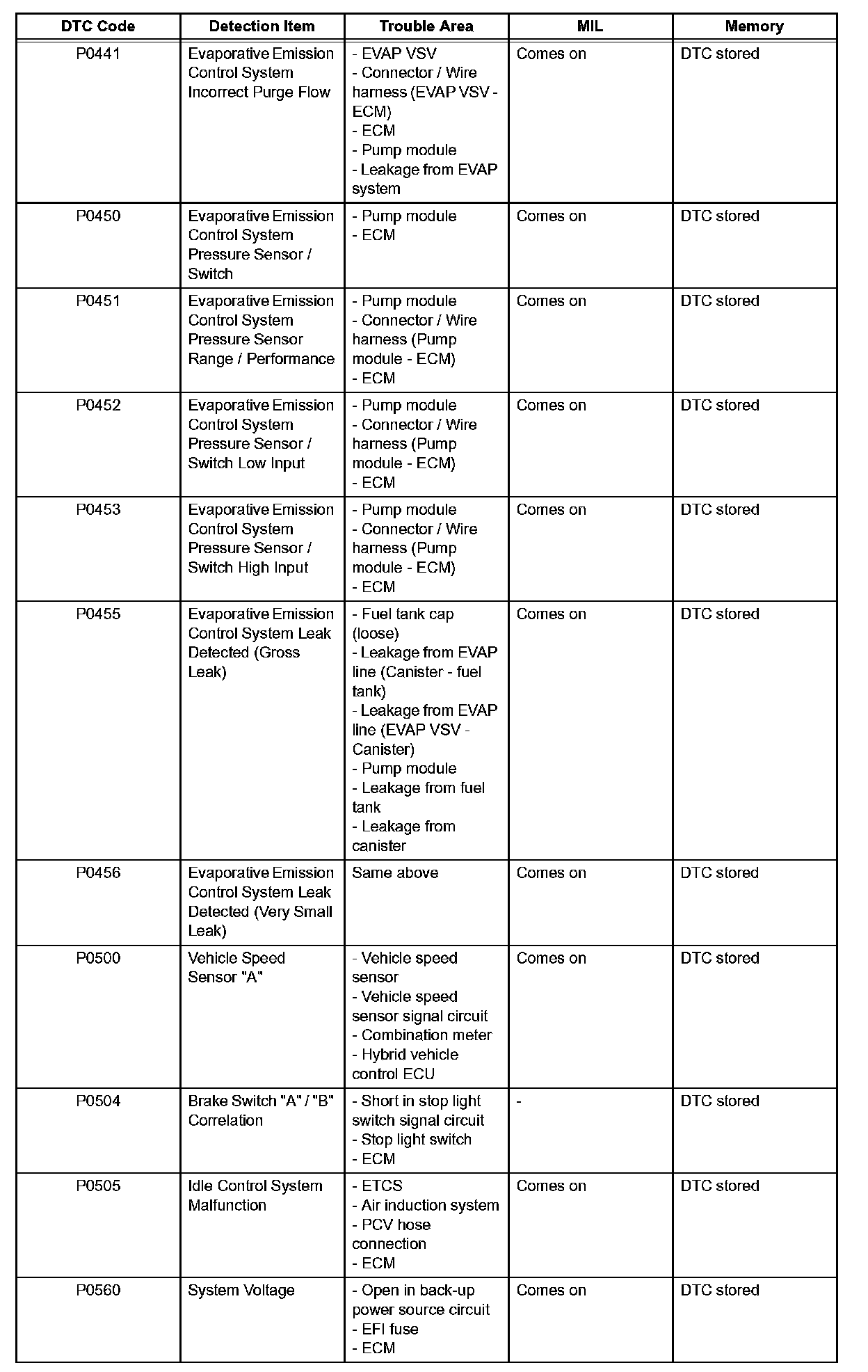

P0441-P0560:

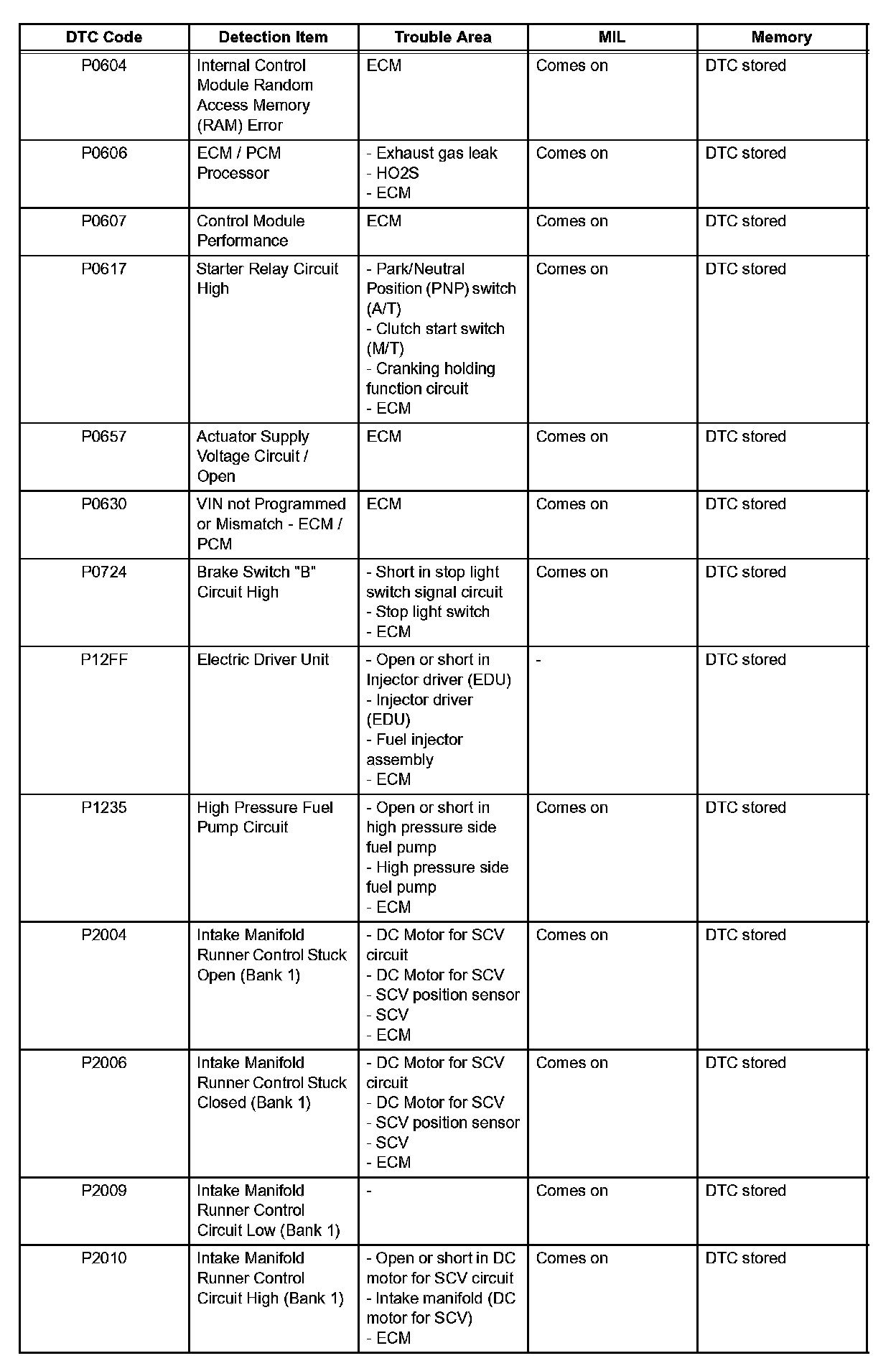

P0604-P2010:

P2014-P2125:

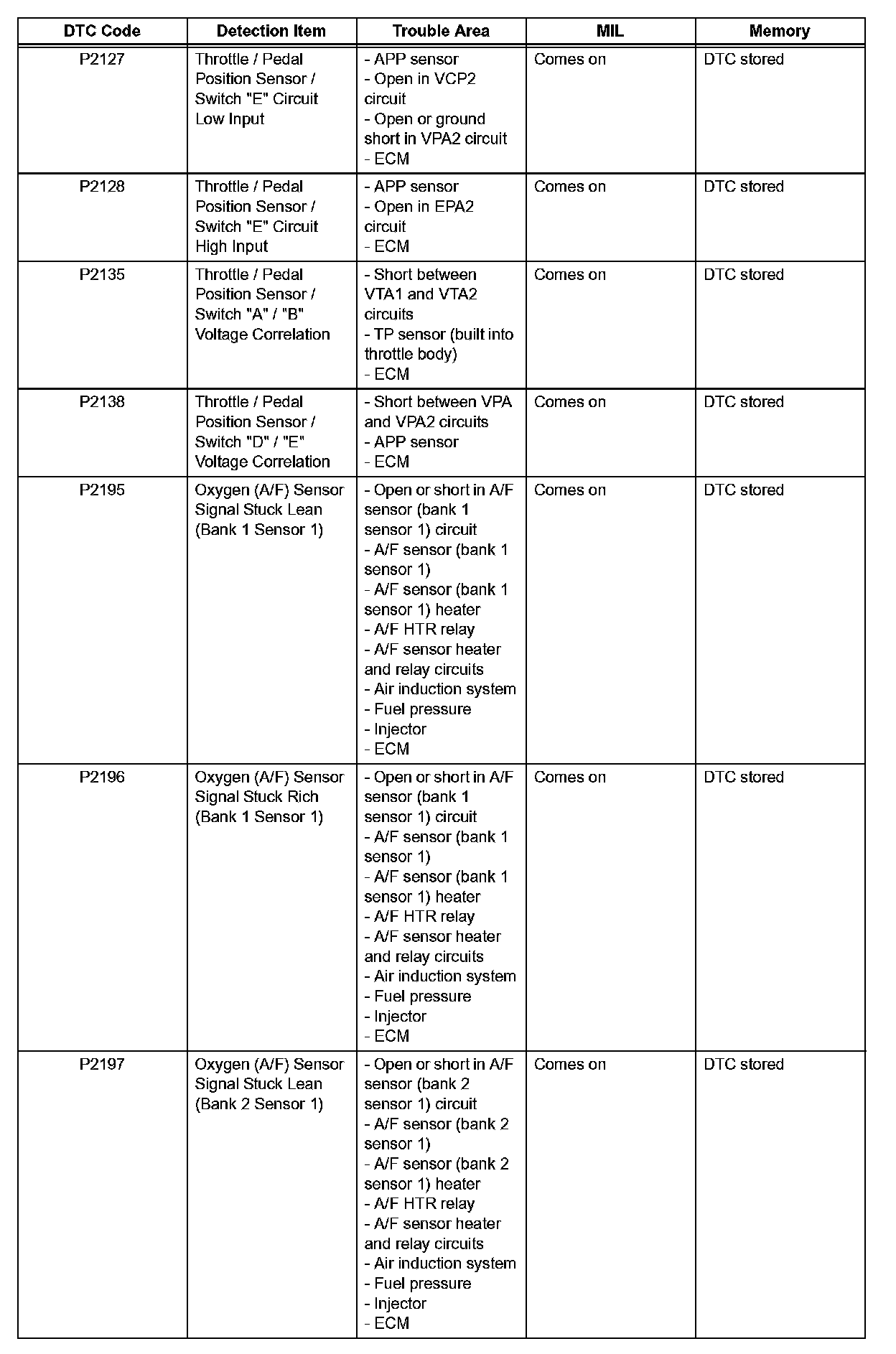

P2127-P2197:

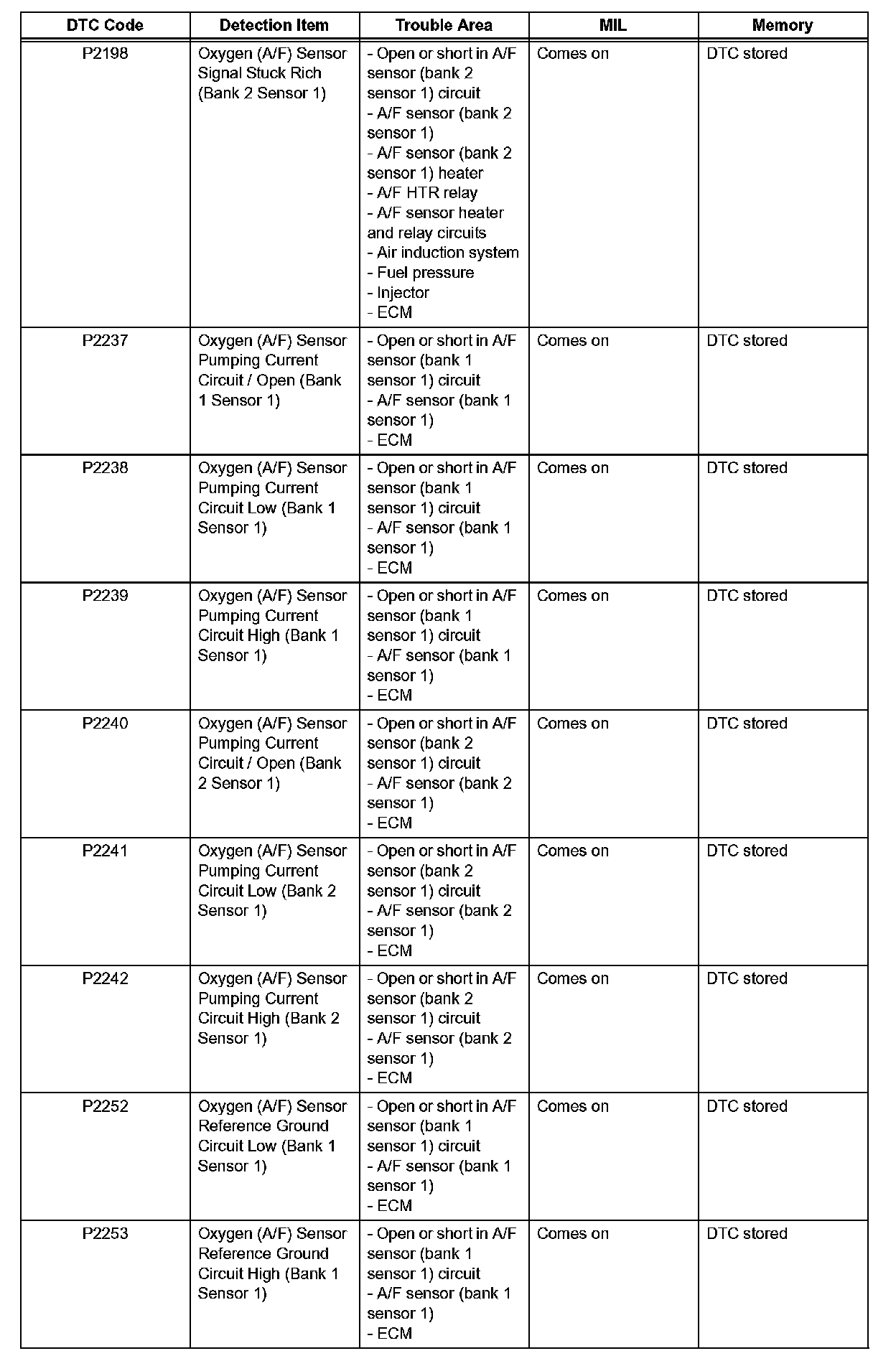

P2198-P2253:

P2255-P2A03 / U0101:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.If a DTC is displayed, check the trouble area for the DTC listed in the Table.

*1: Except KOREA
*2: Except KOREA and TAIWAN
*3: MIL flashes when a catalyst damaged misfire is detected.
*4: M/T only
