A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Power Tilt and Power Telescopic Steering Column System
Power Tilt and Power Telescopic Steering Column System

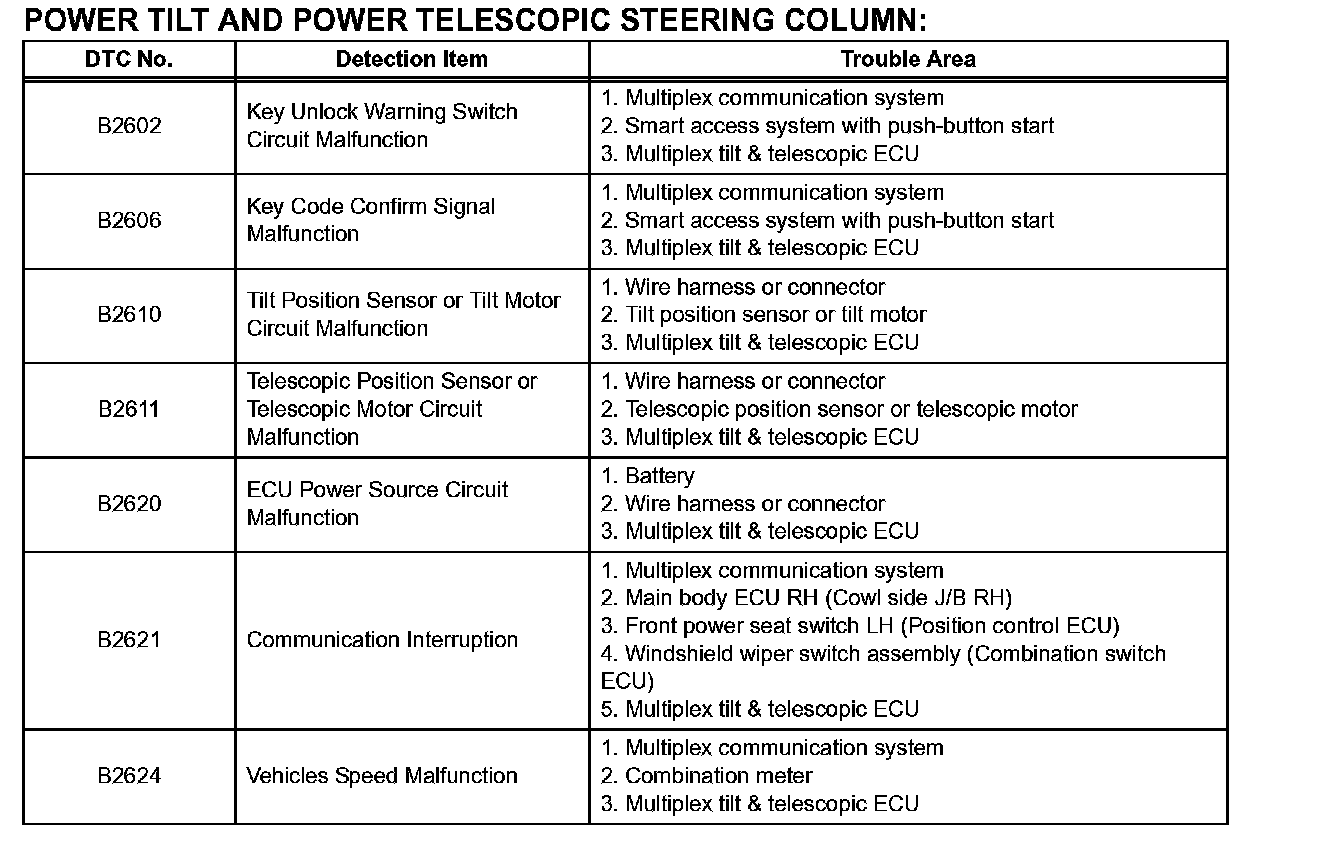

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed, check the circuit for that code listed in the table.
POWER TILT AND POWER TELESCOPIC STEERING COLUMN:
B2602-B2624:
