Electronic Power Steering System
Electronic Power Steering System

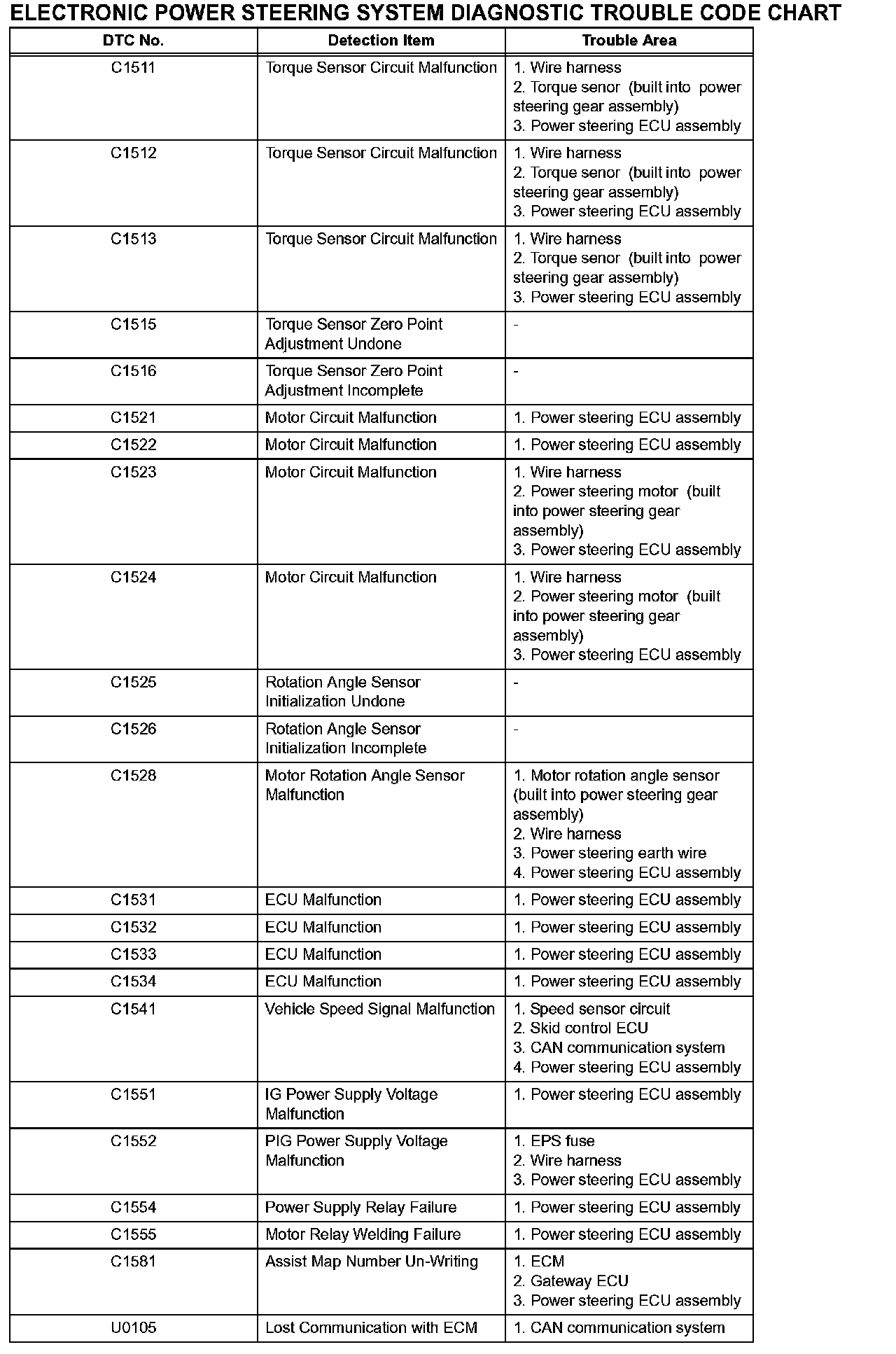

DIAGNOSTIC TROUBLE CODE CHART
ELECTRONIC POWER STEERING SYSTEM DIAGNOSTIC TROUBLE CODE CHART
C1511-C1581/U0105:
U0121:
