Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the page given.

HINT:
^ *1: Comes on MIL (Malfunction Indicator Lamp) light up
^ *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ This DTC may be output when the clutch brake and gear, components etc. inside the automatic transmission are damaged.

AUTOMATIC TRANSMISSION SYSTEM

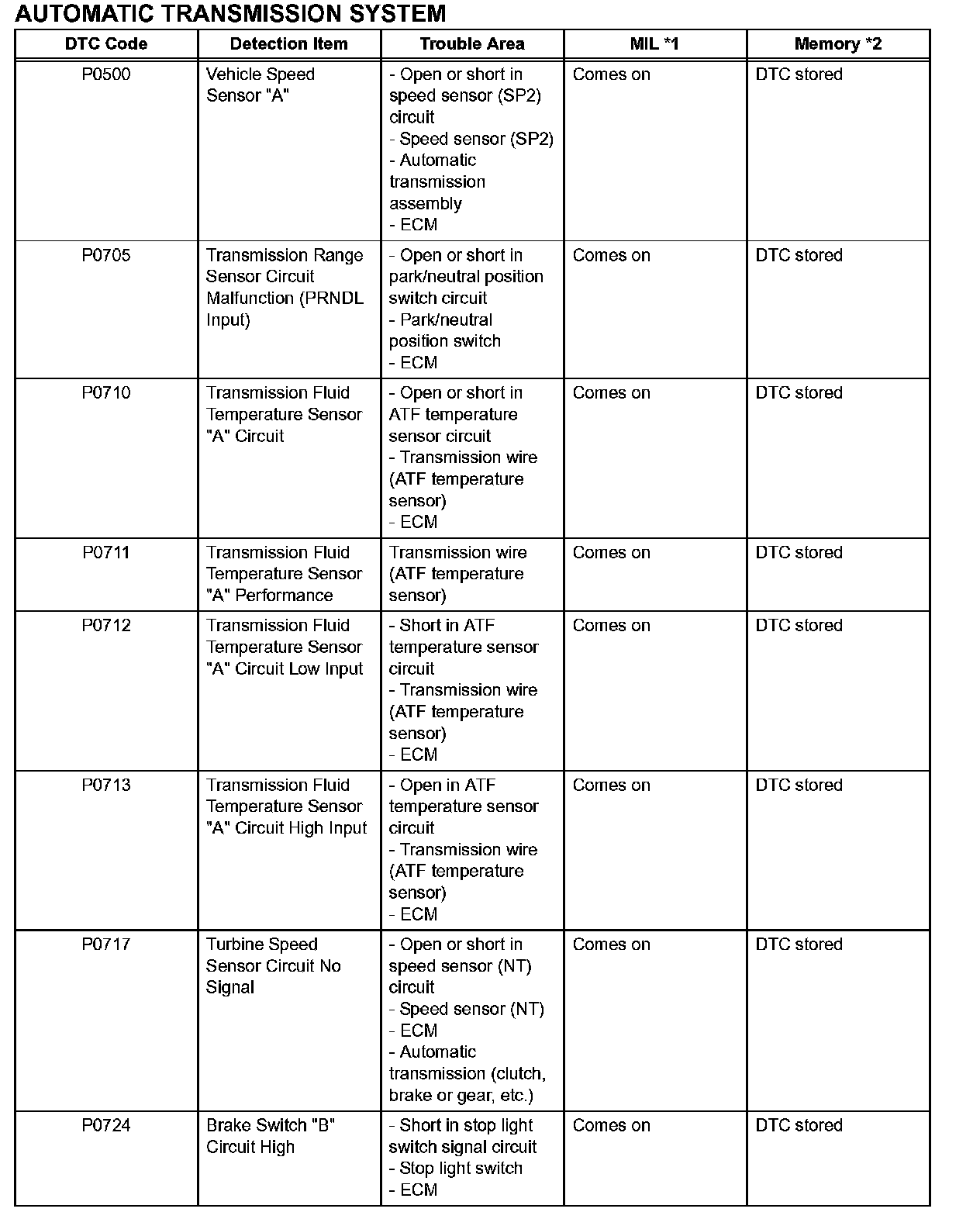

P0500-P0724:

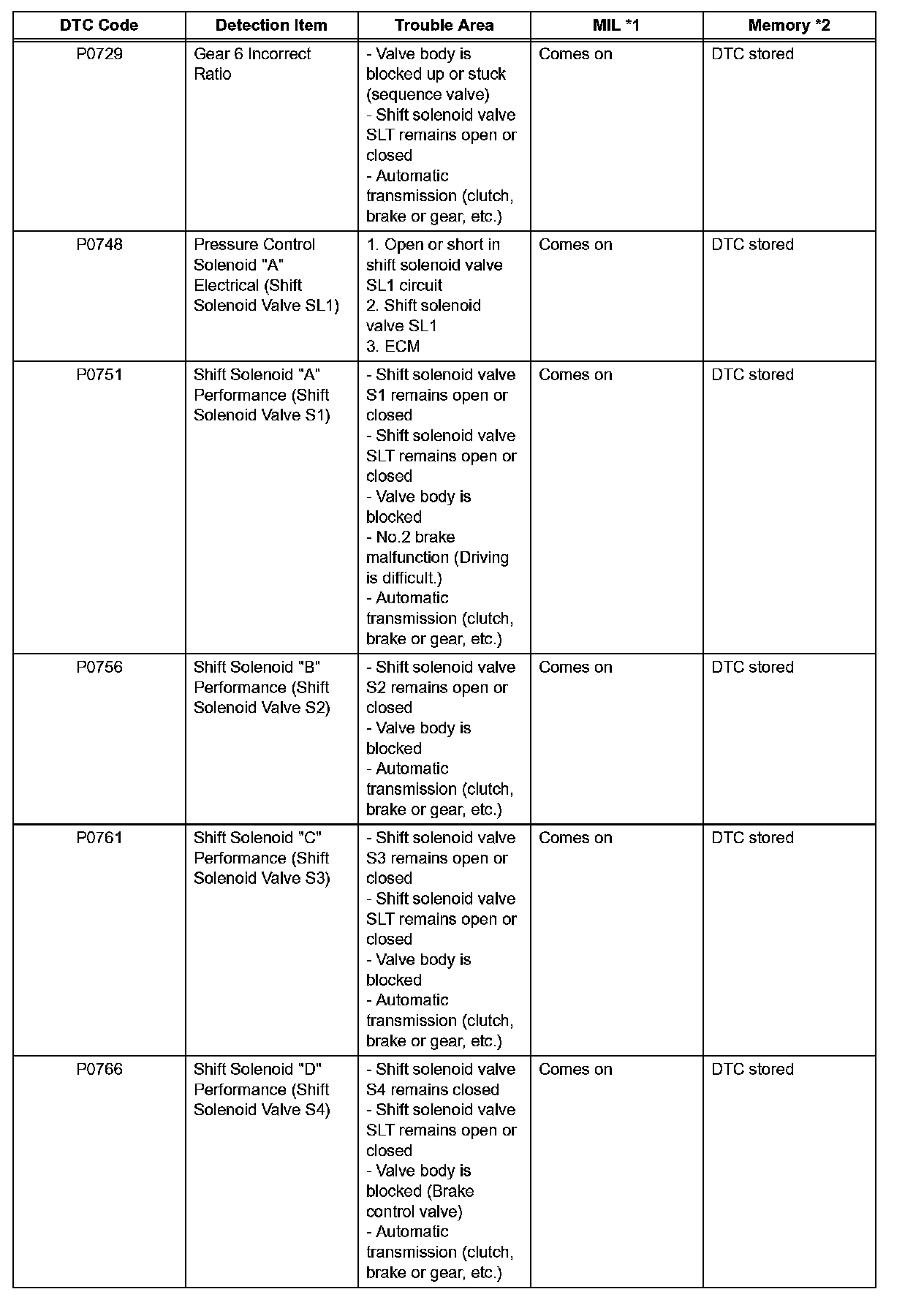

P0729-P0766:

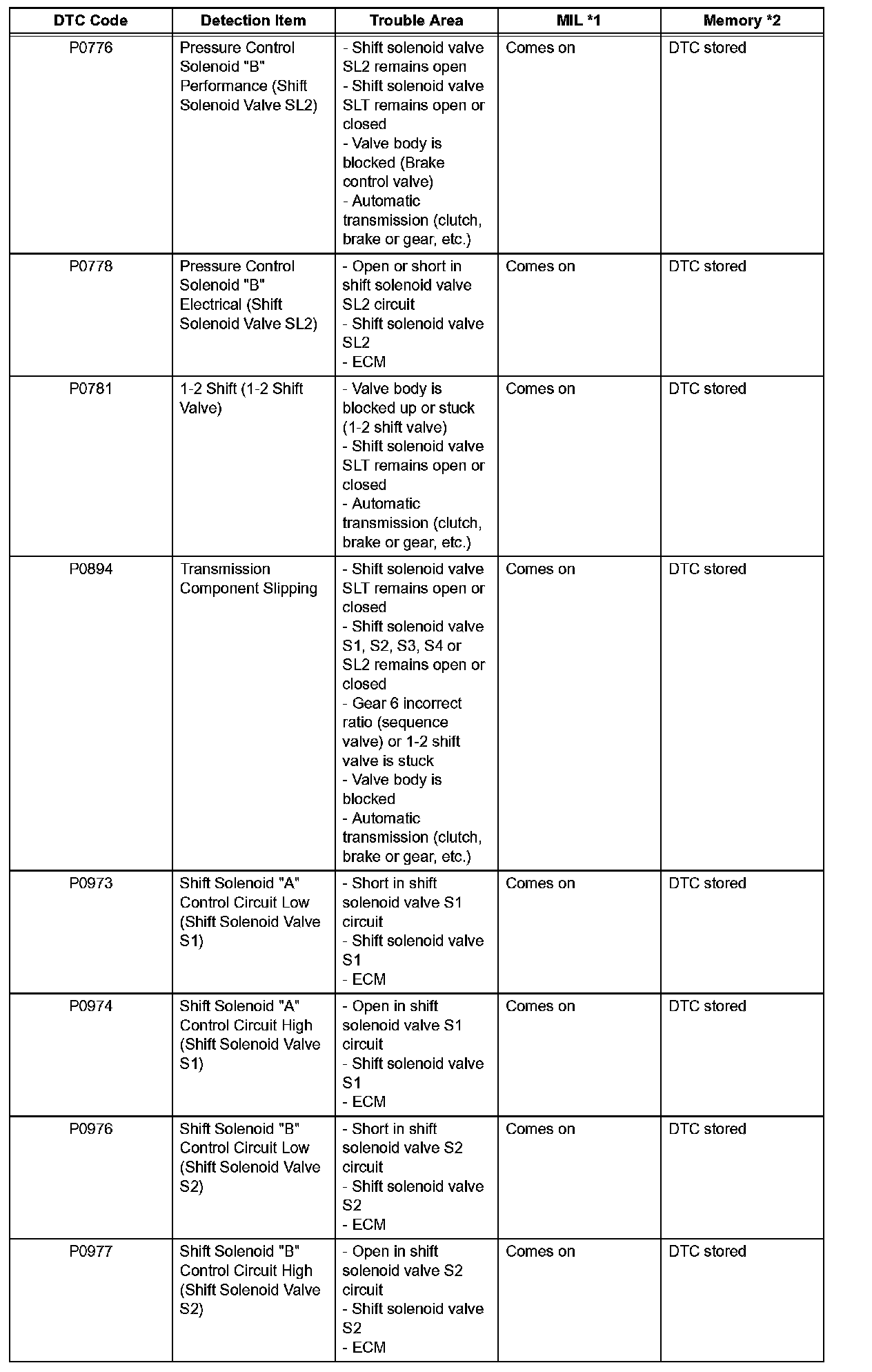

P0776-P0977:

P0979-P2716:

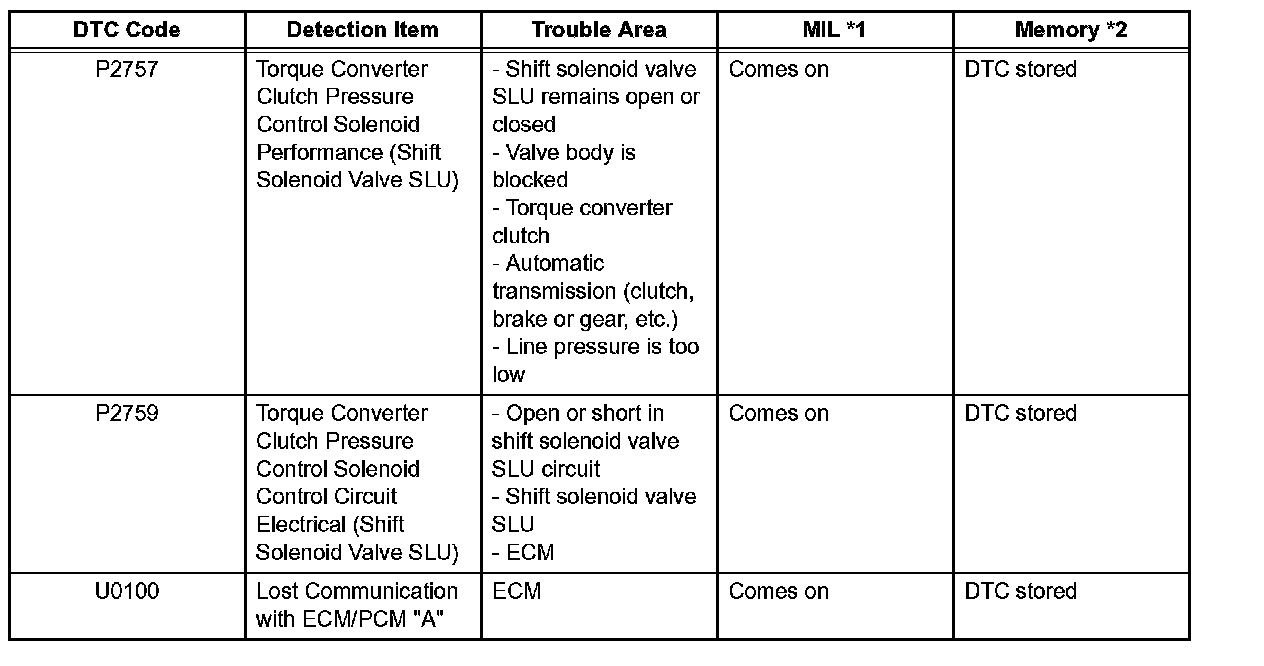

P2757-P2759/U0100:
