C2176

DTC C2176/76 Receiver Error

DESCRIPTION
The signals are transmitted to the tire pressure warning antenna on the body as radio waves and then sent to the tire pressure warning ECU and receiver.

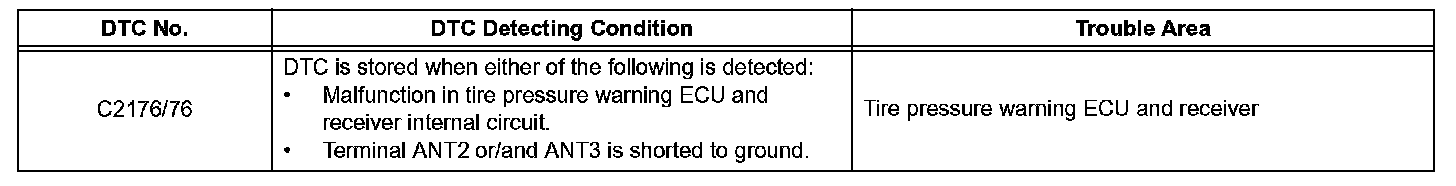

C2176/76:

INSPECTION PROCEDURE

NOTICE:
^ When replacing the tire pressure warning ECU and receiver, read the IDs stored in the ECU using the intelligent tester and note them down before removal.
^ It is necessary to perform initialization after registration of the transmitter IDs into the tire pressure warning ECU after the ECU has been replaced.

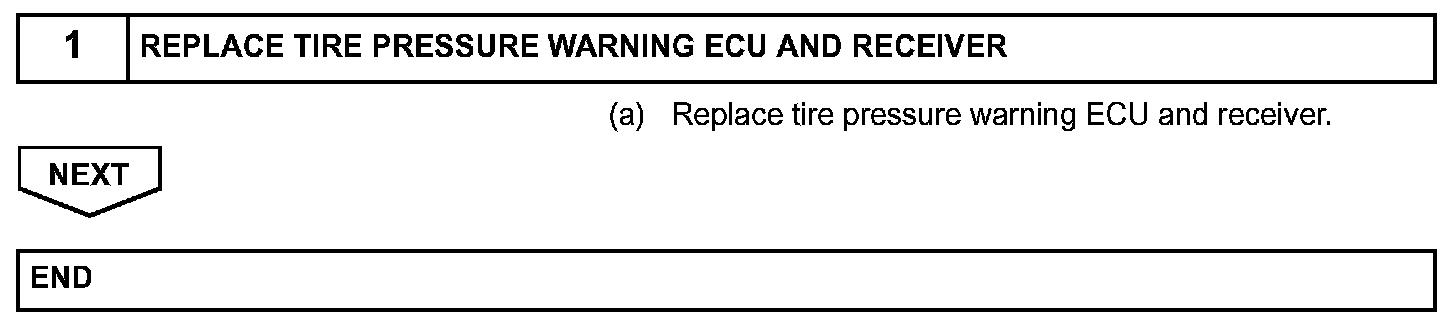

(a) Replace tire pressure warning ECU and receiver. Initialization

Step 1:
