C1552

DTC C1552 PIG Power Supply Voltage Malfunction

DESCRIPTION
This circuit supplies power to drive the power steering motor.

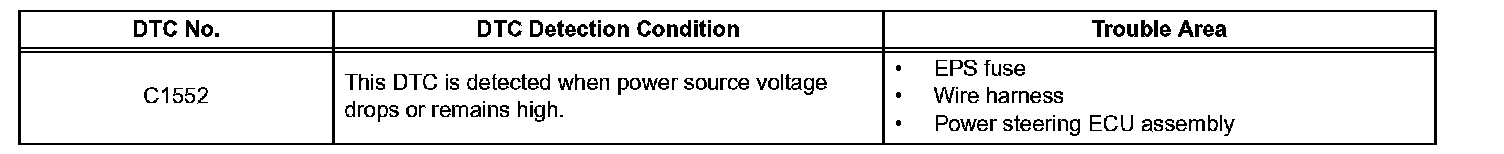

C1552:

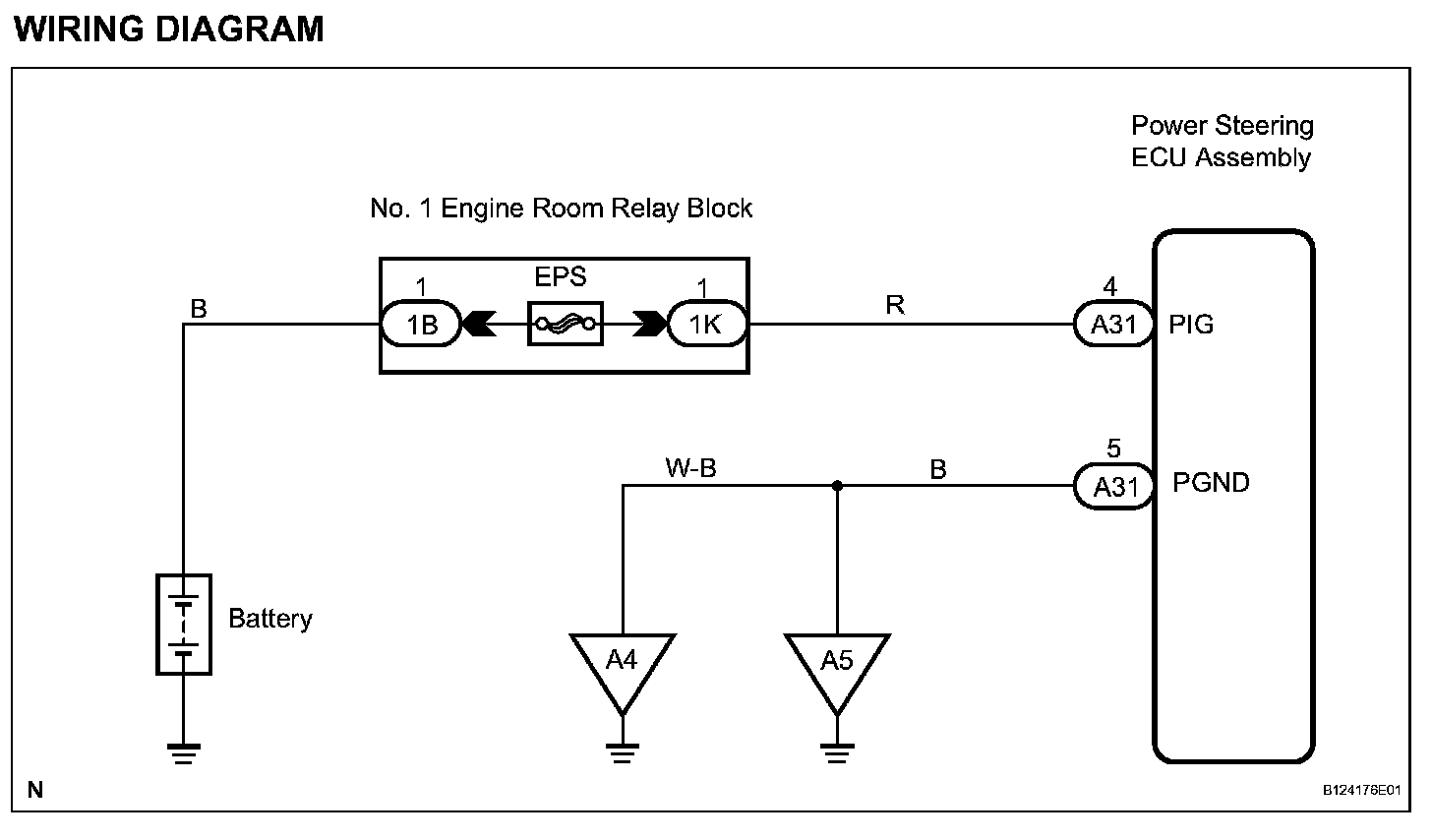

WIRING DIAGRAM:

INSPECTION PROCEDURE

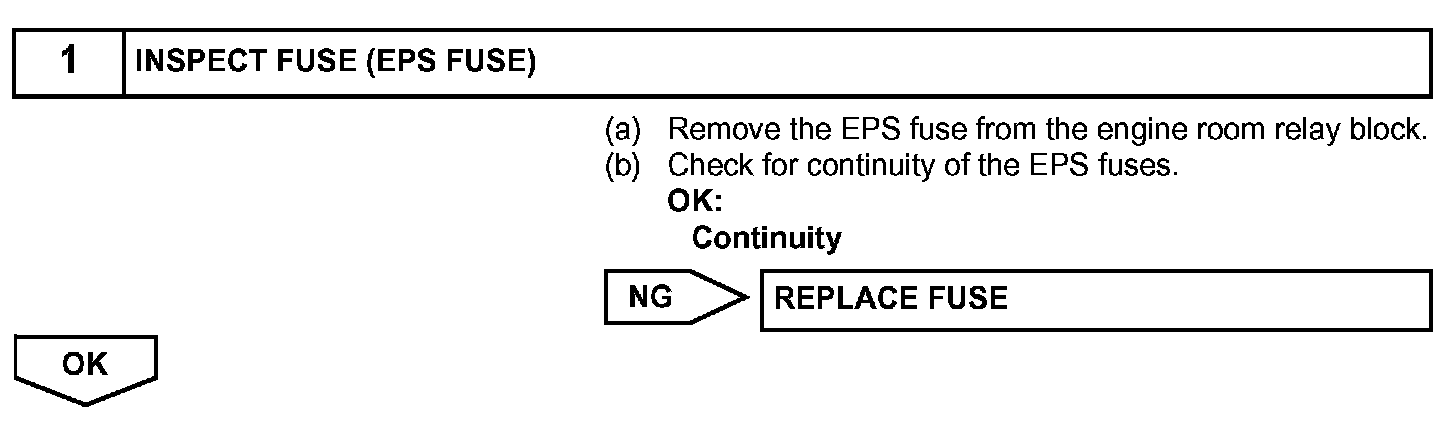

Step 1:

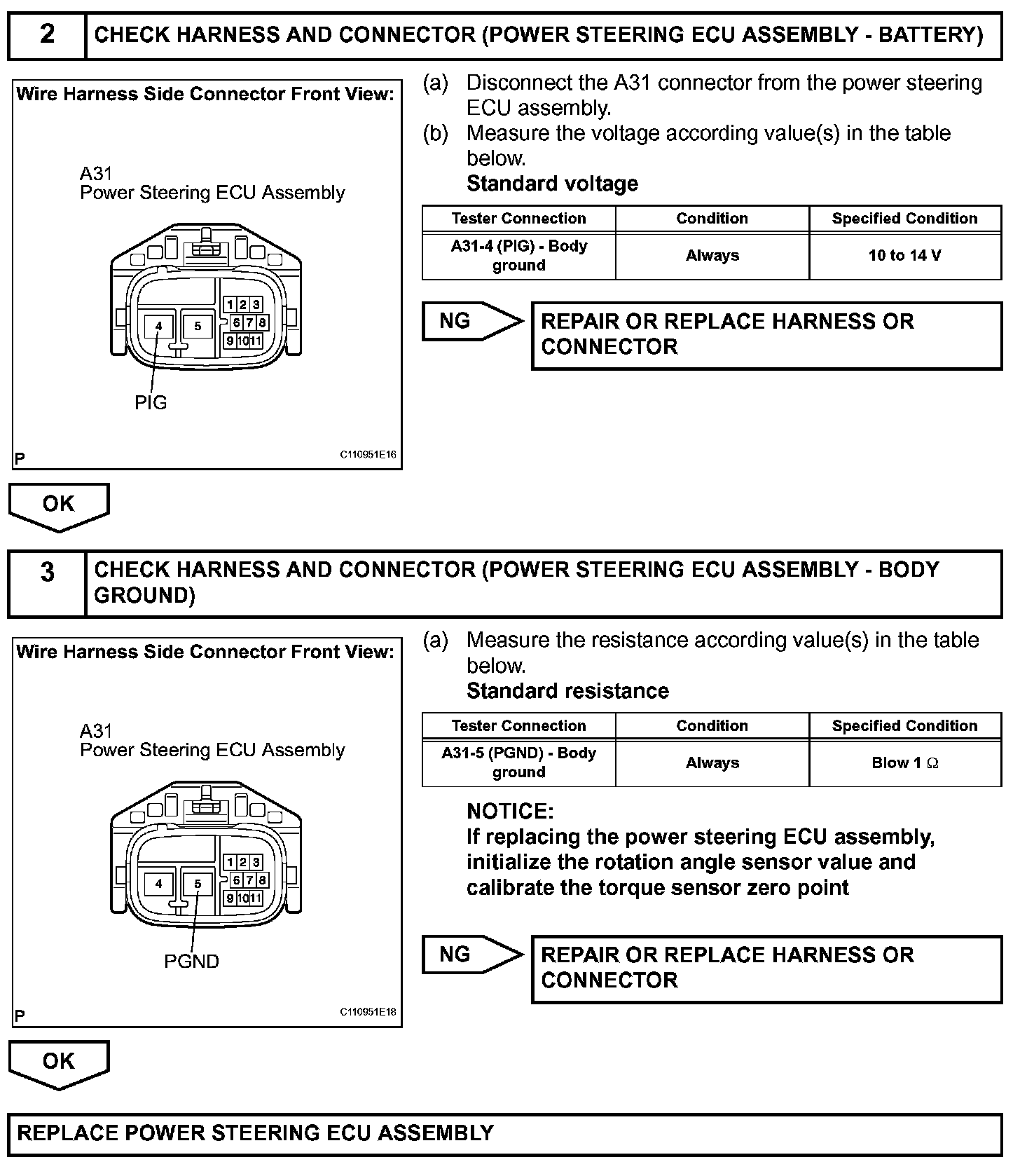

Steps 2-3:
