Vehicle Stability Control System (w/ VDIM)

DTC C1380/64 Stop Light Control Relay Malfunction

DESCRIPTION

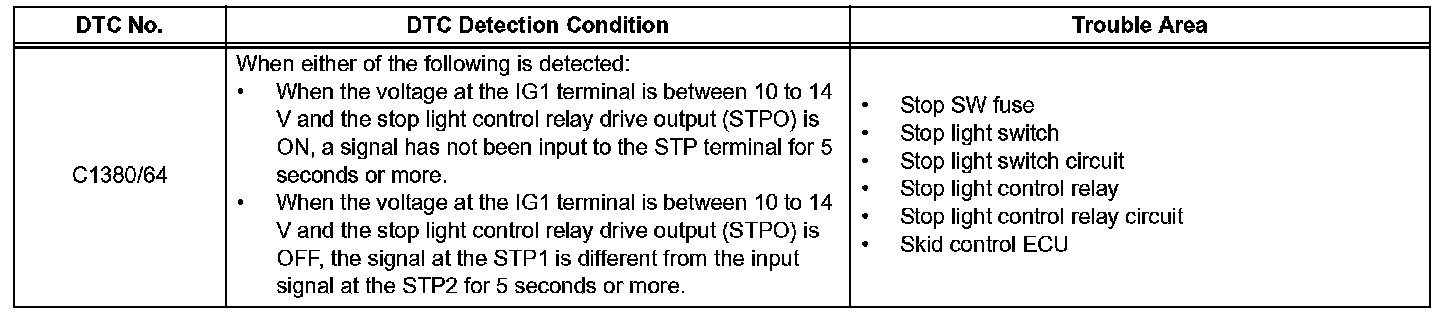

DTC Detection Condition:

Upon receiving the hill-start assist control operating signal from the skid control ECU, the relay contact turns on and the stop light comes on.

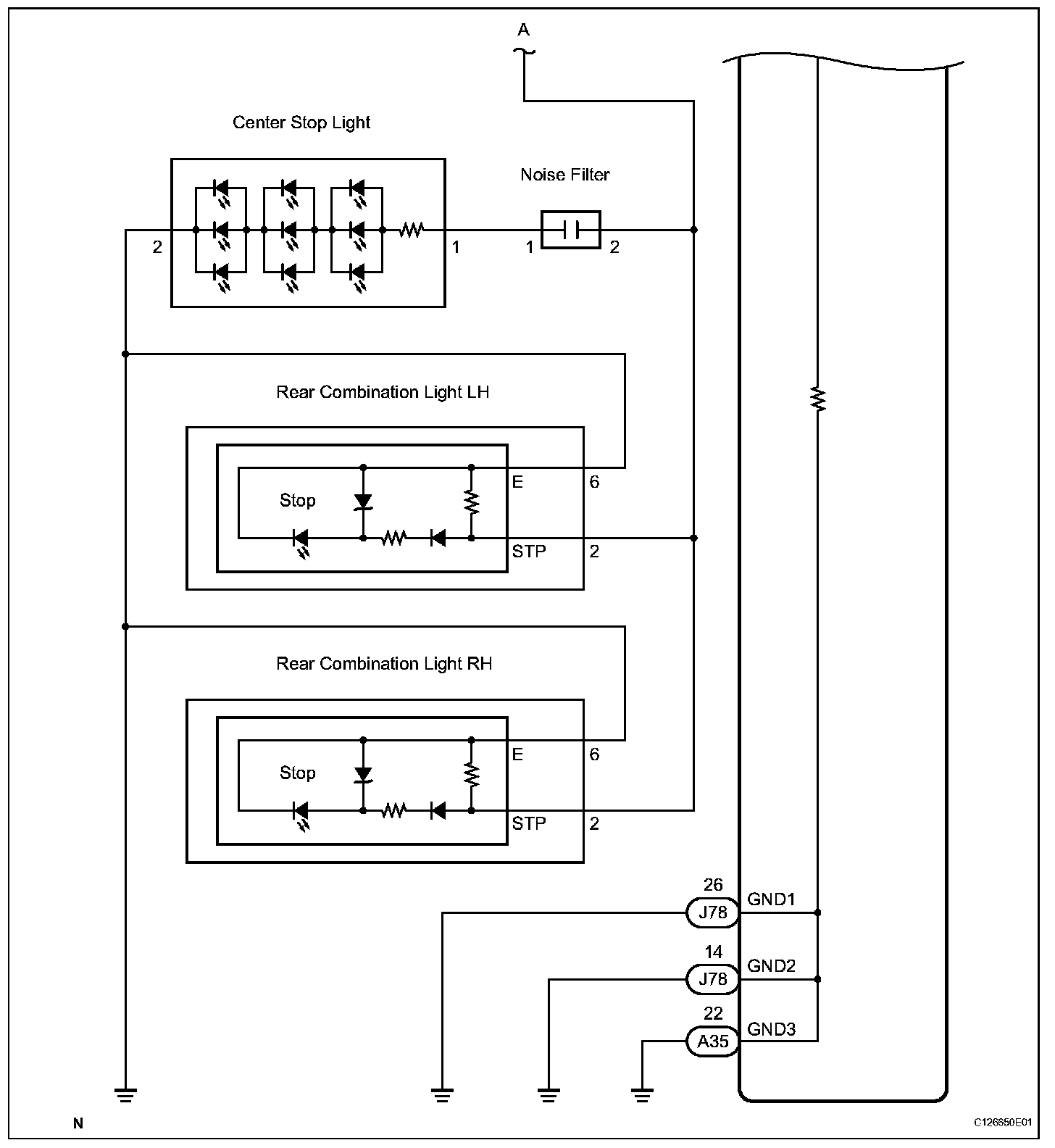

Wiring Diagram (Part 1):

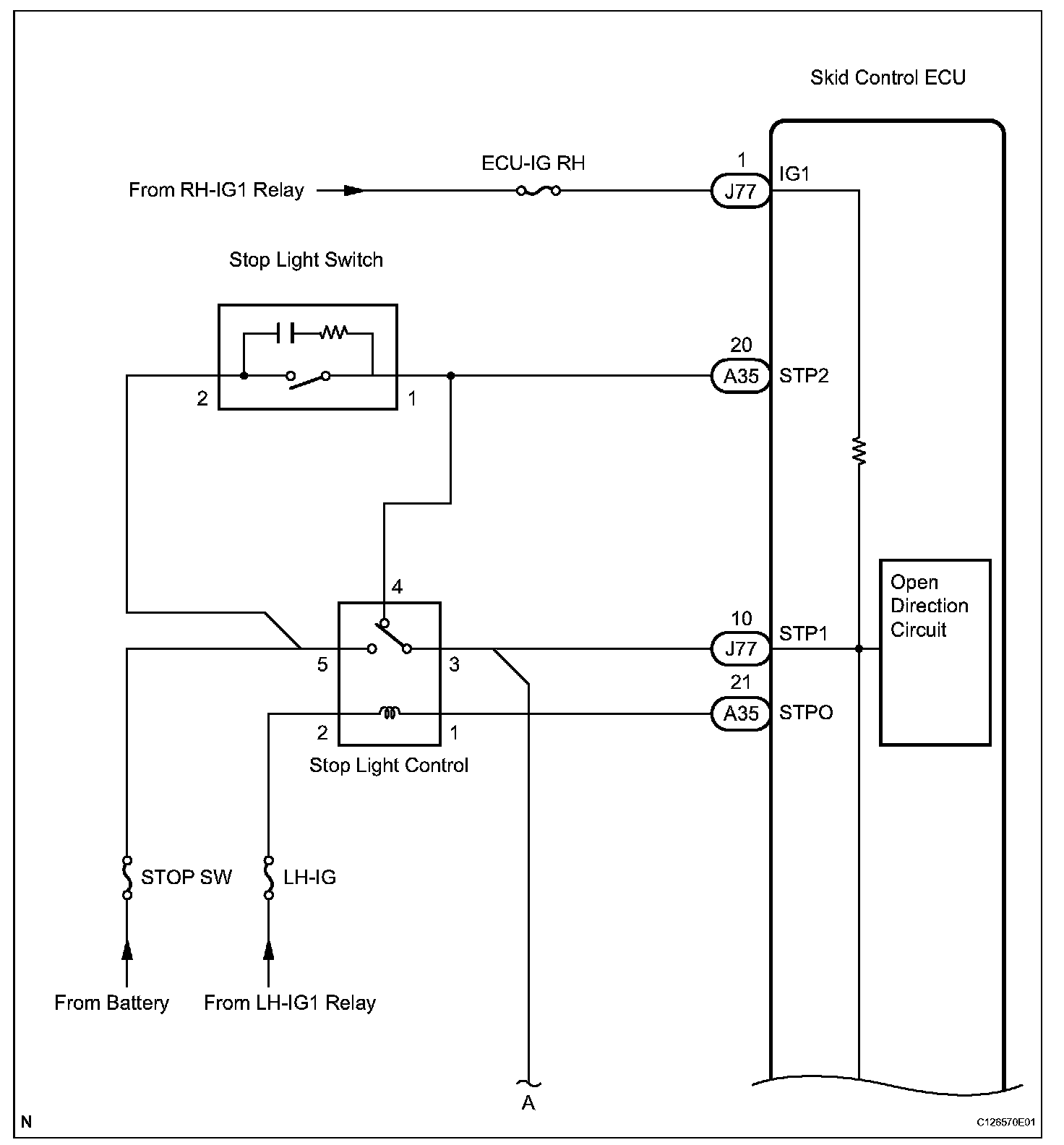

Wiring Diagram (Part 2):

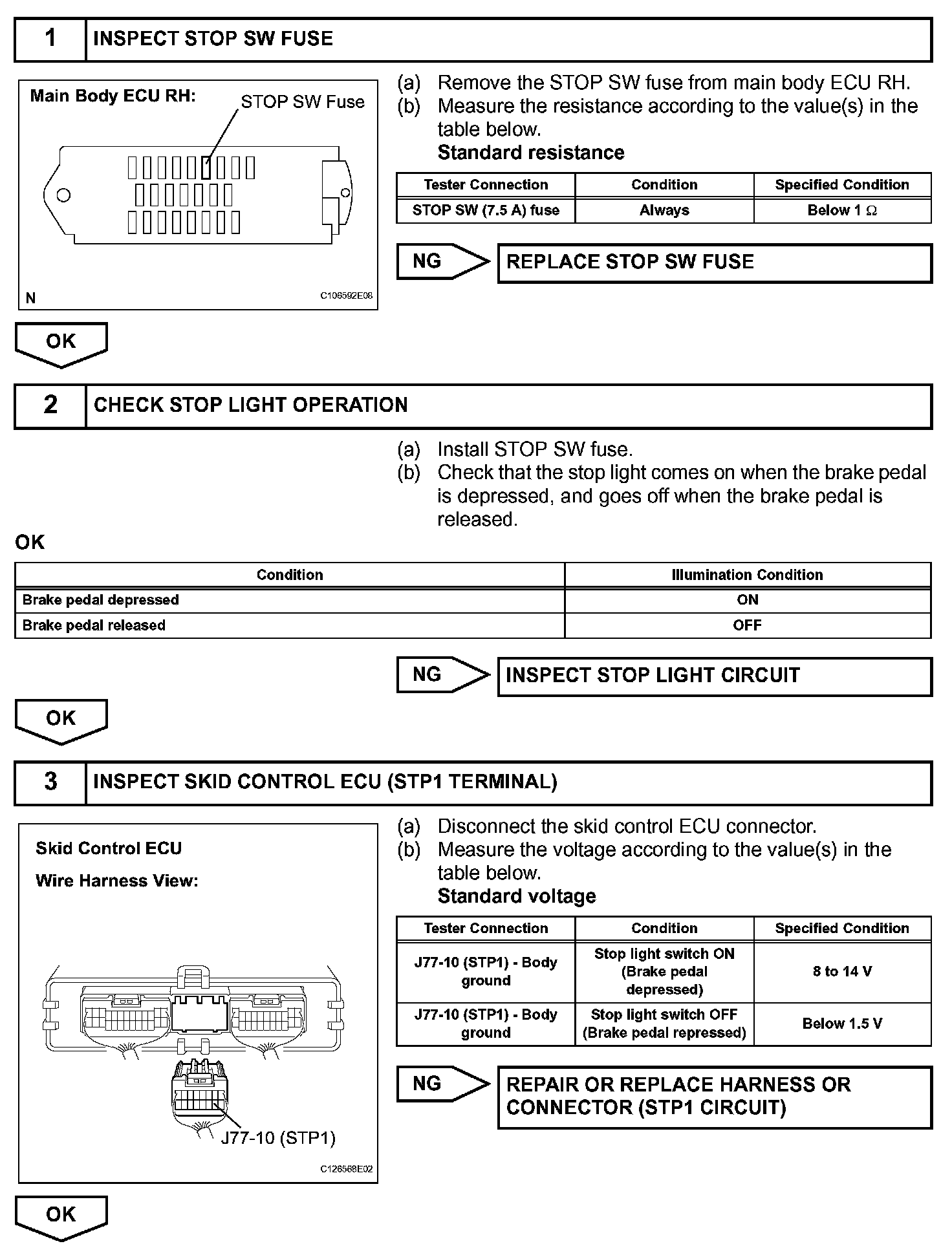

Step 1-3:

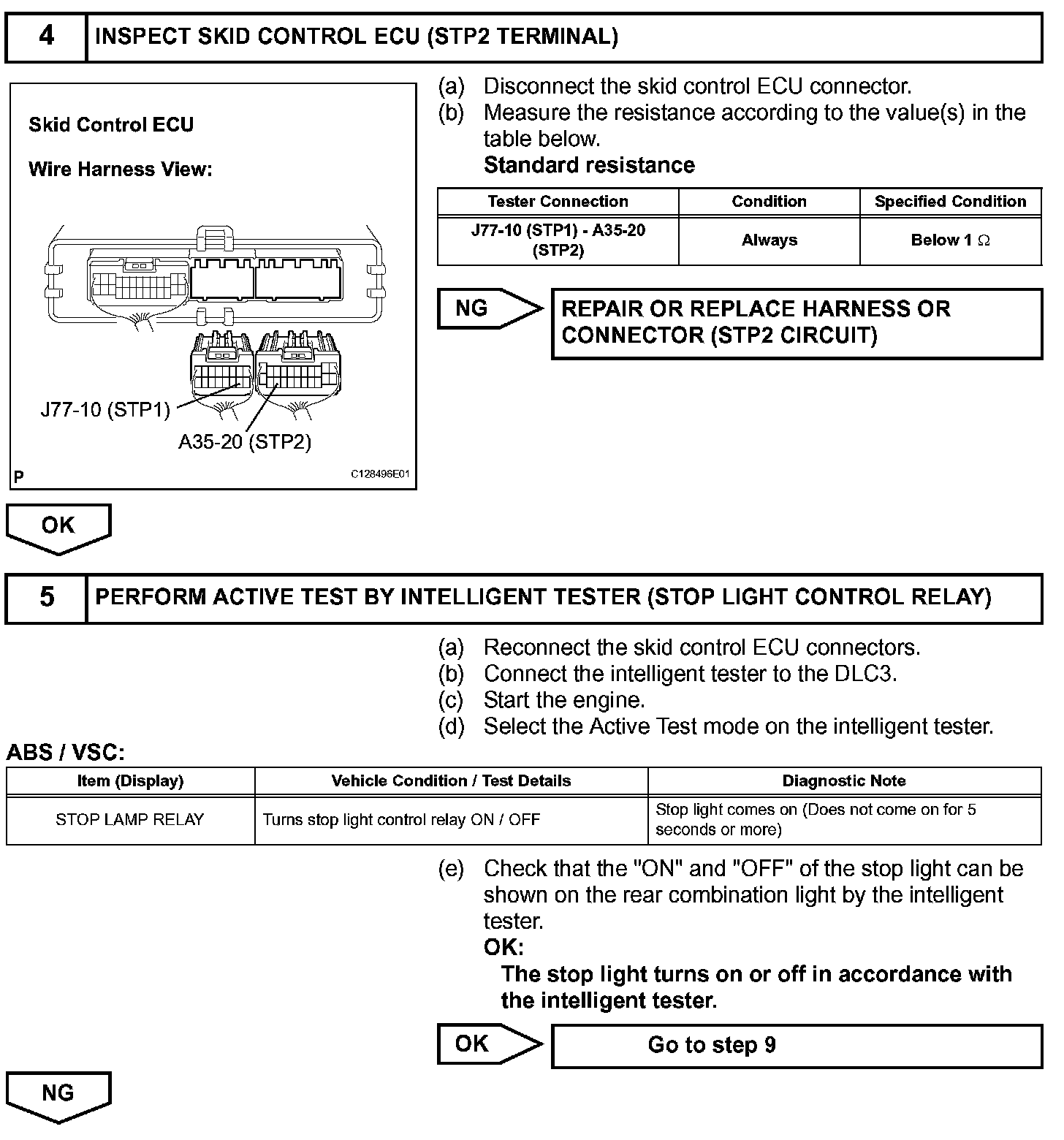

Step 4-5:

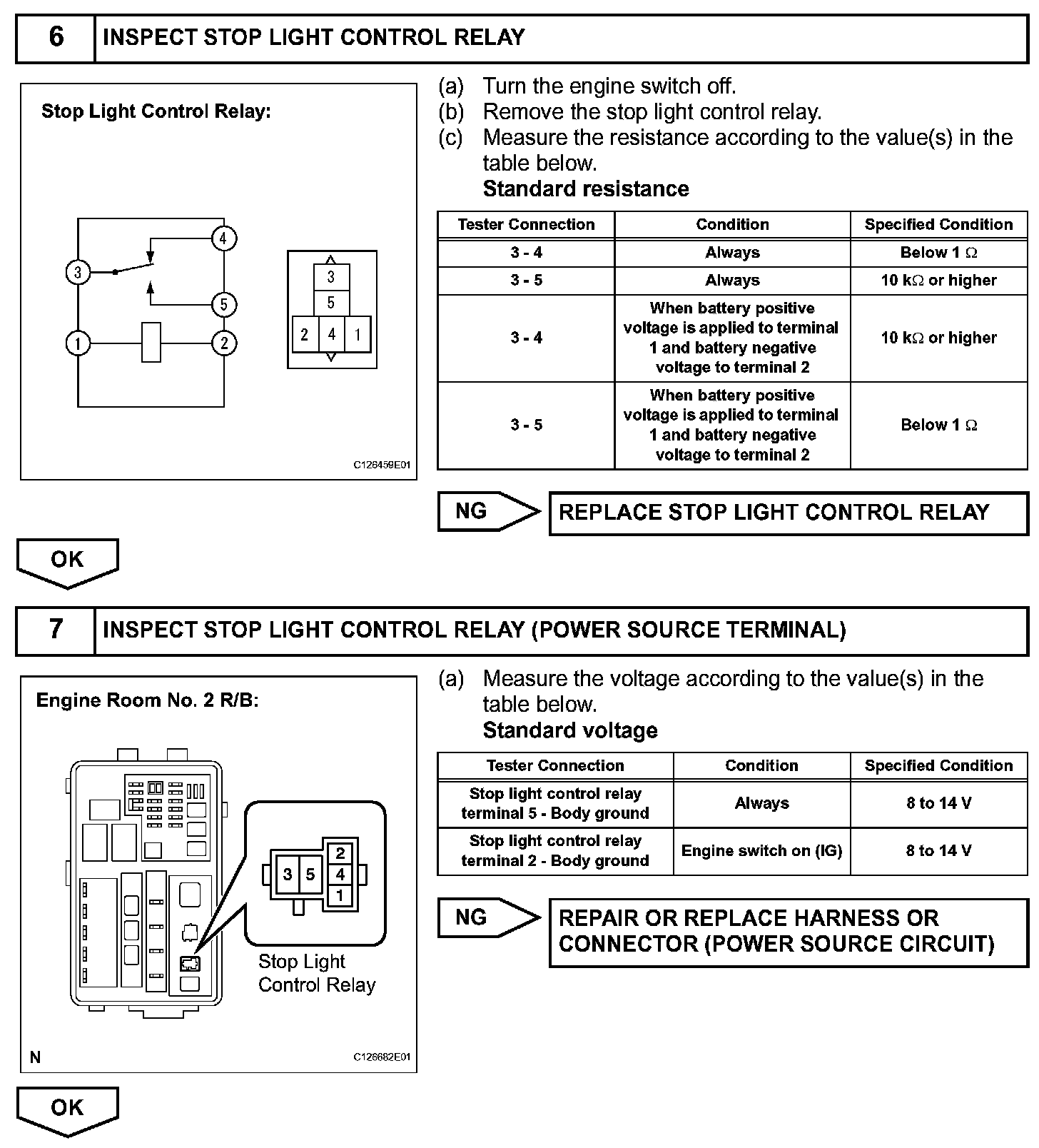

Step 6-7:

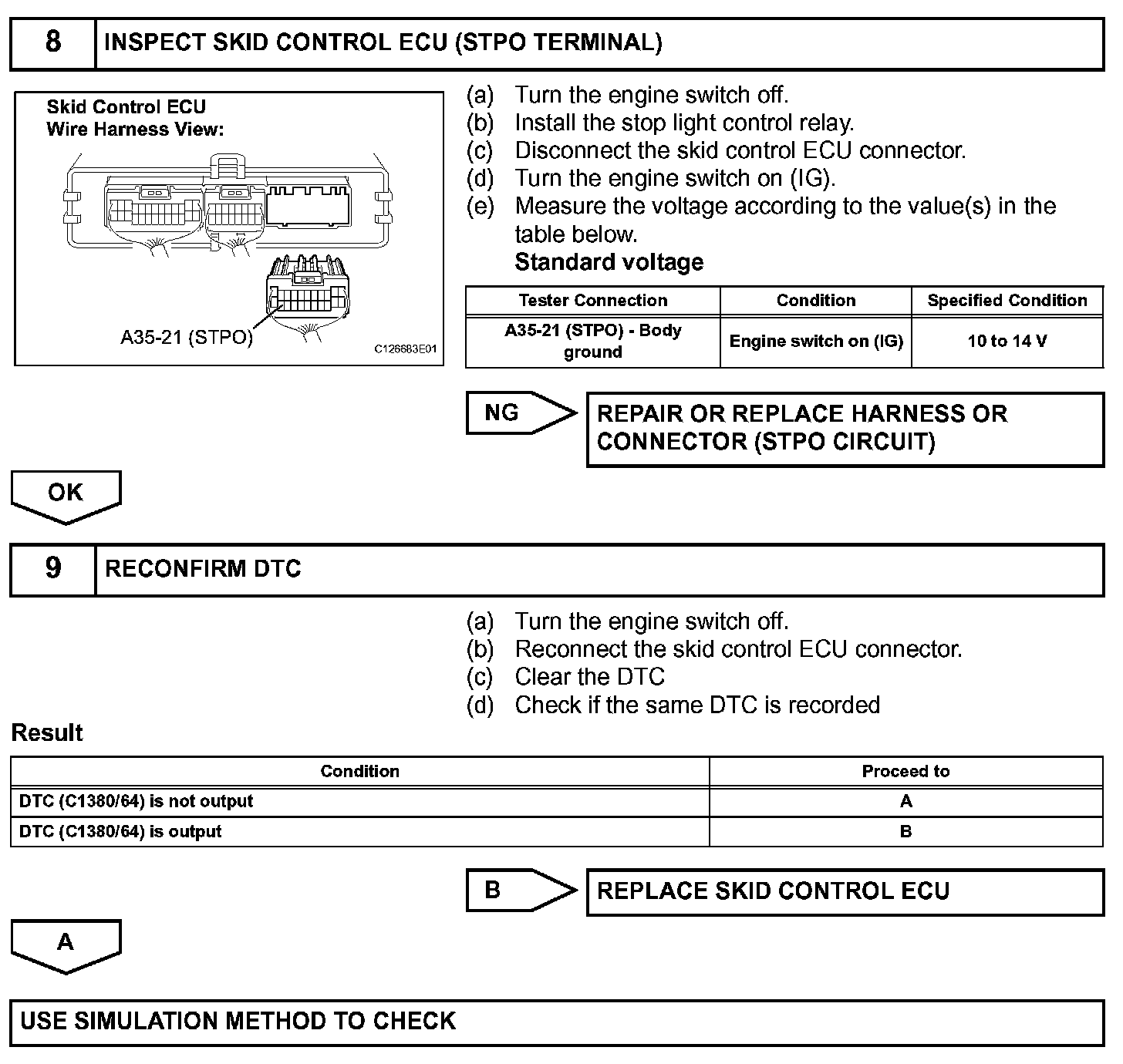

Step 8-9:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)

HINT: When C1249/49 is output together with C1380/64, inspect and repair the trouble areas indicated by C1249/49 first.
