Vehicle Stability Control System (w/o VDIM)

DTC C1281/81 Master Cylinder Pressure Sensor Output Malfunction (Test Mode DTC)

DESCRIPTION

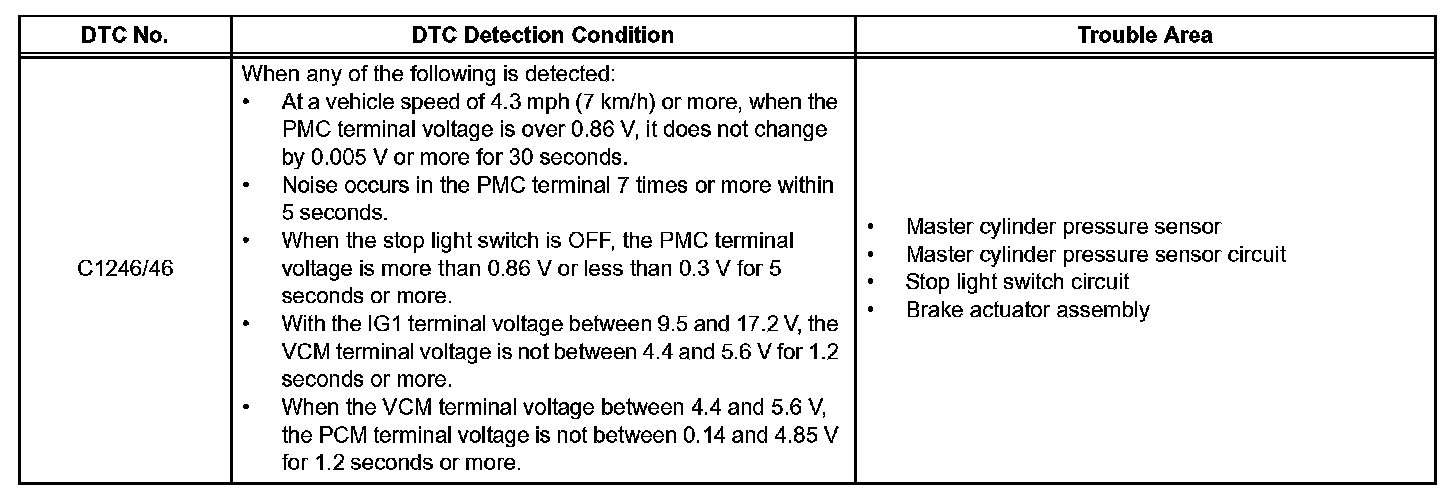

DTC Detection Condition:

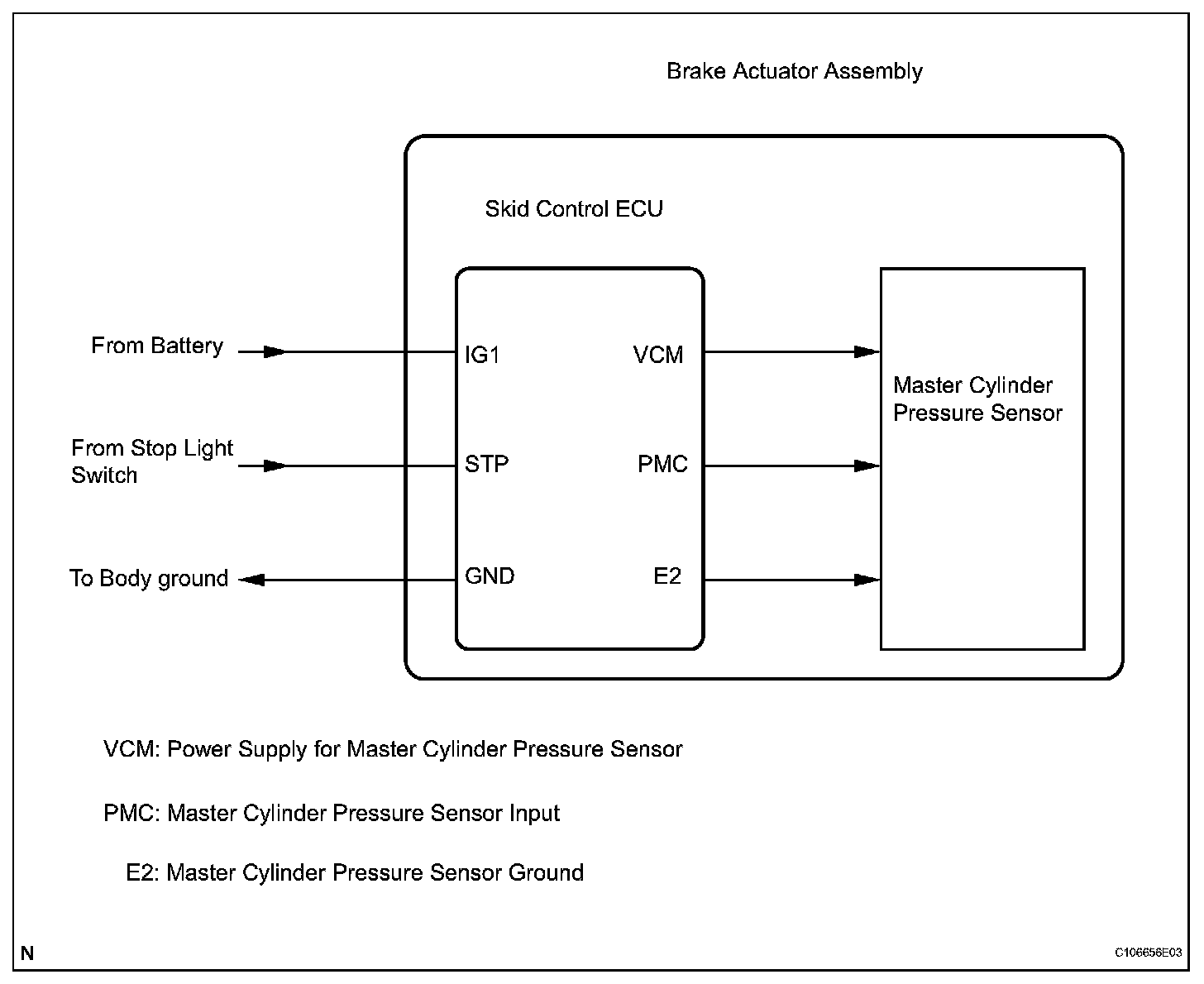

Master cylinder pressure sensor is connected to the skid control ECU in the brake actuator assembly. DTC C1281/81 can be deleted when the master cylinder pressure sensor sends a master cylinder pressure signal or the Test Mode ends. DTC C1281/81 is output only in the Test Mode.

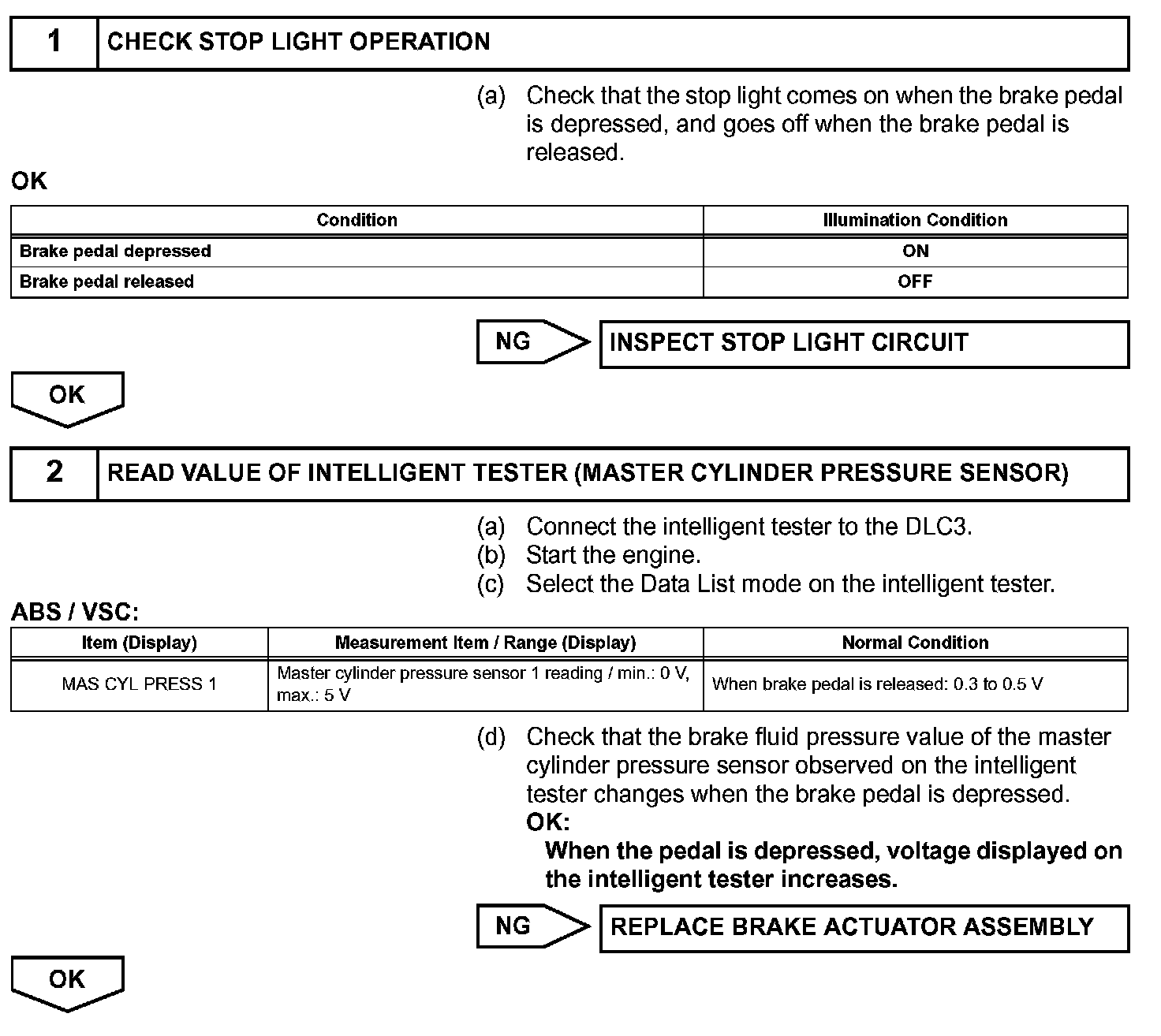

Step 1-2:

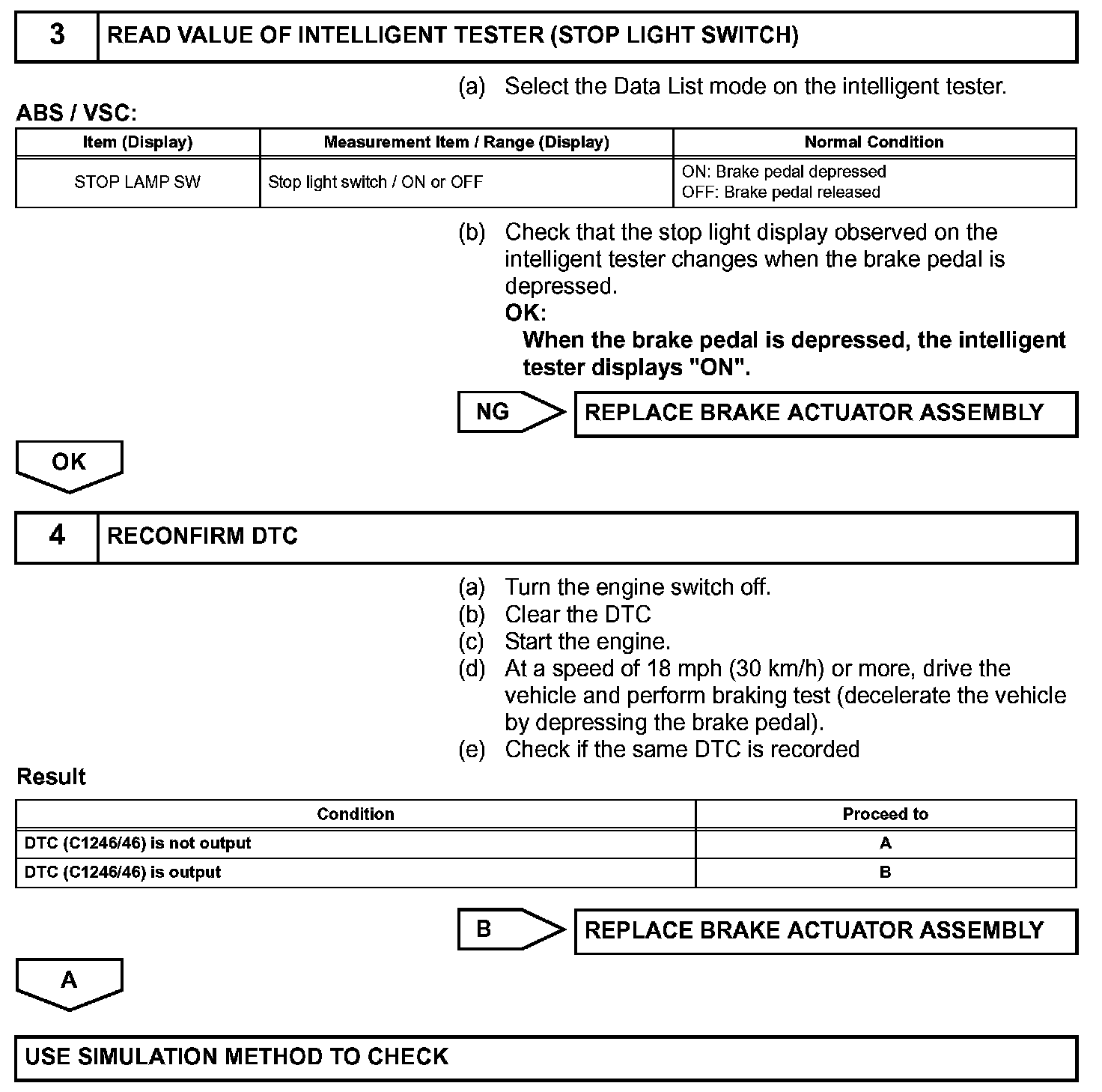

Step 3-4:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
