Vehicle Stability Control System (w/o VDIM)

DTC C1251/51 Open in Pump Motor Circuit

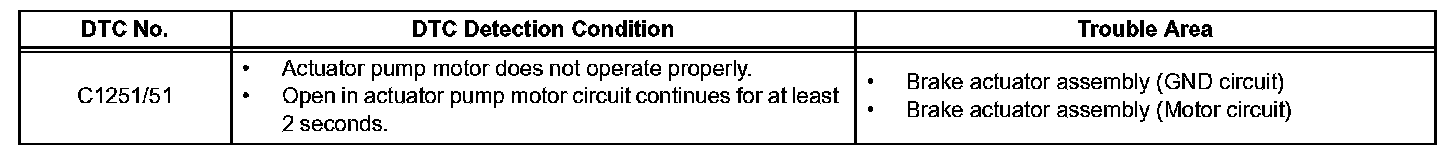

DTC Detection Condition:

DESCRIPTION

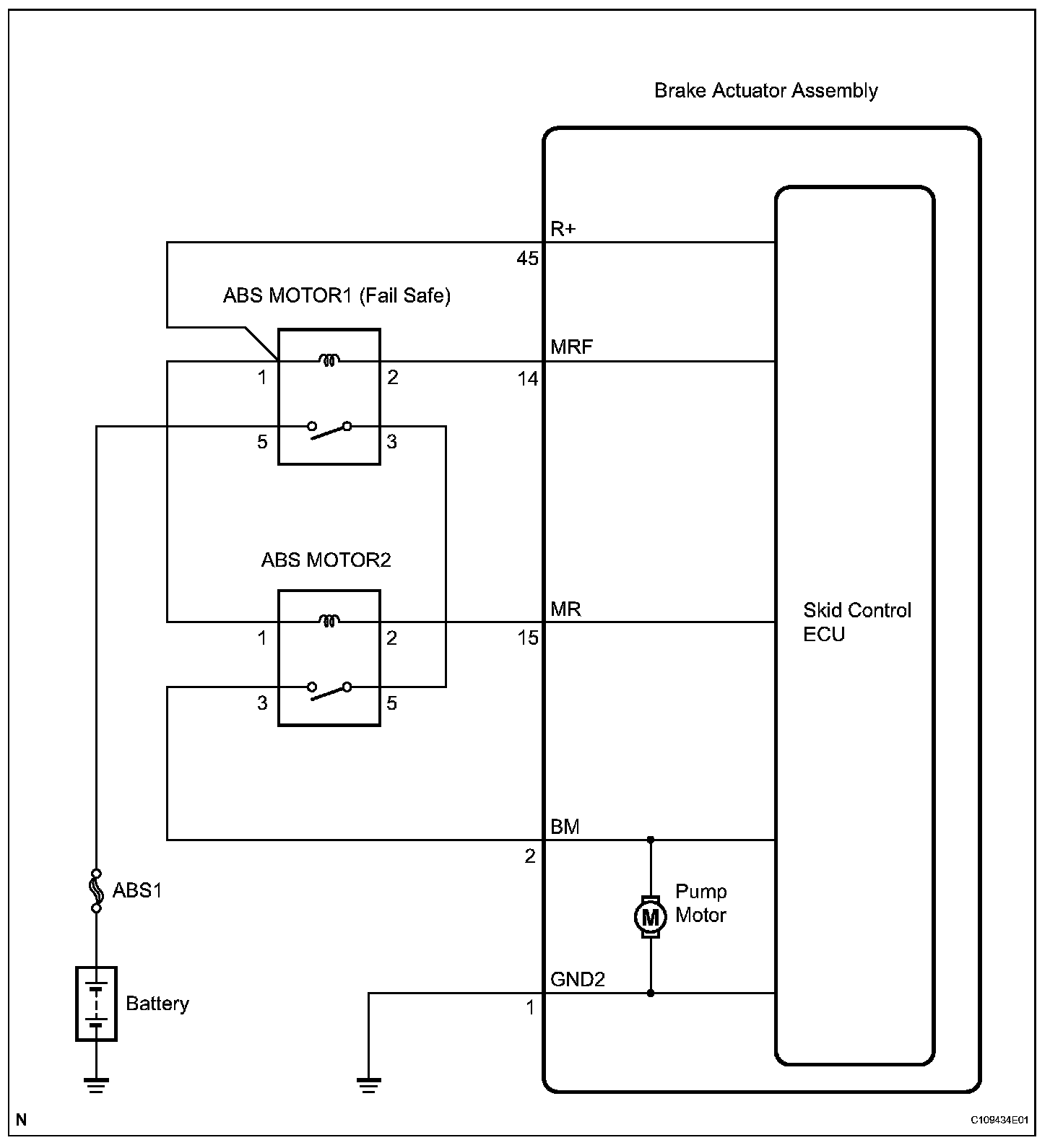

Wiring Diagram:

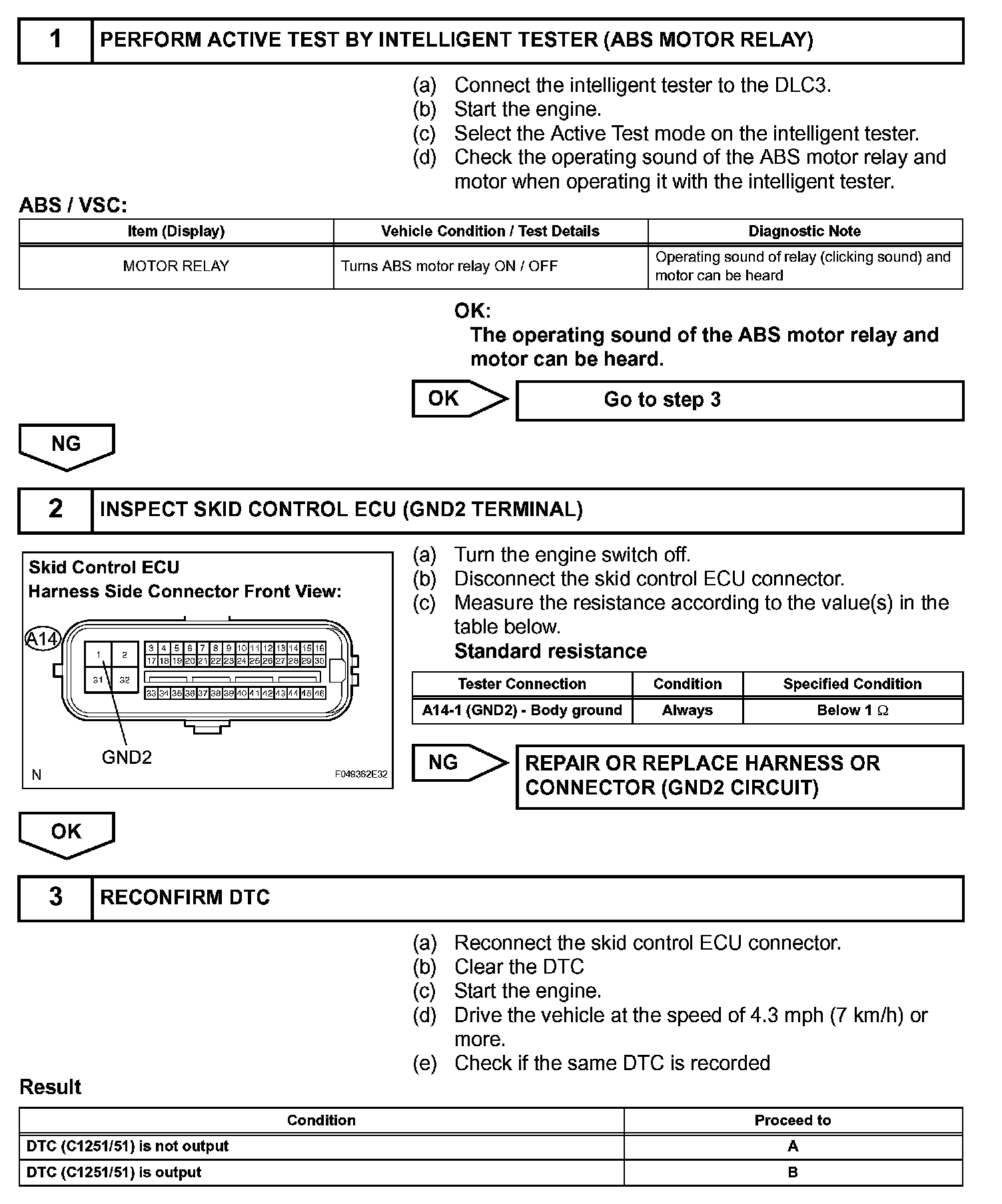

Step 1-3:

Step 3(Continued):

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
