Vehicle Stability Control System (w/ VDIM)

DTC C1251/51 Open in Pump Motor Circuit

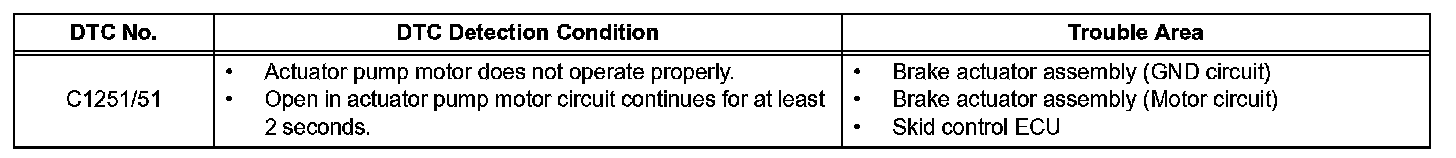

DTC Detection Condition:

DESCRIPTION

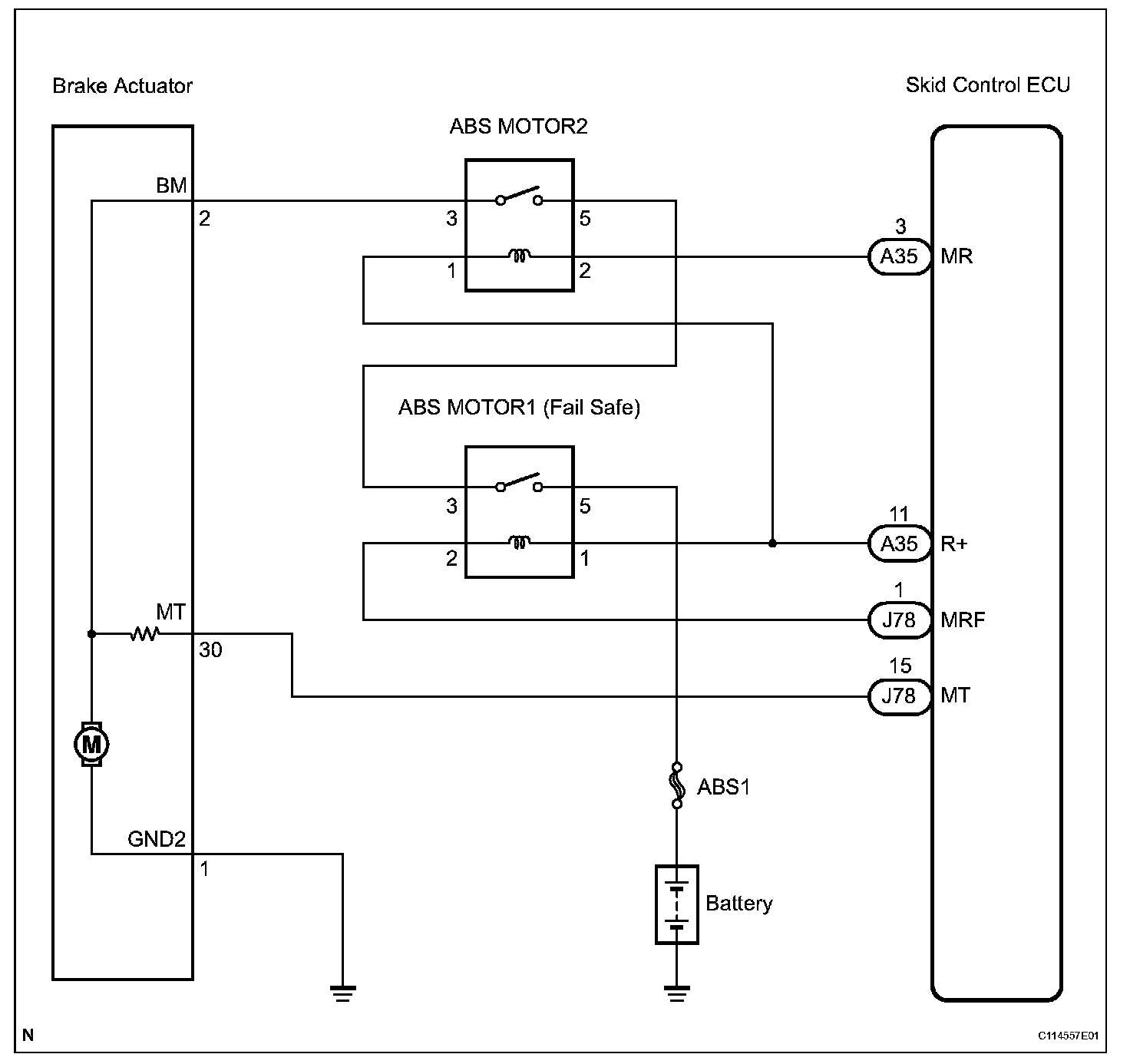

Wiring Diagram:

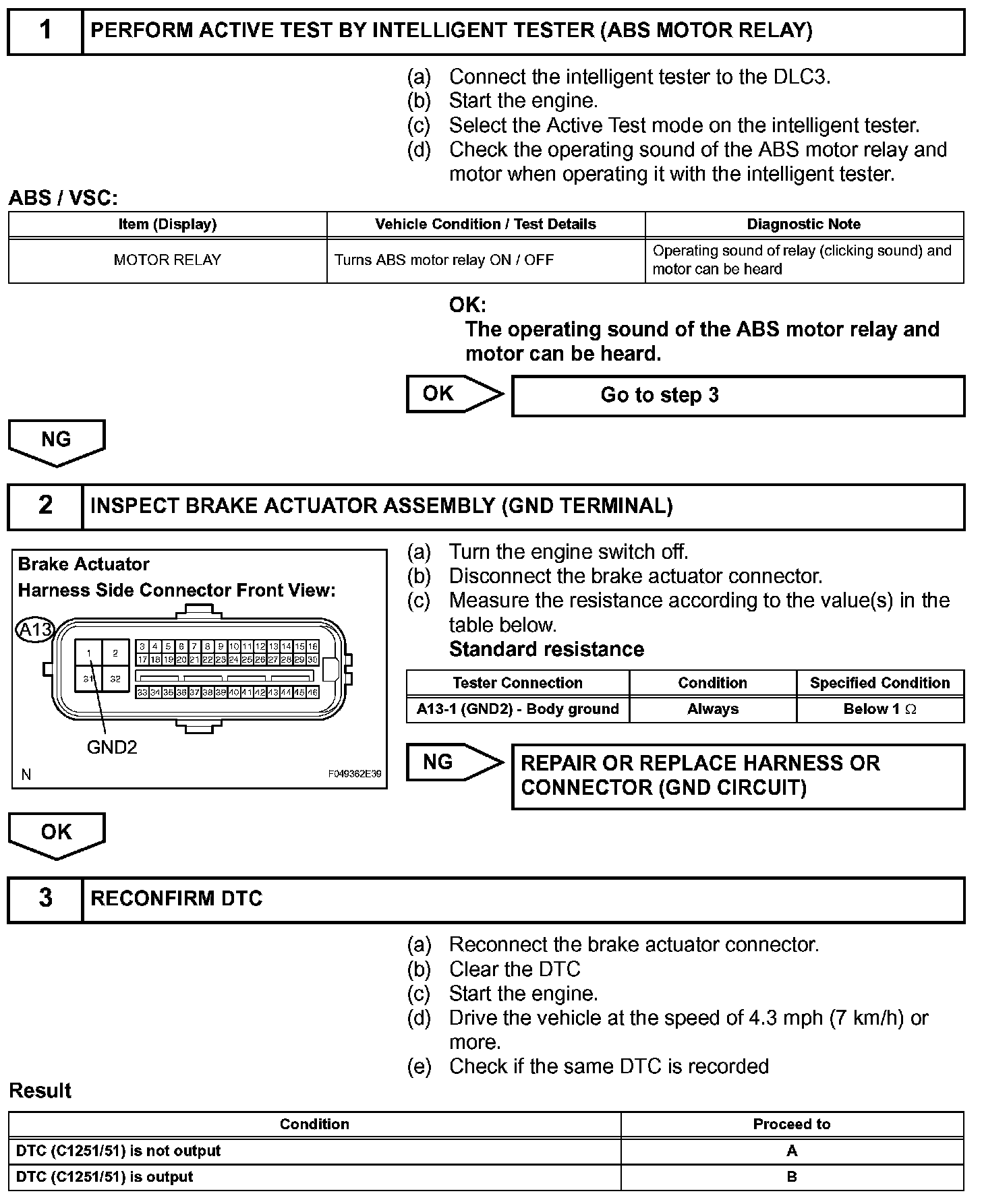

Step 1-3:

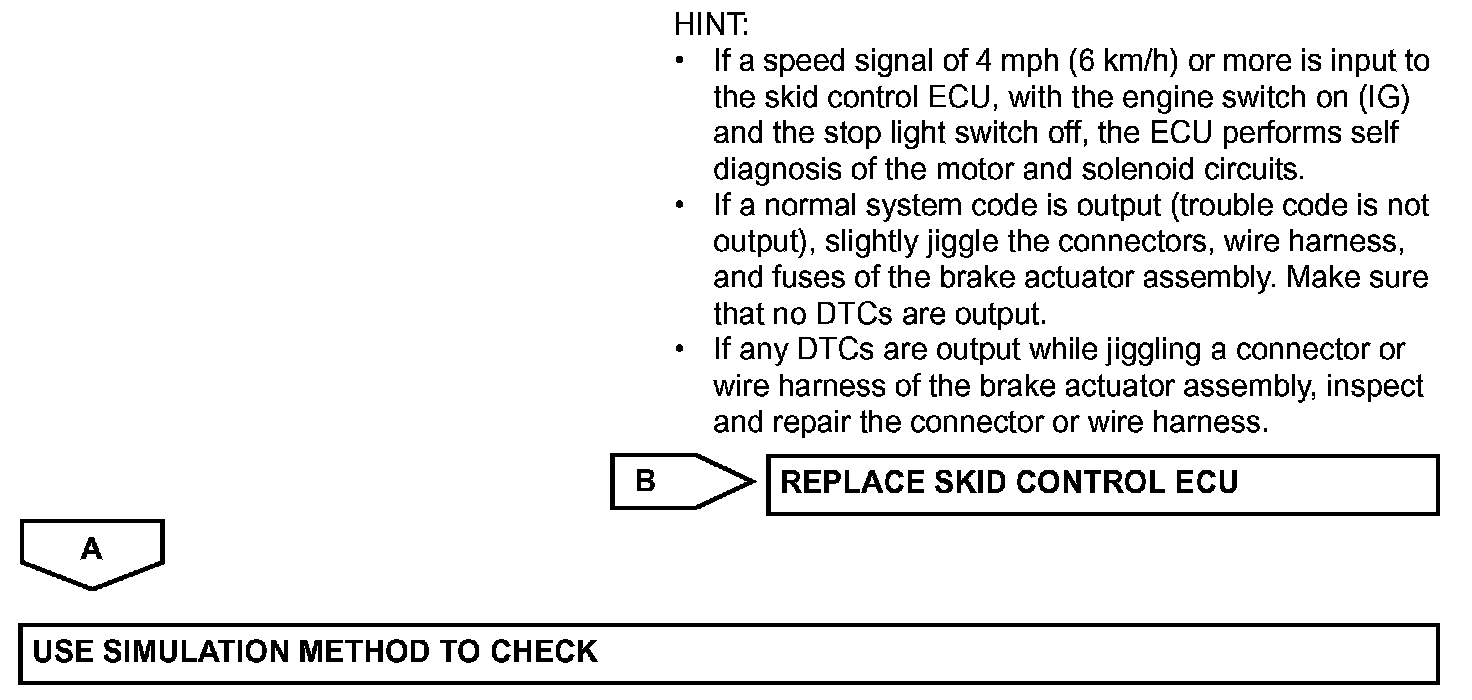

Step 3(Continued):

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)

HINT: When C0273/13, C0274/14 or C1361/91 is output together with C1251/51, inspect and repair the trouble areas indicated by C0273/13, C0274/14 or C1361/91 first.
