Vehicle Stability Control System (w/ VDIM)

DTC C1246/46 Master Cylinder Pressure Sensor Malfunction

DESCRIPTION

DTC Detection Condition:

The master cylinder pressure sensor is built into the brake actuator assembly.

DTC C1281/81 can be deleted when the master cylinder pressure sensor sends a master cylinder pressure signal or the Test Mode ends. DTC C1281/81 is output only in the Test Mode.

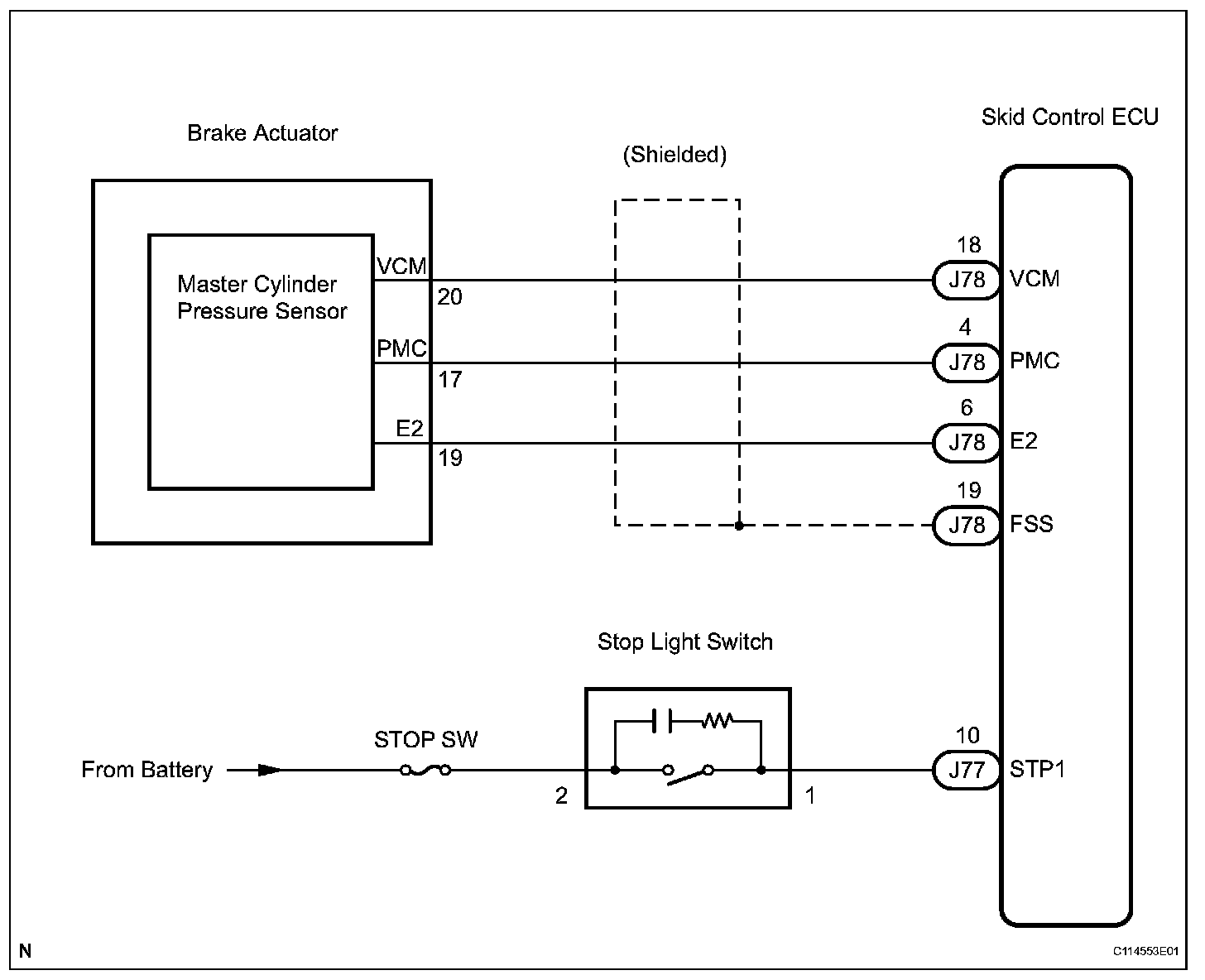

Wiring Diagram:

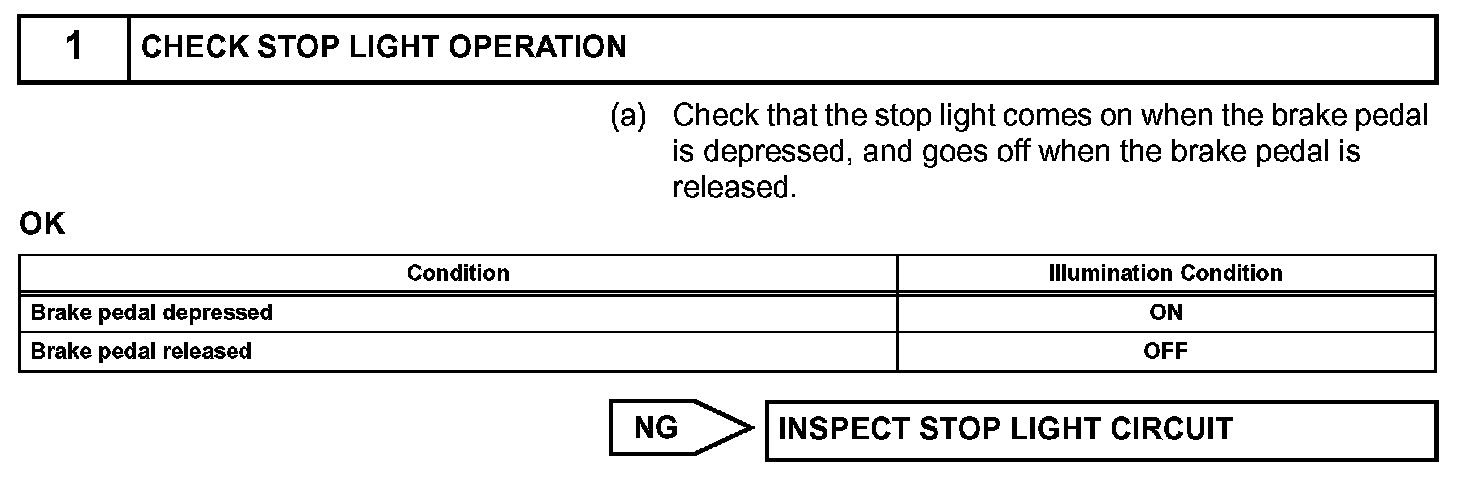

Step 1:

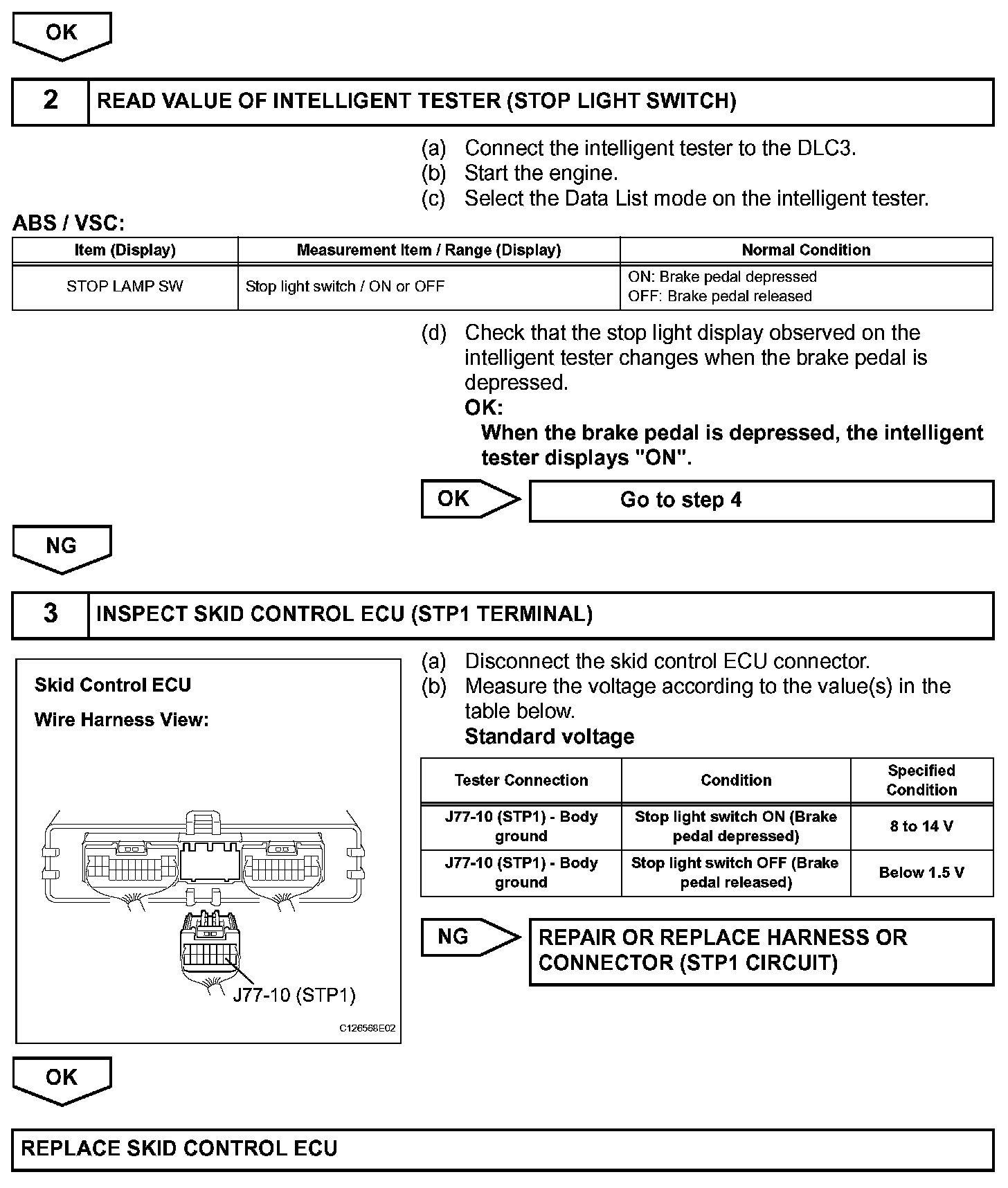

Step 1(Continued)-3:

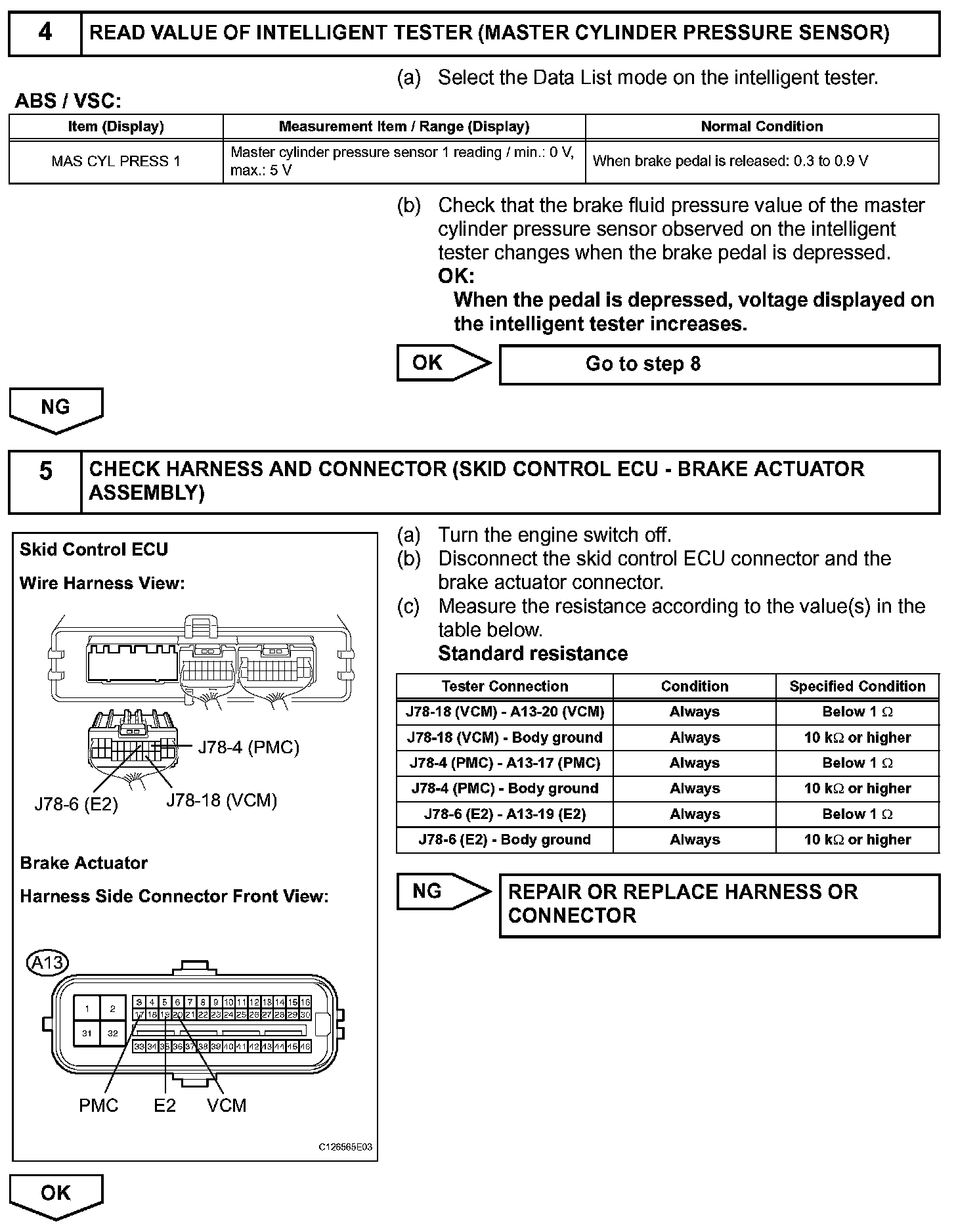

Step 4-5:

Step 6-8:

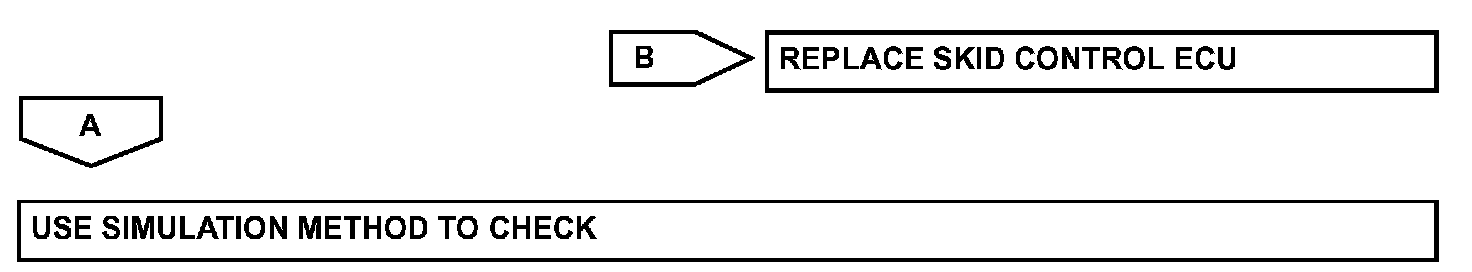

Step 8(Continued):

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)
