Vehicle Stability Control System (w/o VDIM)

DTC C1241/41 Low Battery Positive Voltage

DESCRIPTION

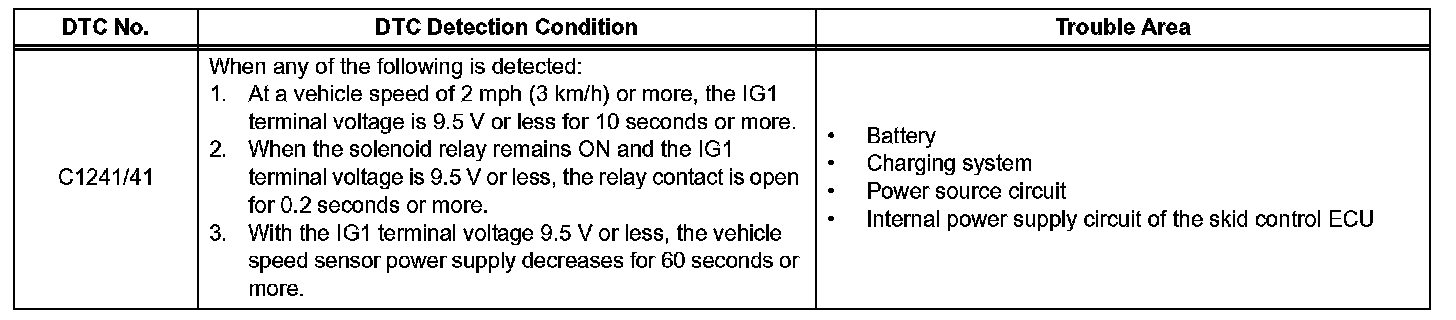

DTC Detection Condition:

If a malfunction is detected in the power supply circuit, the skid control ECU (housed in the actuator assembly) outputs the DTC and prohibits operation with the fail safe function.

This DTC is stored when the IG1 terminal voltage deviates from the DTC detecting condition due to a malfunction in the power supply or charging circuit such as the battery or alternator circuit, etc. The DTC is cancelled when the IG1 terminal voltage returns to normal.

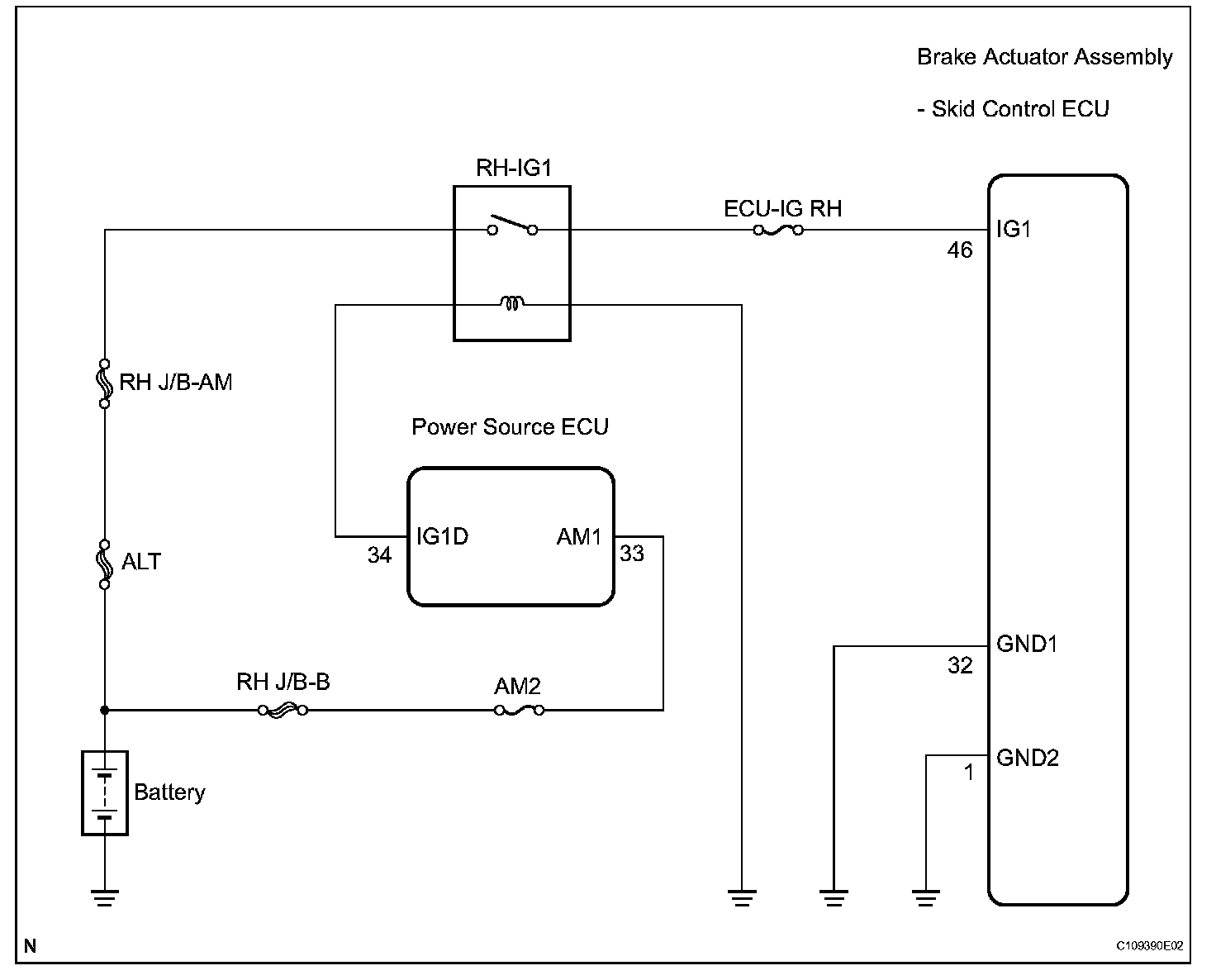

Wiring Diagram:

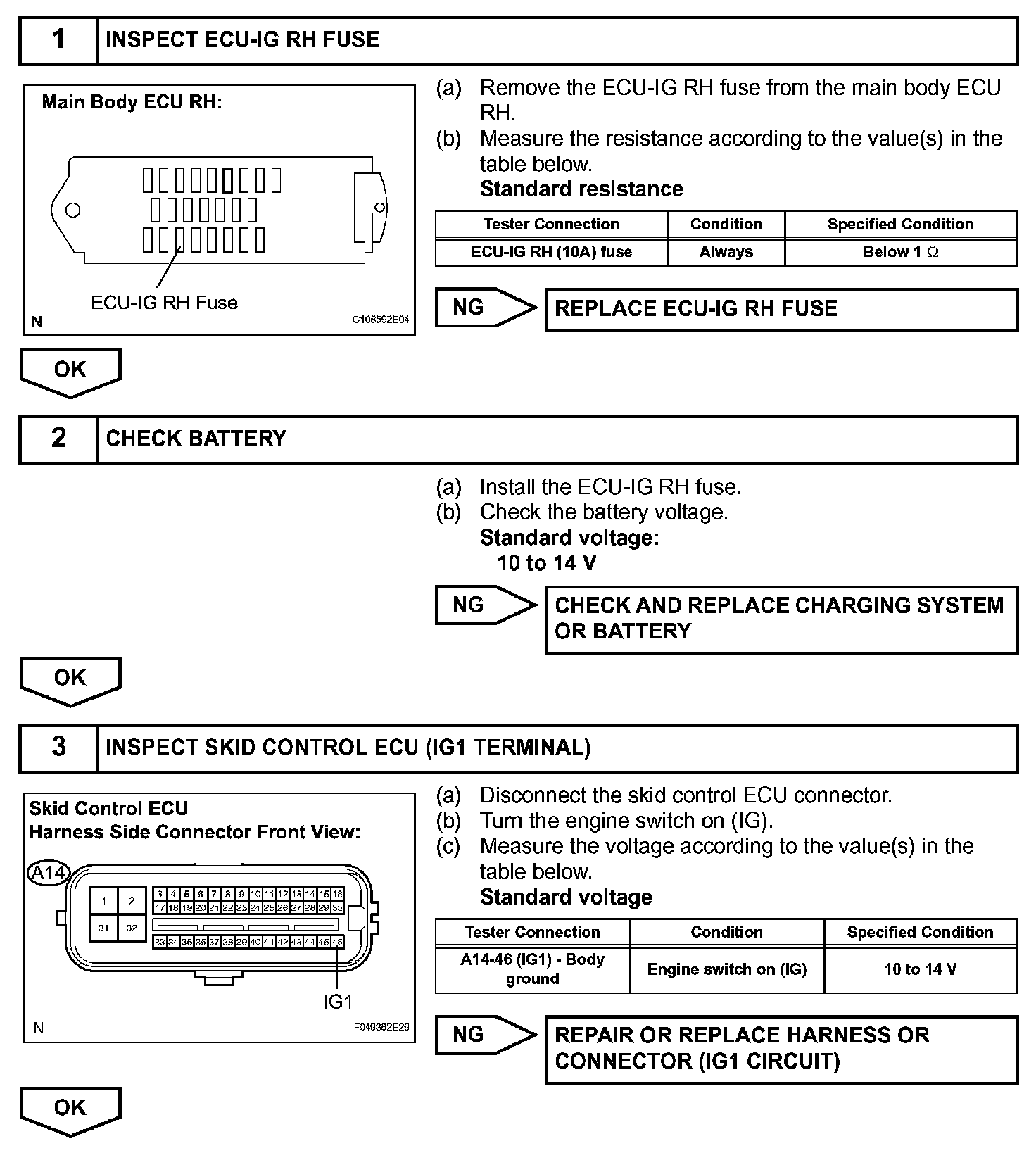

Step 1-3:

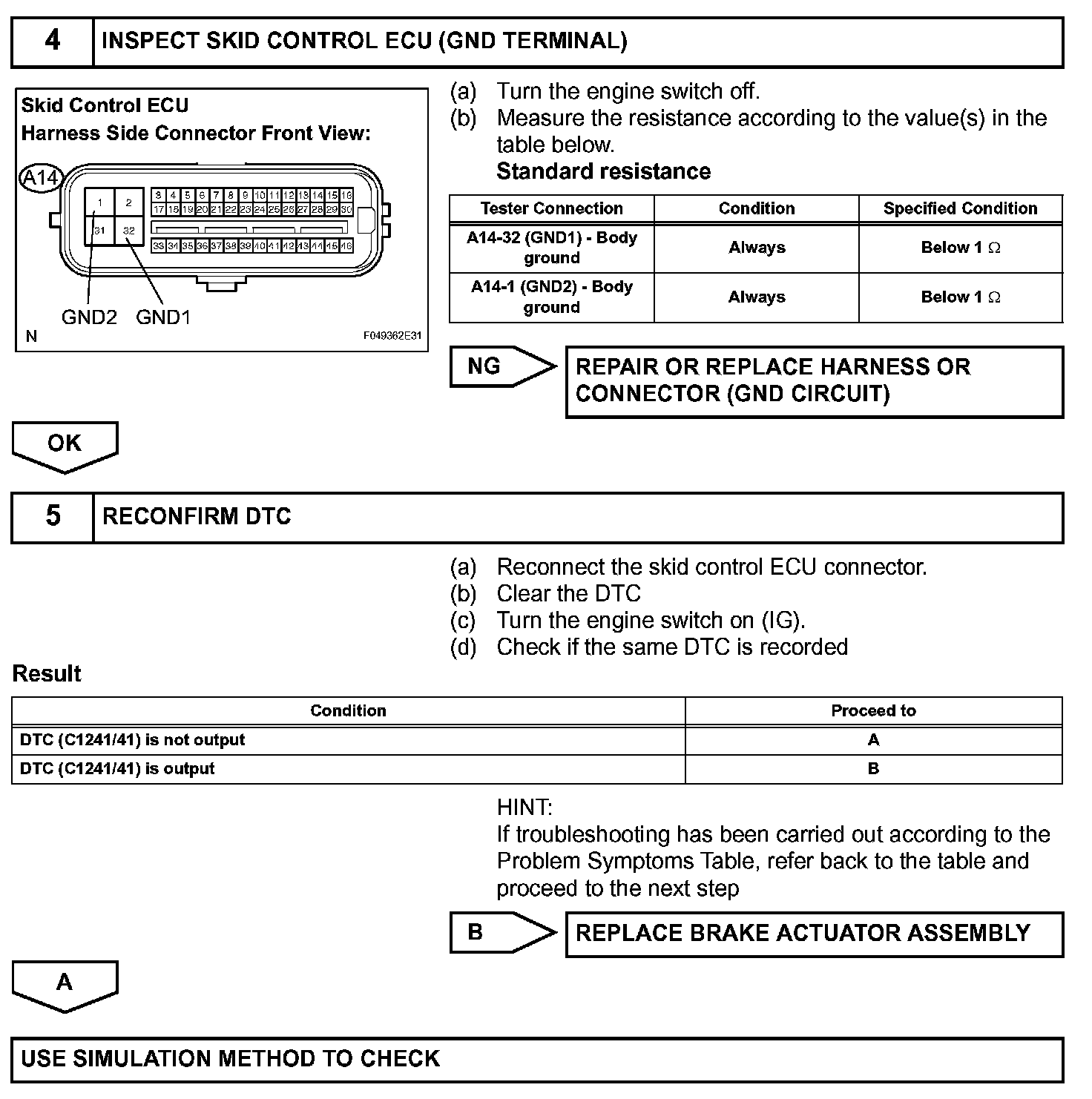

Step 4-5:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
