Vehicle Stability Control System (W/VDIM)

DTC C1225/25 SM Solenoid Circuit

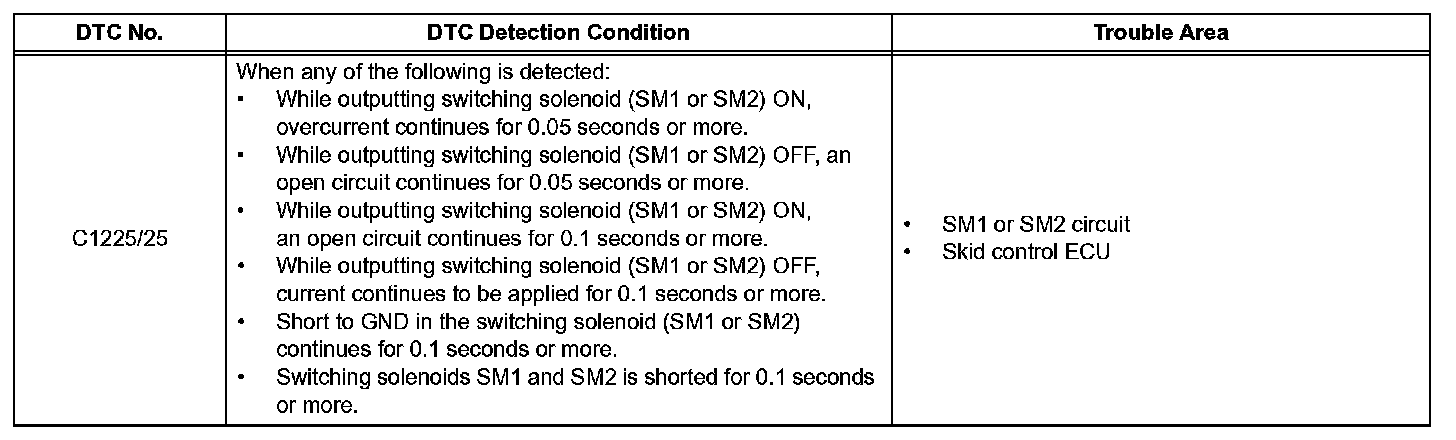

DTC Detection Condition:

DESCRIPTION

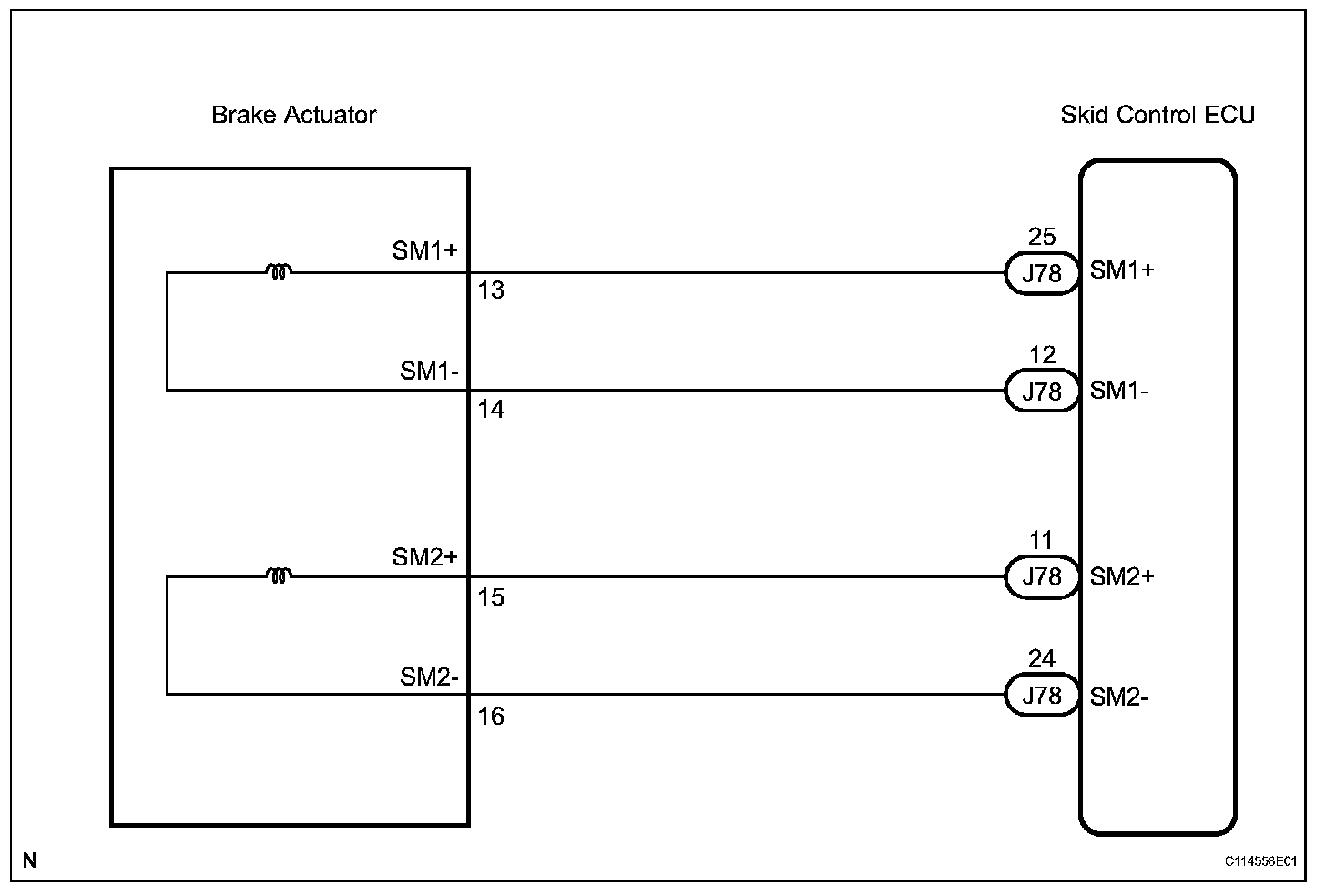

Wiring Diagram:

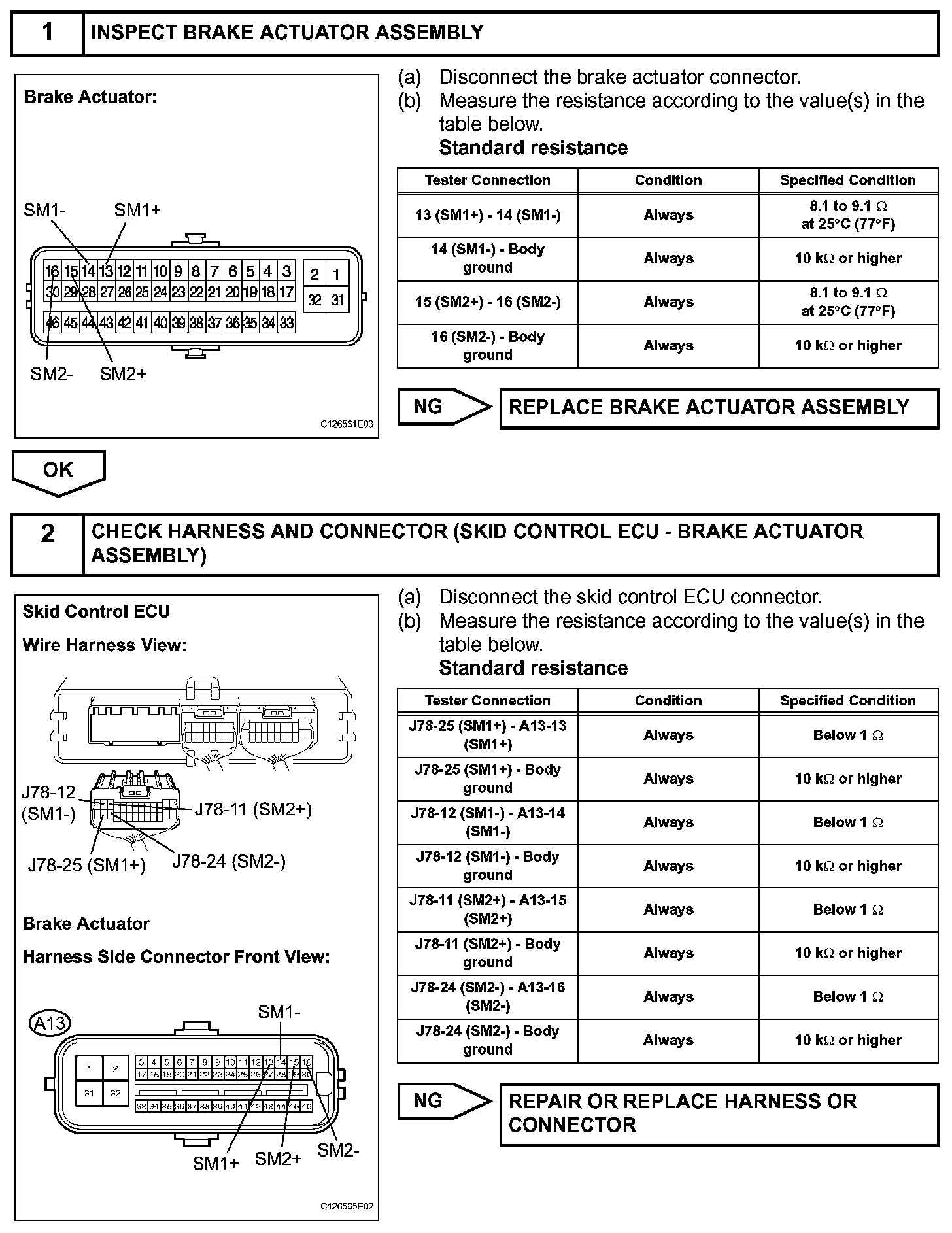

Step 1-2:

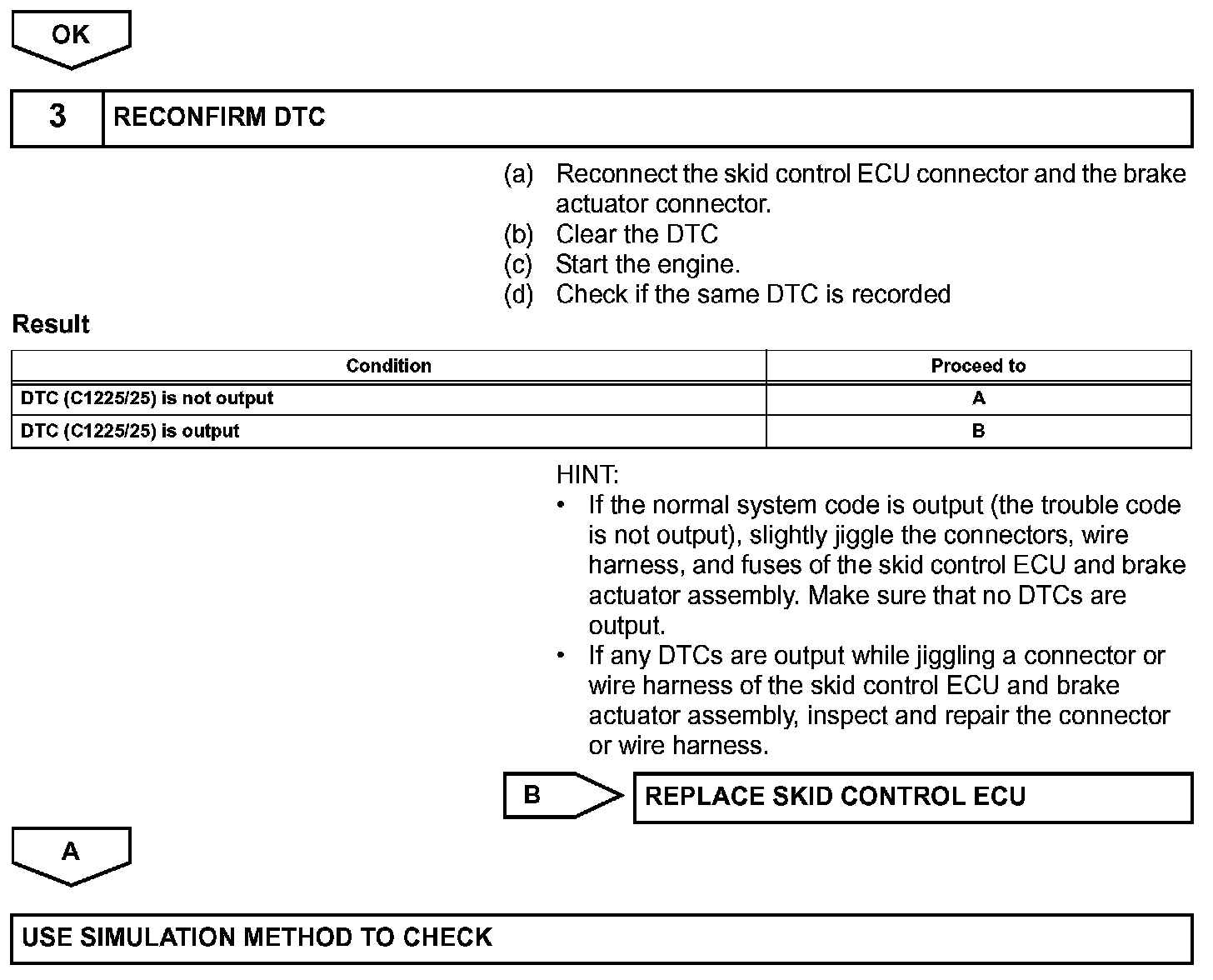

Step 2(Continued)-3:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)
