Vehicle Stability Control System (W/VDIM)

DTC C0246/23 SRR Solenoid Circuit

DESCRIPTION

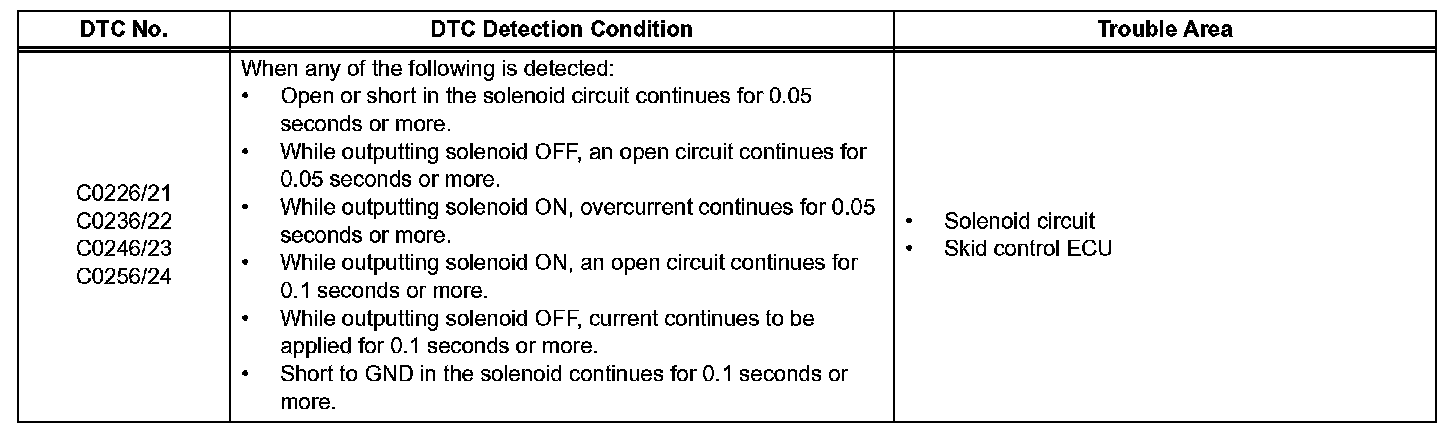

DTC Detection Condition:

These solenoids turn on when signals are received from the skid control ECU and control the pressure acting on the wheel cylinders to control the braking force.

Wiring Diagram:

Step 1:

Step 2:

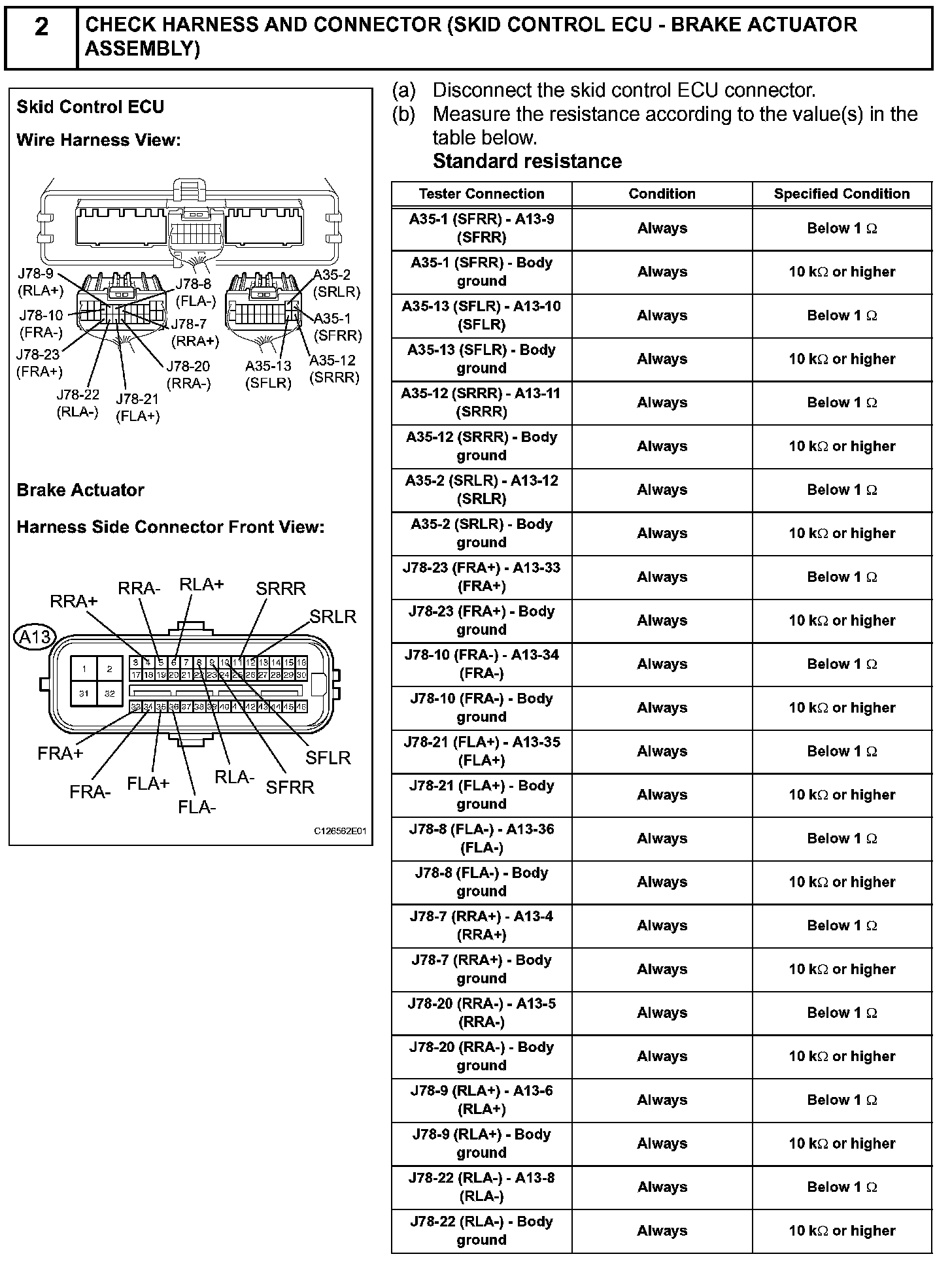

Step 2(Continued)-3:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information. Vehicle Stability Control System (W/ VDIM)

HINT: When C0278/11 or C0279/12 is output together with C0226/21, C0236/22, C0246/23, or C0256/24, inspect and repair the trouble areas indicated by C0278/11 or C0279/12 first.
