Vehicle Stability Control System (W/O VDIM)

DTC C0246/23 SRR Solenoid Circuit

DESCRIPTION

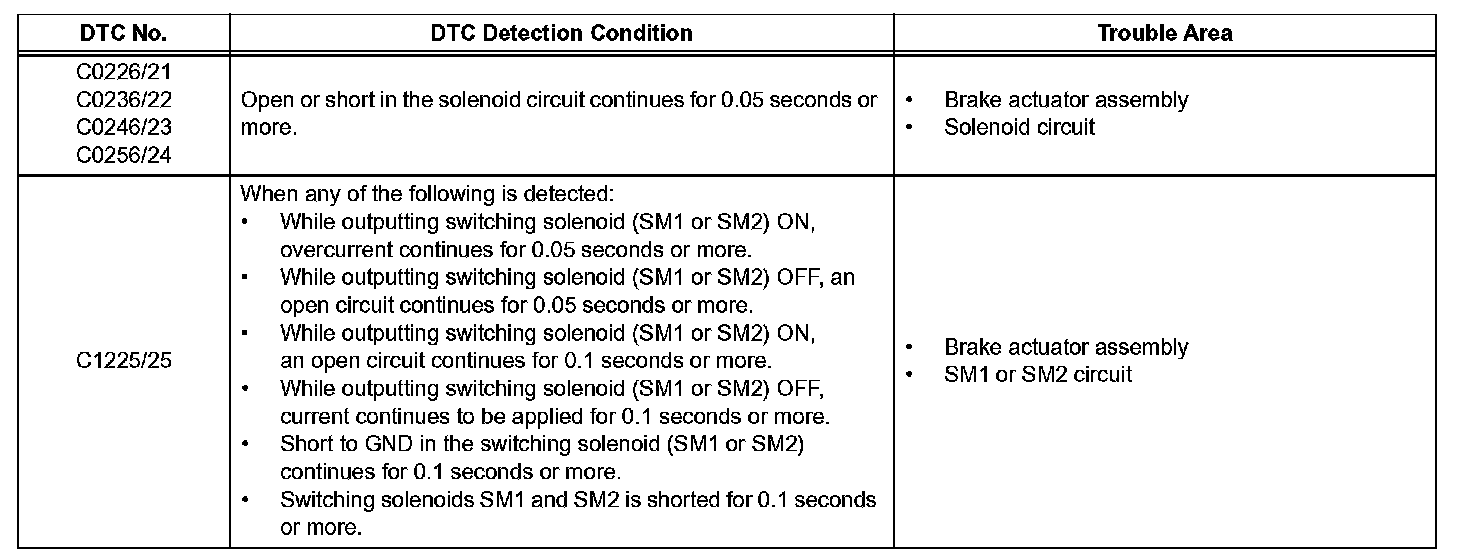

DTC Detection Condition:

These solenoids turn on when signals are received from the skid control ECU and control the pressure acting on the wheel cylinders to control the braking force.

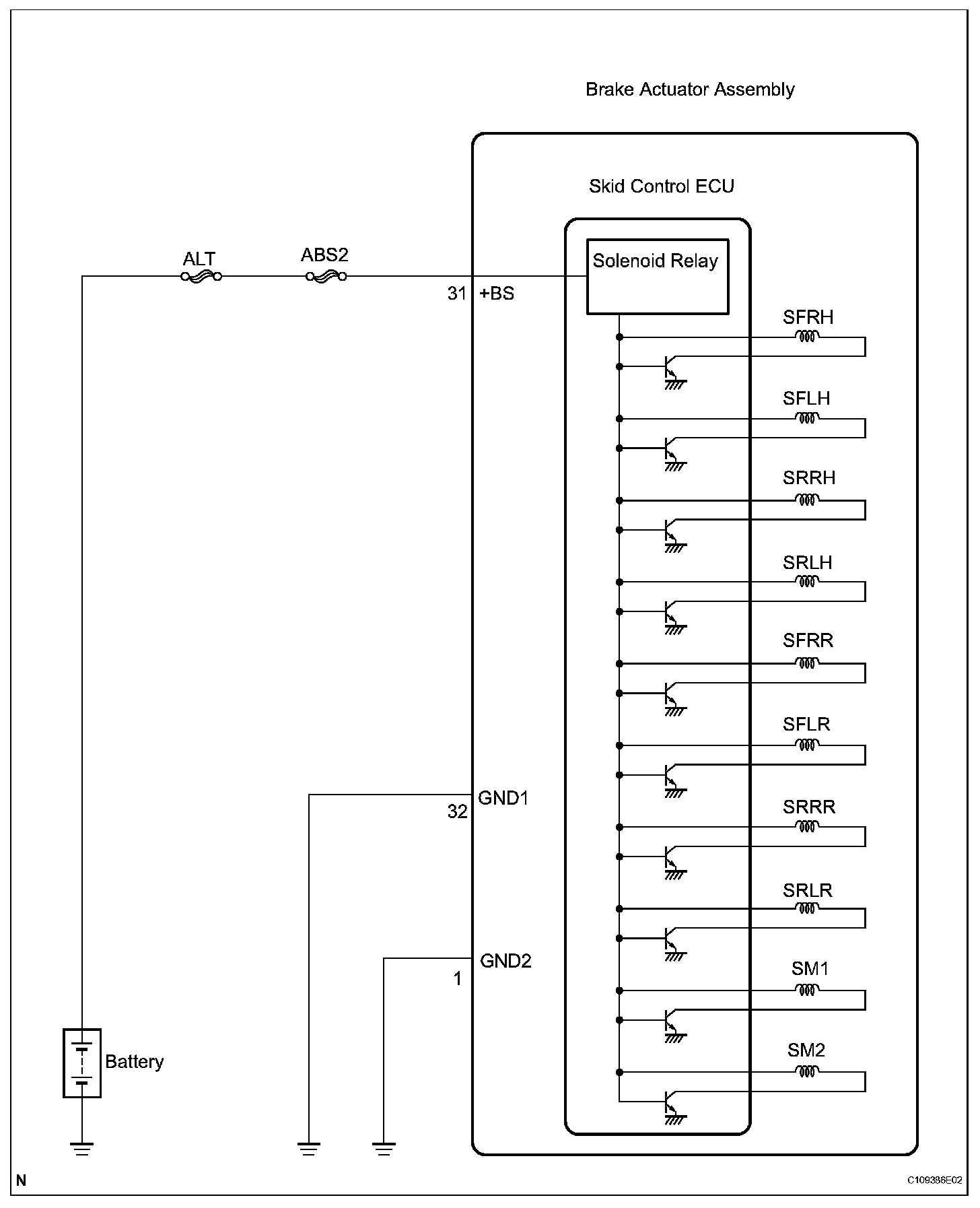

Wiring Diagram:

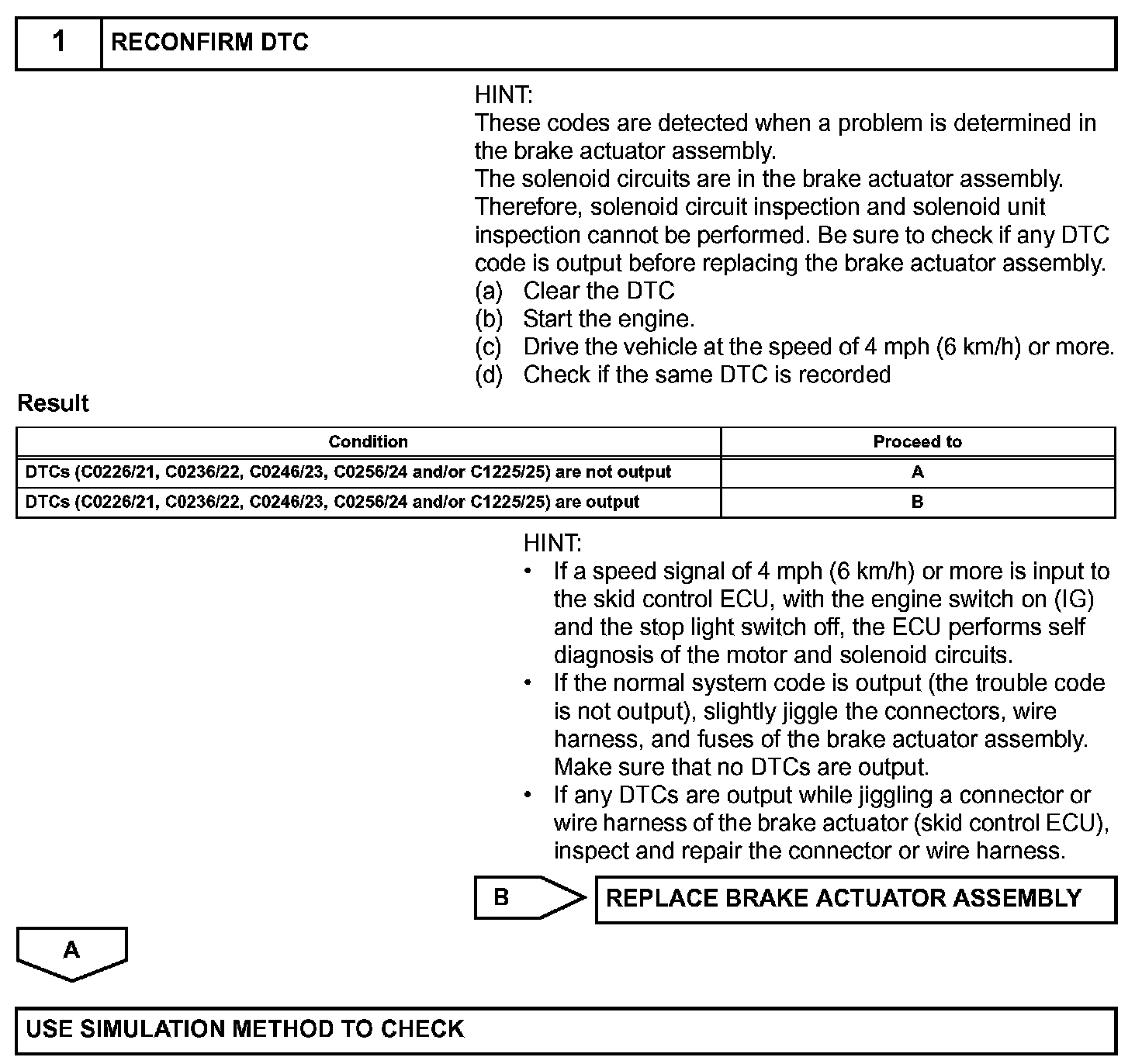

Step 1:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
