Vehicle Stability Control System (W/O VDIM)

DTC C0205/32 Front Speed Sensor LH Circuit

DESCRIPTION

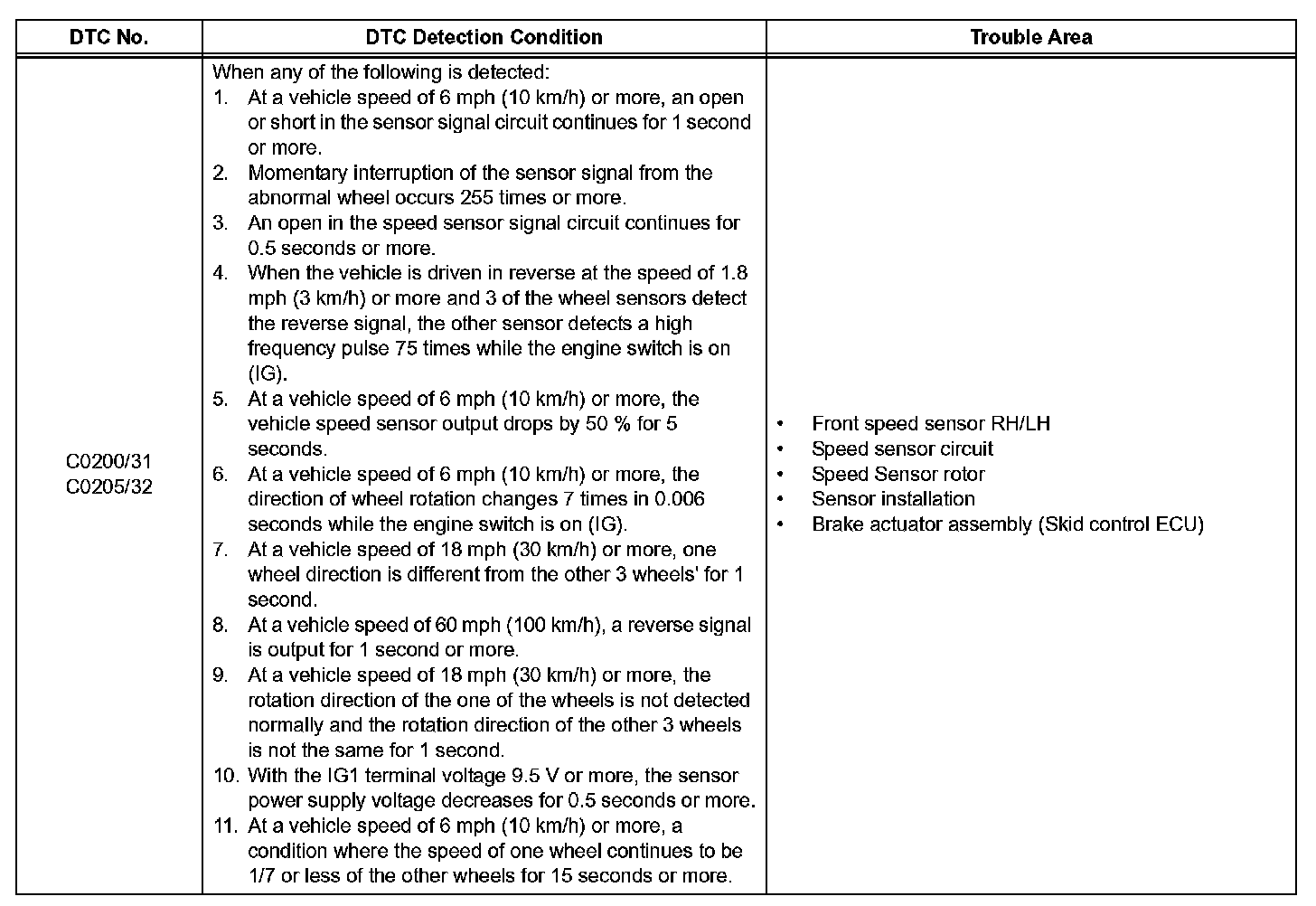

DTC Detection Condition:

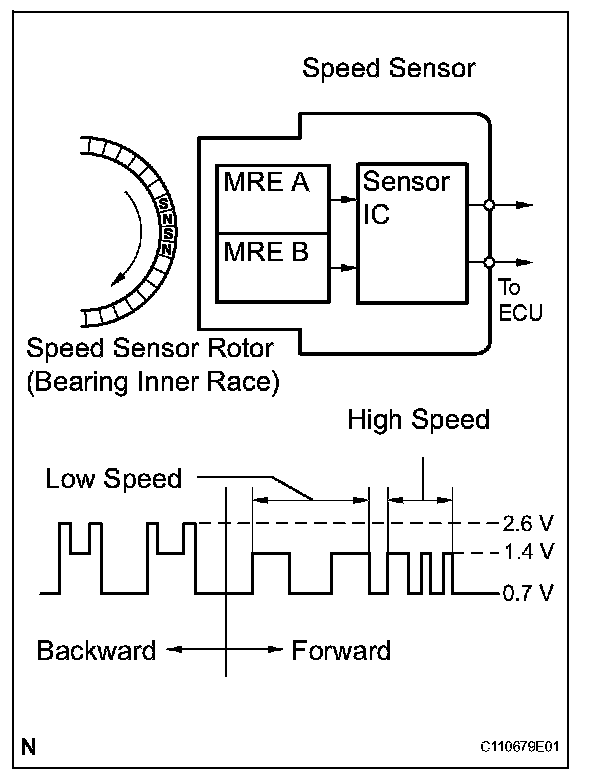

The speed sensor detects wheel speed and sends the appropriate signals to the skid control ECU. These signals are used for the ABS control system. This speed sensor contains a sensor IC, which consists of 2 MREs (Magnetic Resistance Element). The speed sensor rotor, which consists of 48 sets of N and S poles that are arranged in a circle, is integrated with the inner race of the hub bearing.

To detect the rotation direction, the output waves are used to determine the relationship of the pulses that are generated by 2 MREs. Upon receiving this signal, the sensor IC outputs a forward or backward wave to the ECU.

DTCs C1271/71 and C1272/72 can be deleted when the speed sensor sends a vehicle speed signal or the Test Mode ends. DTCs C1271/71 and C1272/72 are output only in the Test Mode.

HINT:
- DTC C0200/31 is for the front speed sensor RH.
- DTC C0205/32 is for the front speed sensor LH.

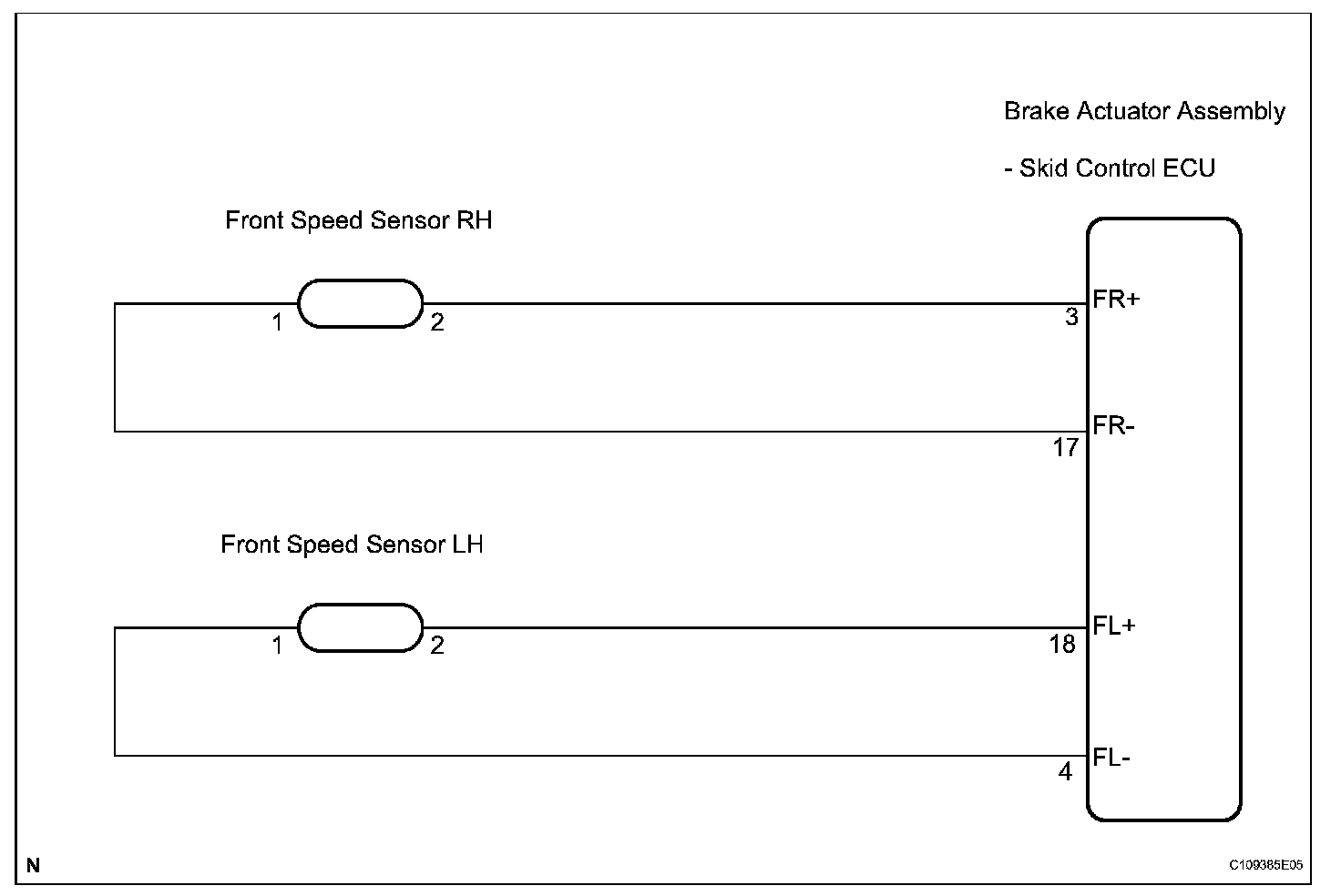

Wiring Diagram:

Step 1:

Step 1(Continued)-3:

Step 4-5:

Step 5(Continued)-7:

Step 7(Continued)-9:

Step 9(Continued)-12:

Step 12(Continued)-14:

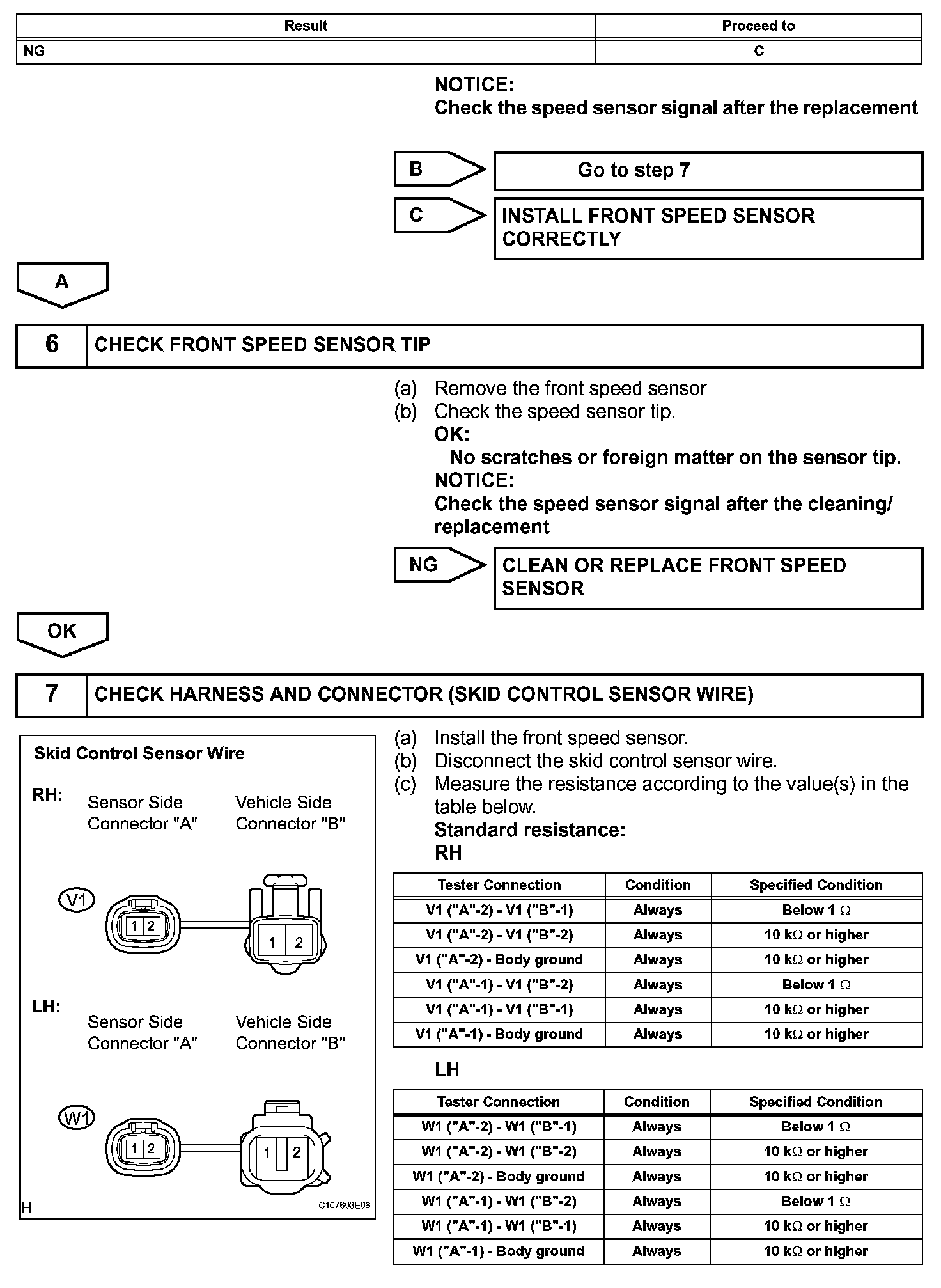

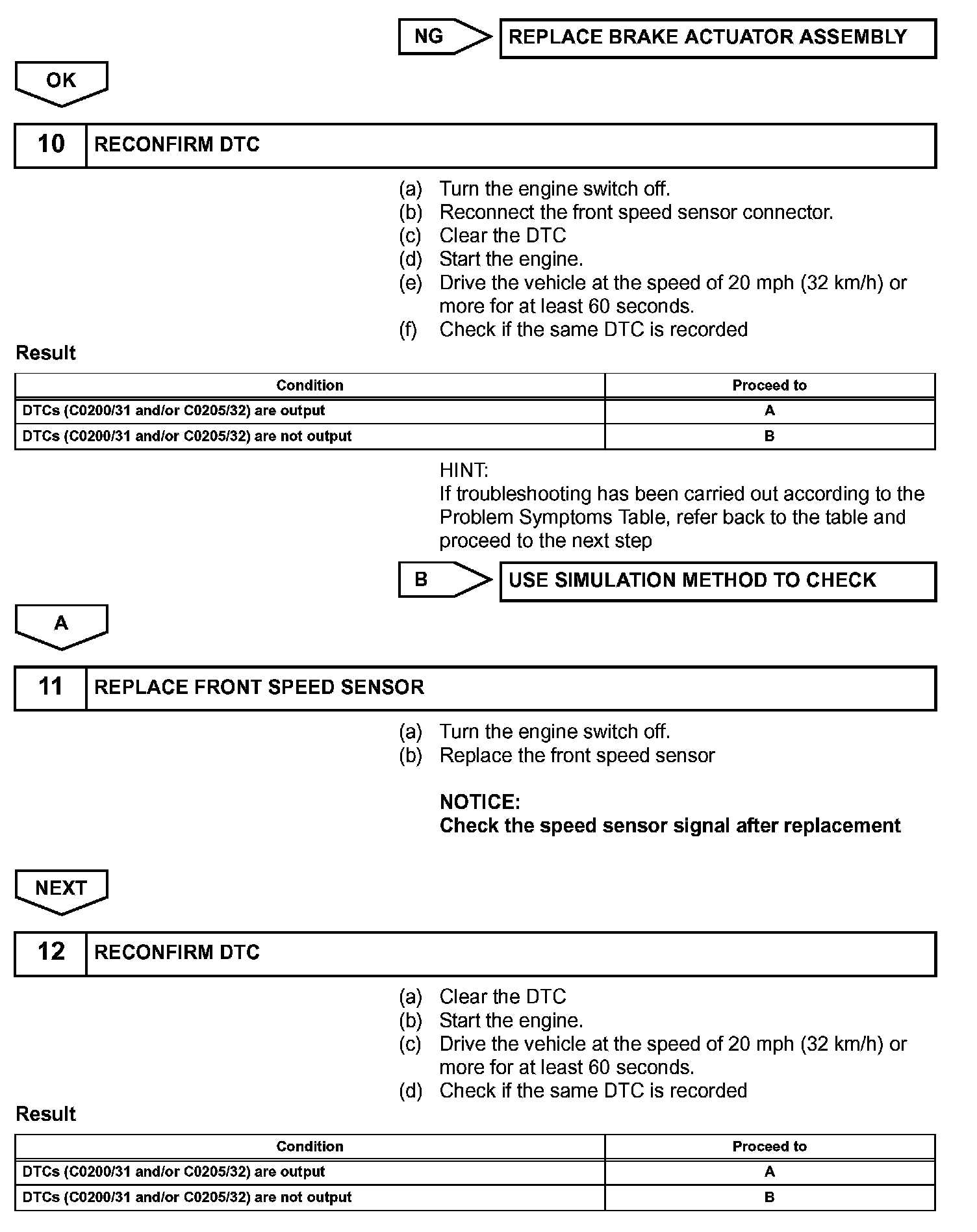

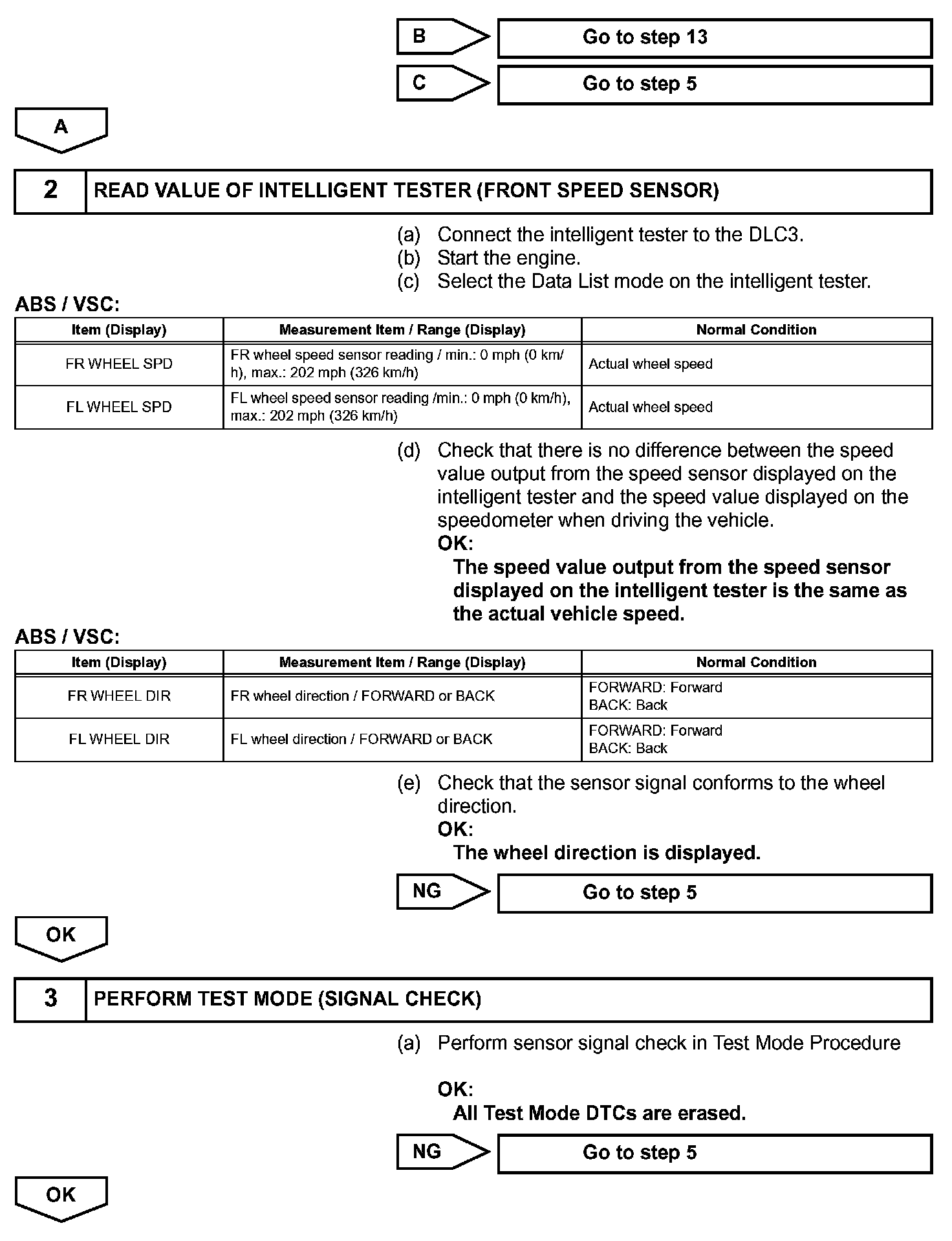

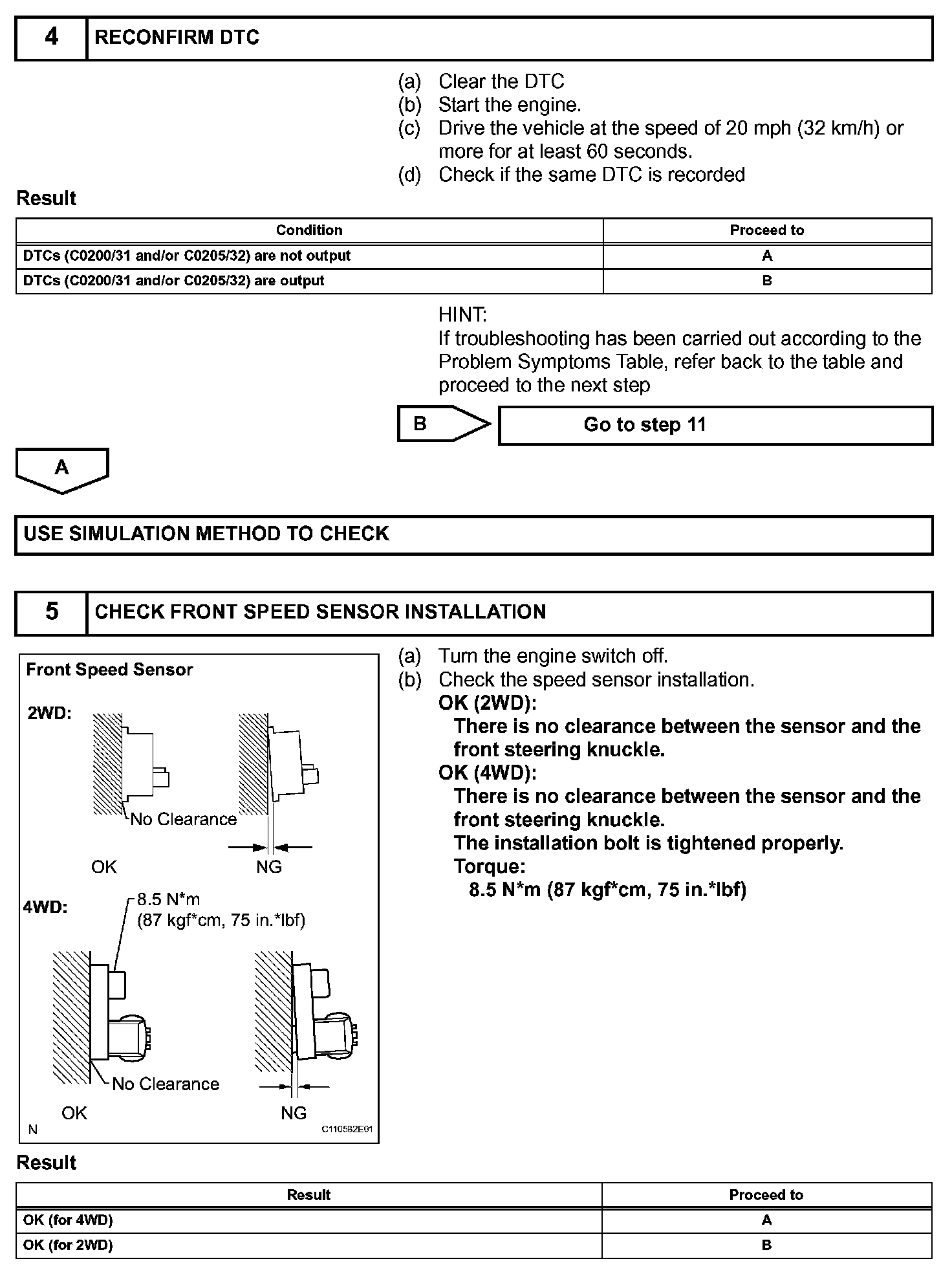

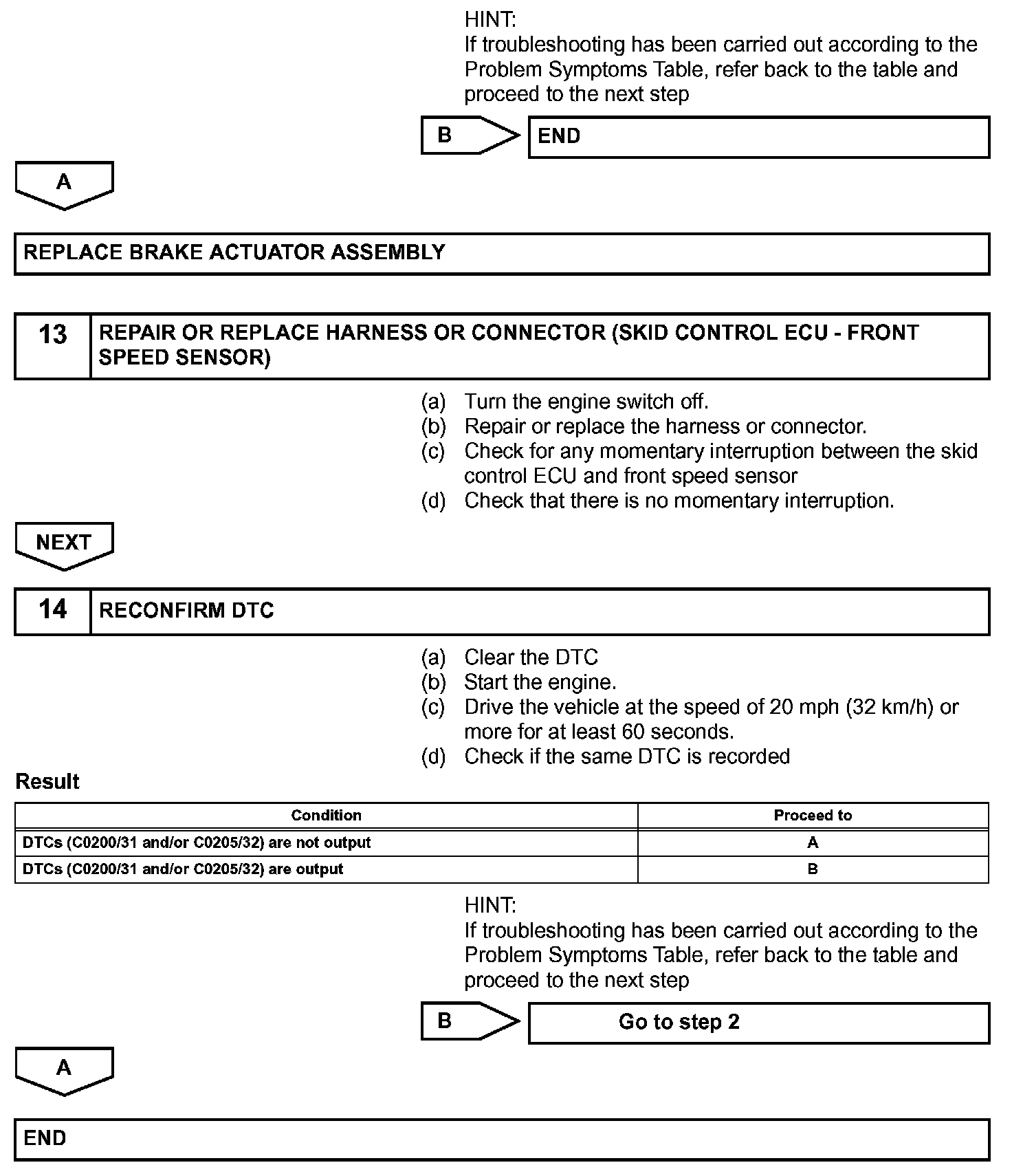

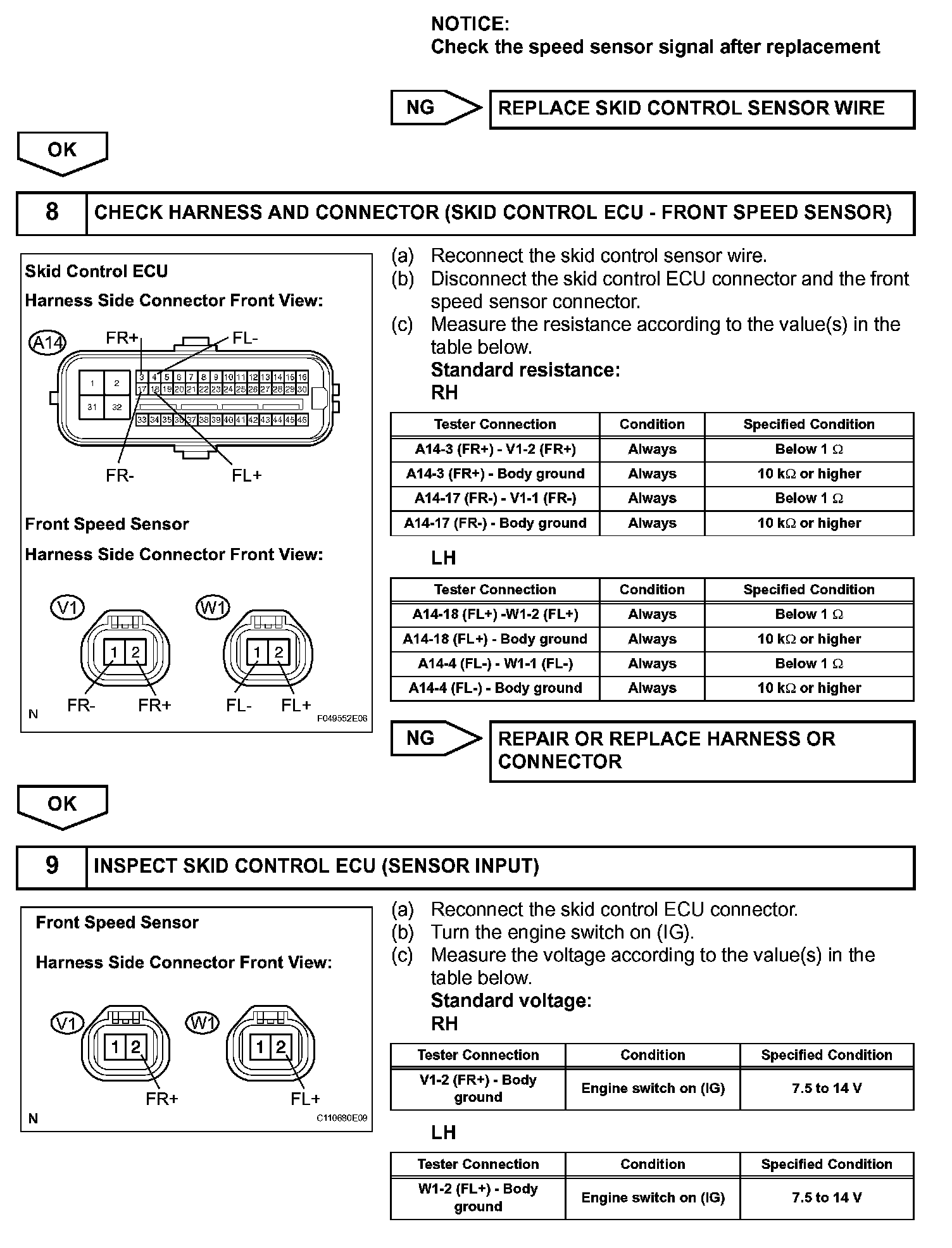

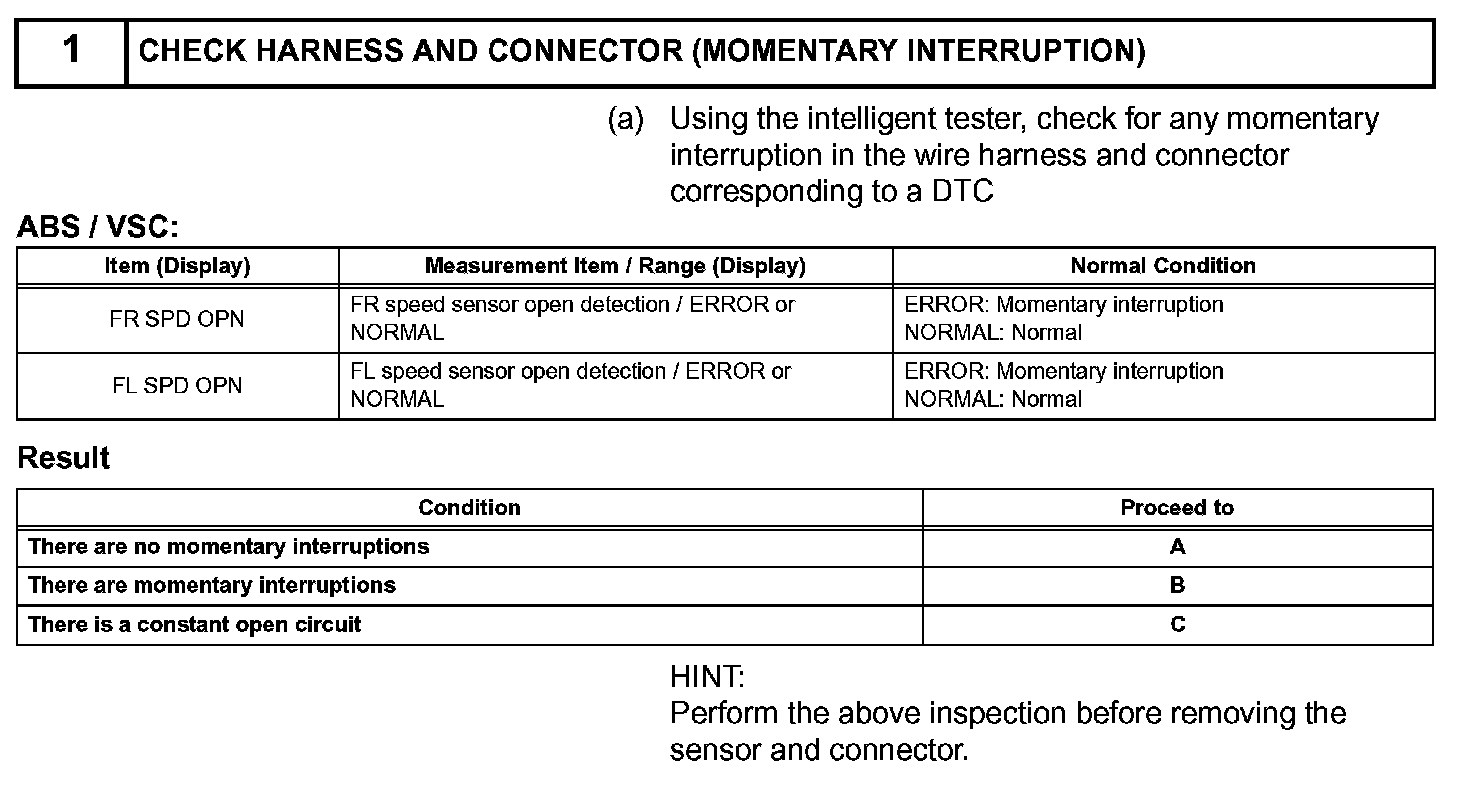

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration. Vehicle Stability Control System (W/O VDIM)
