B2785

DTC B2785 Communication Malfunction between ECUs Connected by LIN
DTC B2786 No Response from Steering Lock ECU
DTC B2789 No Response from ID BOX

DESCRIPTION

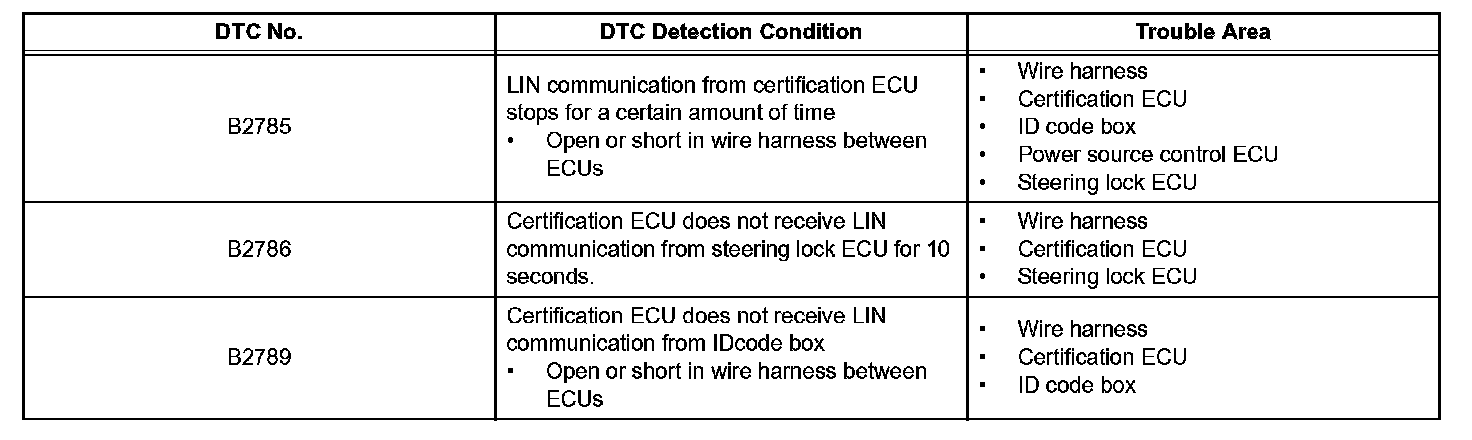

DTC Detection Condition:

This DTC is output when LIN communication from the certification ECU stops for a certain amount of time.

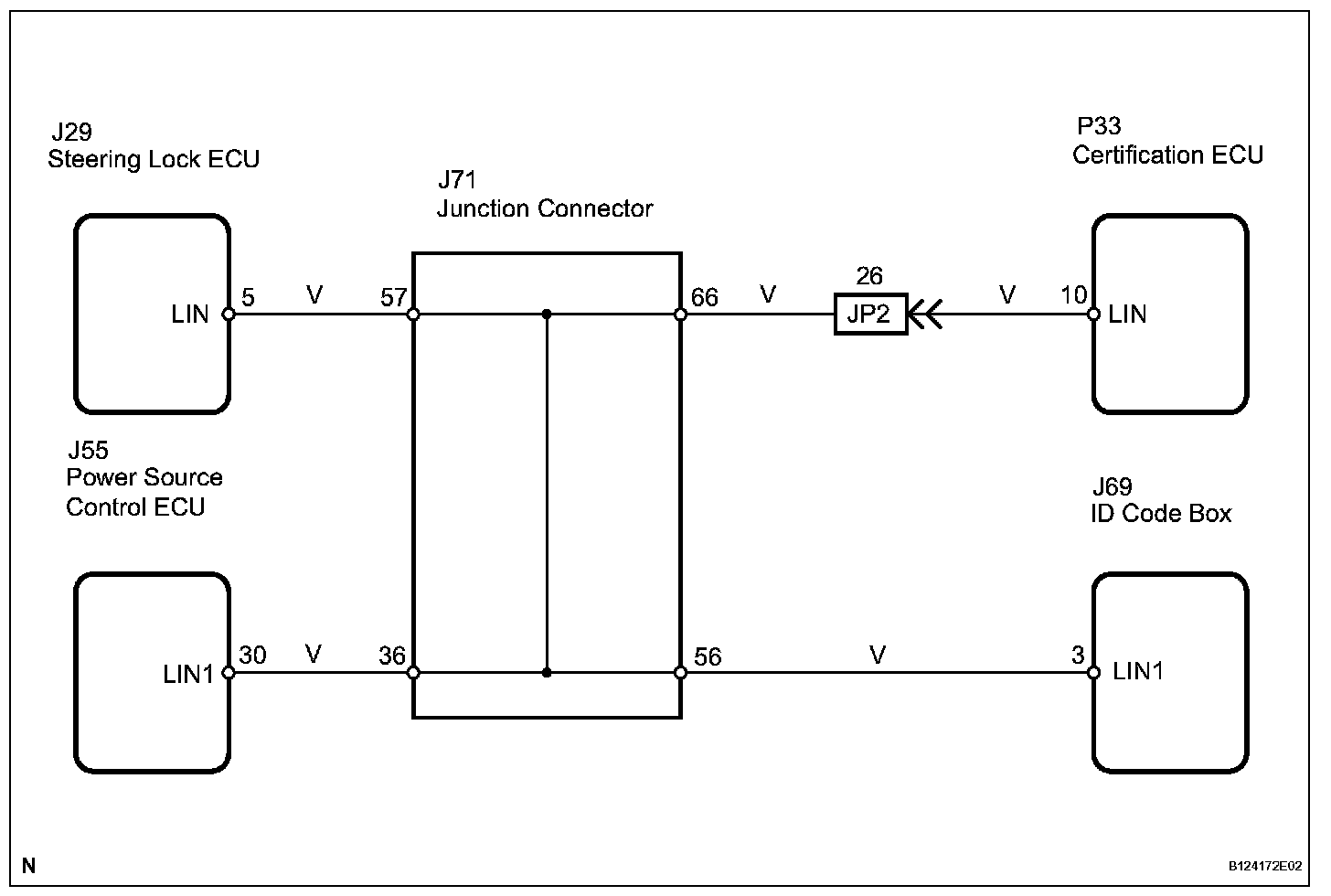

Wiring Diagram:

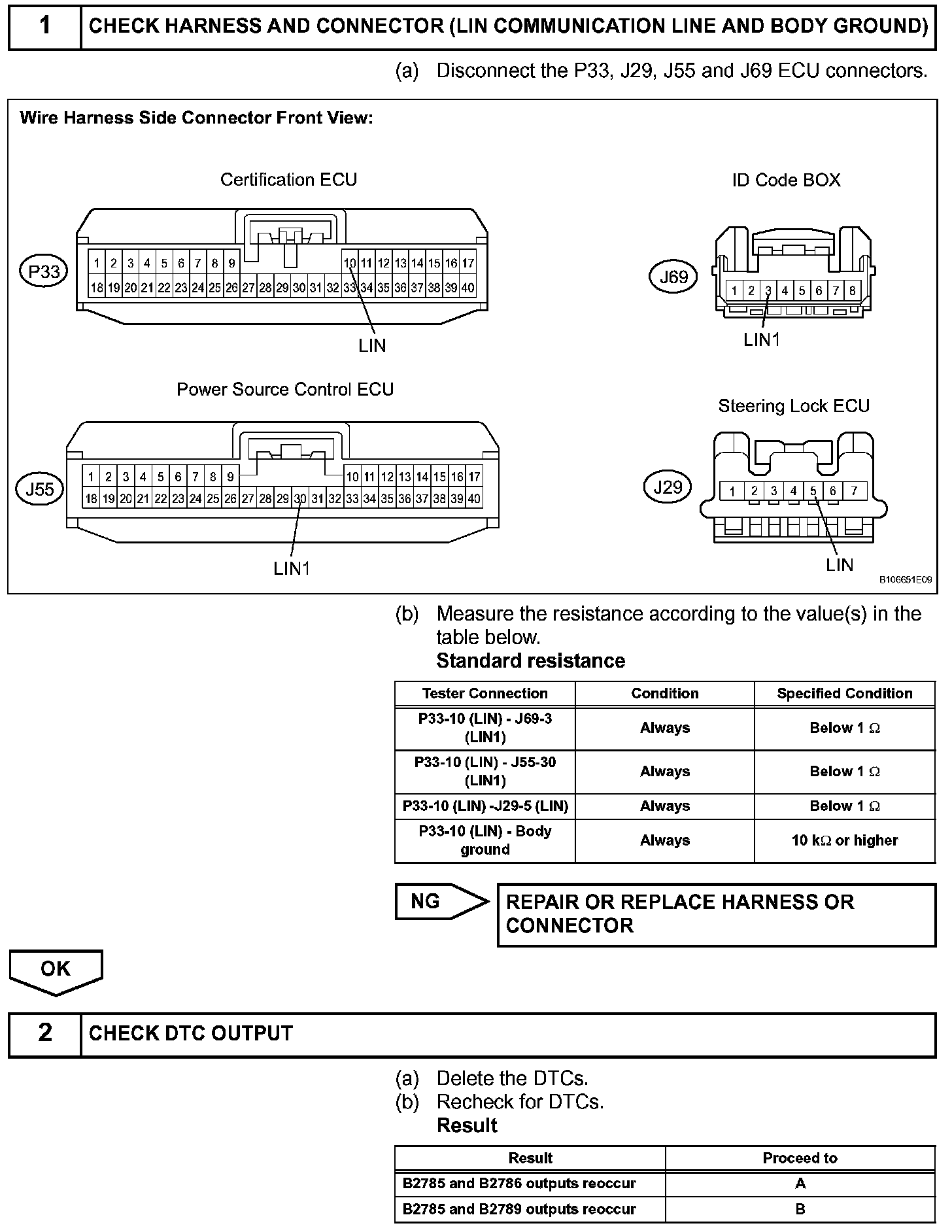

Step 1-2:

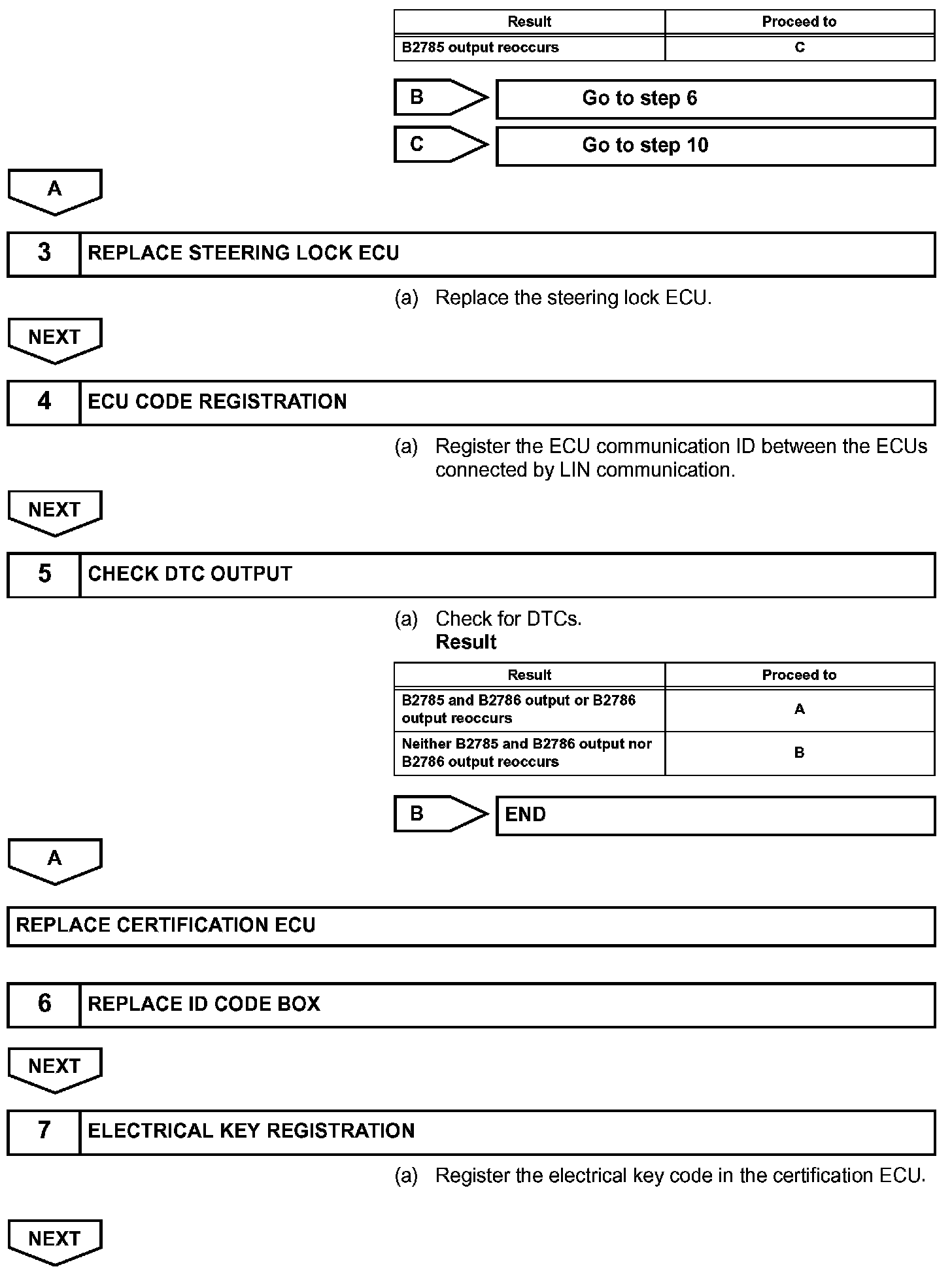

Step 2 (Continued)-7:

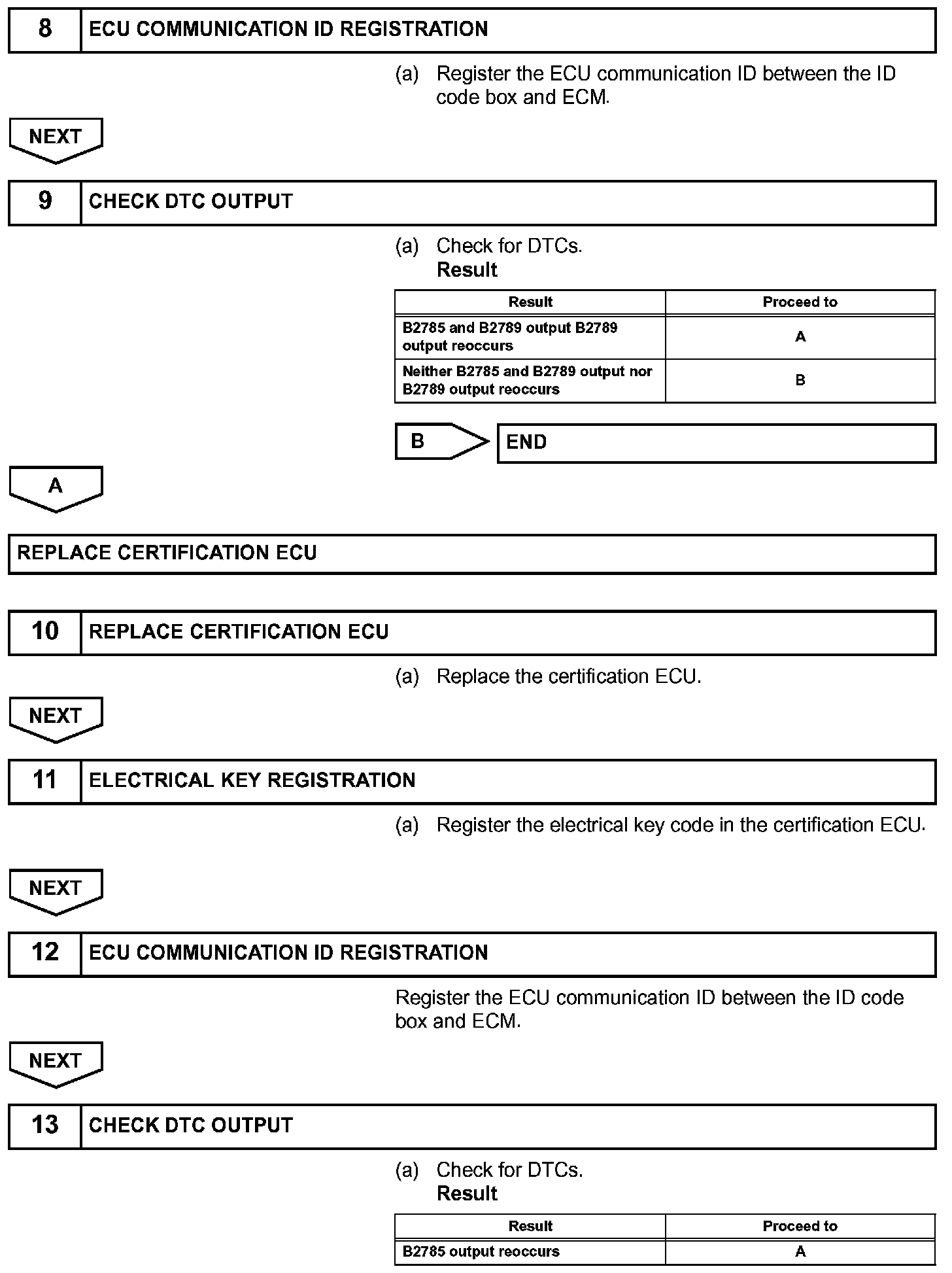

Step 8-13:

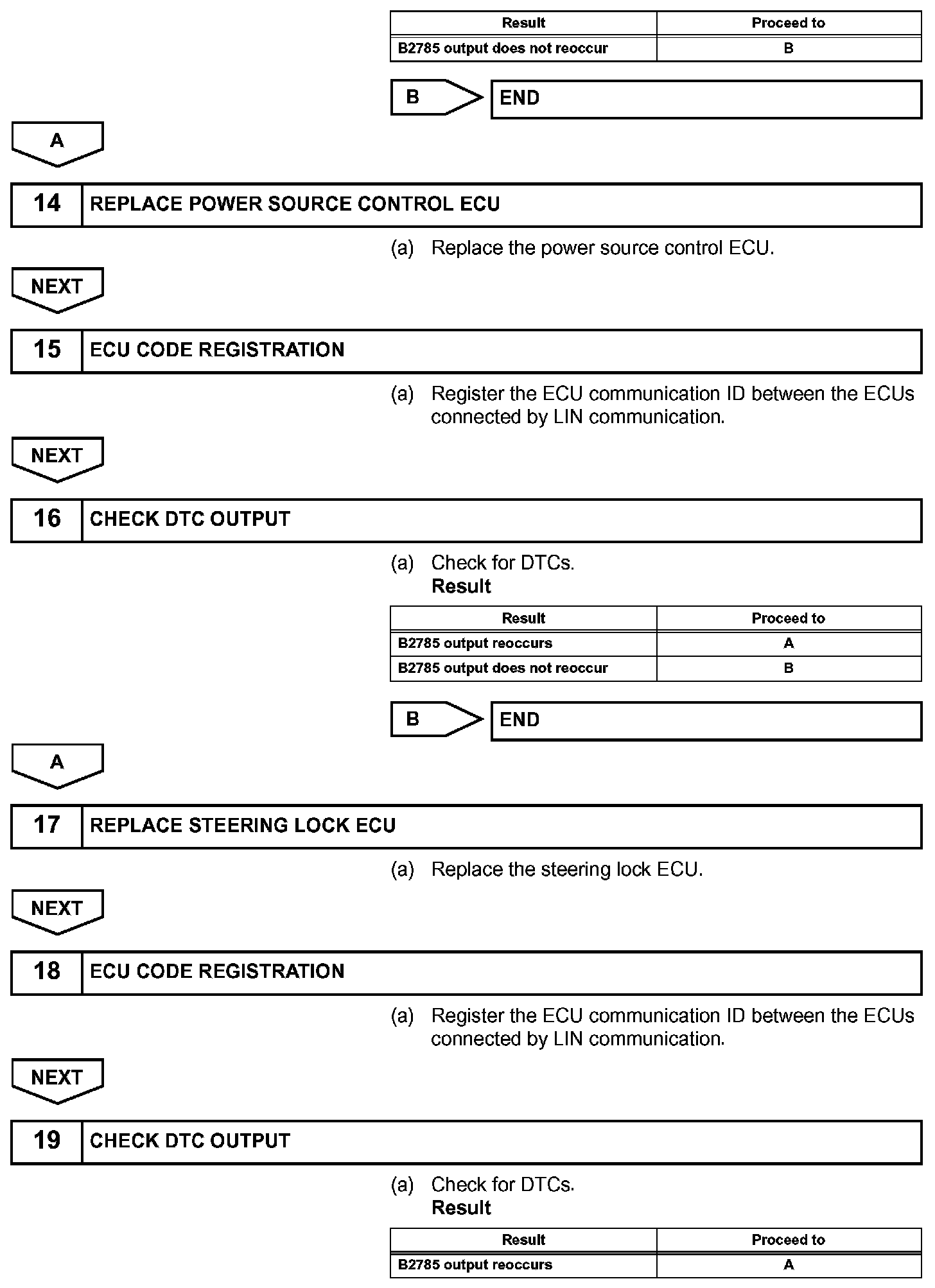

Step 13 (Continued)-19:

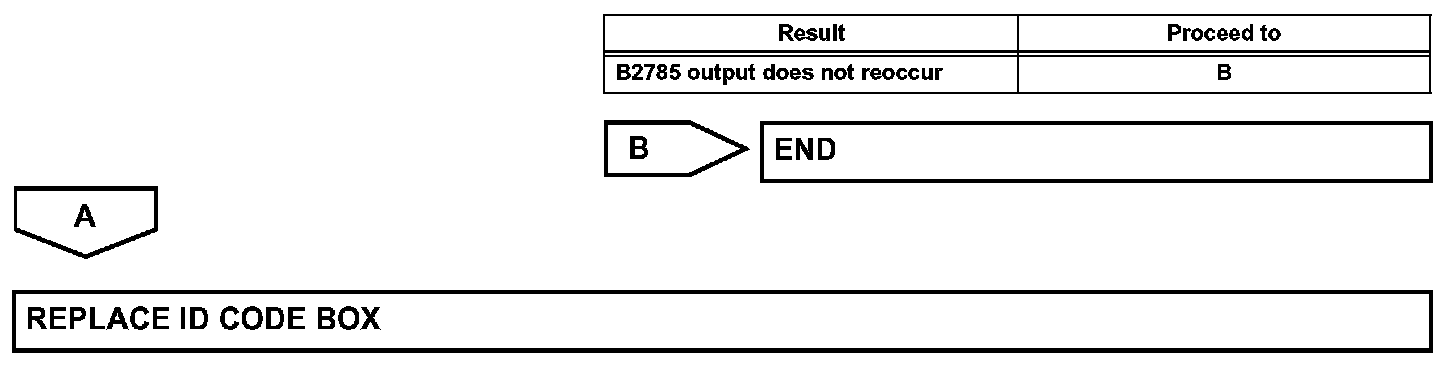

Step 19 (Continued):

INSPECTION PROCEDURE
