B2782

DTC B2782 Power Source Control ECU Malfunction

DESCRIPTION
The power source control ECU controls the power supply to activate the steering lock motor. This prevents the steering from being locked while the vehicle is moving.

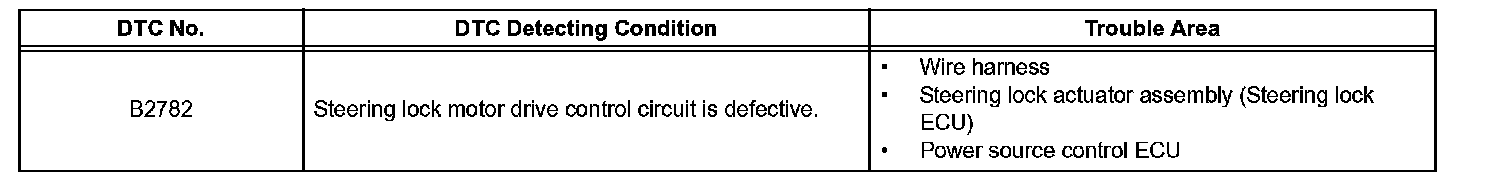

B2782:

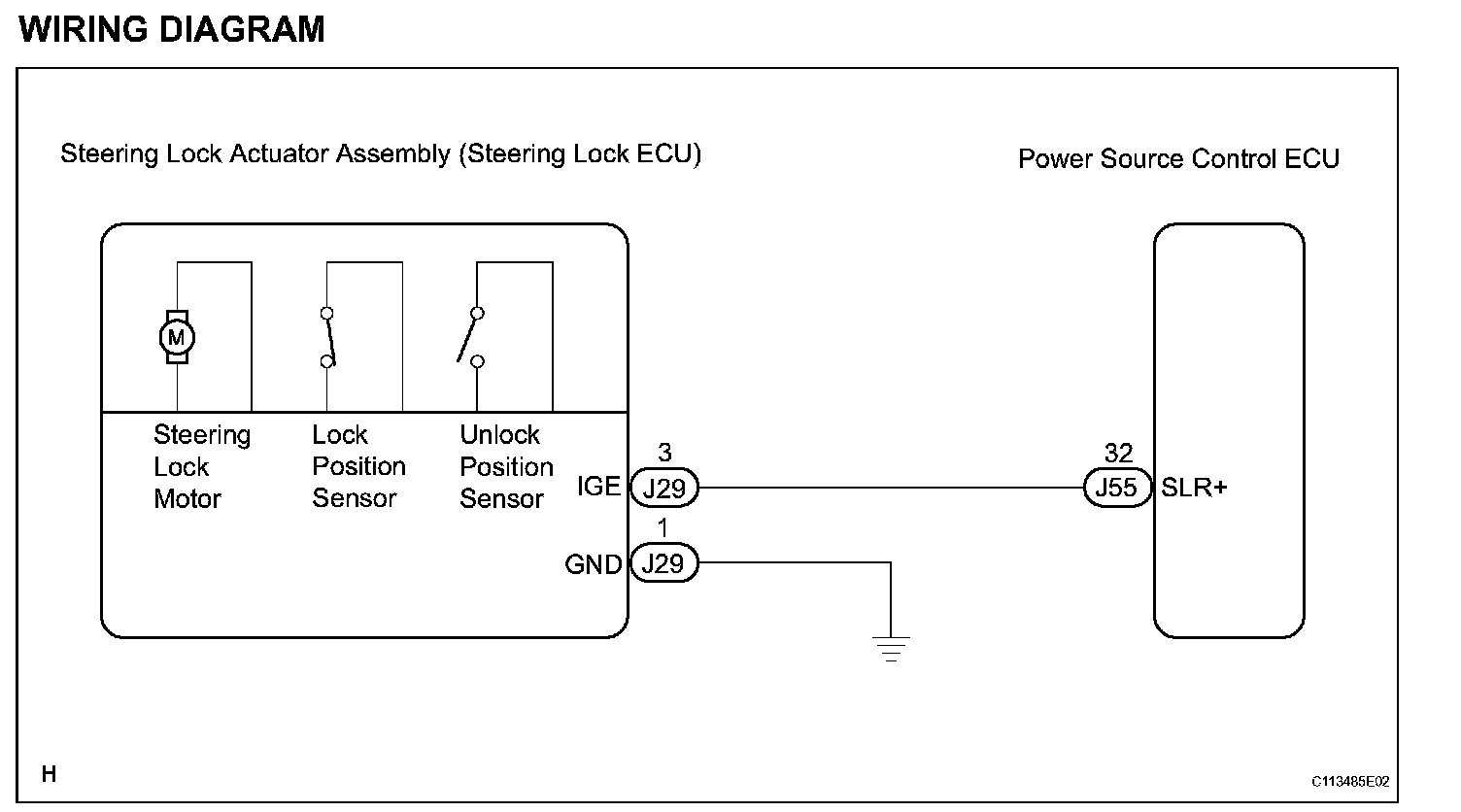

WIRING DIAGRAM:

INSPECTION PROCEDURE

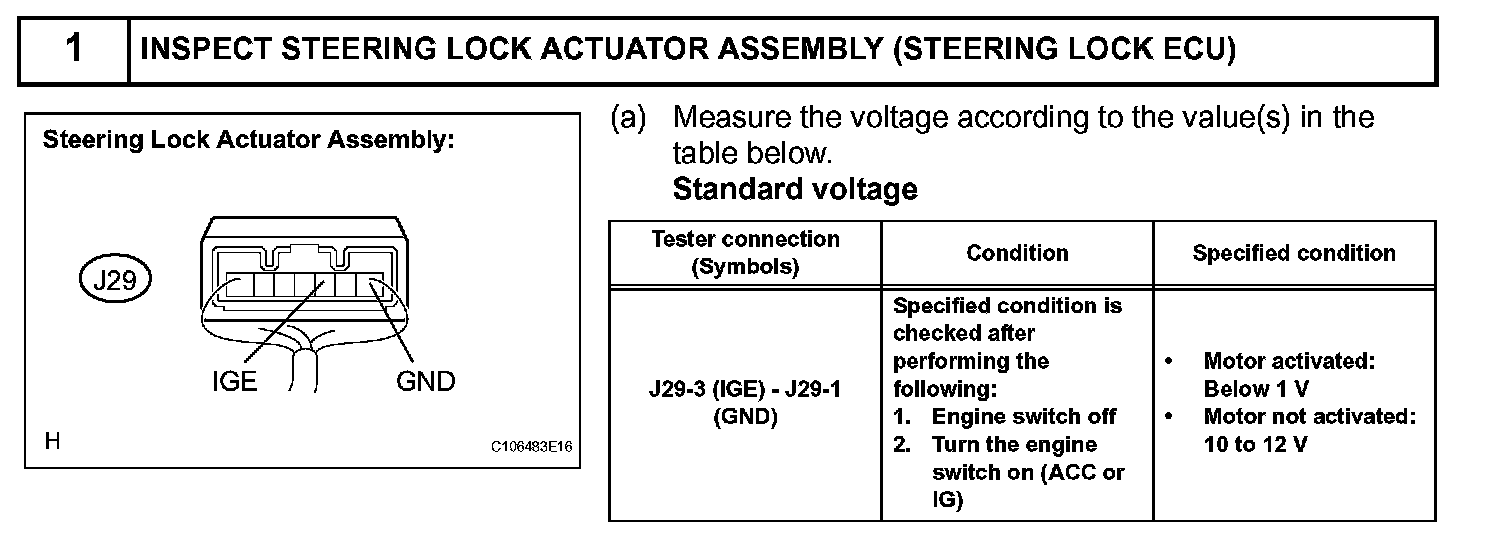

Step 1(Part 1):

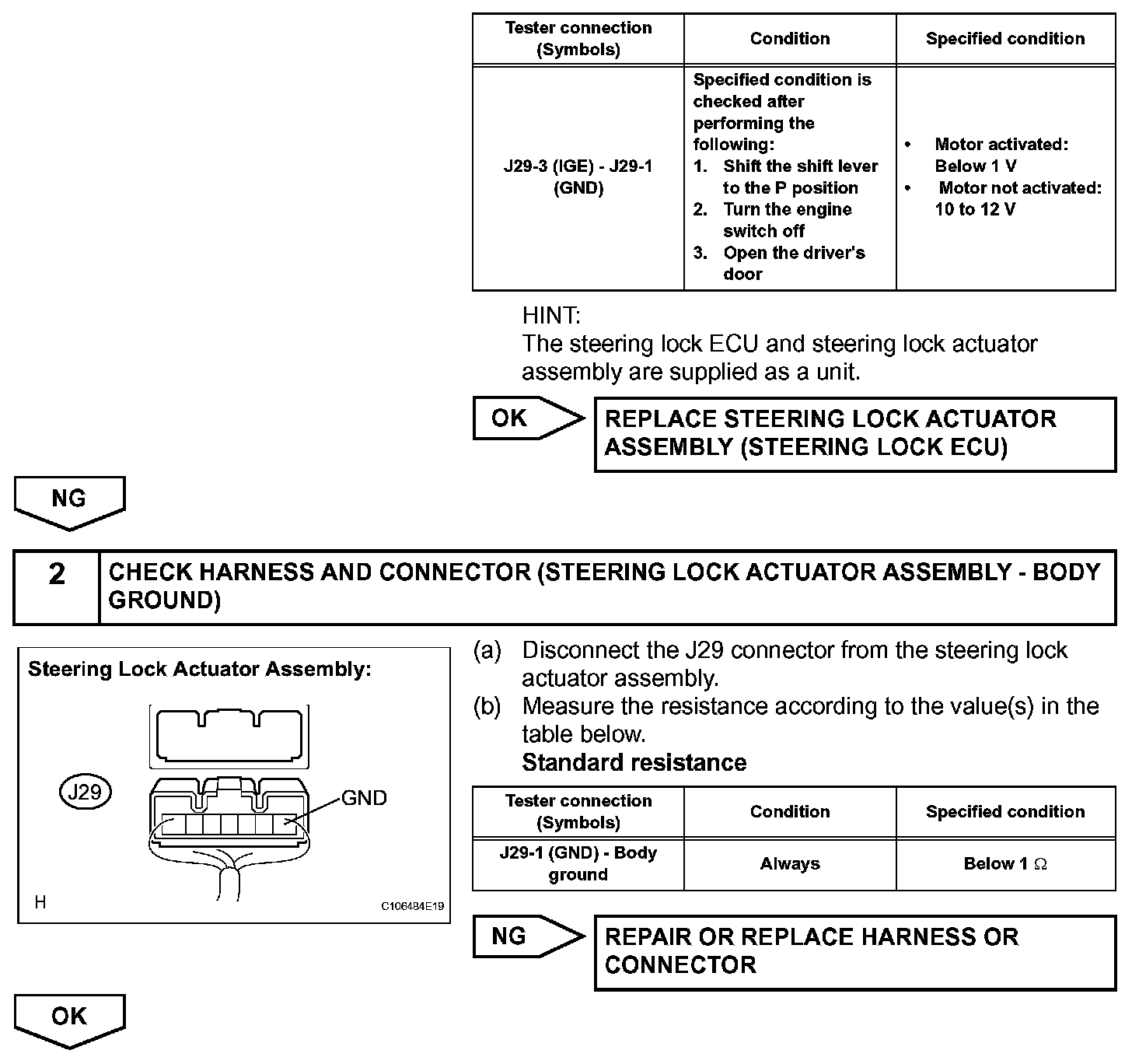

Steps 1(Part 2)-2:

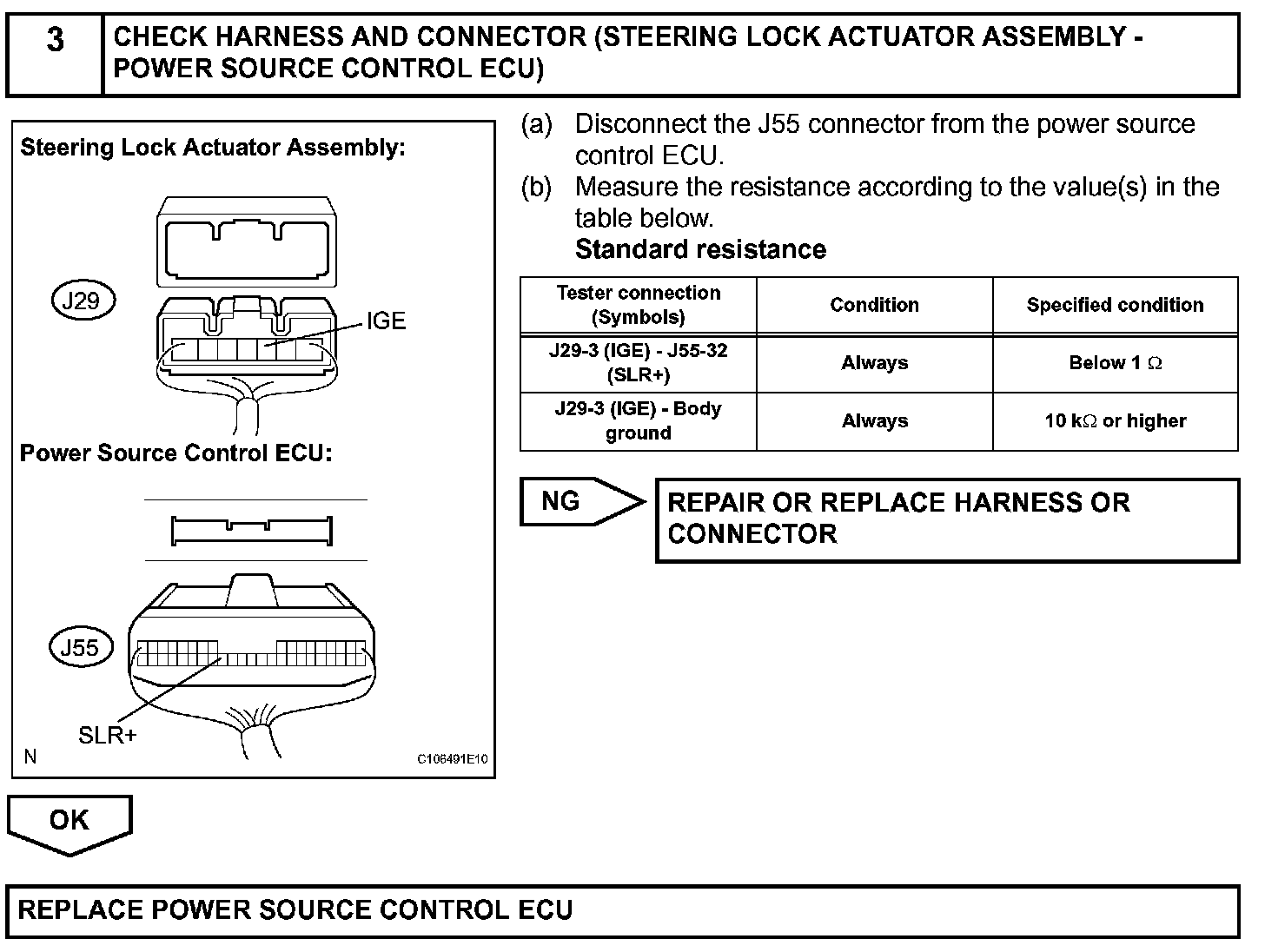

Step 3:
