B2624

DTC B2624 Vehicles Speed Malfunction

DESCRIPTION
The multiplex tilt & telescopic ECU forms a network with the ECUs of other systems through the communication bus. Each ECU informs the other ECUs that they are connected to the network by outputting a specified signal (periodic signal) onto the communication bus on a regular basis. The multiplex tilt & telescopic ECU receives vehicle speed signals from the combination meter via the communication bus to prevent improper operation of the auto away/return function during driving.

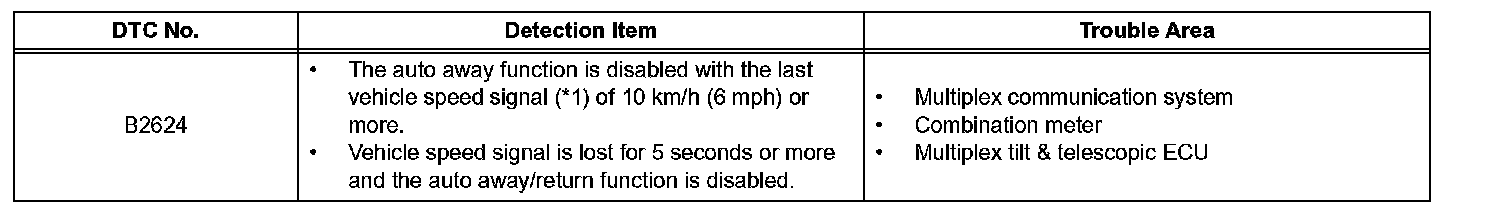

B2624:

HINT:
(* 1): If the engine switch is turned off immediately after the vehicle comes to a sudden stop, the last vehicle speed signal may not be 0 km/h (0 mph).

INSPECTION PROCEDURE

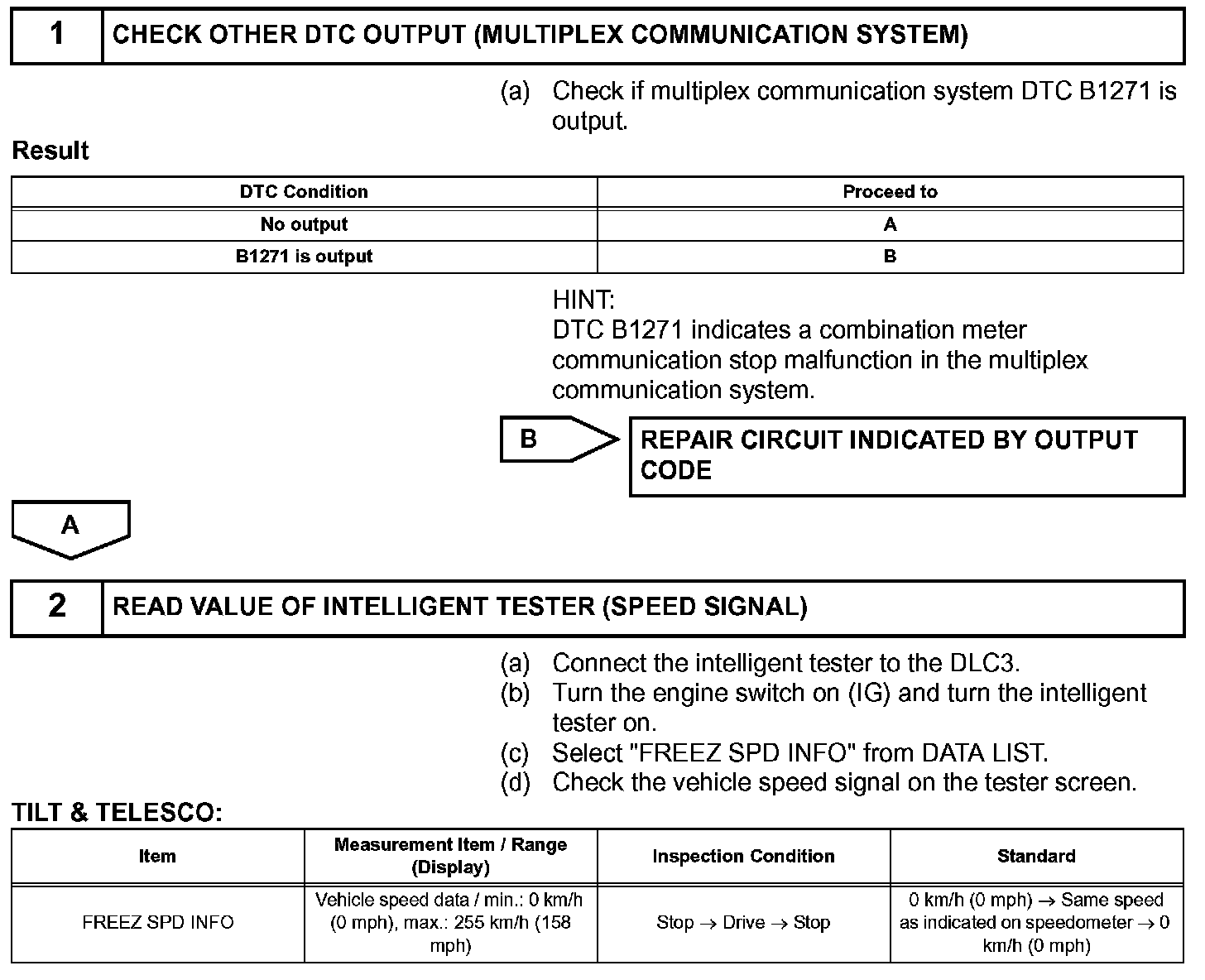

Steps 1-2(Part 1):

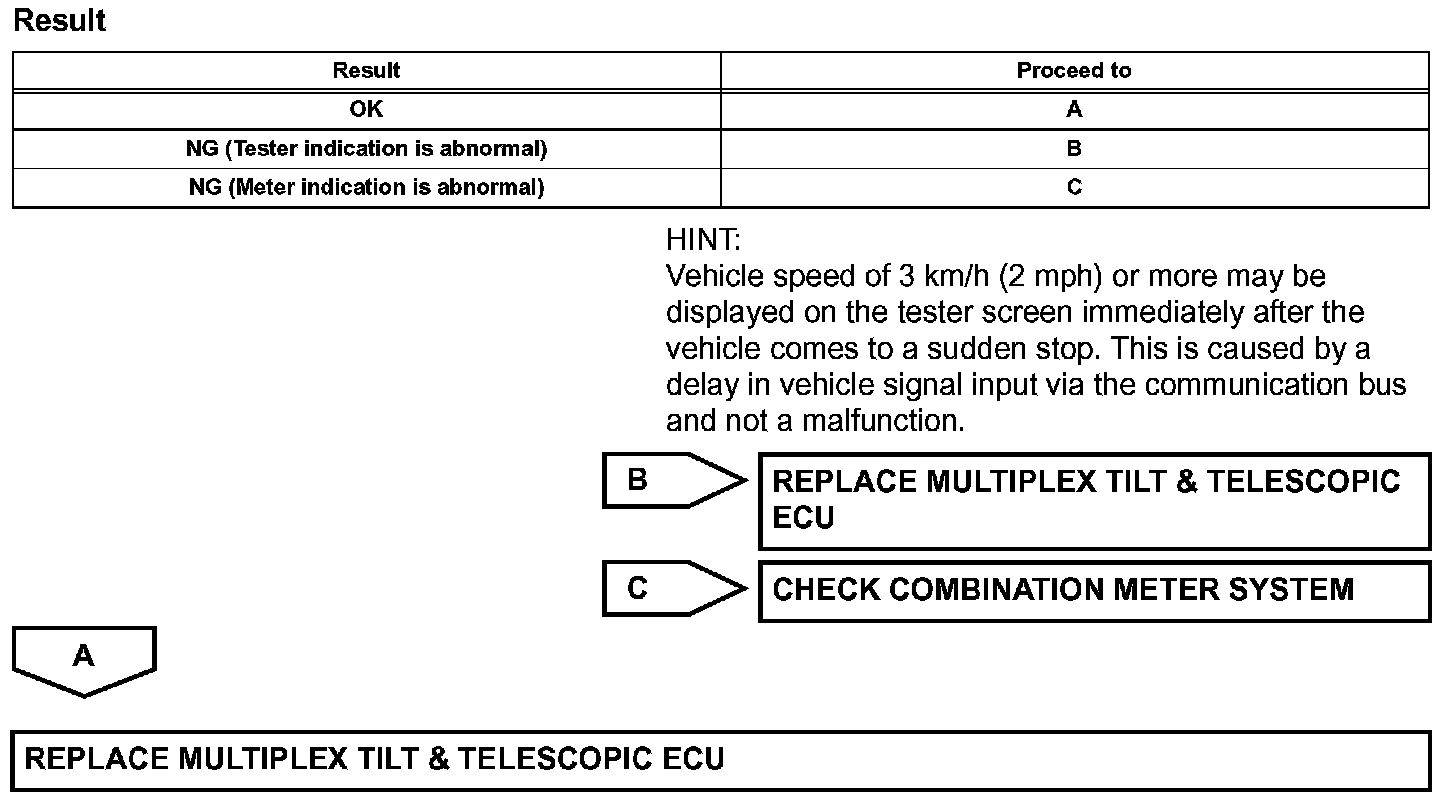

Step 2(Part 2):
