B2620

DTC B2620 ECU Power Source Circuit Malfunction

DESCRIPTION
The ECU power source circuit supplies positive voltage to the multiplex tilt & telescopic ECU.

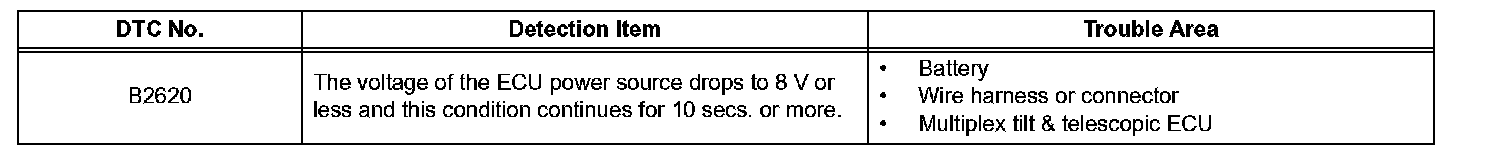

B2620:




WIRING DIAGRAM:





INSPECTION PROCEDURE

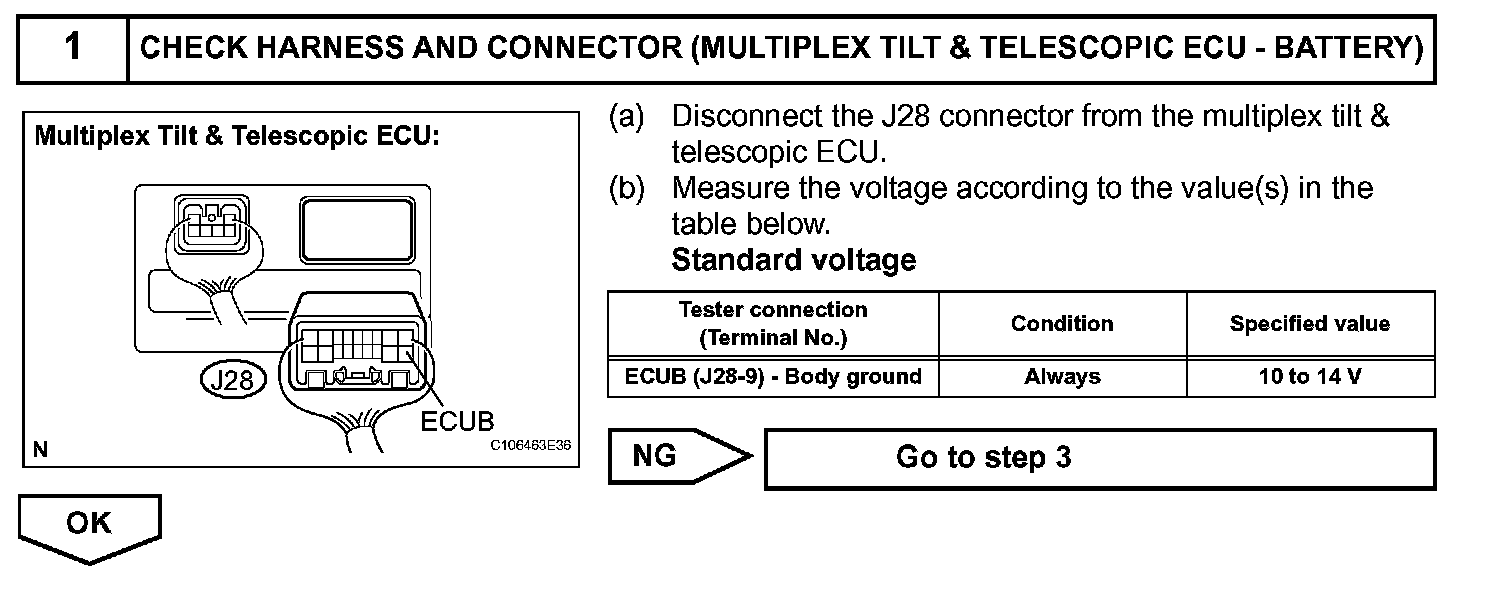

Step 1:

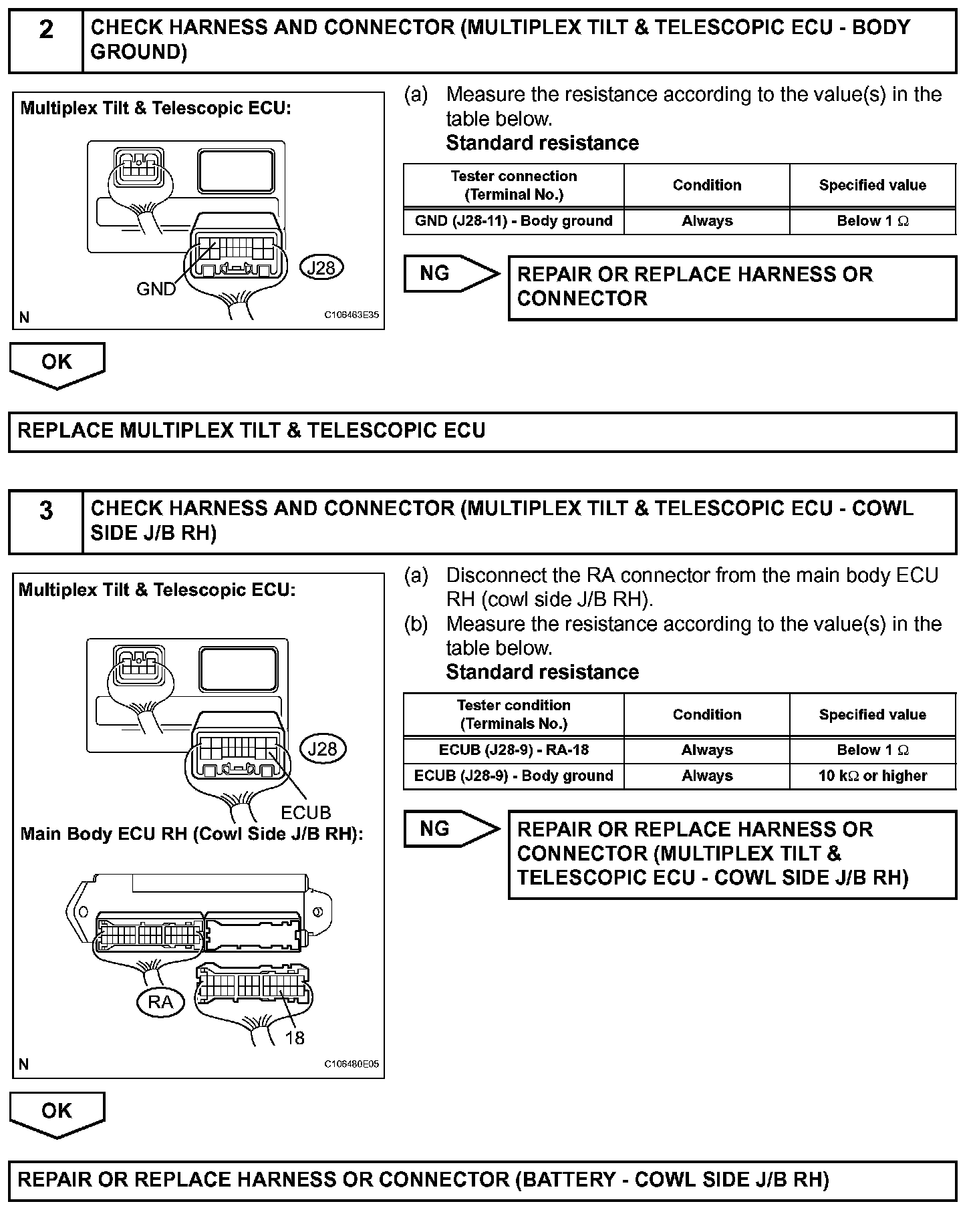

Steps 2-3:
