B2414

DTC B2414 Steering Position Sensor Malfunction

DESCRIPTION

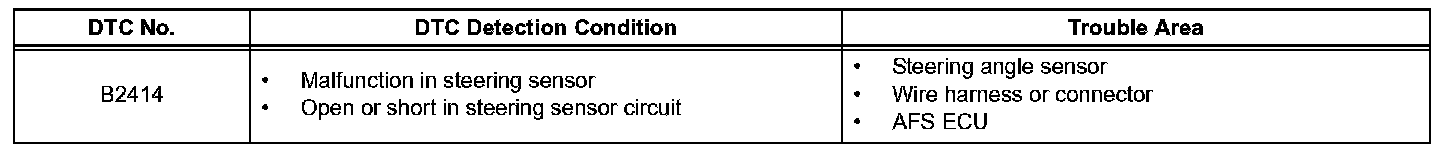

DTC Detection Condition:

The AFS ECU receives signals regarding the swerve-angle from the steering angle sensor in the steering wheel.

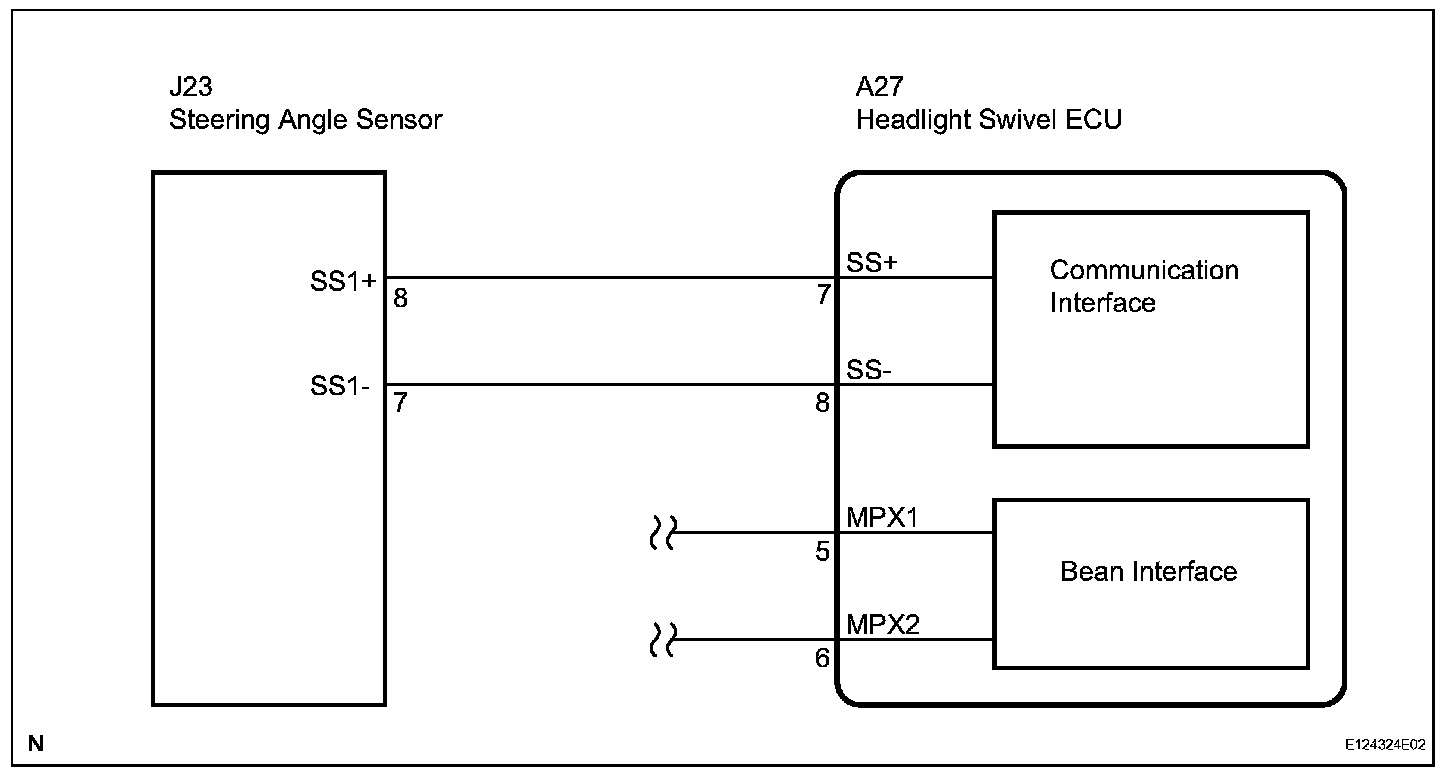

Wiring Diagram:

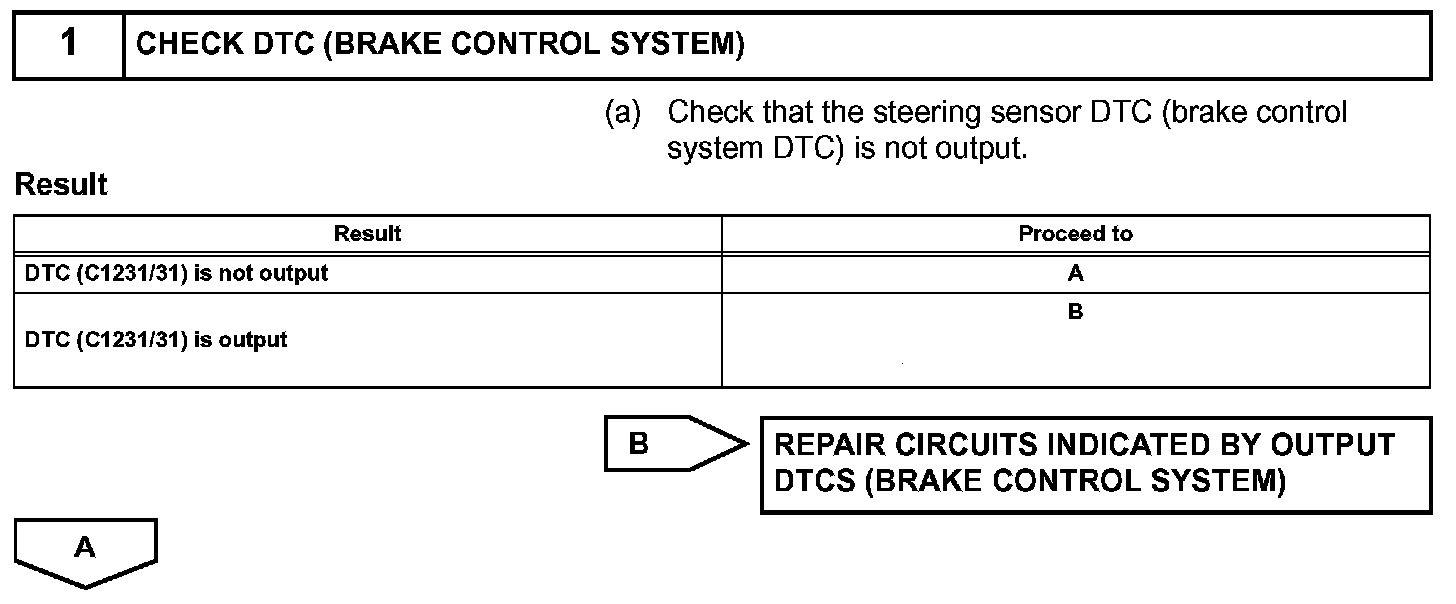

Step 1:

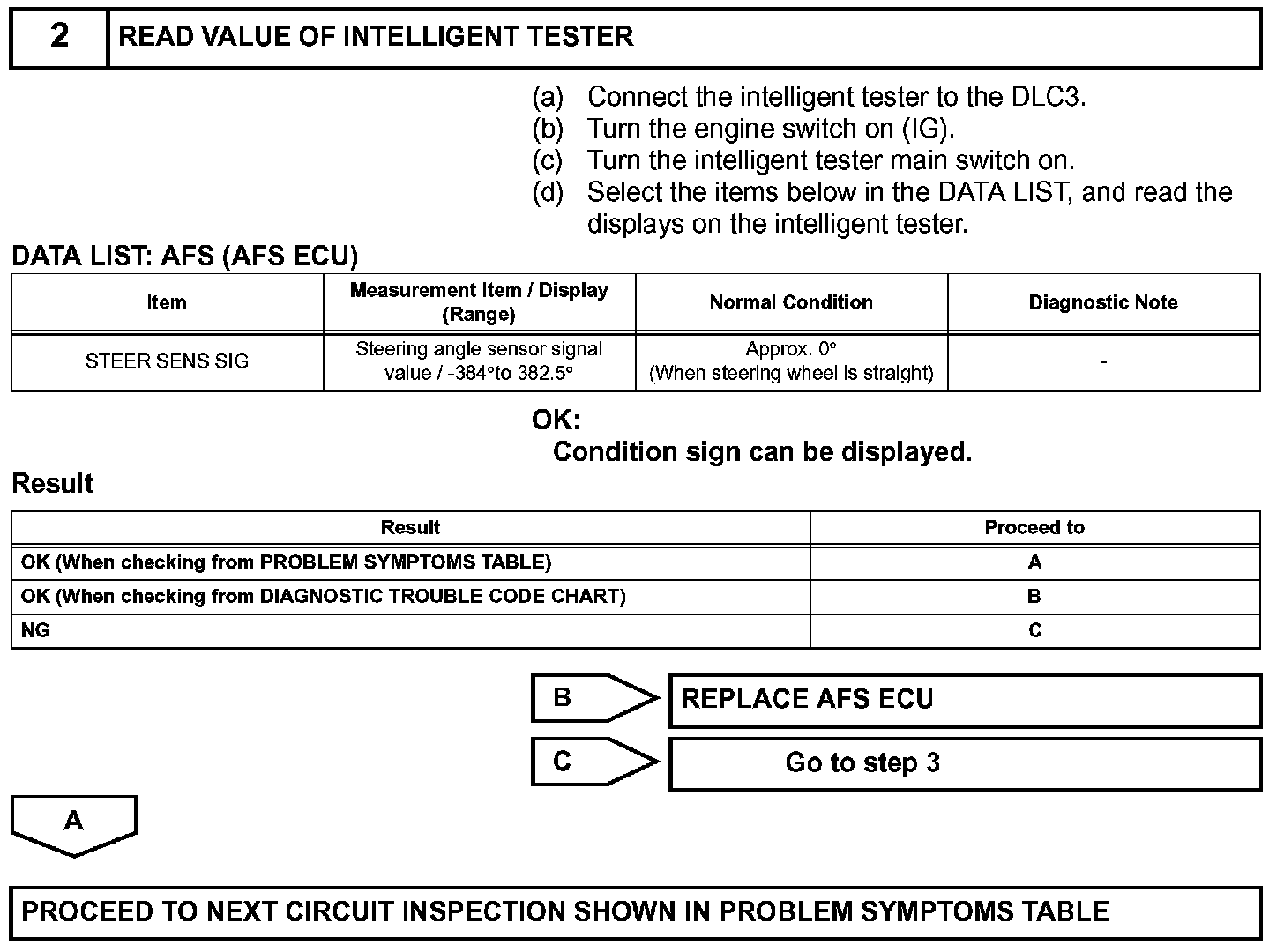

Step 2:

Step 3-4:

INSPECTION PROCEDURE
