B2413

DTC B2412 Headlight Swivel Motor LH Malfunction
DTC B2413 Headlight Swivel Motor RH Malfunction

DESCRIPTION

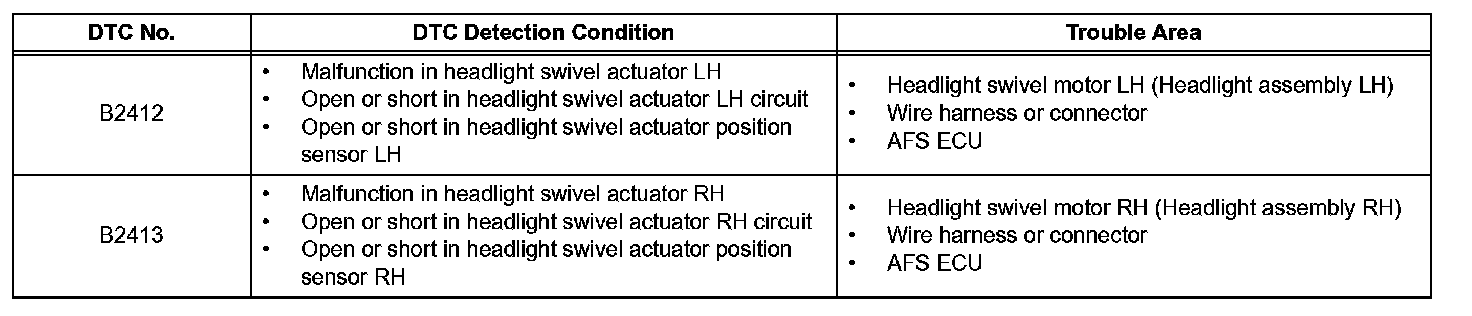

DTC Detection Condition:

The swivel actuator receives a signal from the AFS ECU to operate and sends a signal regarding the direction of the headlight and condition of the headlight swivel motor to the AFS ECU.

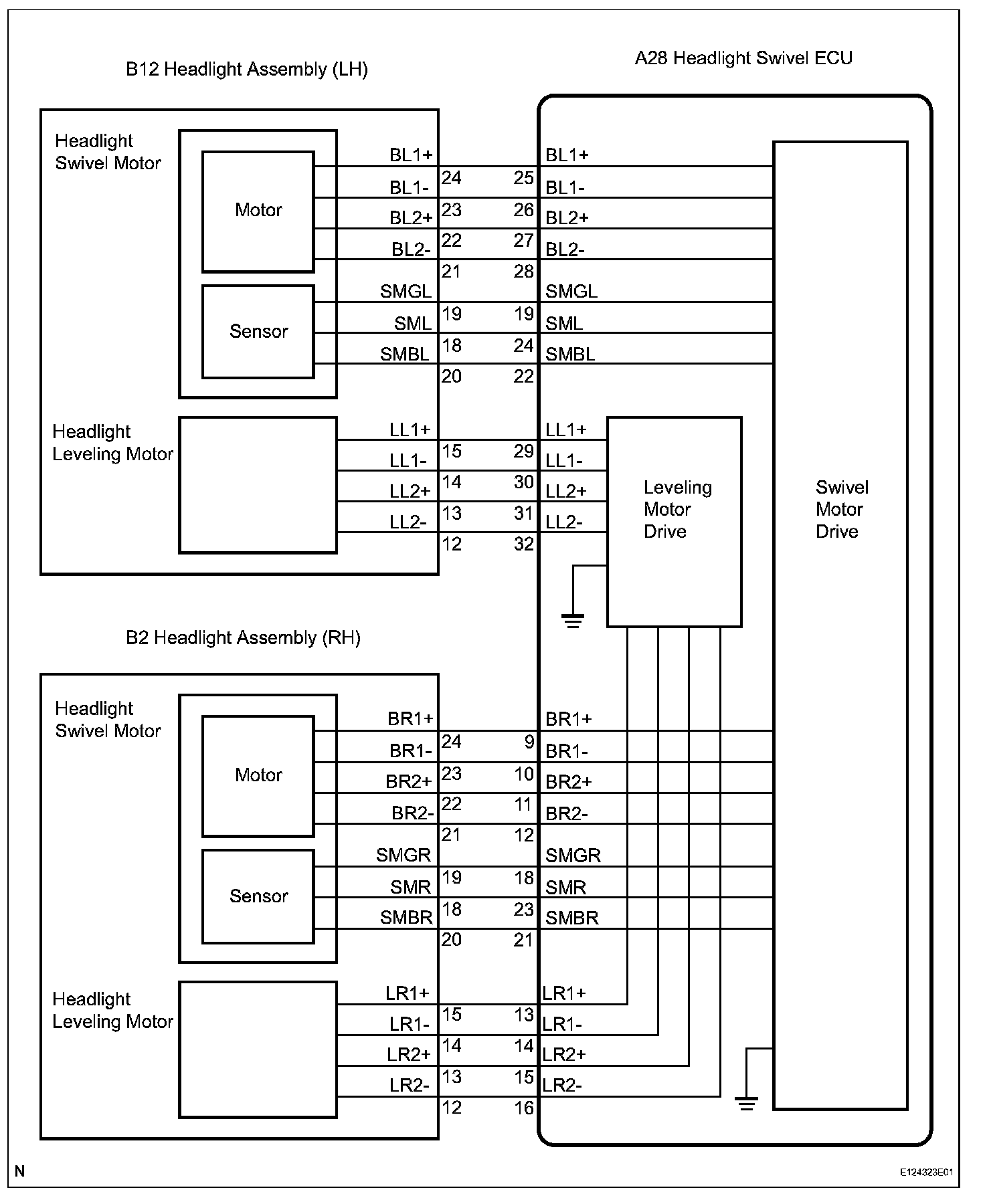

Wiring Diagram:

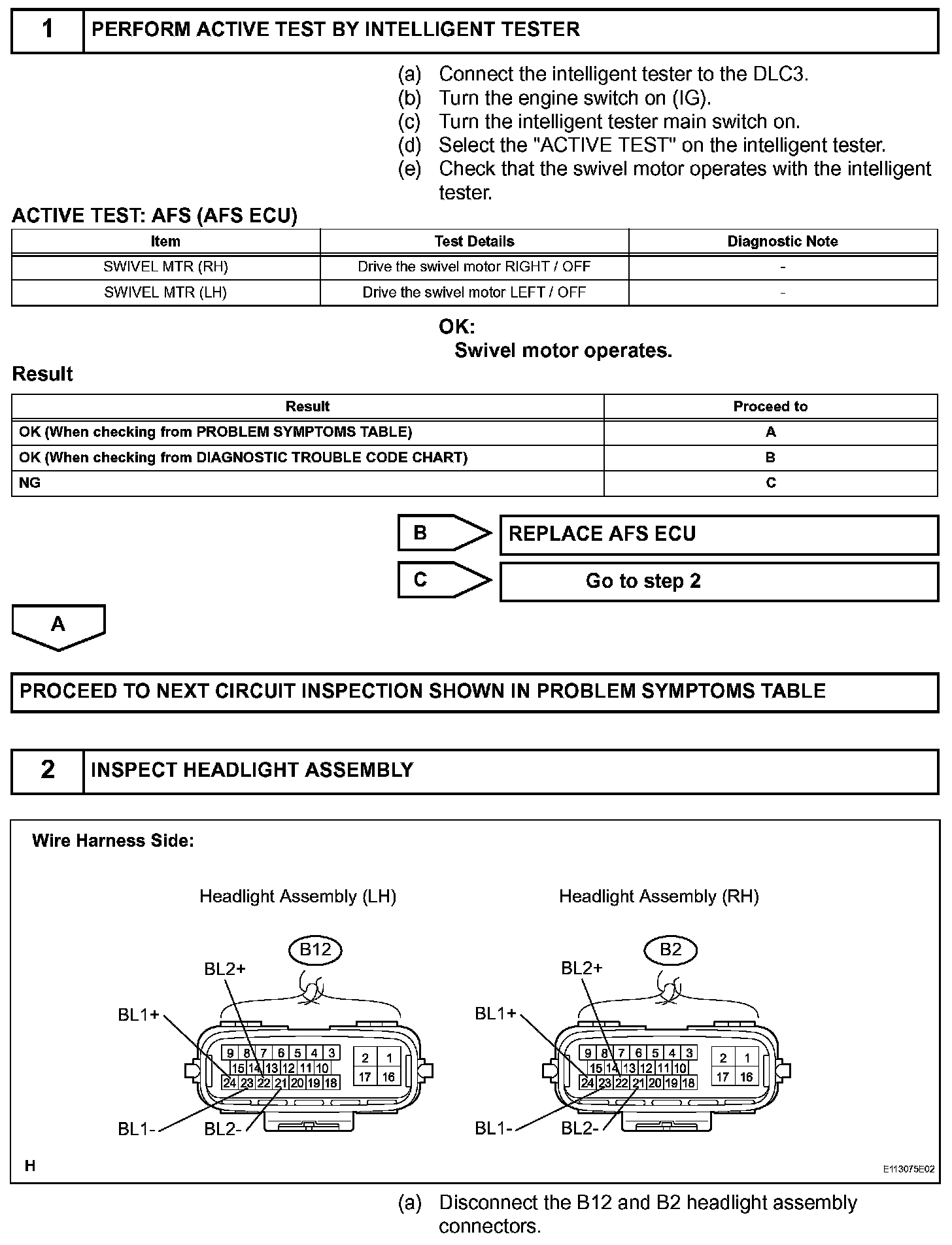

Step 1-2:

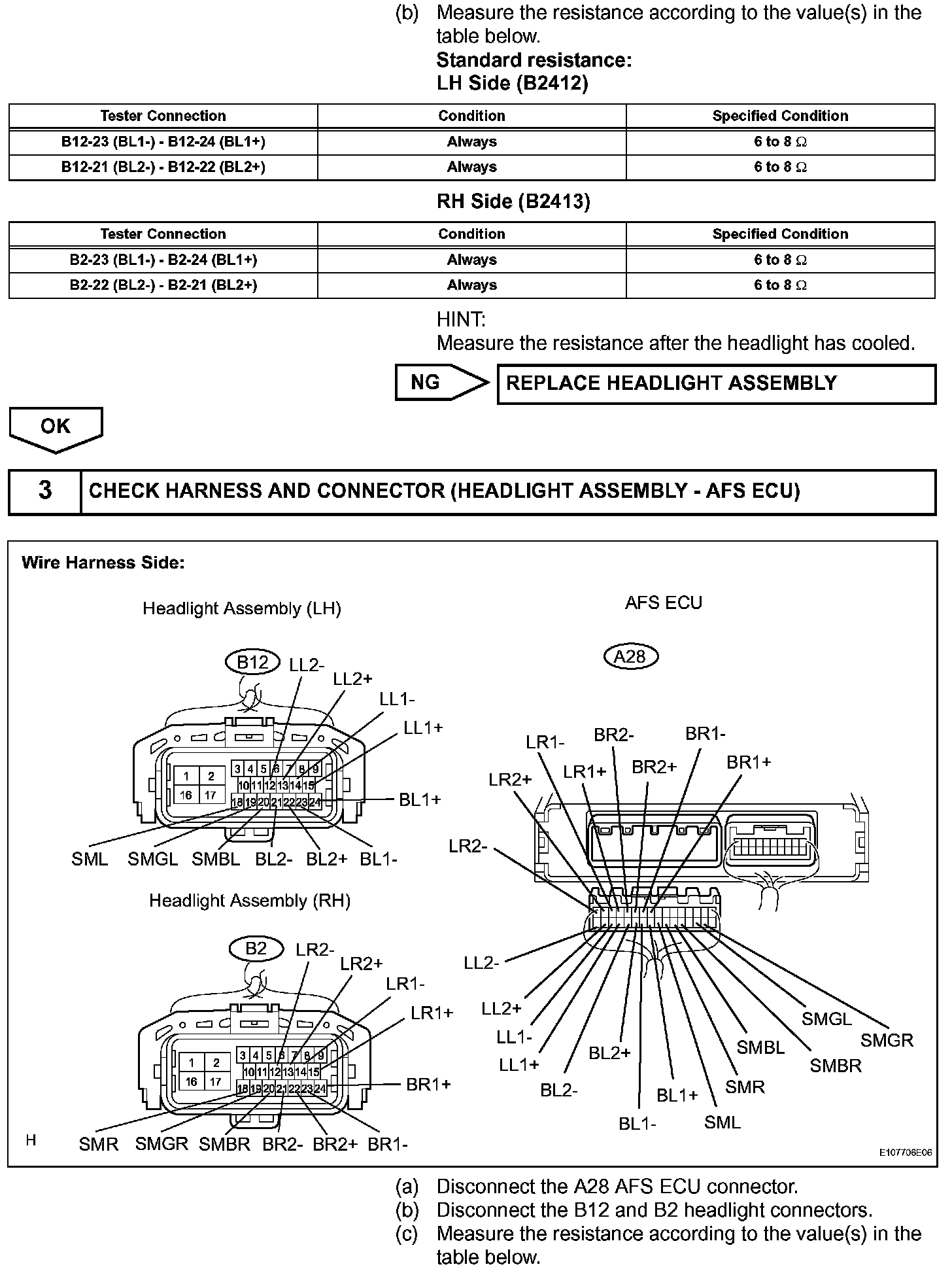

Step 2 (Continued)-3:

Step 3 (Continued):

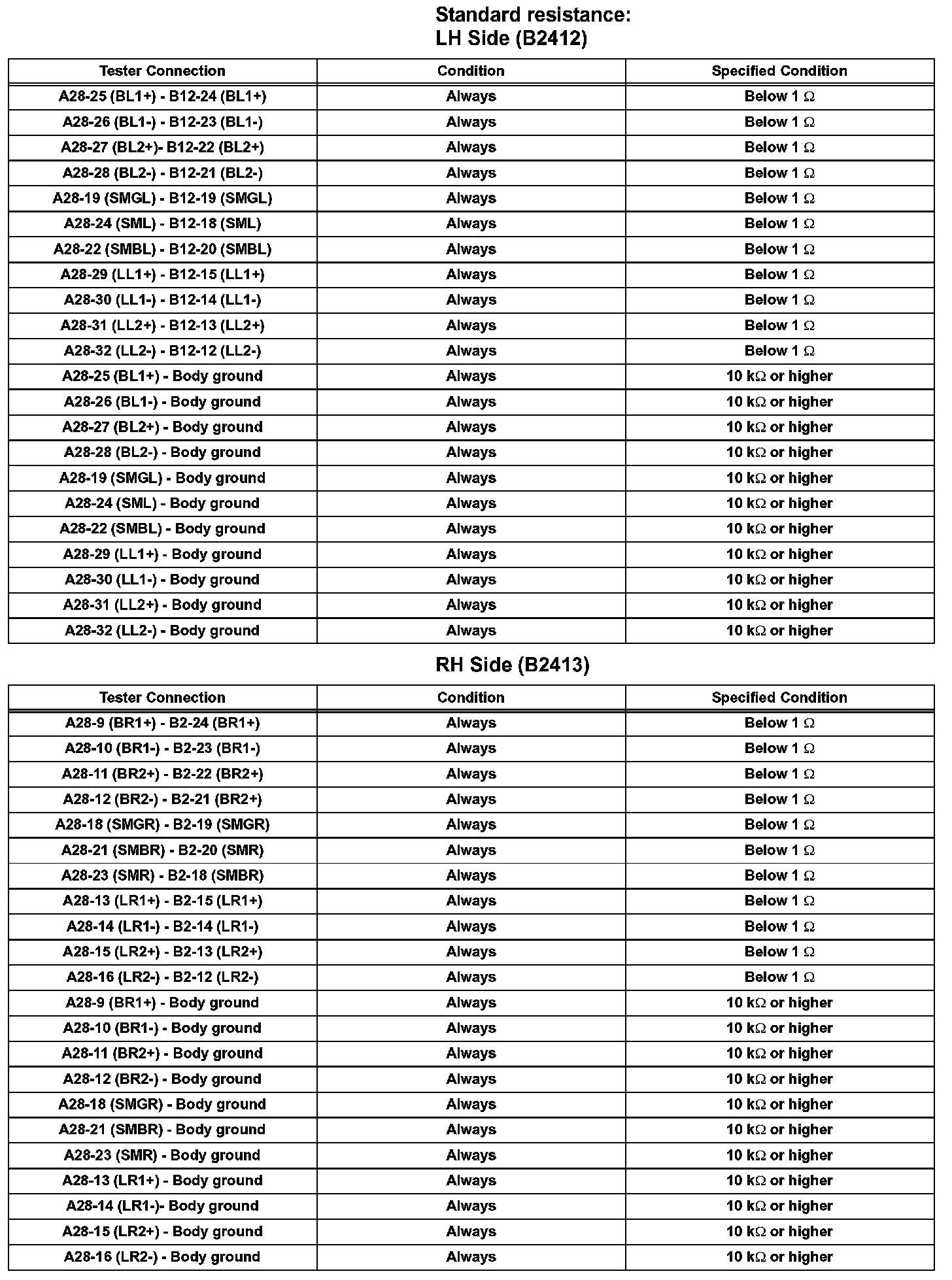

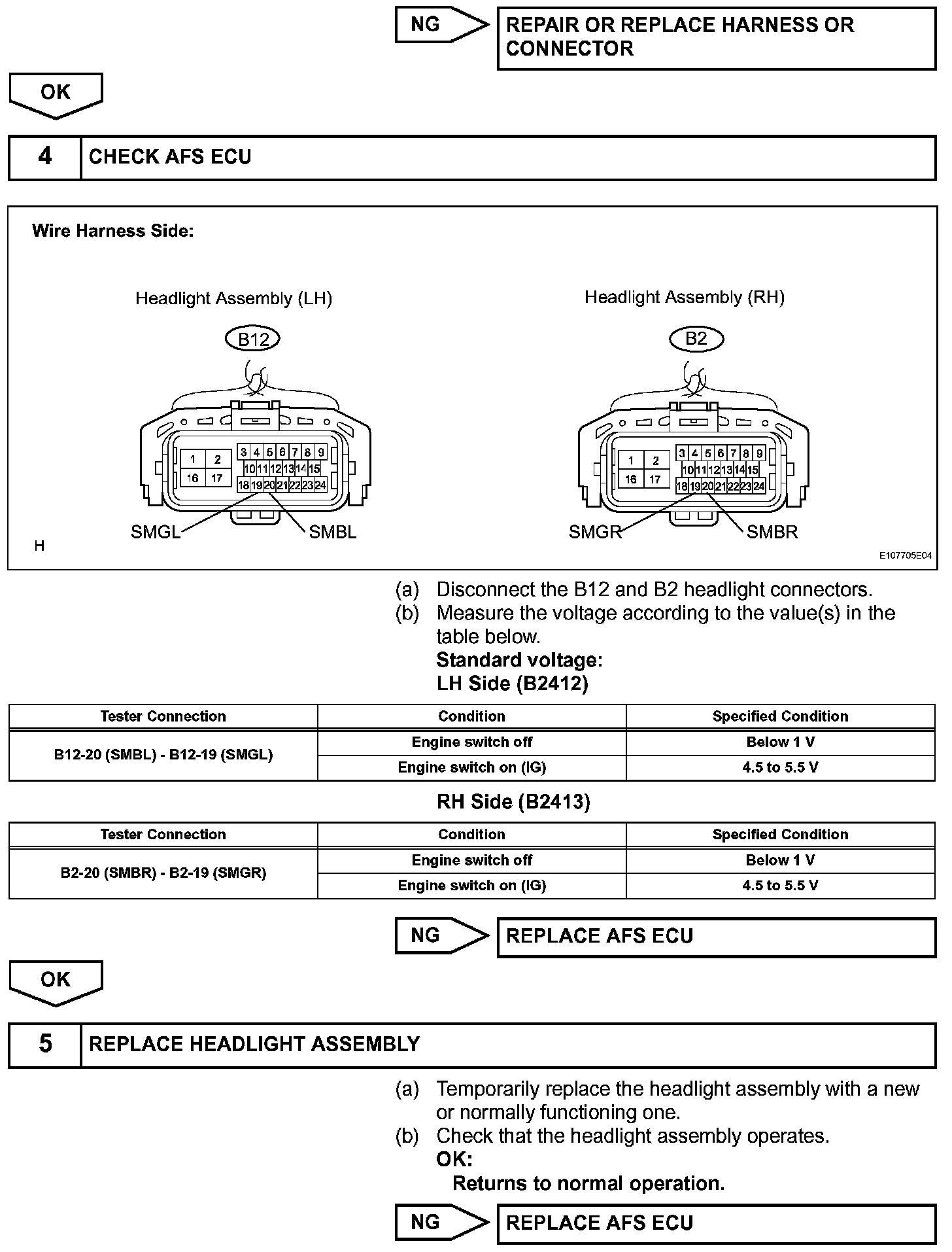

Step 3 (Continued)-5:

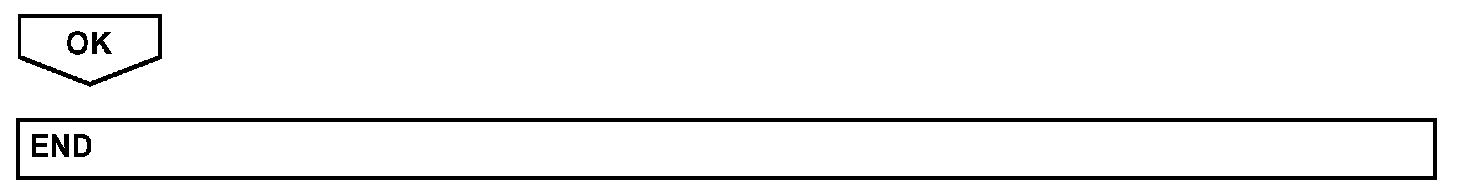

Step 5 (Continued):

INSPECTION PROCEDURE
