B2289

DTC B2289 Key Collation Waiting Time Over

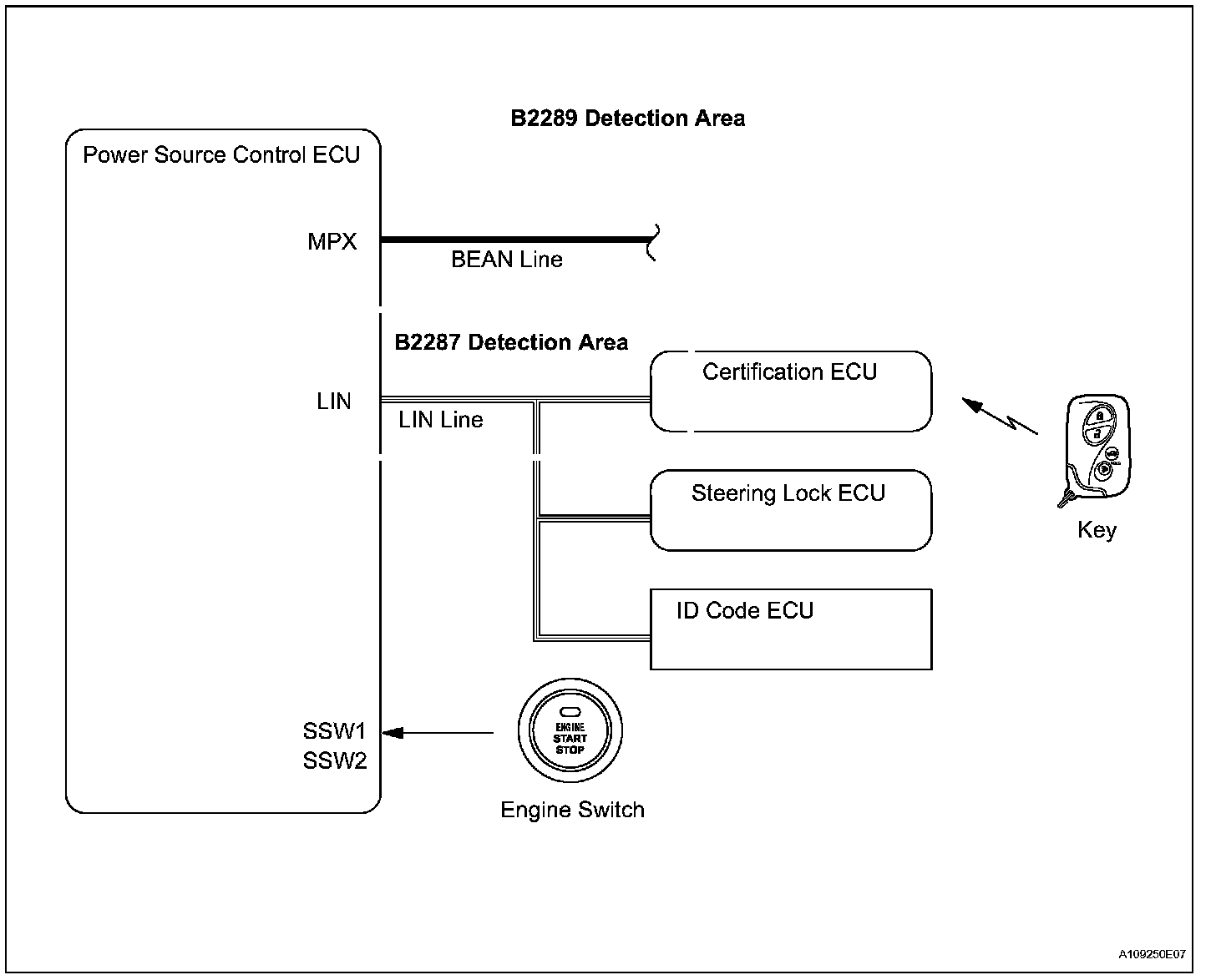

DESCRIPTION

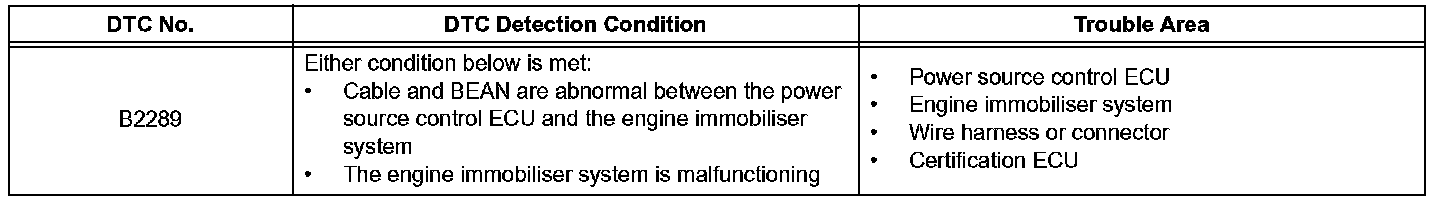

DTC Detection Condition:

This DTC is output when there is a LIN communication problem between the power source control ECU and certification ECU or when there is a problem in the engine immobilizer system.

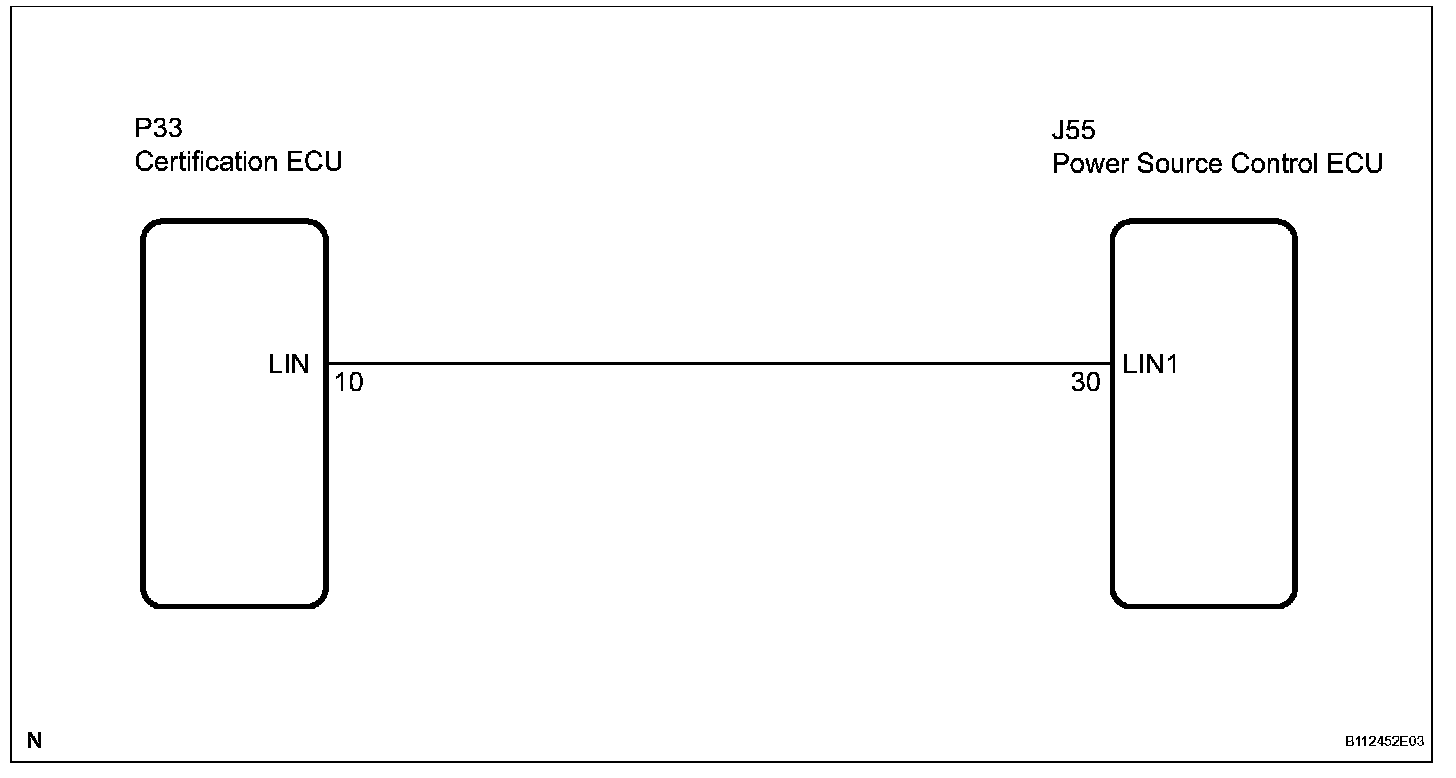

Wiring Diagram:

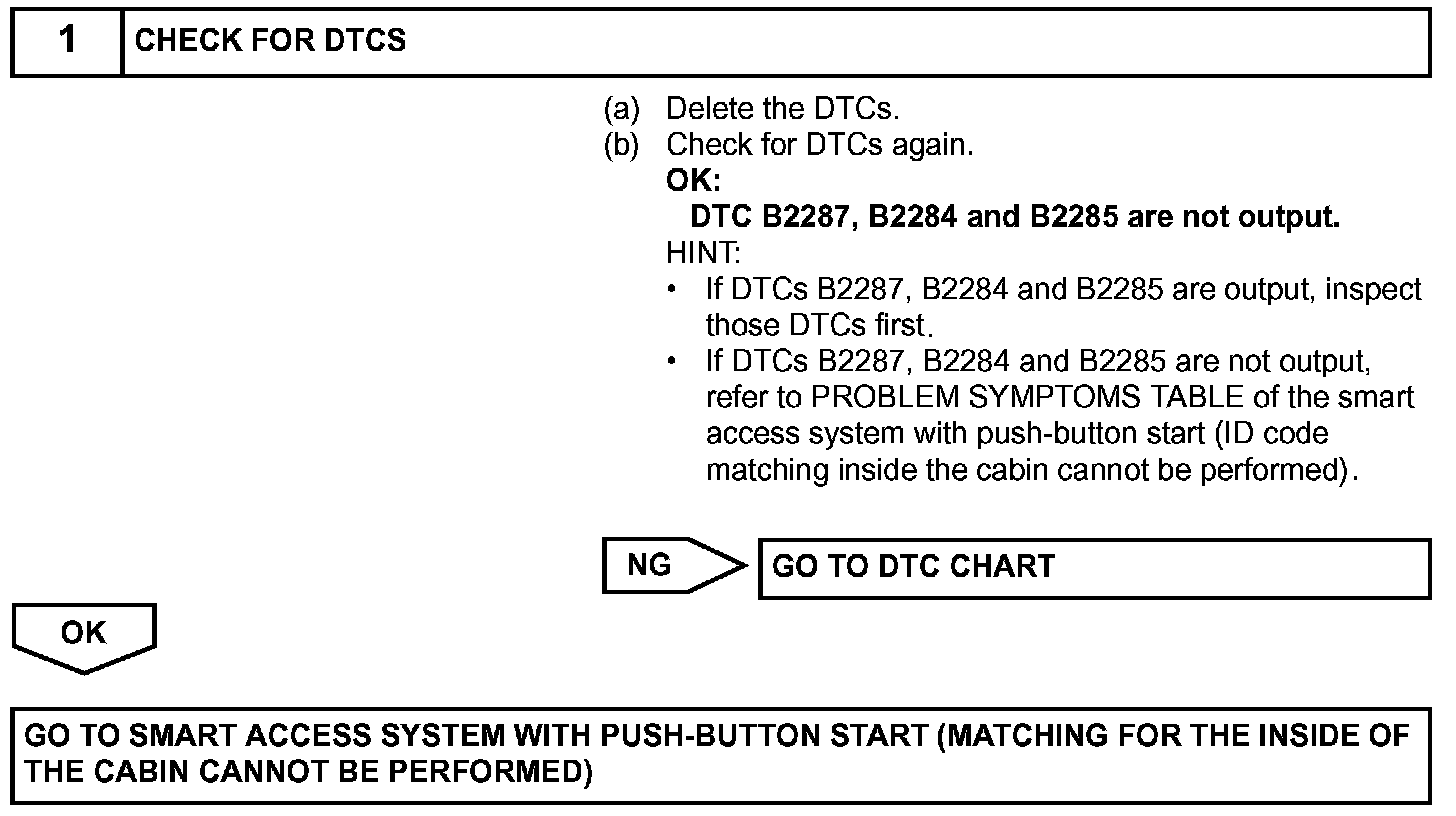

Step 1:

INSPECTION PROCEDURE
