B2285

DTC B2285 Steering Lock Position Signal Circuit Malfunction

DESCRIPTION

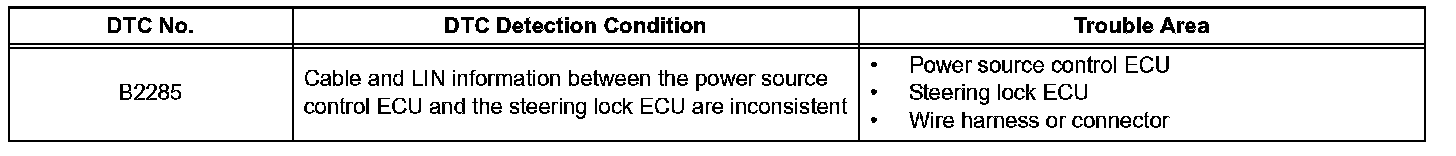

DTC Detection Condition:

This DTC is output when serial communication signals and LIN communication signals in the circuit between the power source control ECU and steering lock actuator (steering lock ECU) are inconsistent.

HINT: When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

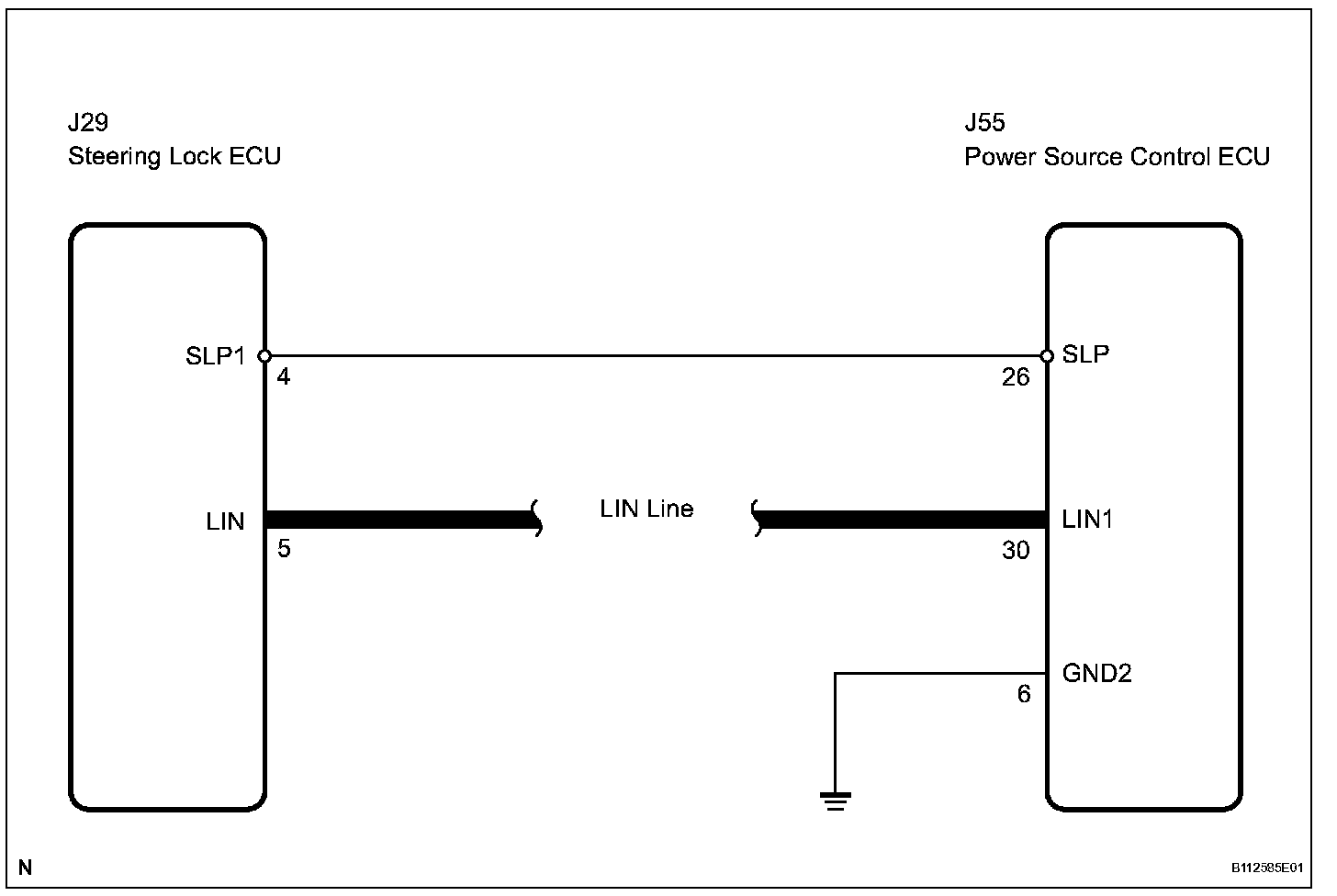

Wiring Diagram:

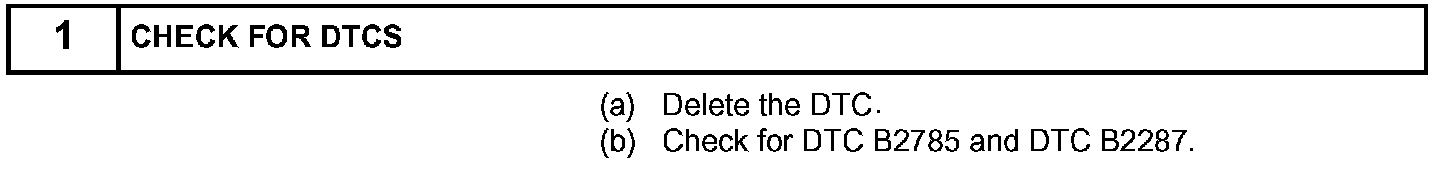

Step 1:

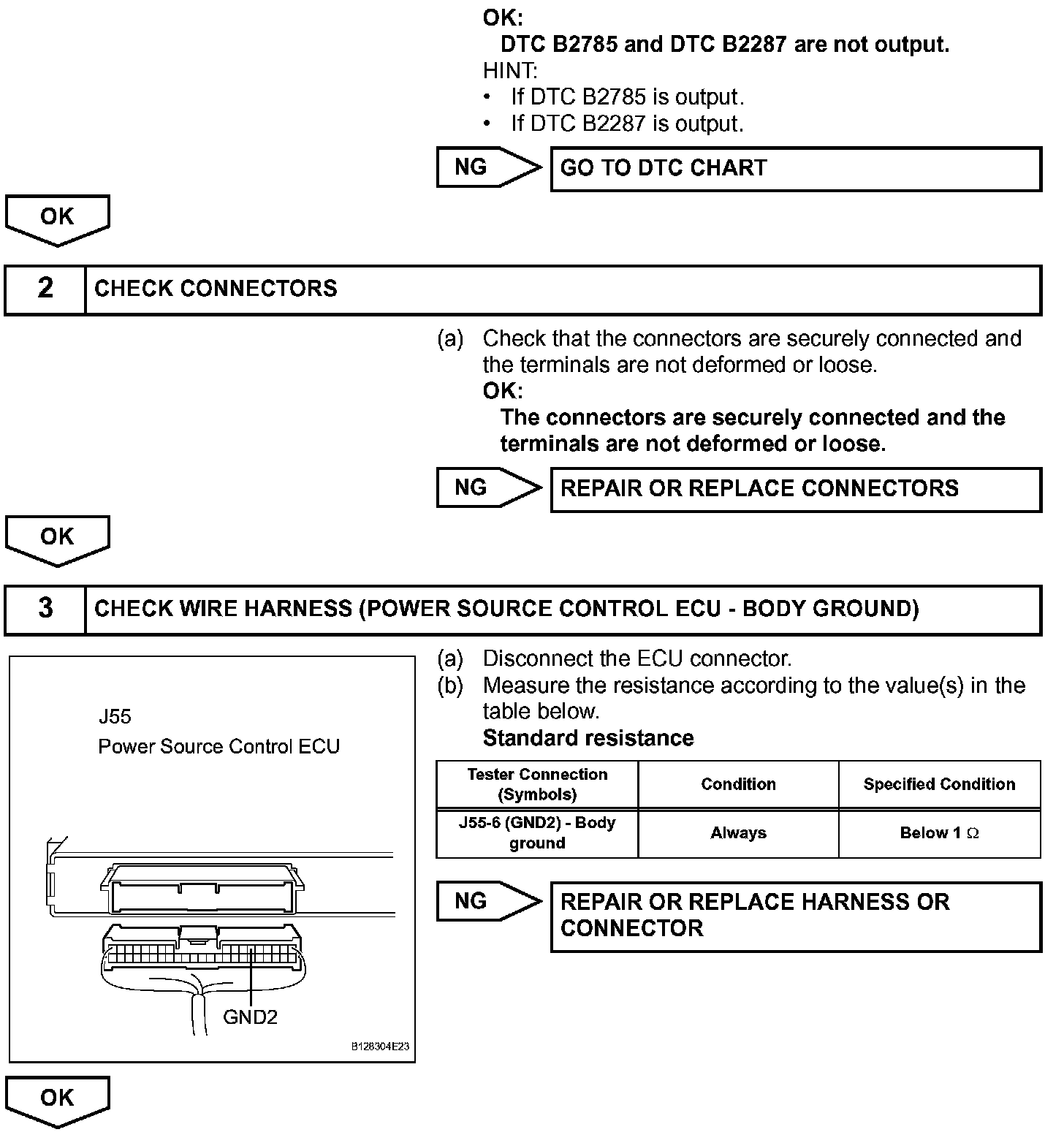

Step 1 (Continued)-3:

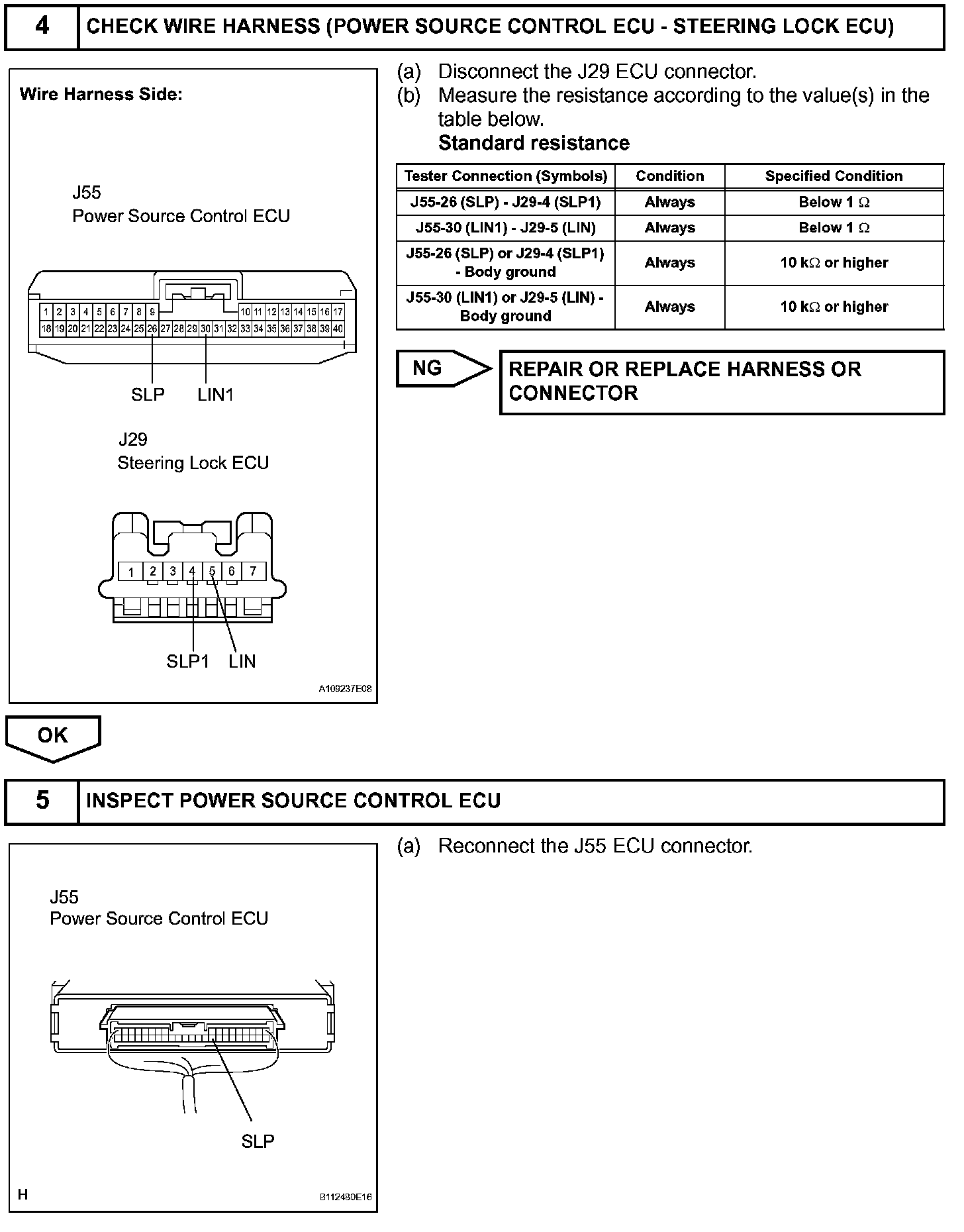

Step 4-5:

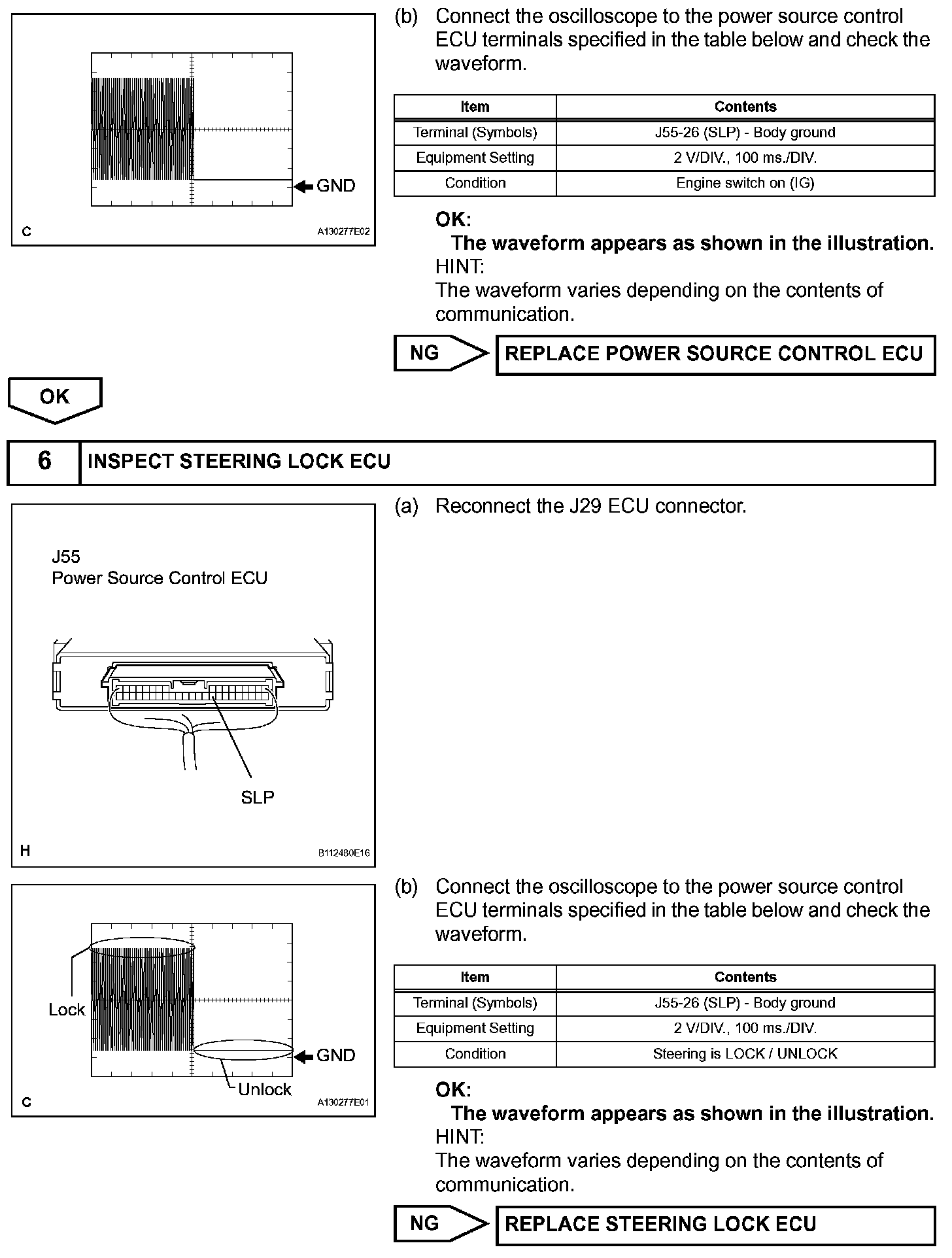

Step 5 (Continued)-6:

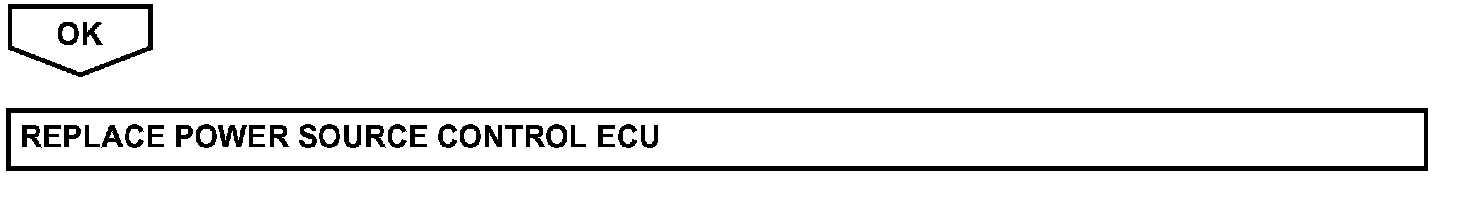

Step 6 (Continued):

INSPECTION PROCEDURE
