B2281

DTC B2281 "P" Signal Malfunction

DESCRIPTION

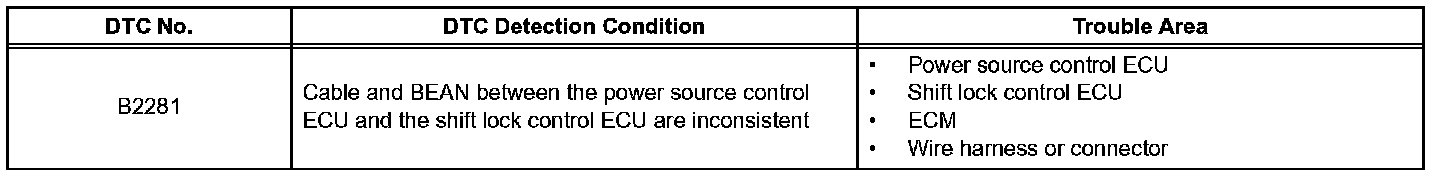

DTC Detection Condition:

The power source control ECU and the shift lock control ECU are connected by a cable and the BEAN. If the cable information and BEAN information are inconsistent, this DTC will be output.

HINT: When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

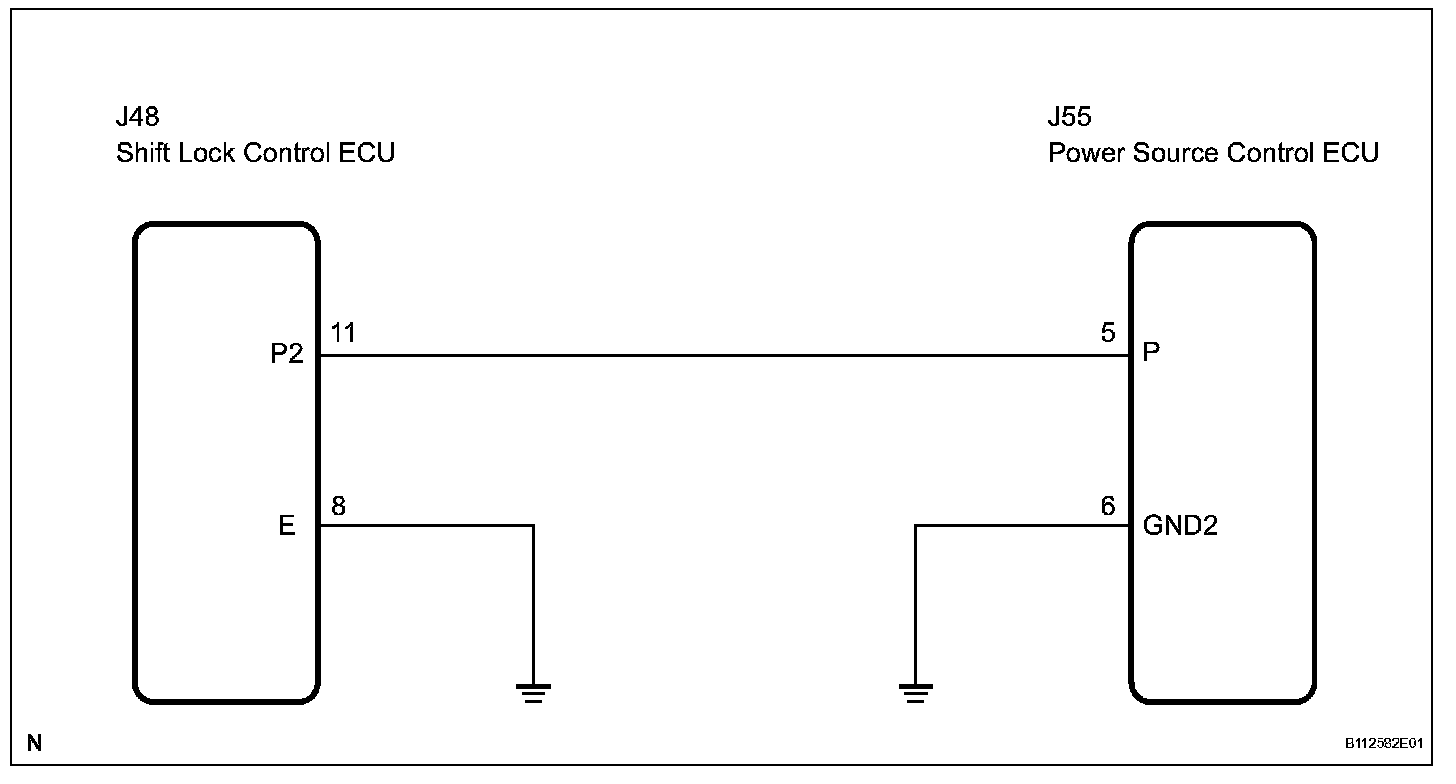

Wiring Diagram:

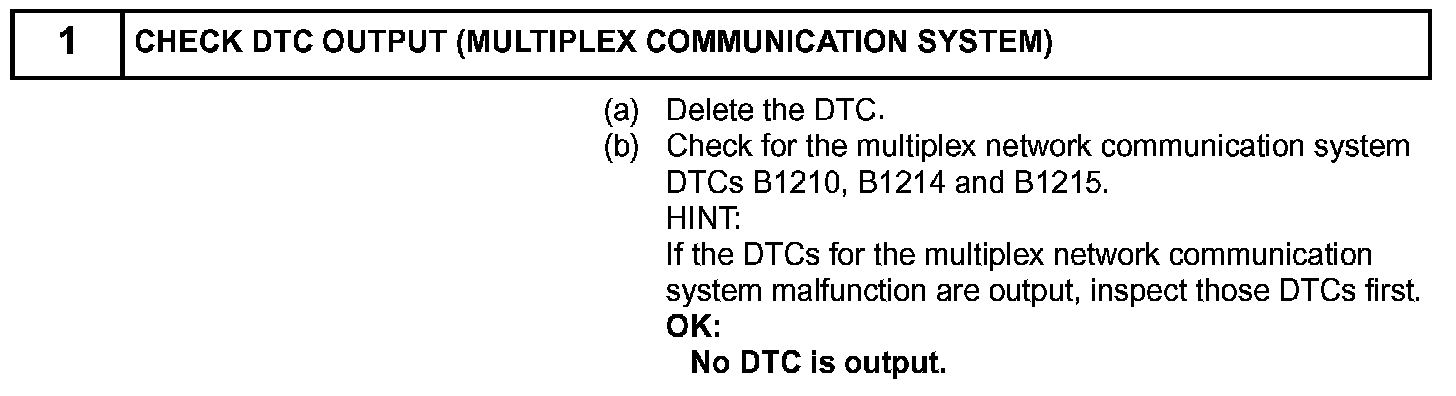

Step 1:

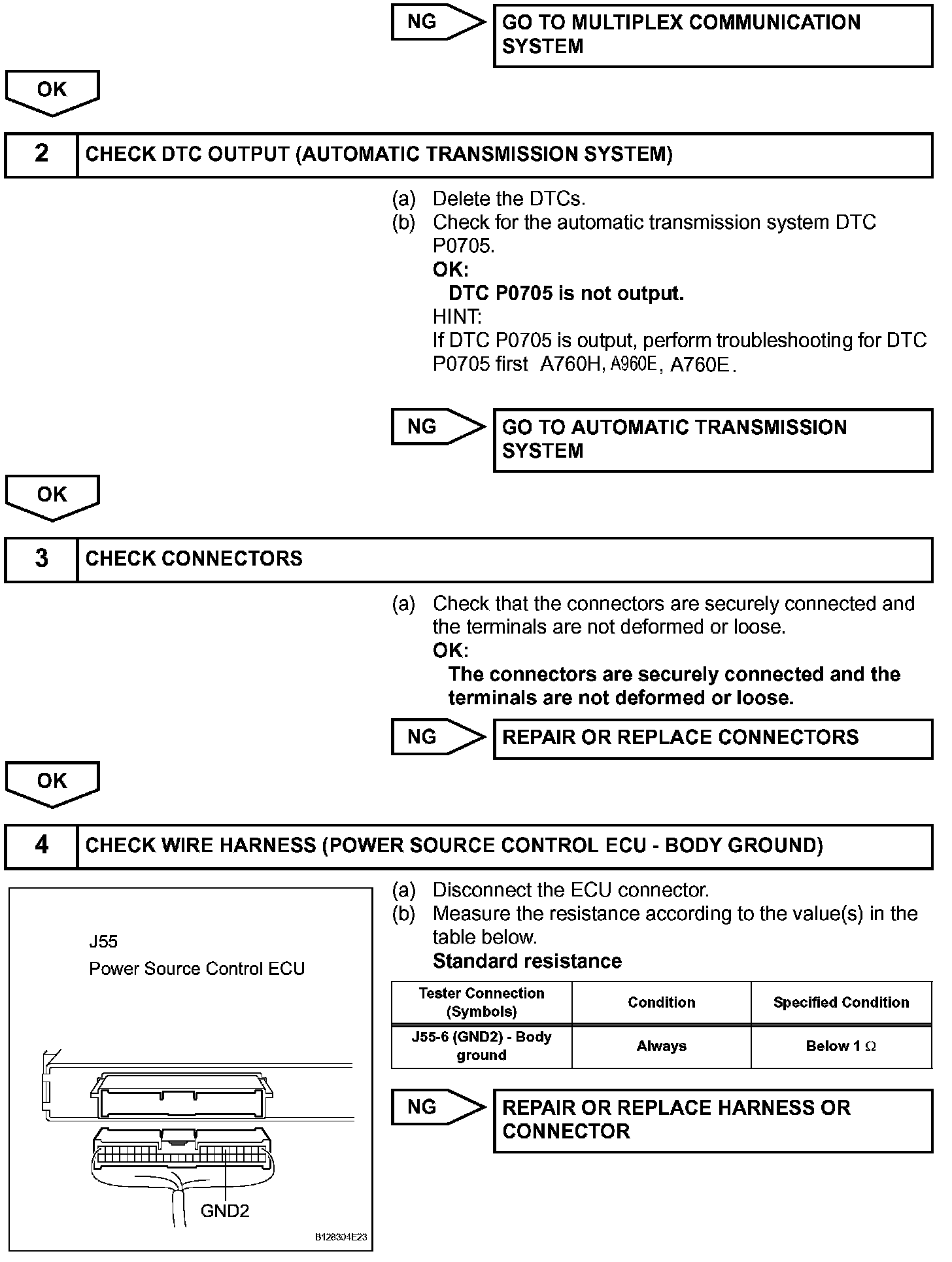

Step 1 (Continued)-4:

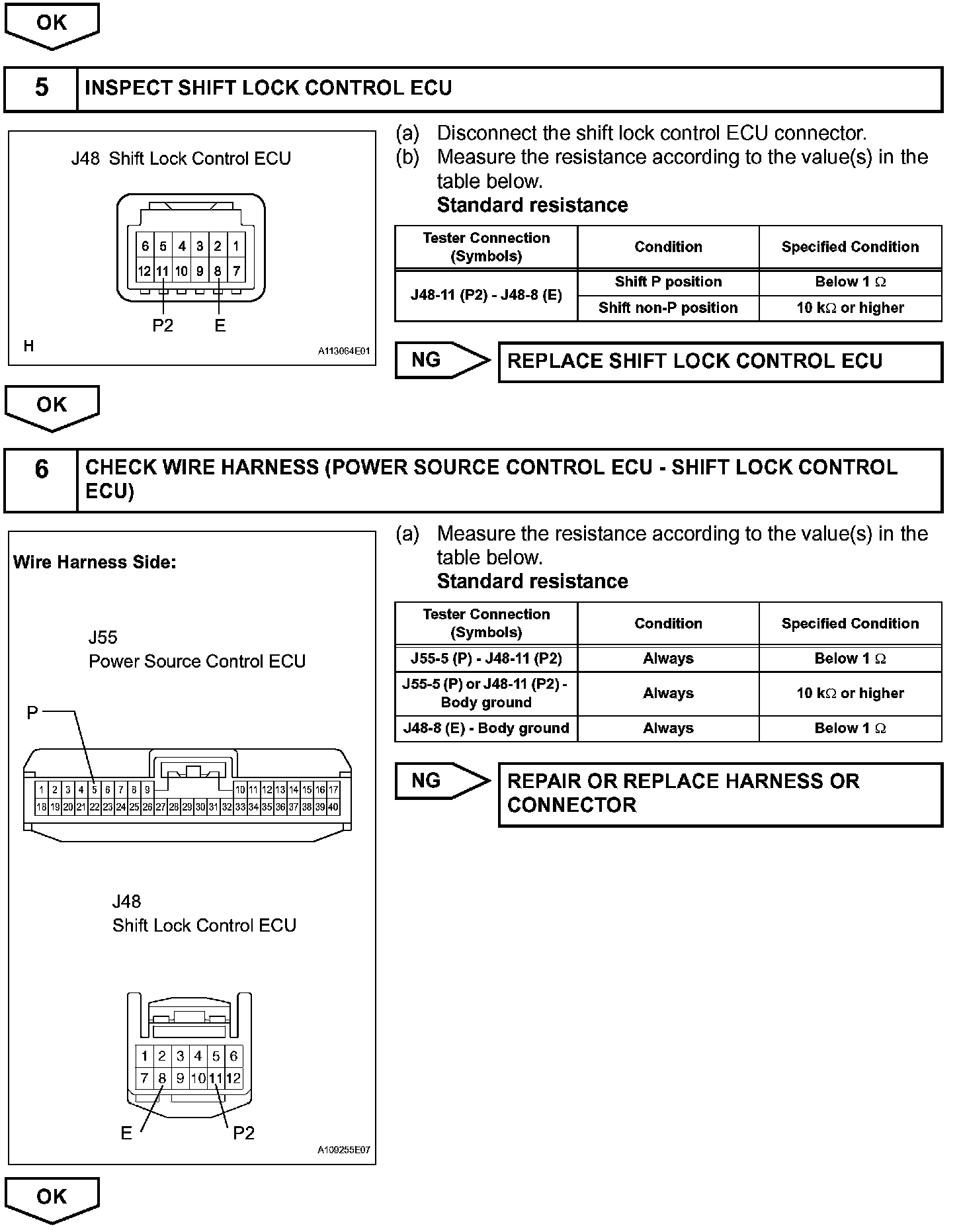

Step 4 (Continued)-6:

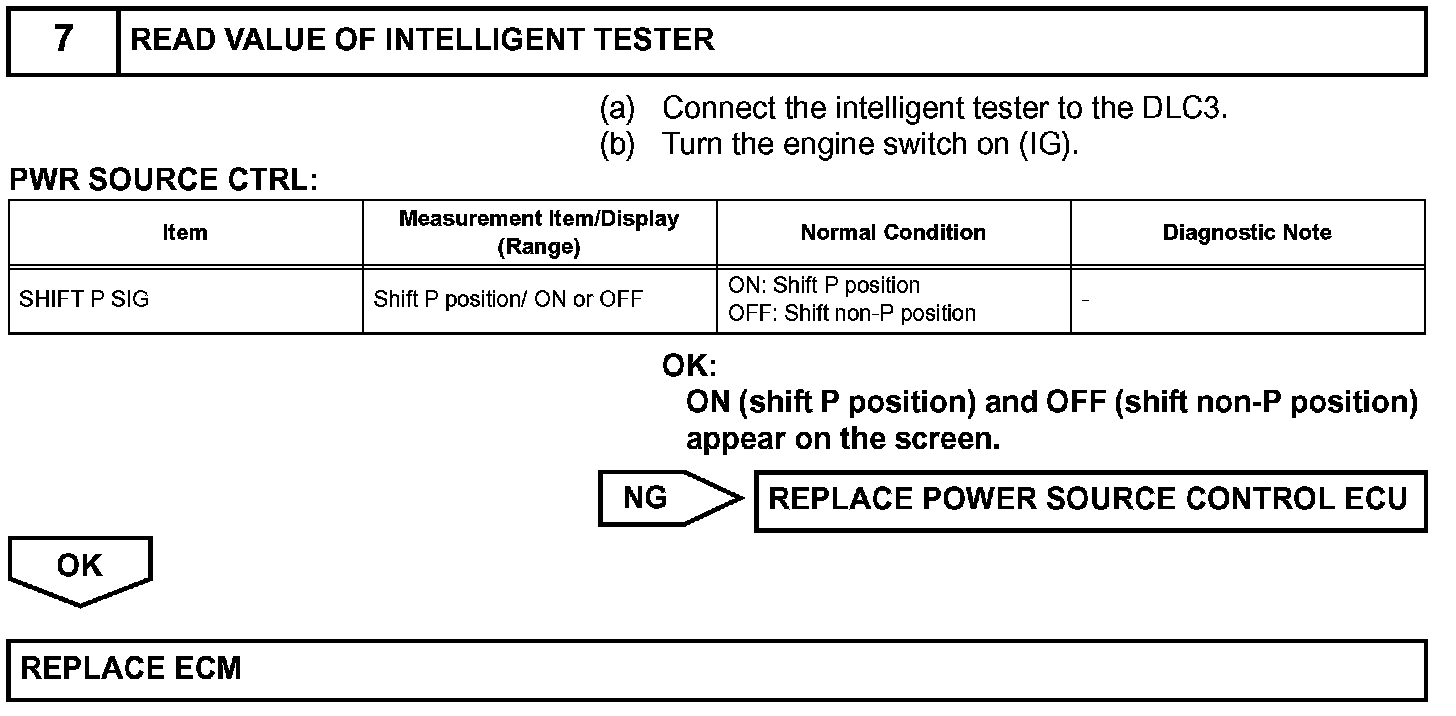

Step 7:

INSPECTION PROCEDURE
