B2276

DTC B2276 ACCR Signal Circuit Malfunction

DESCRIPTION

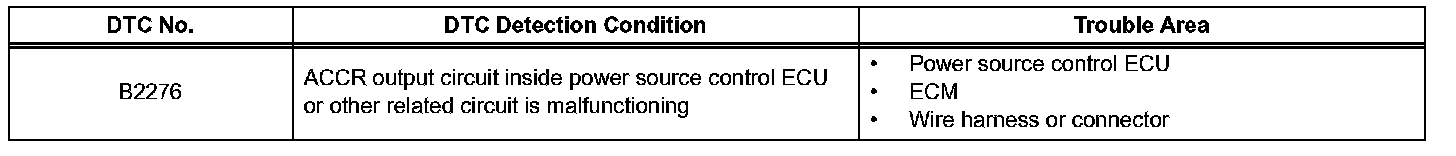

DTC Detection Condition:

This DTC is output when the ACCR output circuits inside the power source control ECU are open or short.

HINT: When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

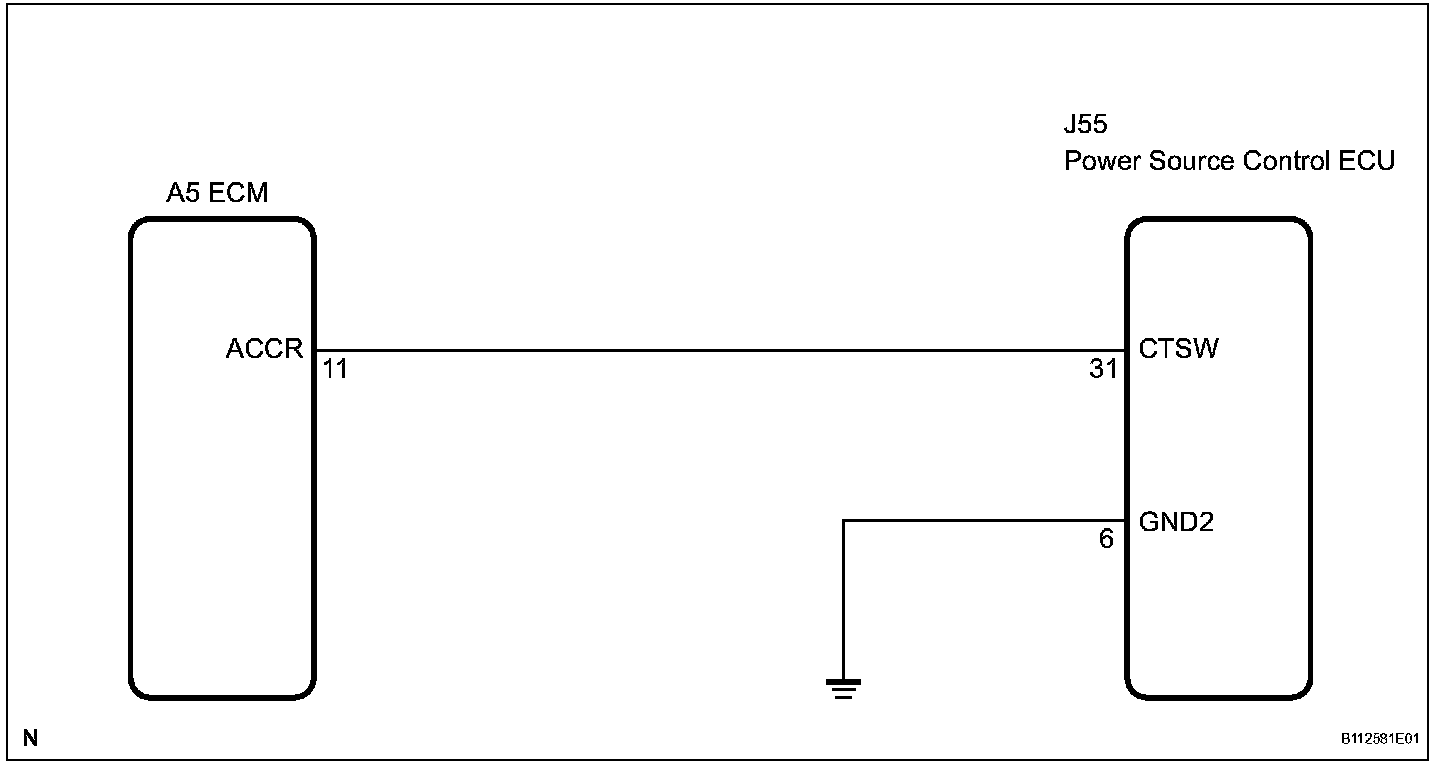

Wiring Diagram:

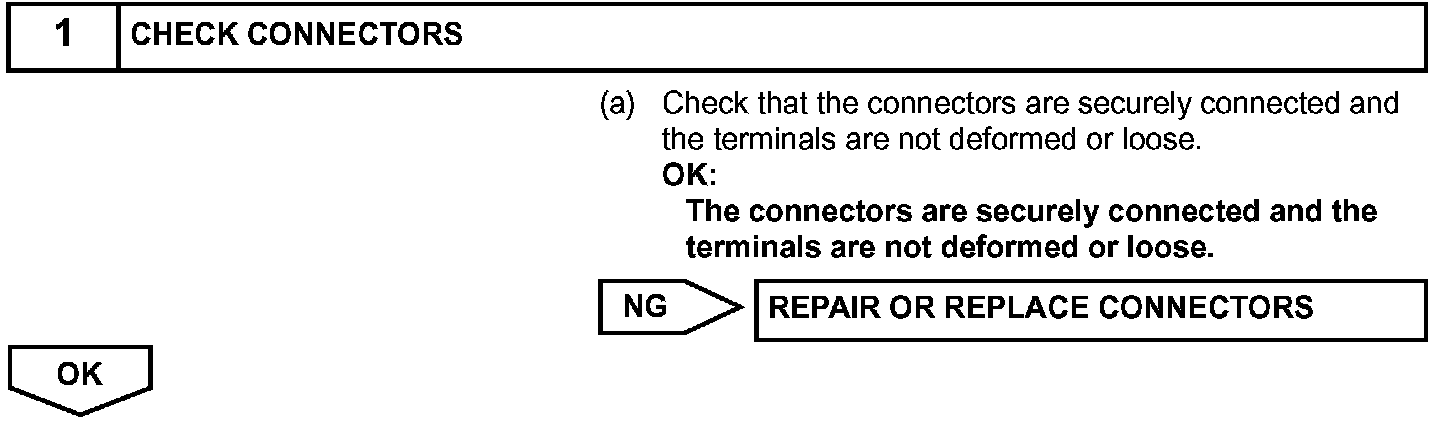

Step 1:

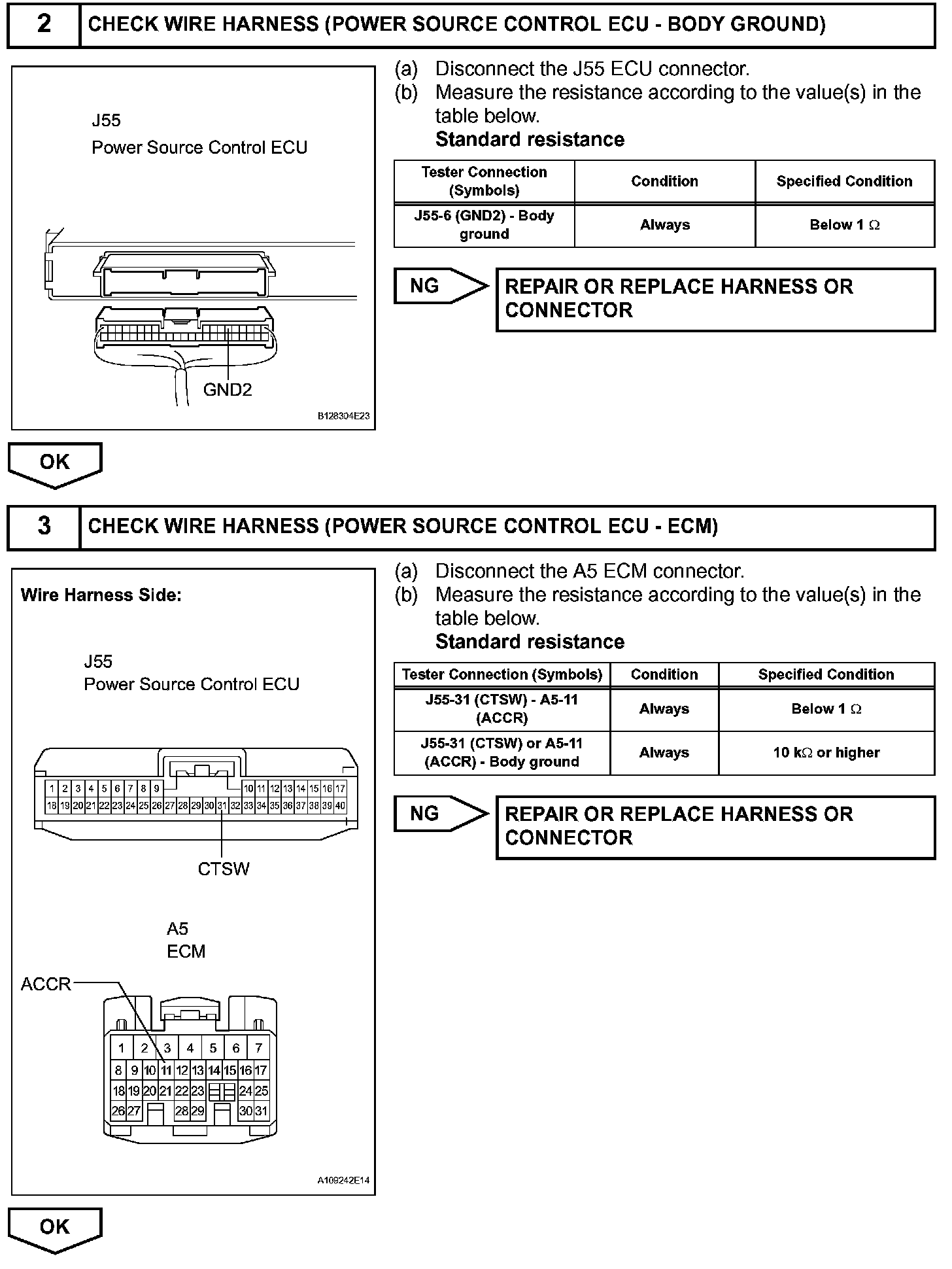

Step 2-3:

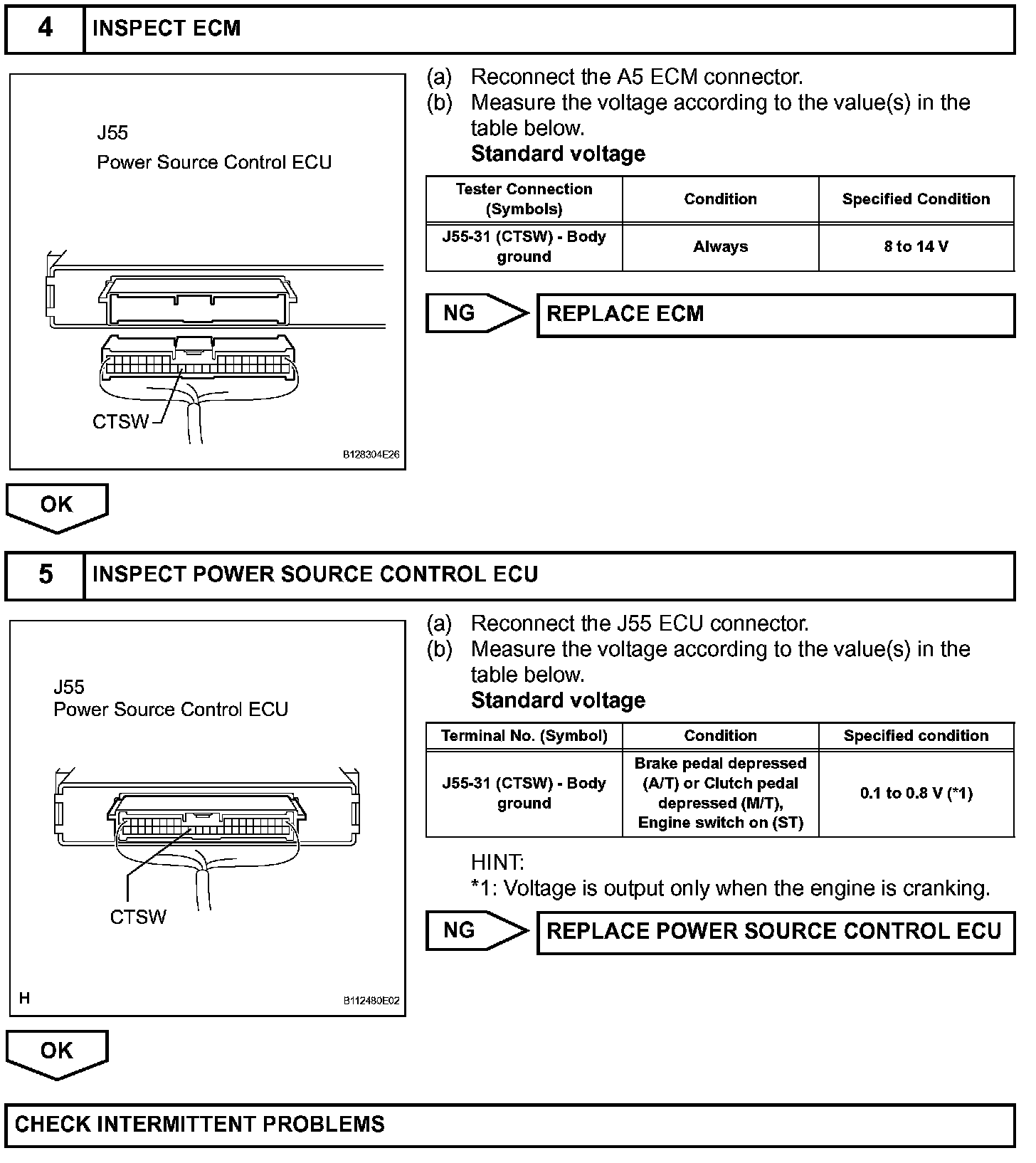

Step 4-5:

INSPECTION PROCEDURE
