B2275

DTC B2275 STSW Monitor Malfunction

DESCRIPTION

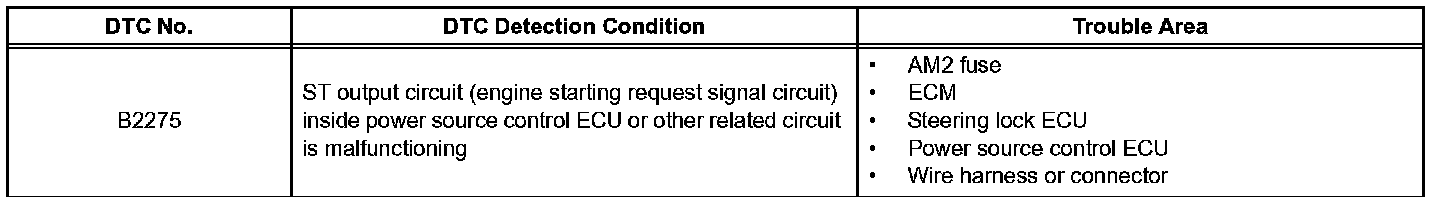

DTC Detection Condition:

This DTC is output when there is an open, short, or any other problem in the engine start request output circuit inside the power source control ECU or in the external circuit.

HINT: When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

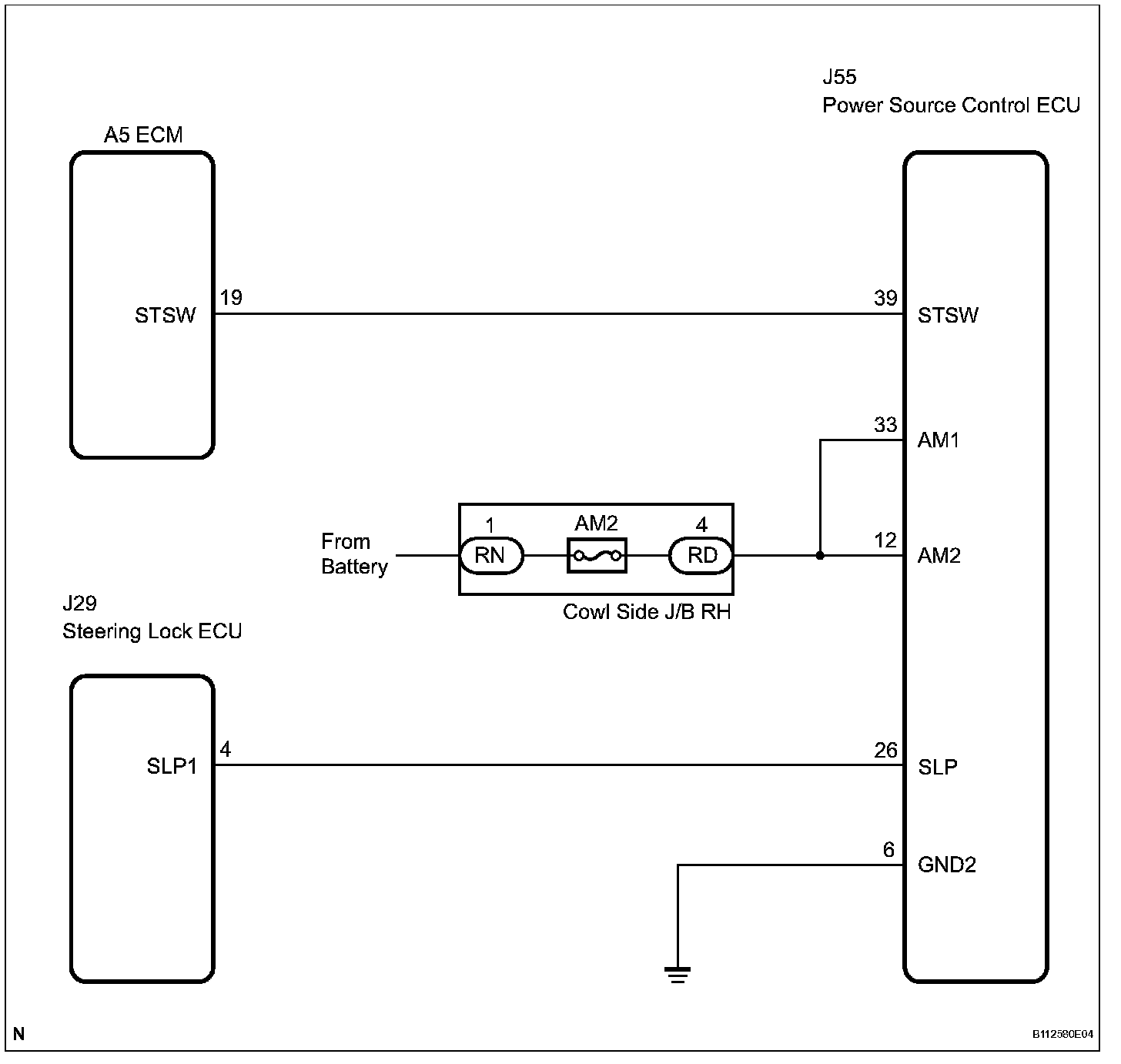

Wiring Diagram:

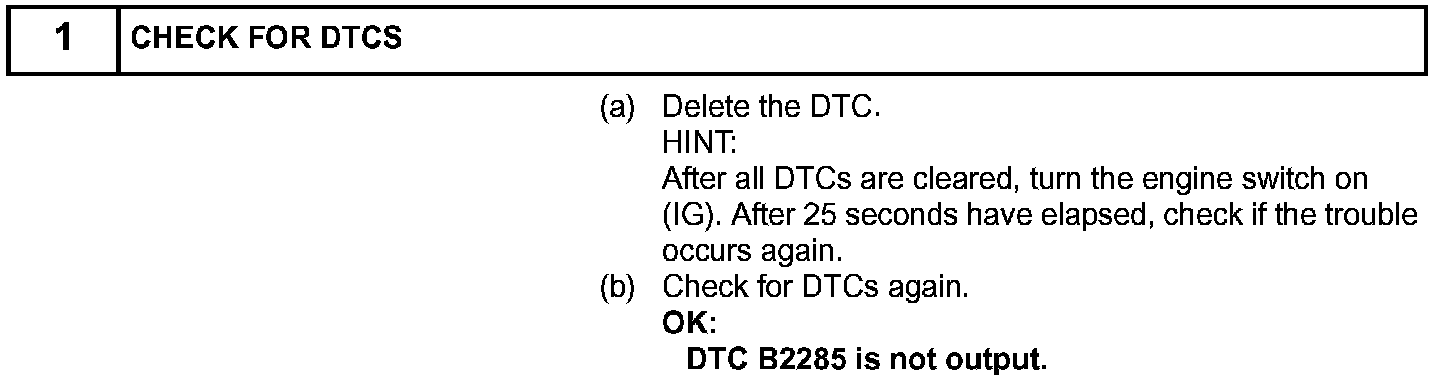

Step 1:

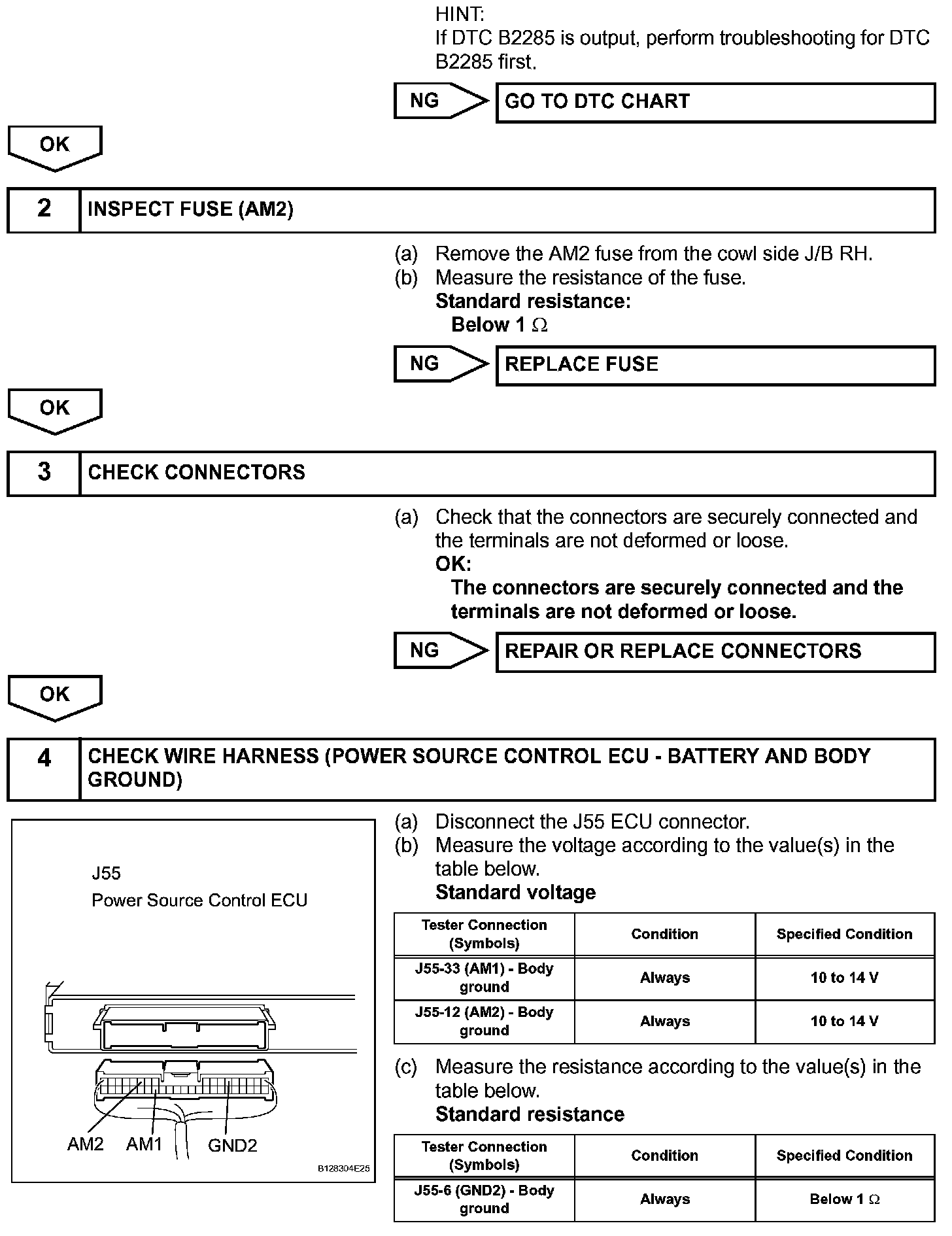

Step 1 (Continued)-4:

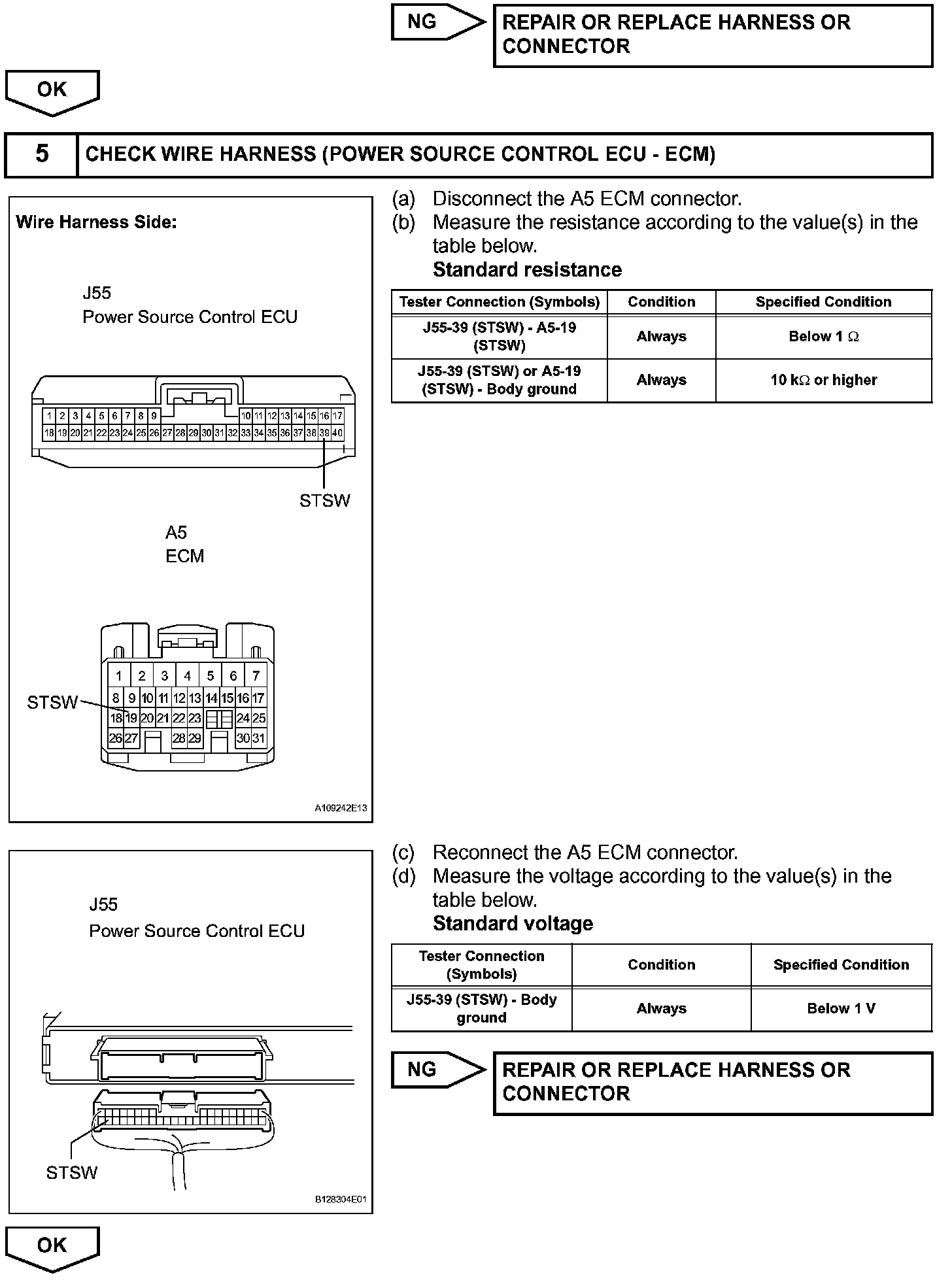

Step 4 (Continued)-5:

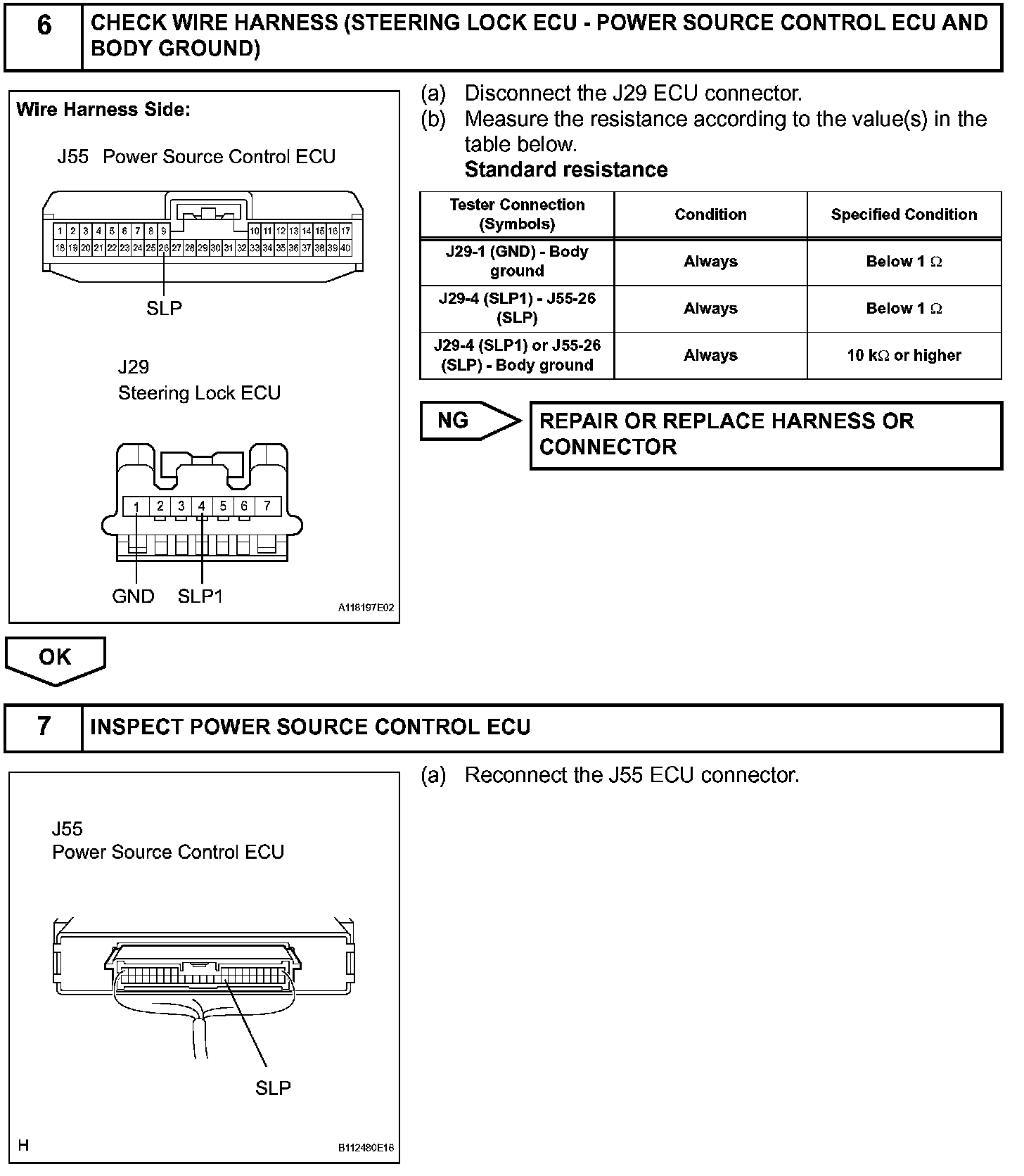

Step 6-7:

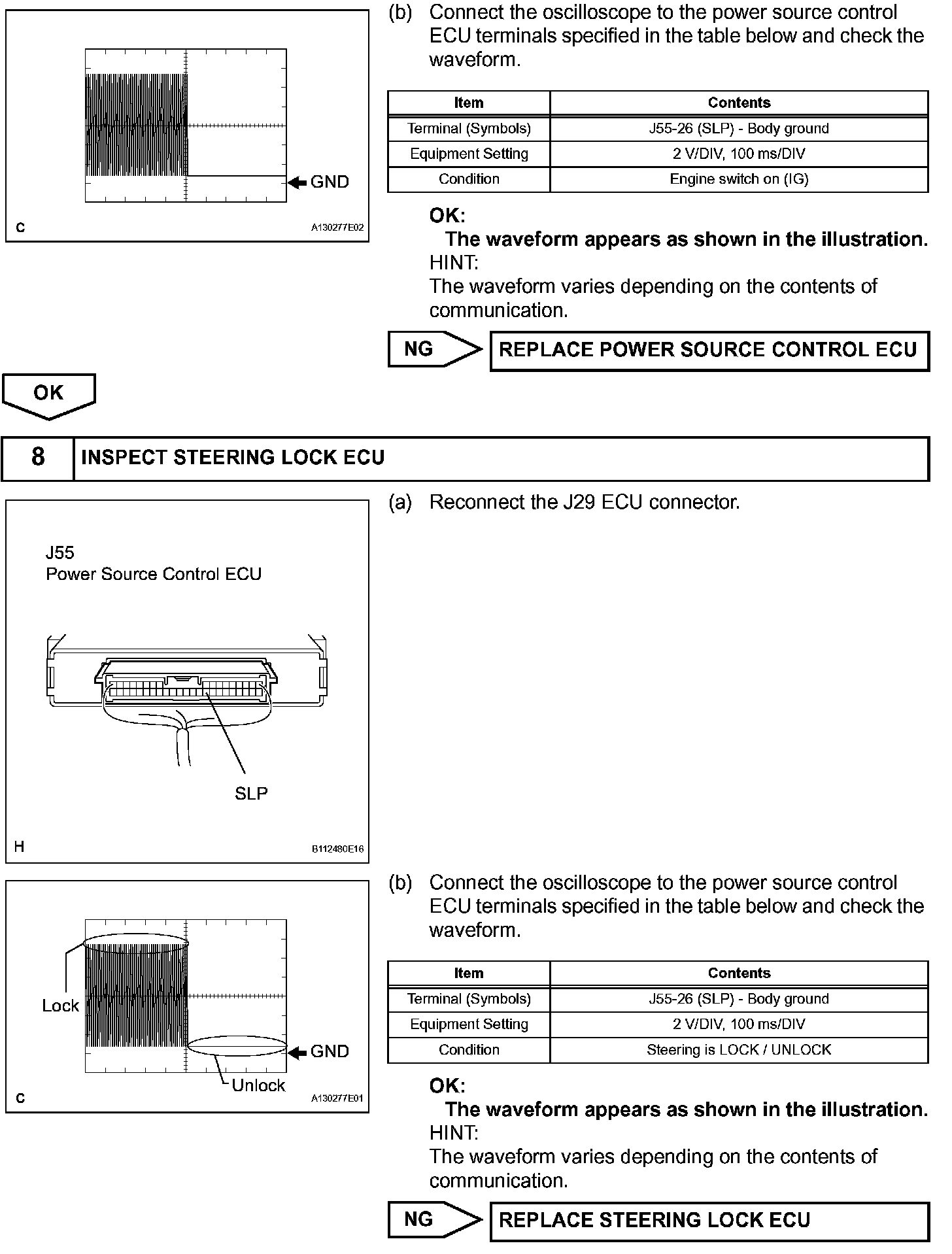

Step 7 (Continued)-8:

Step 8 (Continued)-9:

INSPECTION PROCEDURE
