B2272

DTC B2272 Ignition 1 Monitor Malfunction

DESCRIPTION

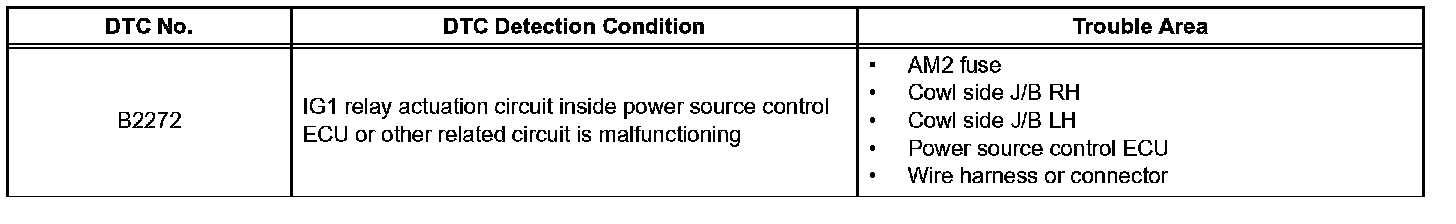

DTC Detection Condition:

This DTC is output when there is a problem in the IG1 output circuit, which is from the inside of the power source control ECU to the RH-IG or LH-IG relay.

HINT: When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.

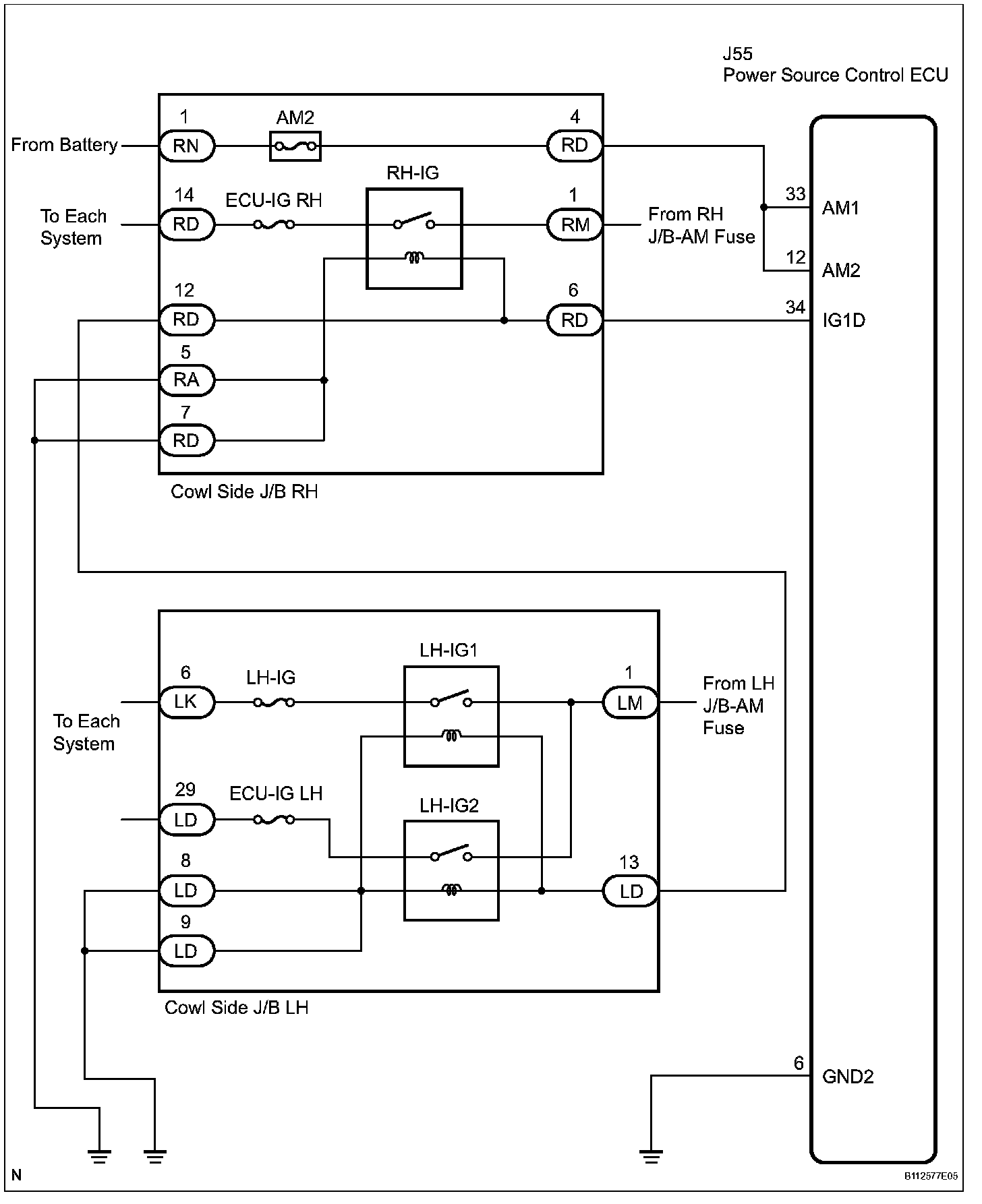

Wiring Diagram:

Step 1-3:

Step 4:

Step 5:

Step 5 (Continued):

Step 6-7:

Step 8-9:

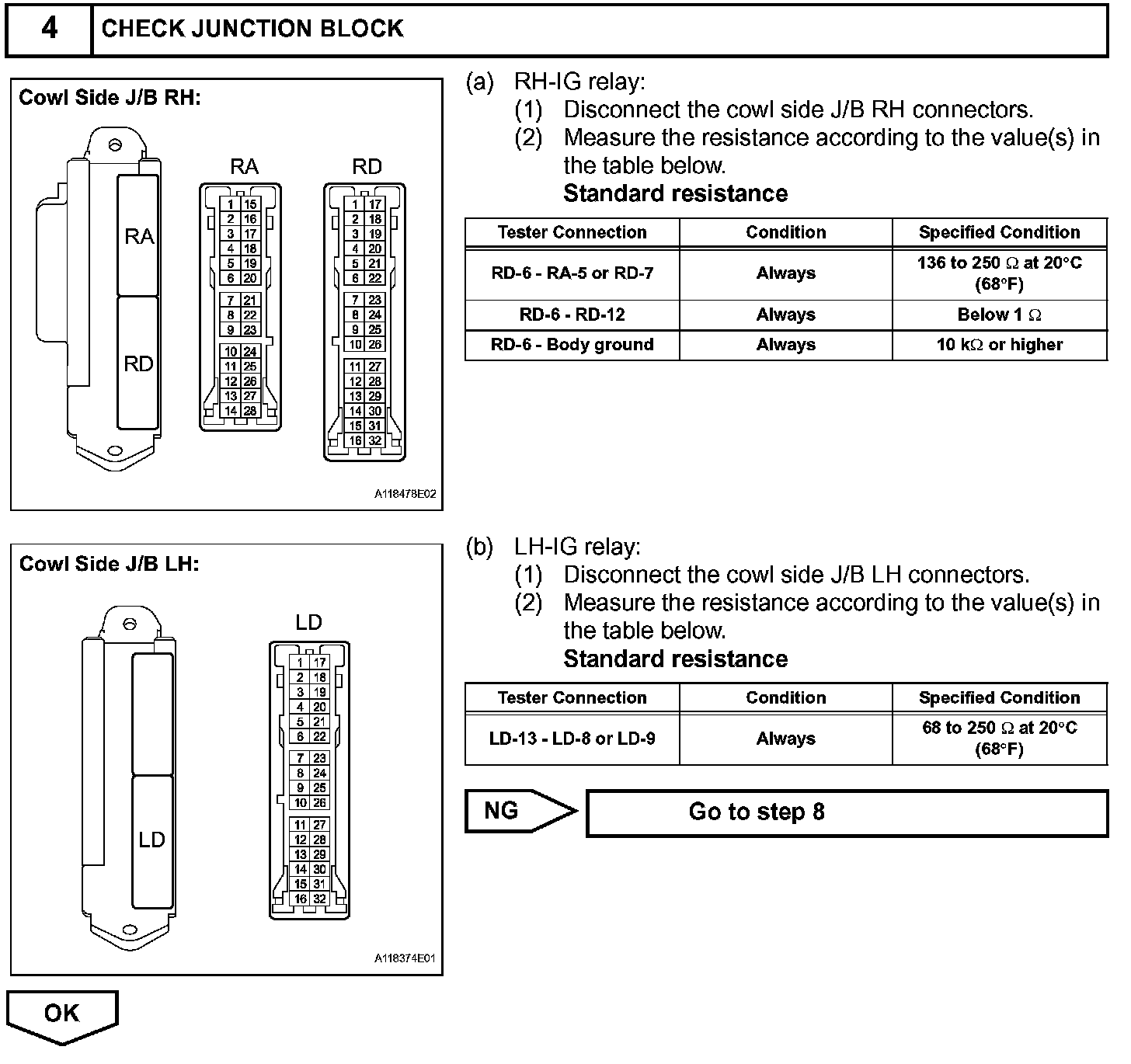

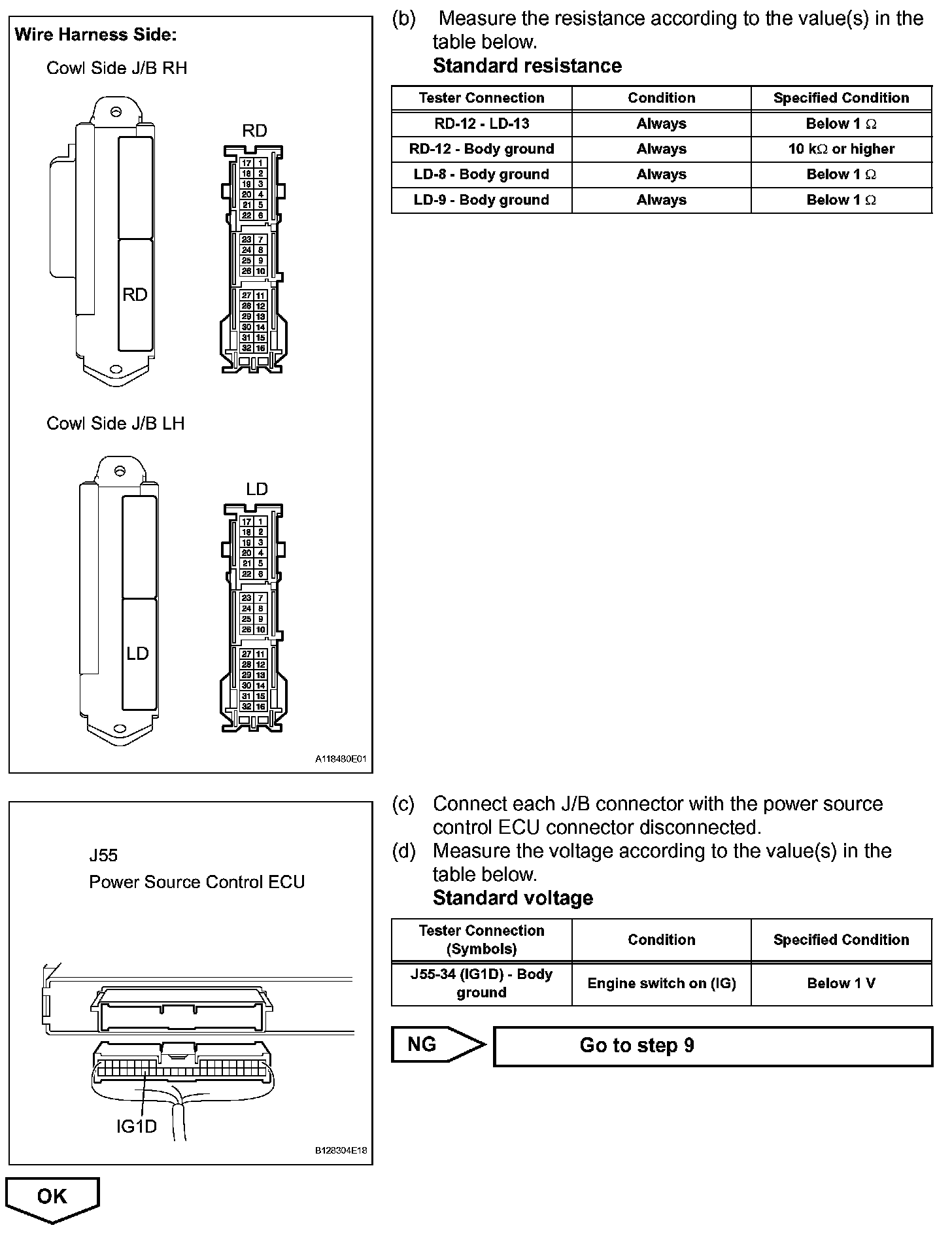

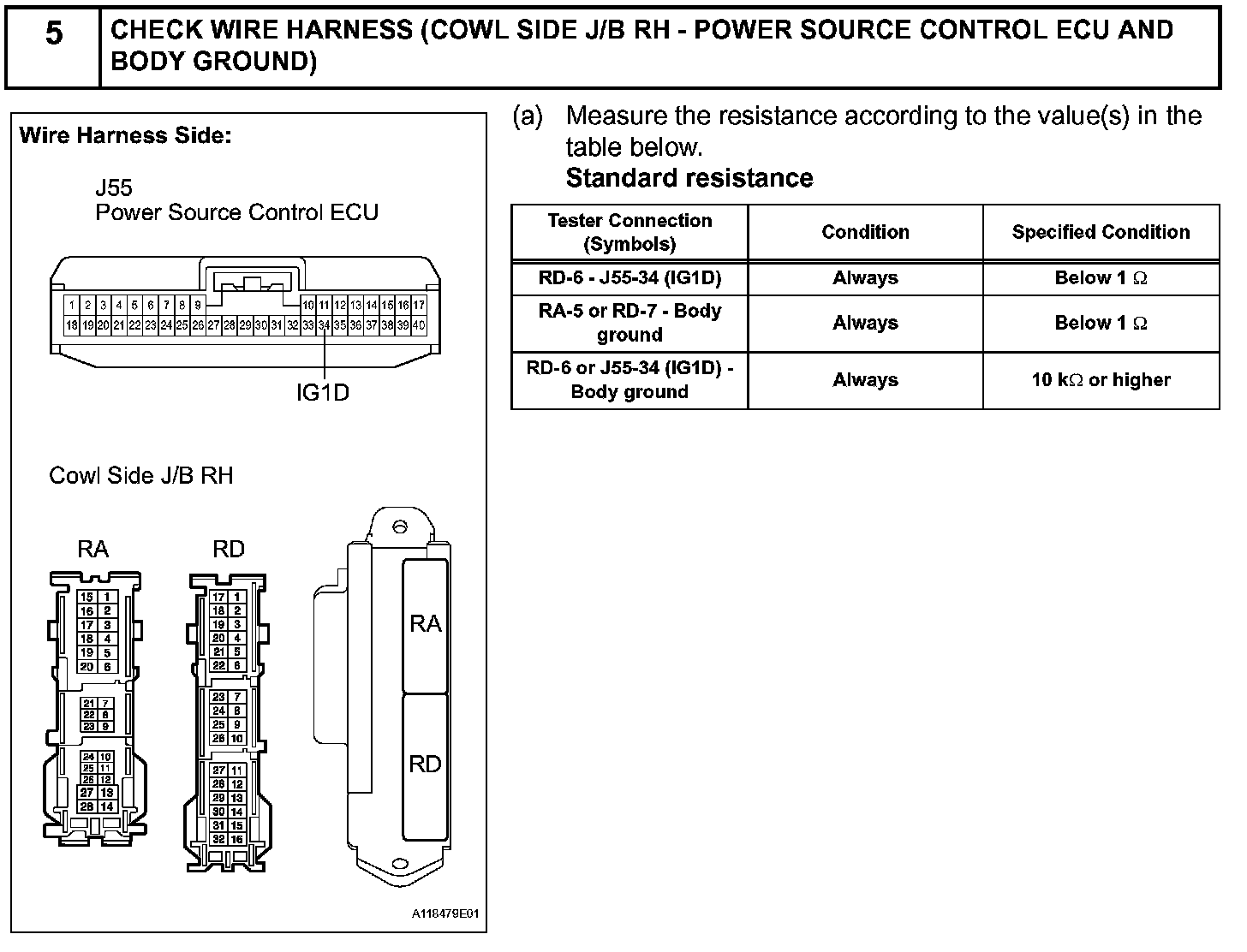

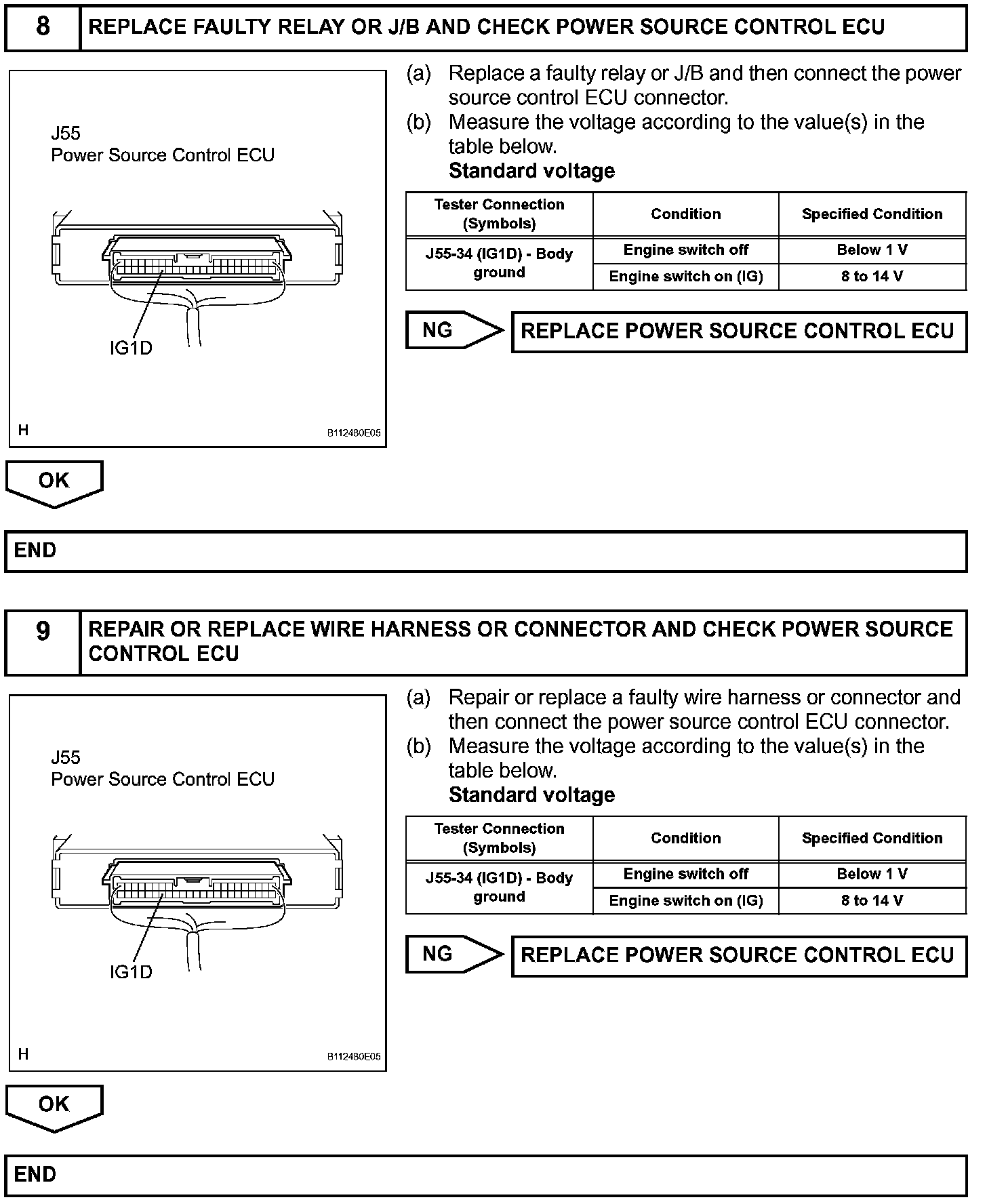

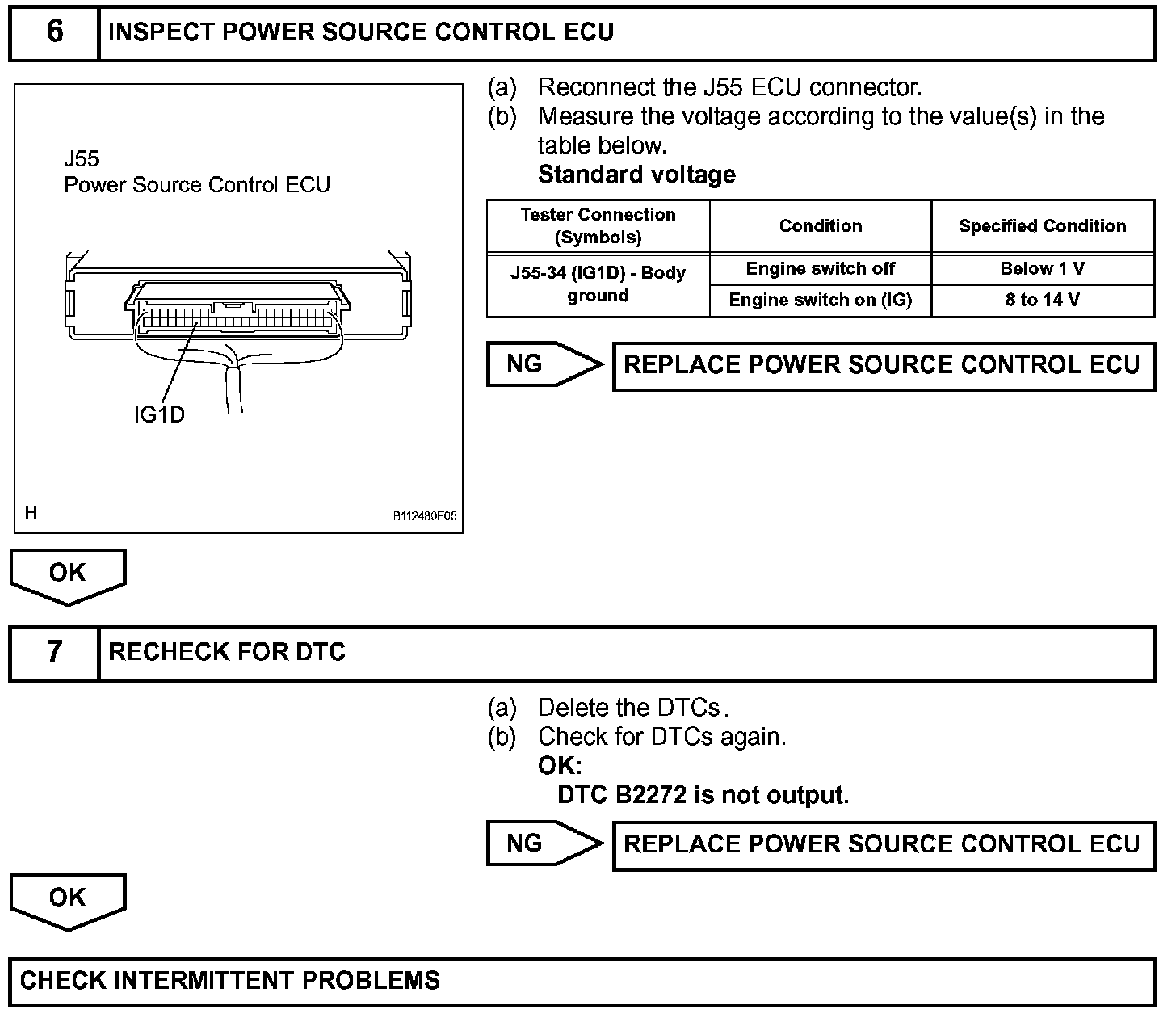

INSPECTION PROCEDURE
