B2241

DTC B2241 Rear Right Sensor Malfunction

DESCRIPTION

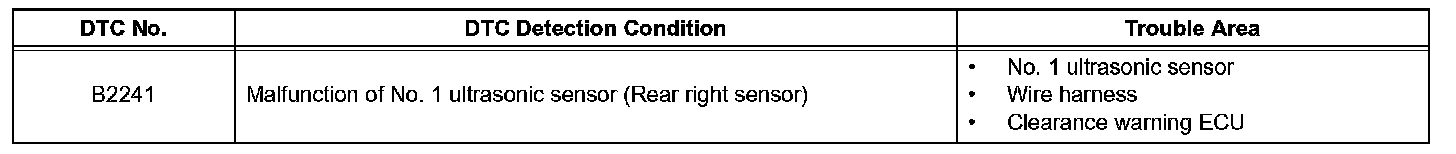

DTC Detection Condition:

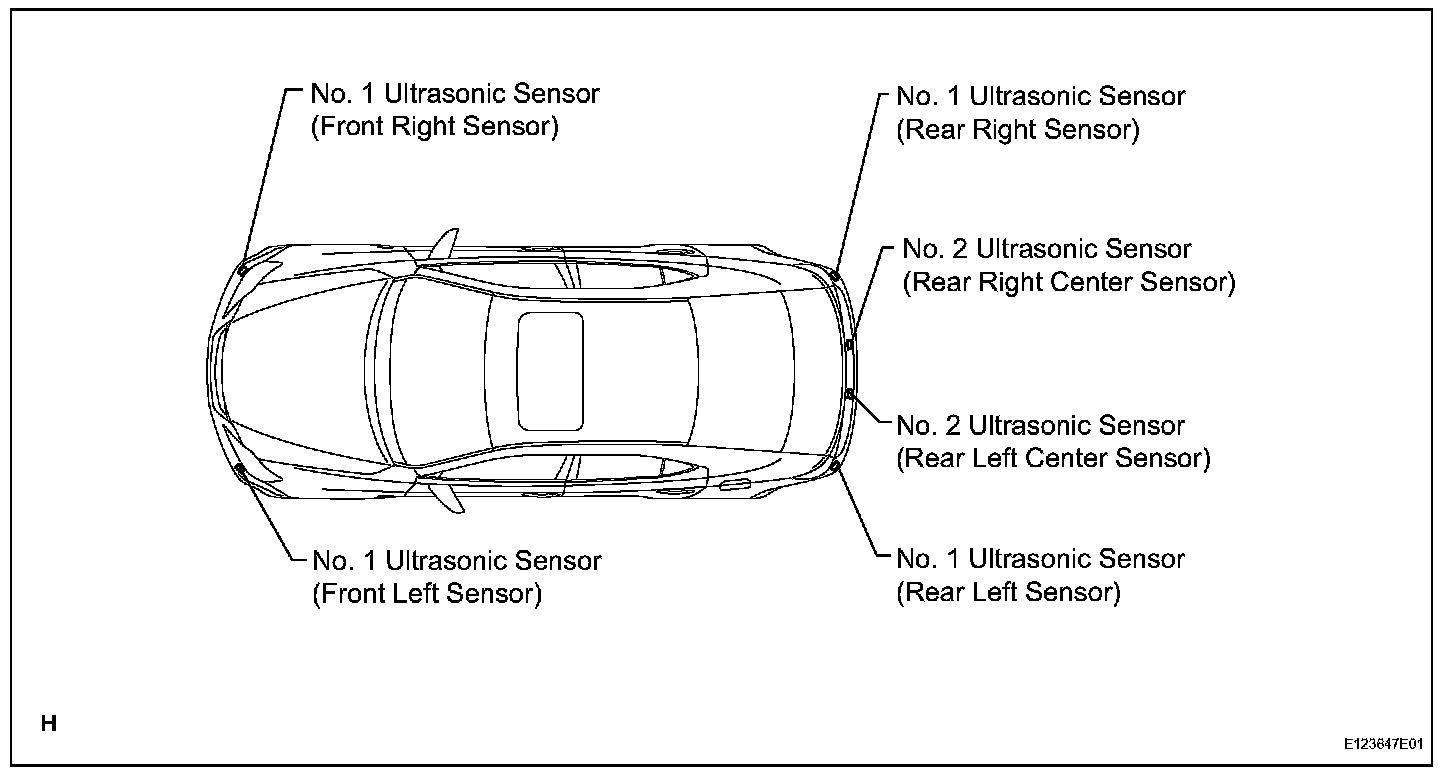

The No. 1 ultrasonic sensor (rear right sensor) is installed on the rear bumper.
The clearance warning ECU detects obstacles based on signals received from the rear right sensor. If the rear right sensor's circuit has an open, short or other malfunction, it will not function normally.

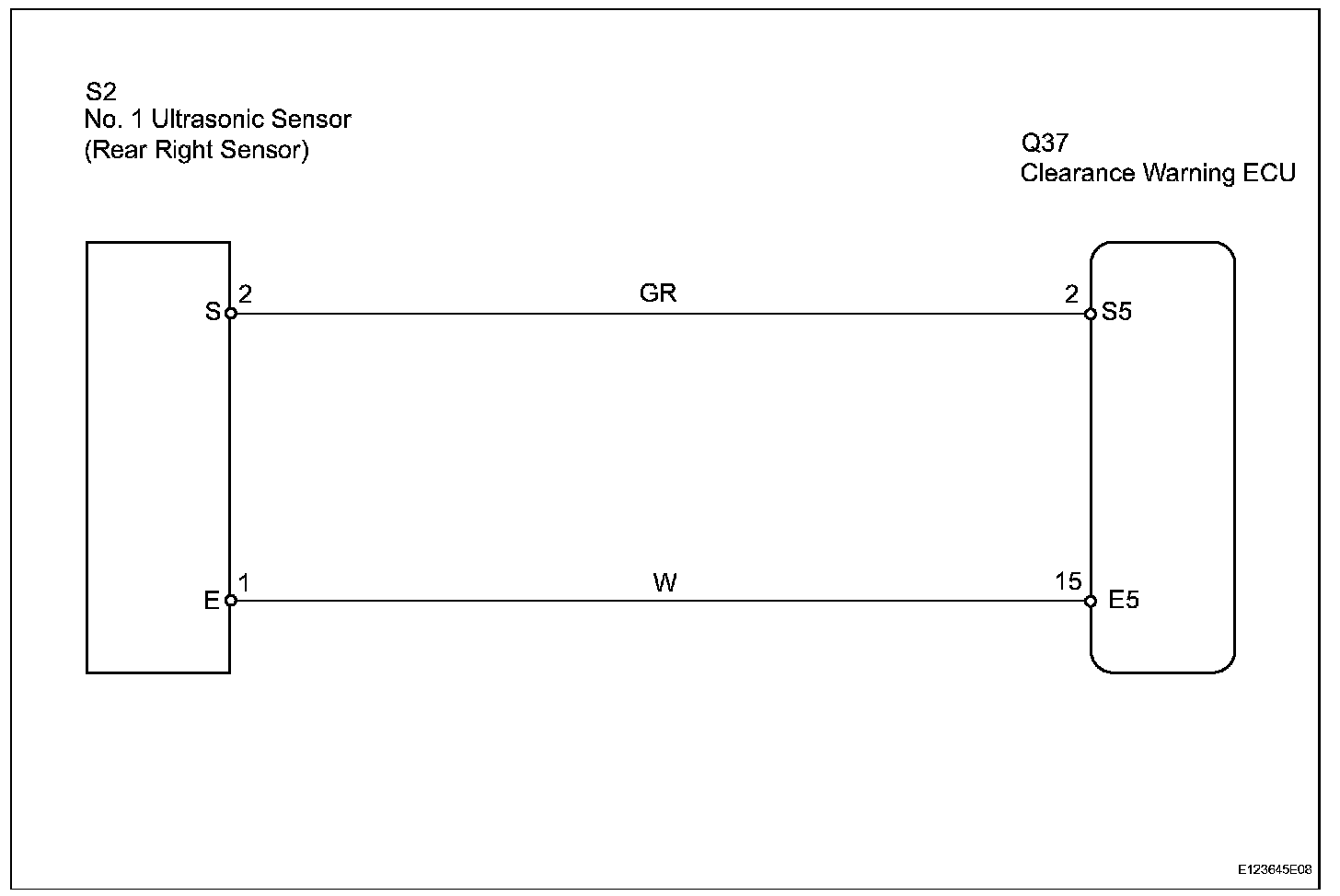

Wiring Diagram:

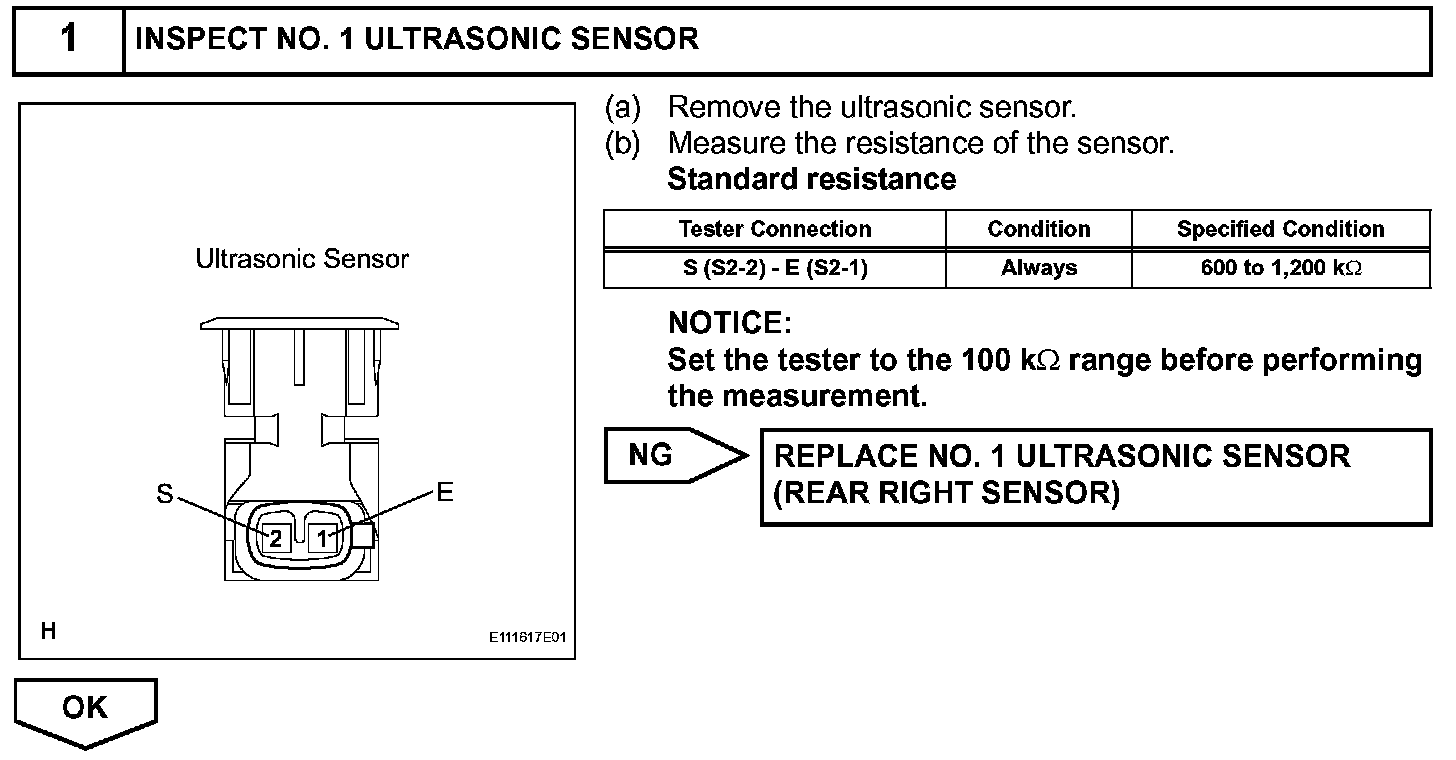

Step 1:

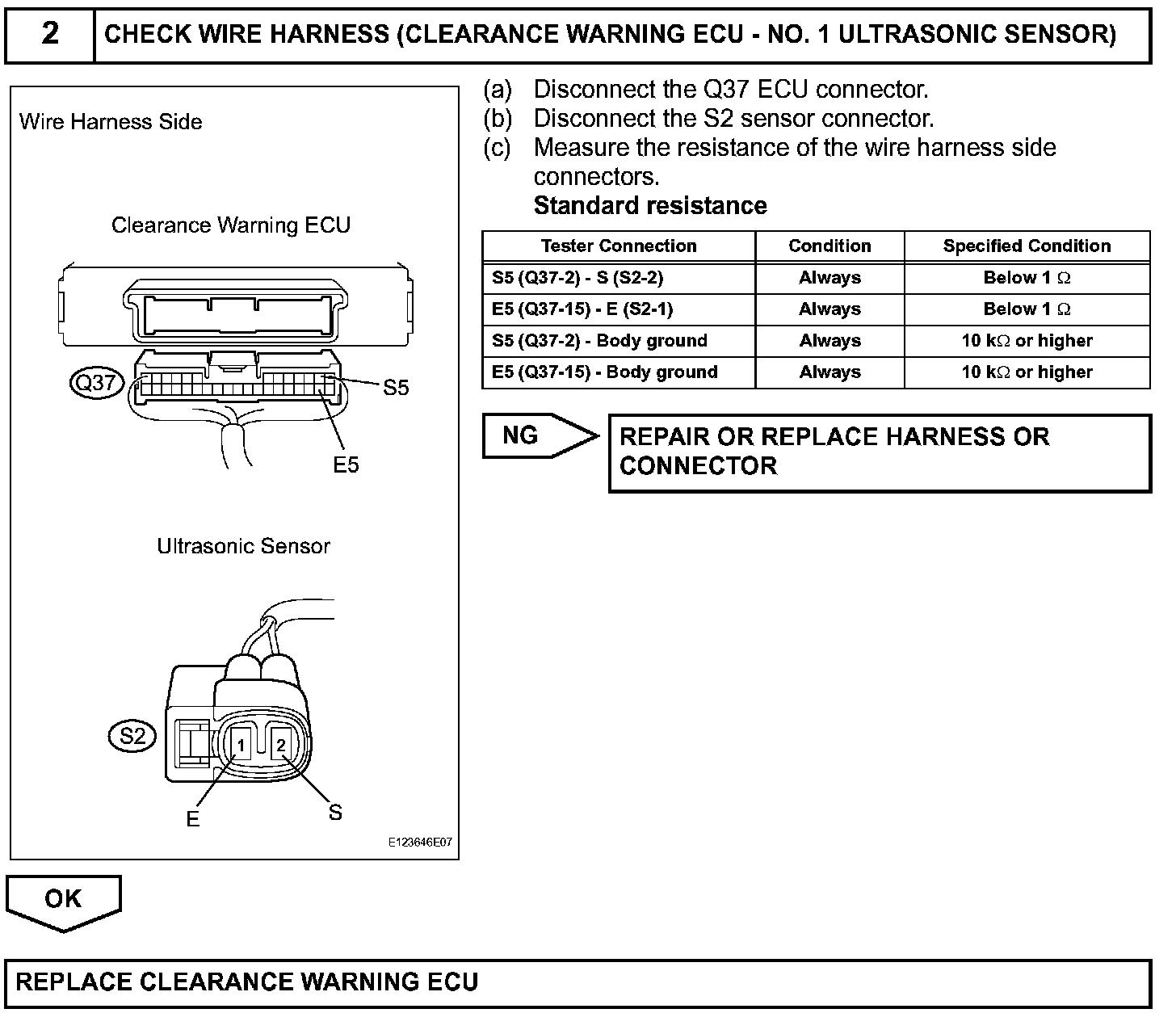

Step 2:

INSPECTION PROCEDURE
