B2060

DTC B2060 ABS Malfunction

DESCRIPTION

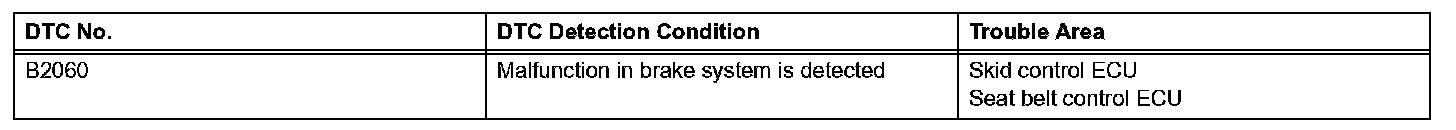

DTC Detection Condition:

This DTC is output when a malfunction in the brake system is detected. This circuit consists of the skid control ECU and seat belt control ECU. Signals are sent from the skid control ECU using the CAN communication.

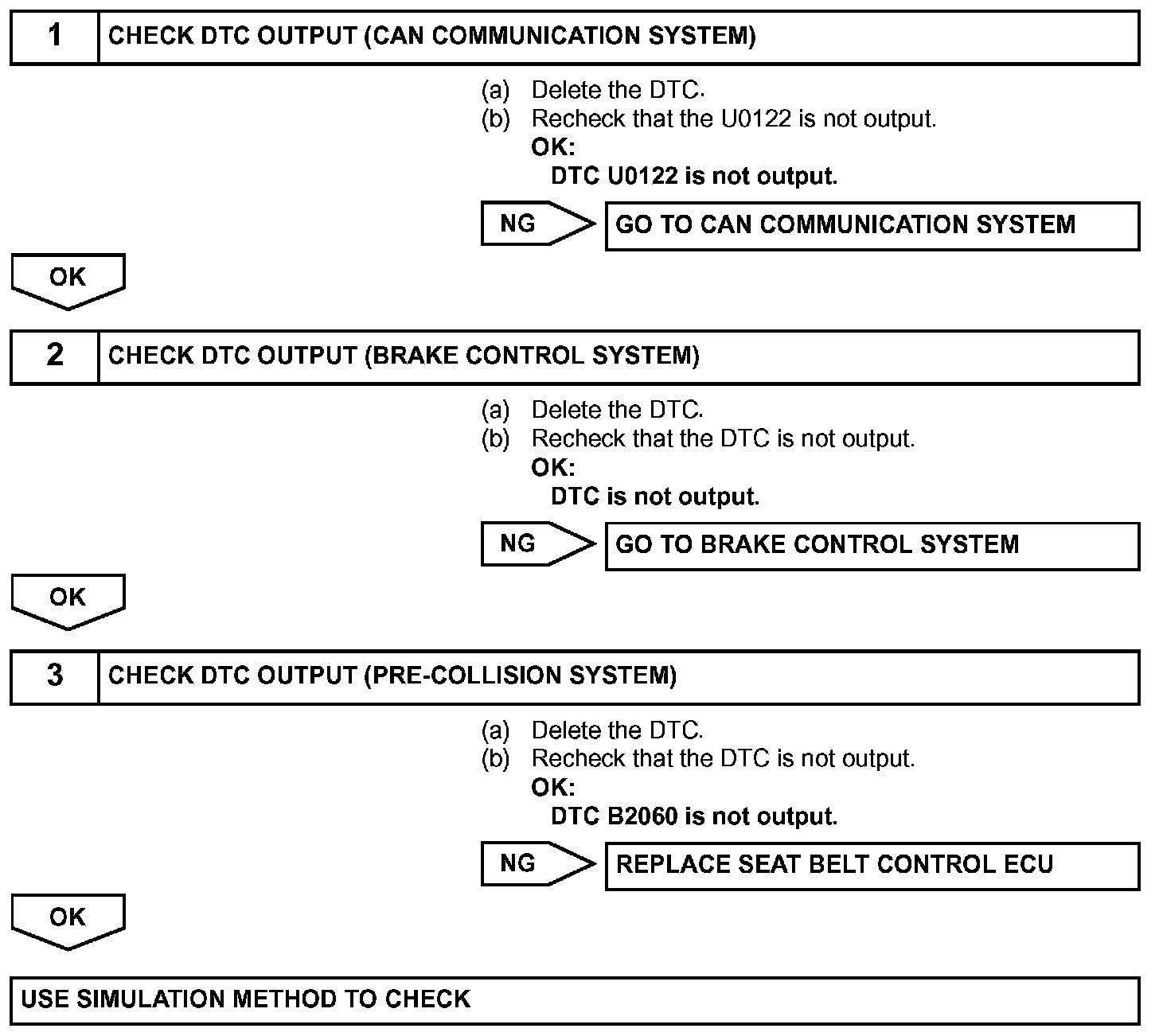

Step 1-3:

INSPECTION PROCEDURE

NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed.
