B2005

DTC B2005 Short to B+ in Seat Belt Motor LH Circuit

DESCRIPTION

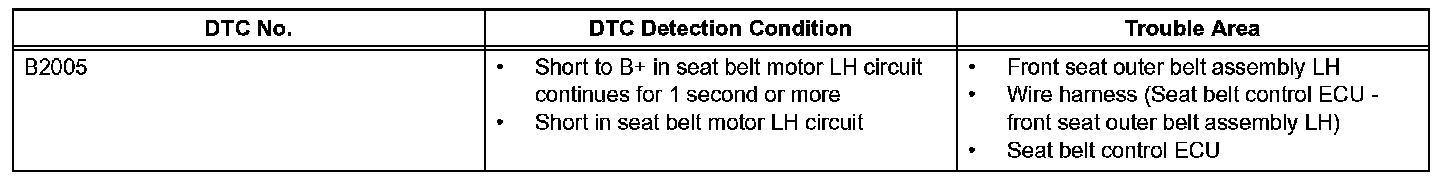

DTC Detection Condition:

The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly LH.

CAUTION: The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.

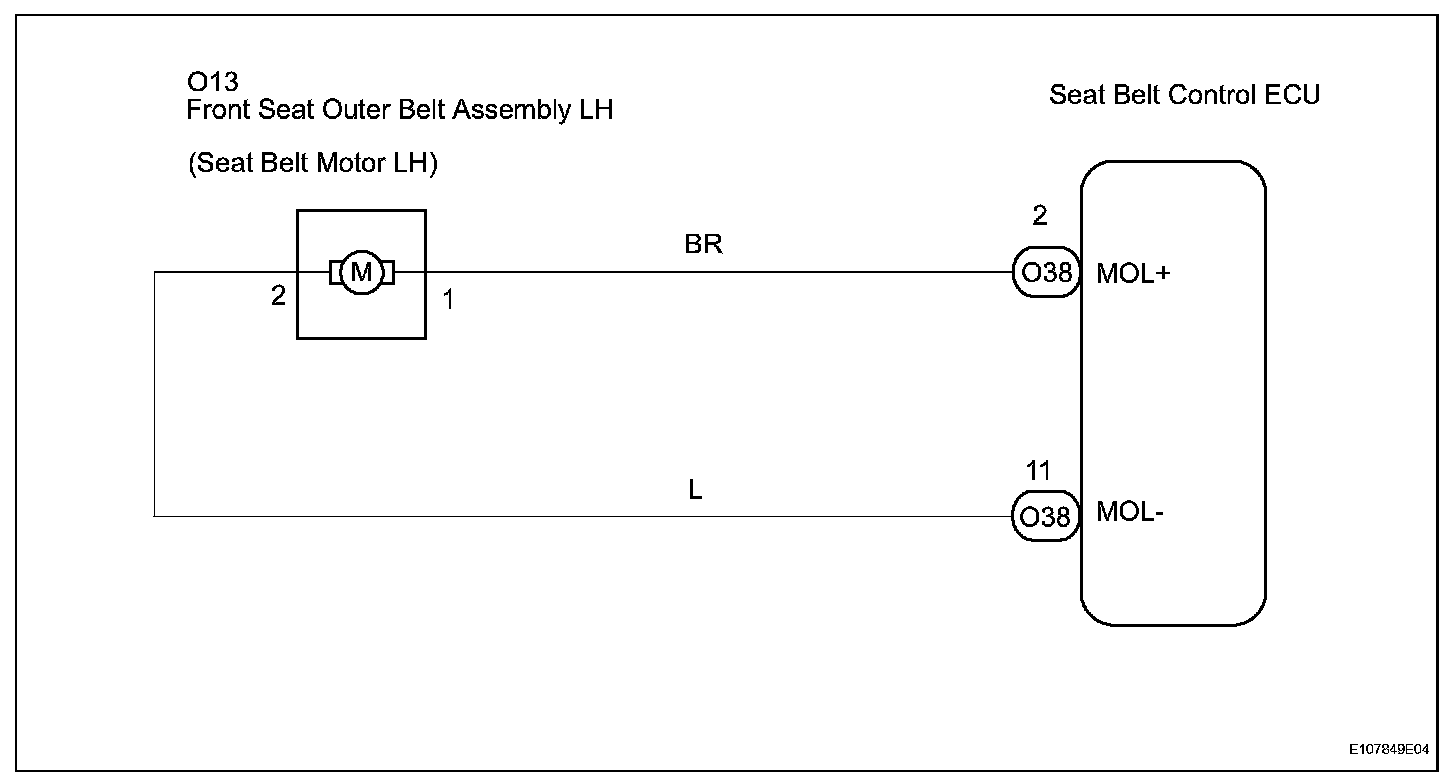

Wiring Diagram:

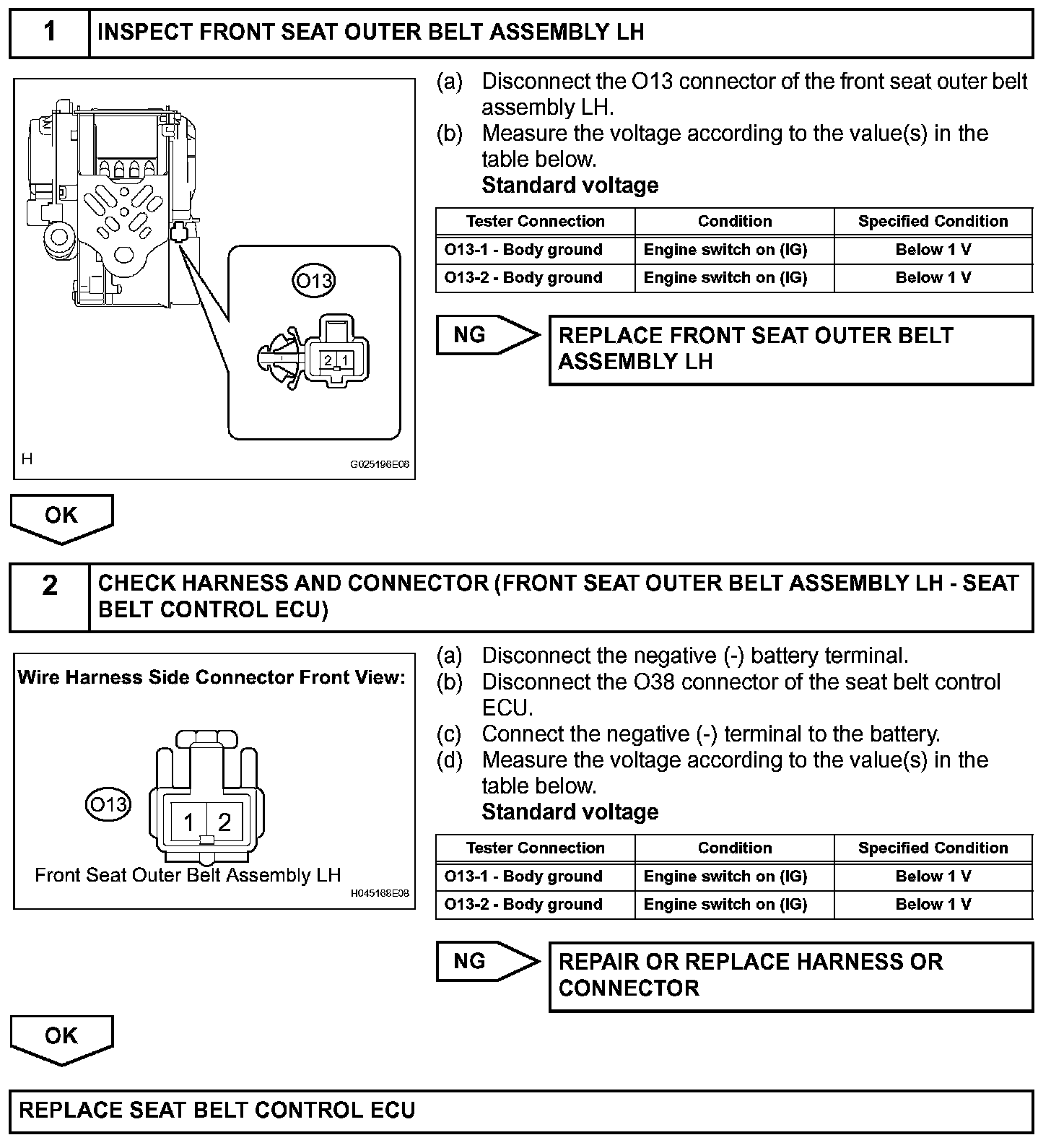

Step 1-2:

INSPECTION PROCEDURE

NOTE: When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed.
