DTC B1660/43 Passenger Airbag ON / OFF Indicator Circuit Malfunction

DESCRIPTION

Detection Condition:

The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor and the passenger airbag ON/OFF indicator.

The passenger airbag ON/OFF indicator indicates the operation condition of the front passenger airbag, front passenger side knee airbag, front seat side airbag RH and front seat outer belt RH.

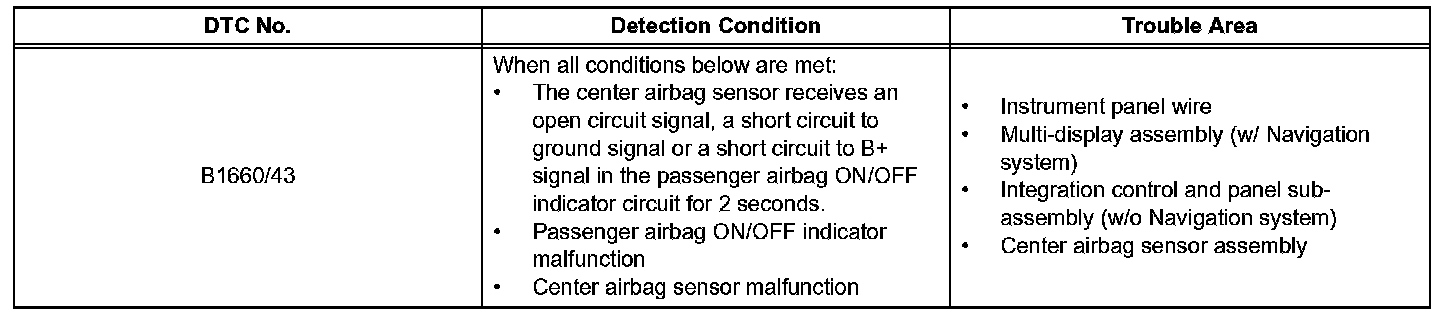

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

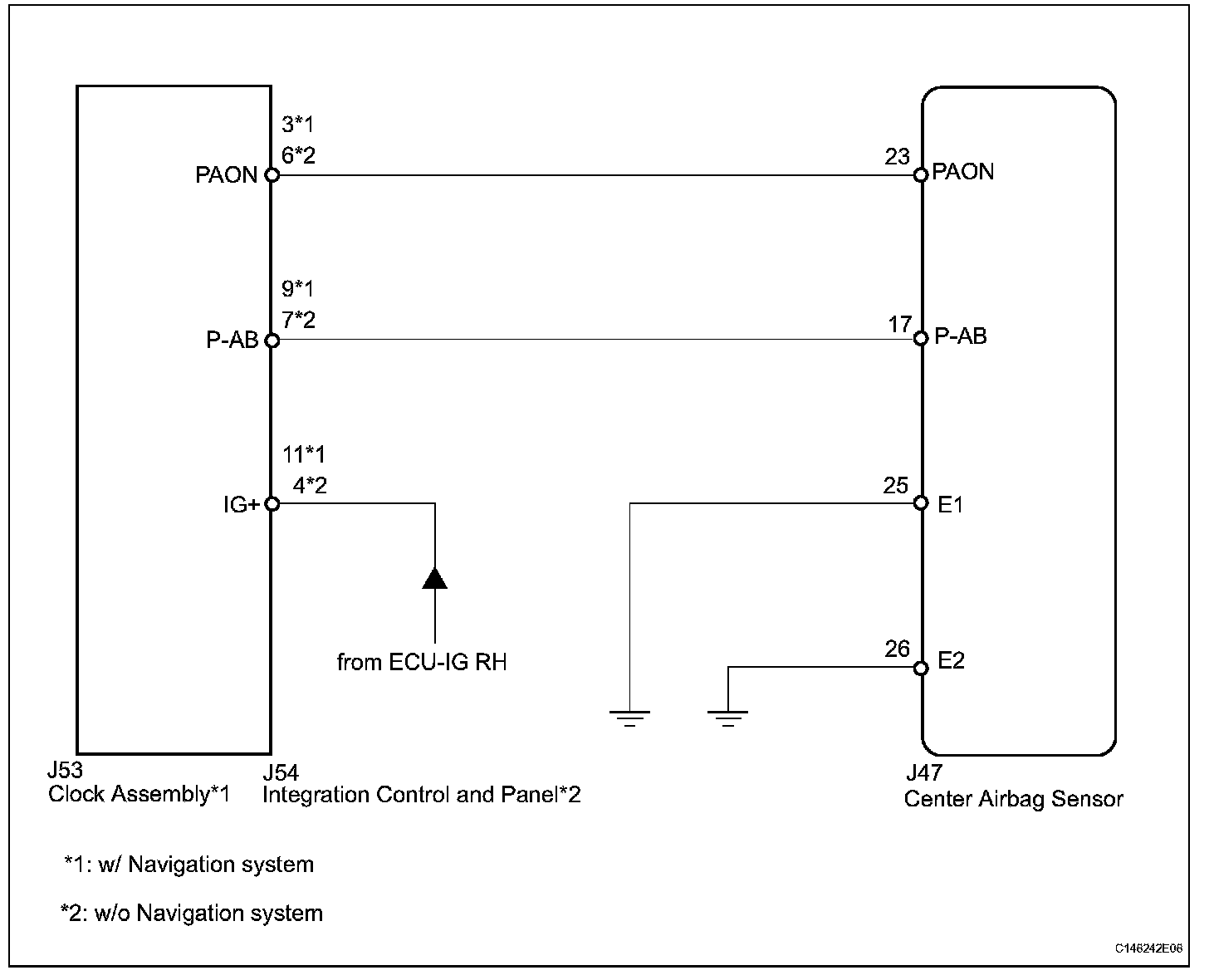

Wiring Diagram:

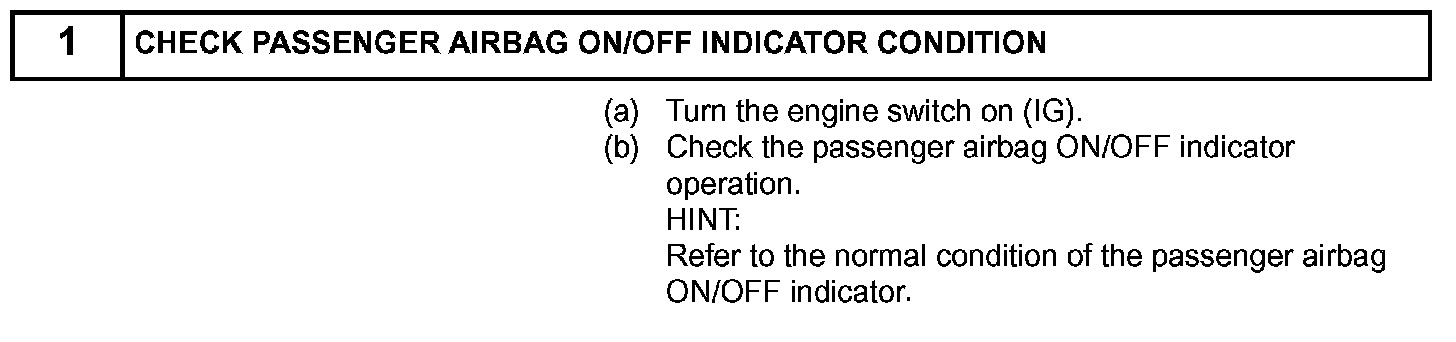

Step 1:

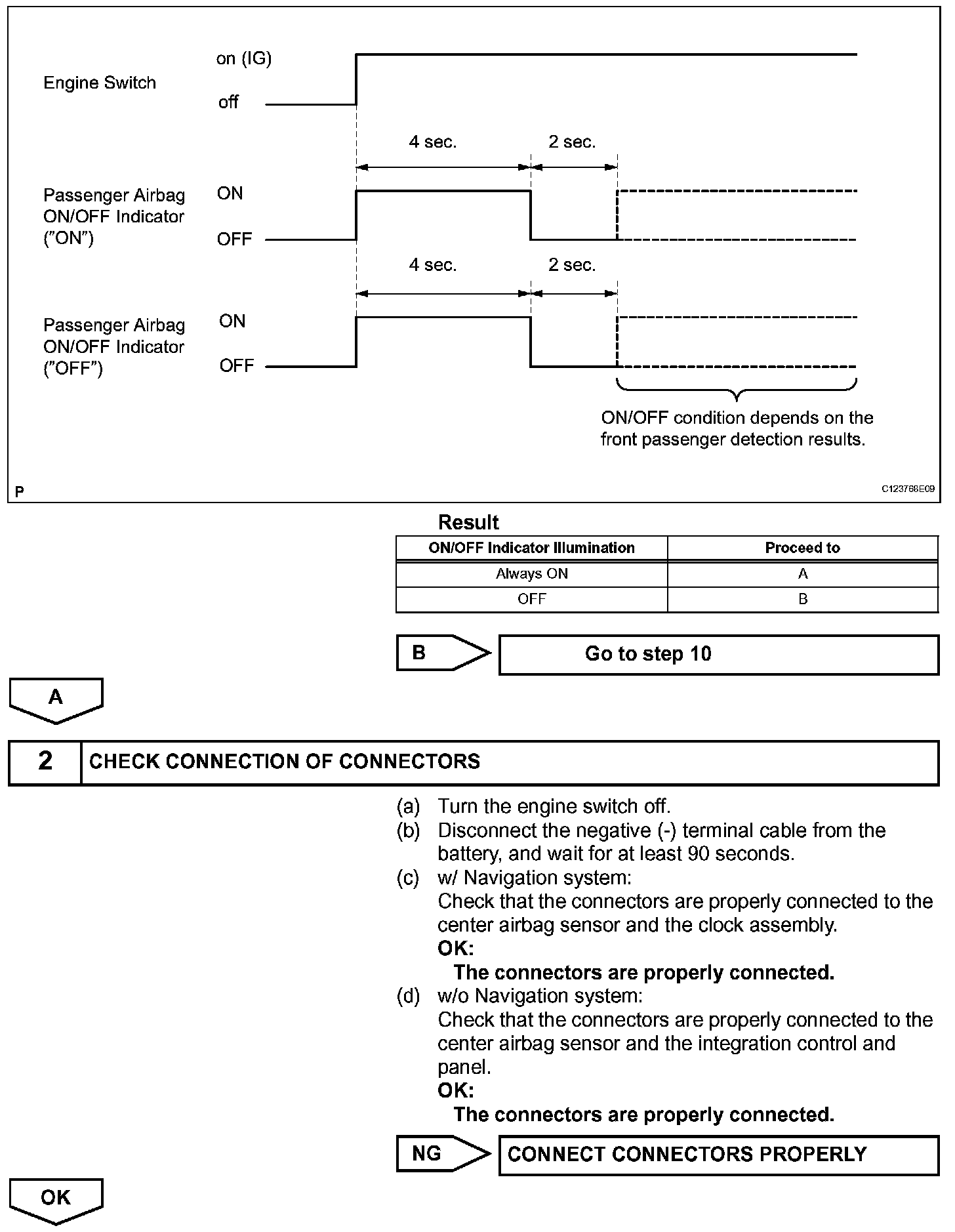

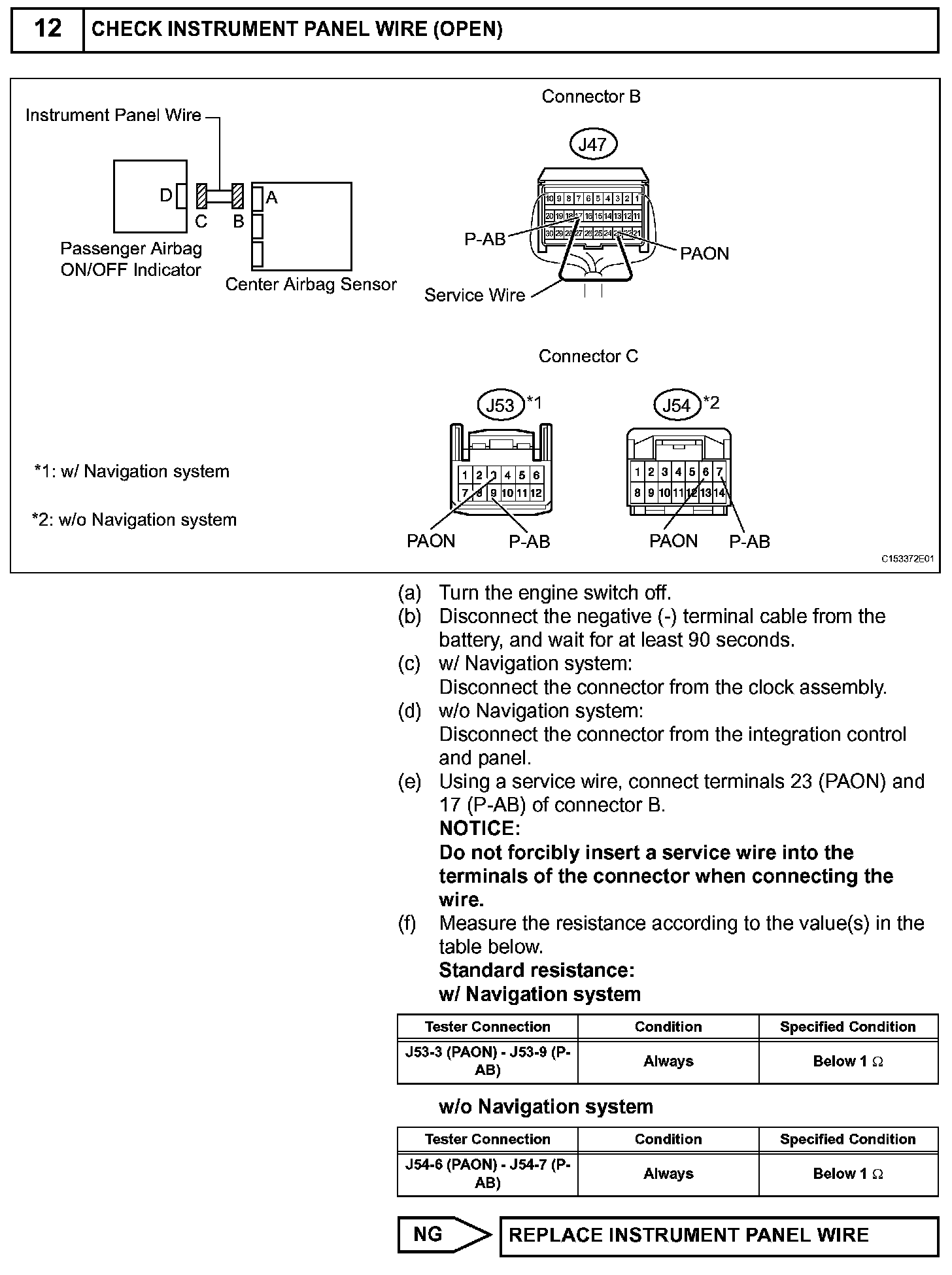

Step 1 (Continued)-2:

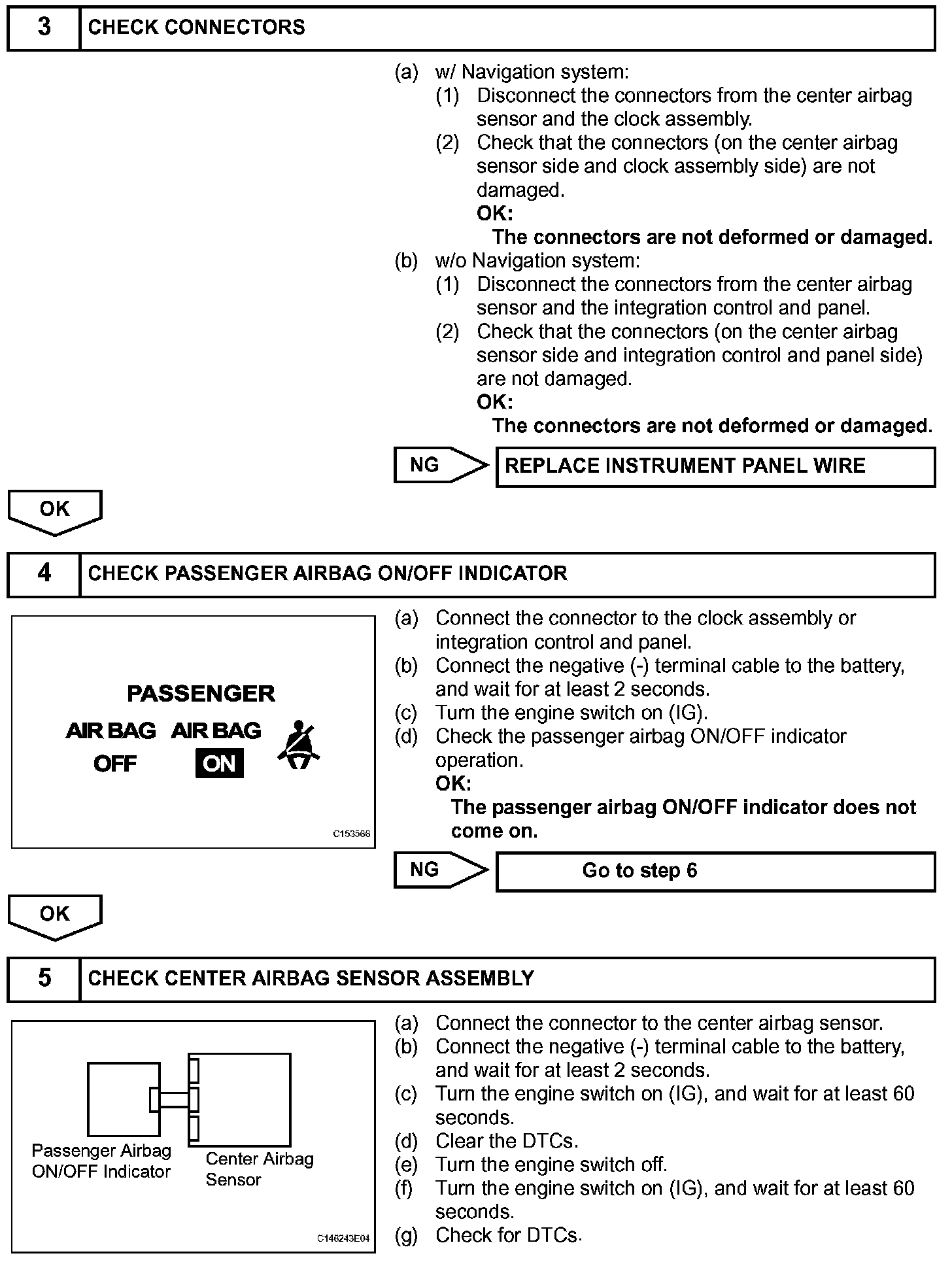

Step 3-5:

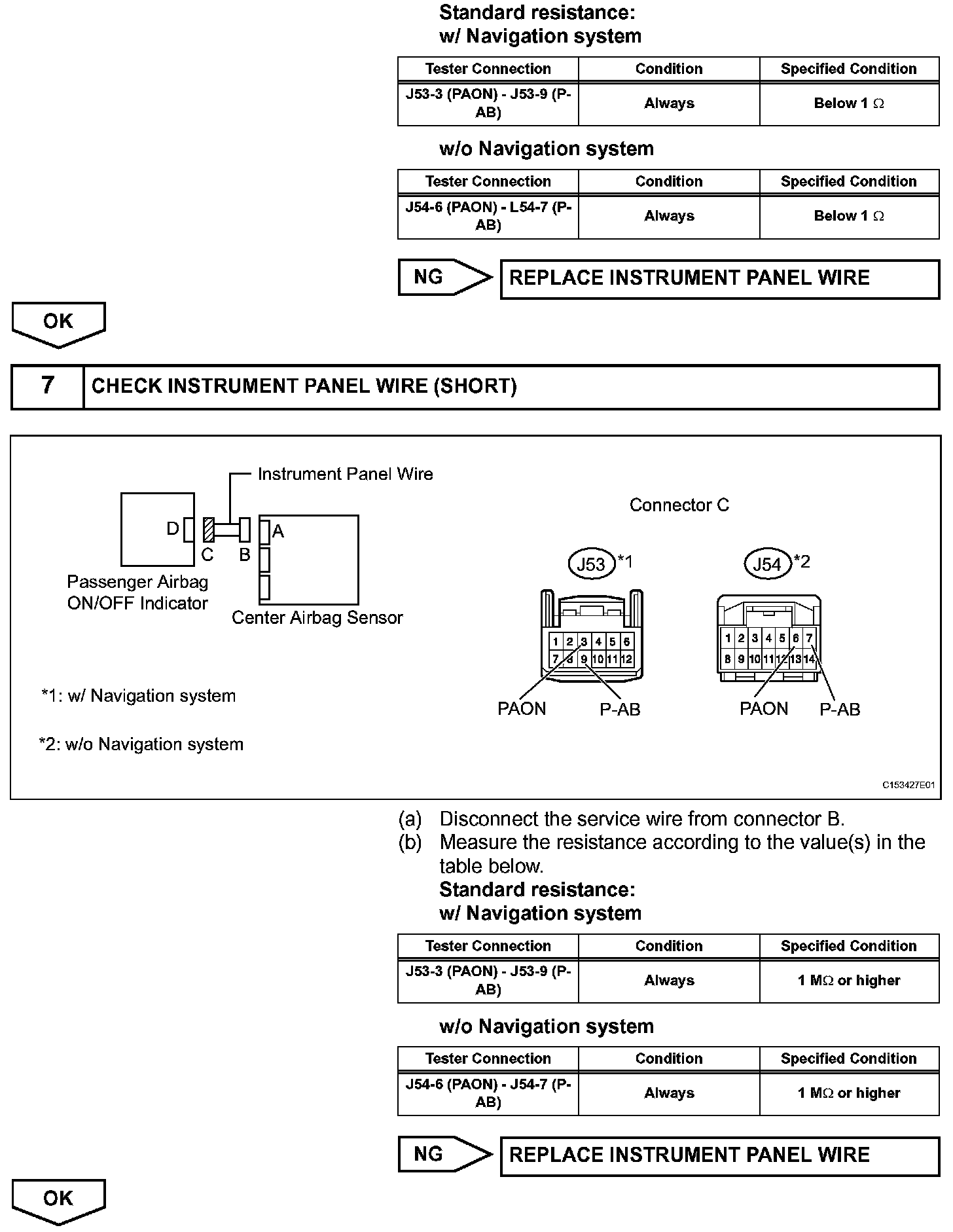

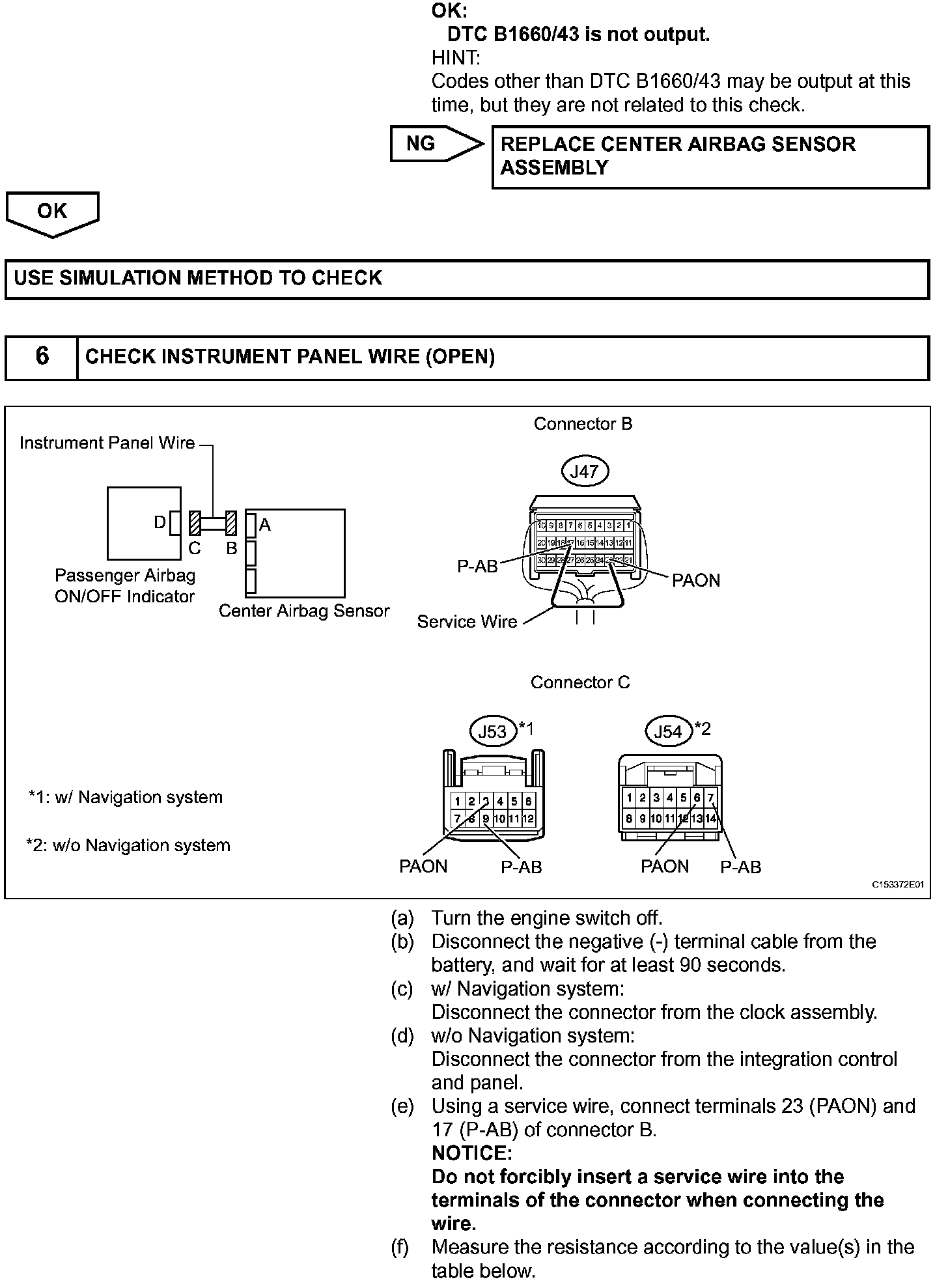

Step 5 (Continued)-6:

Step 6 (Continued)-7:

Step 8:

Step 9:

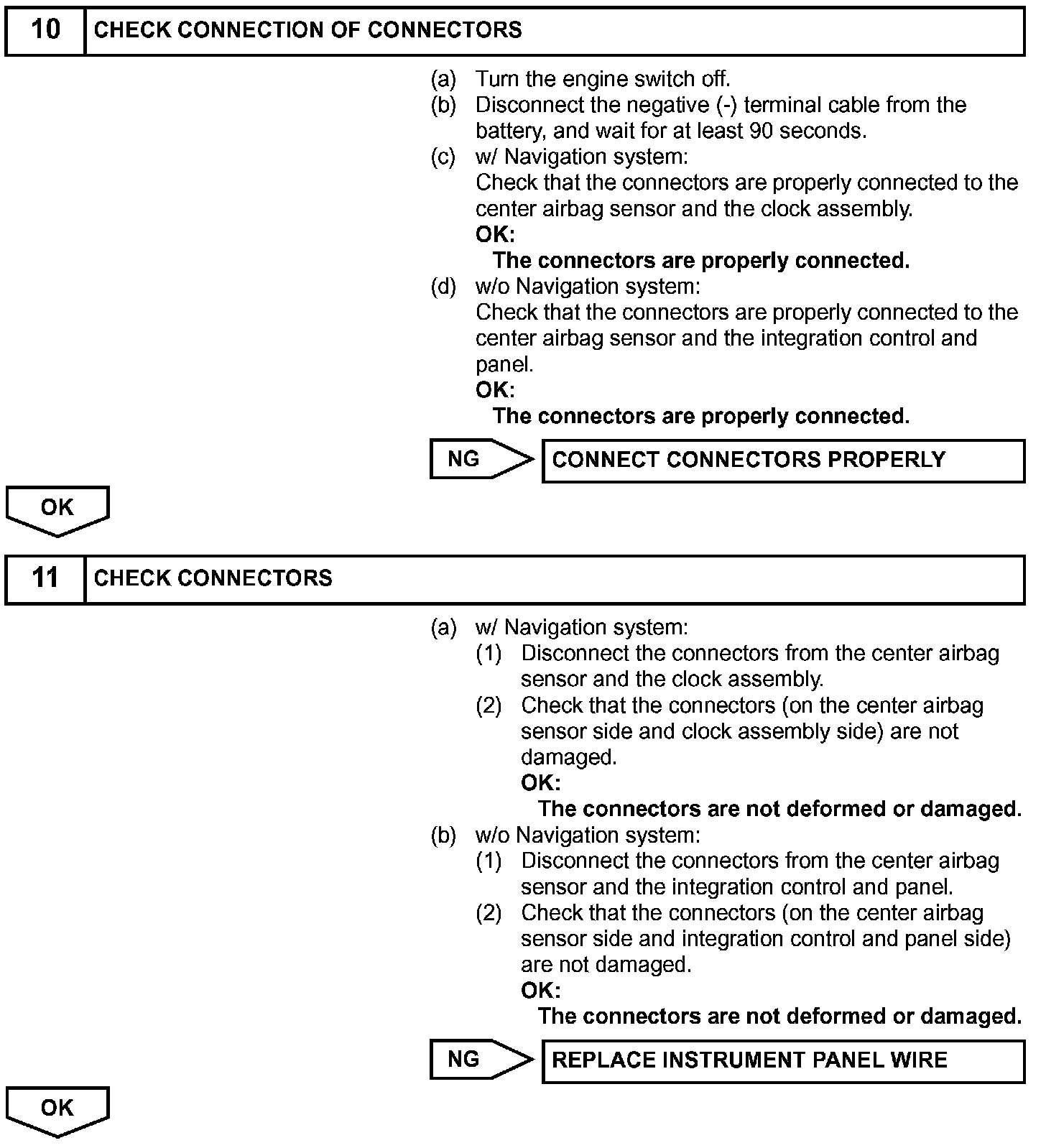

Step 10-11:

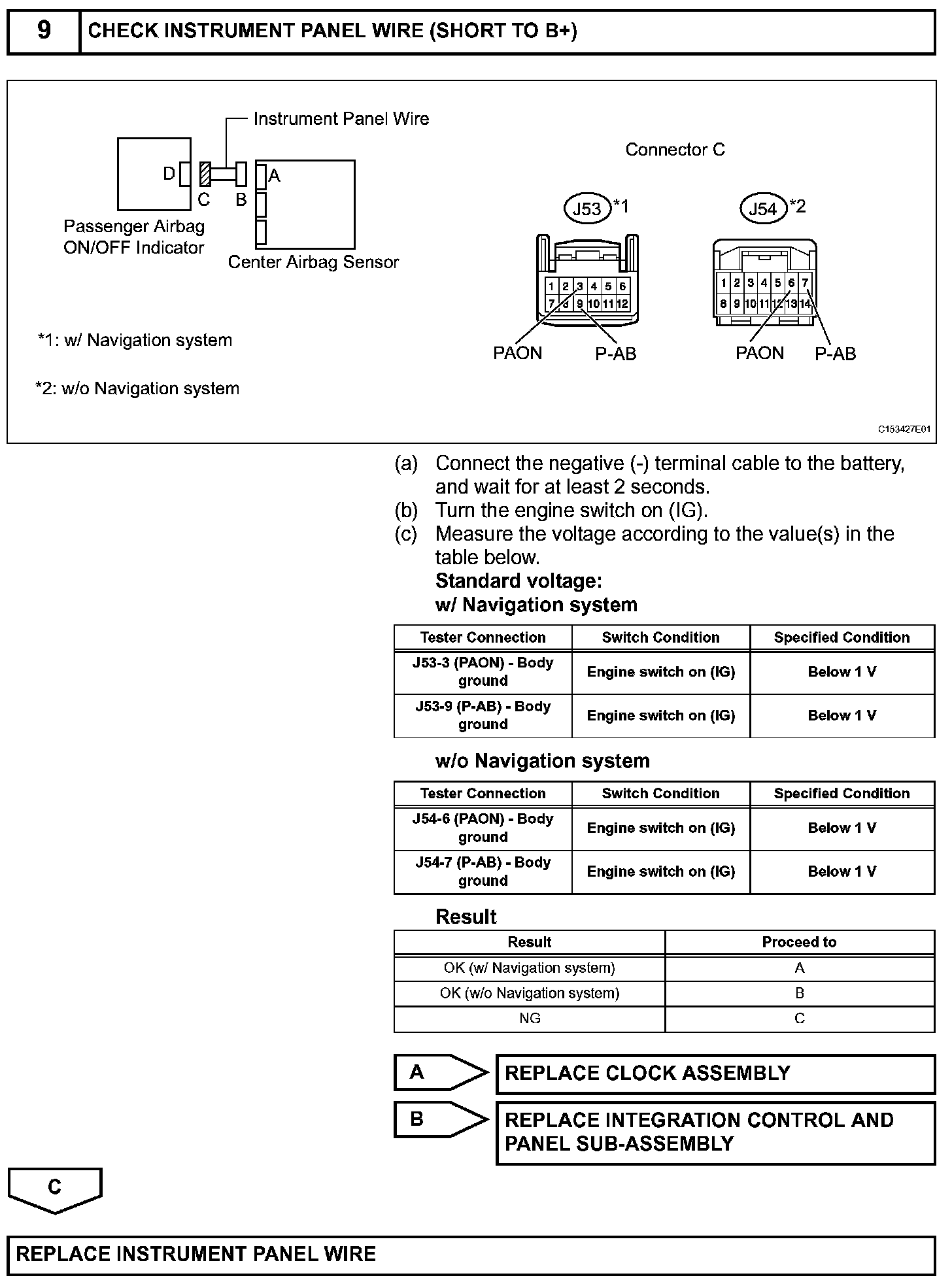

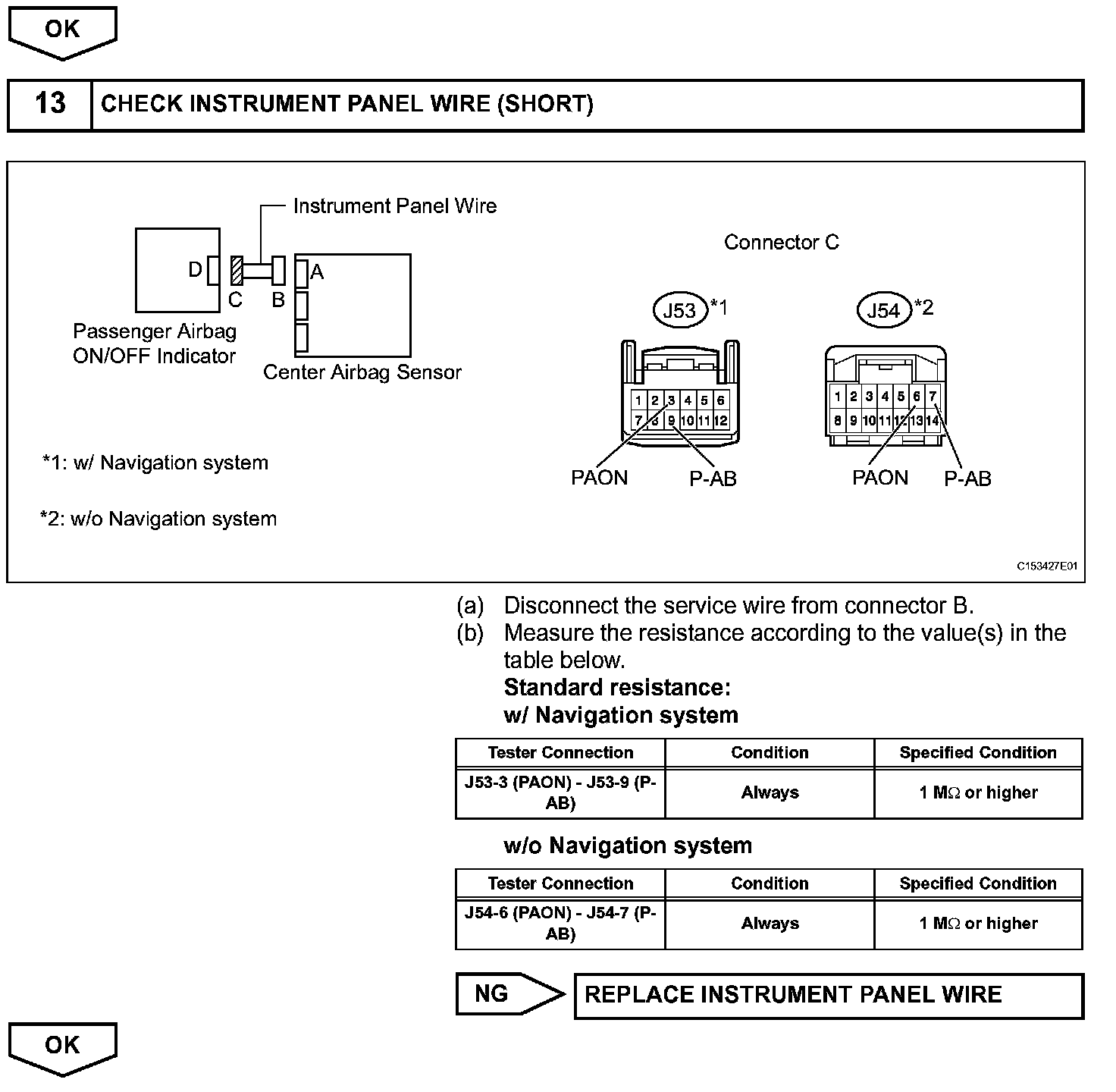

Step 12:

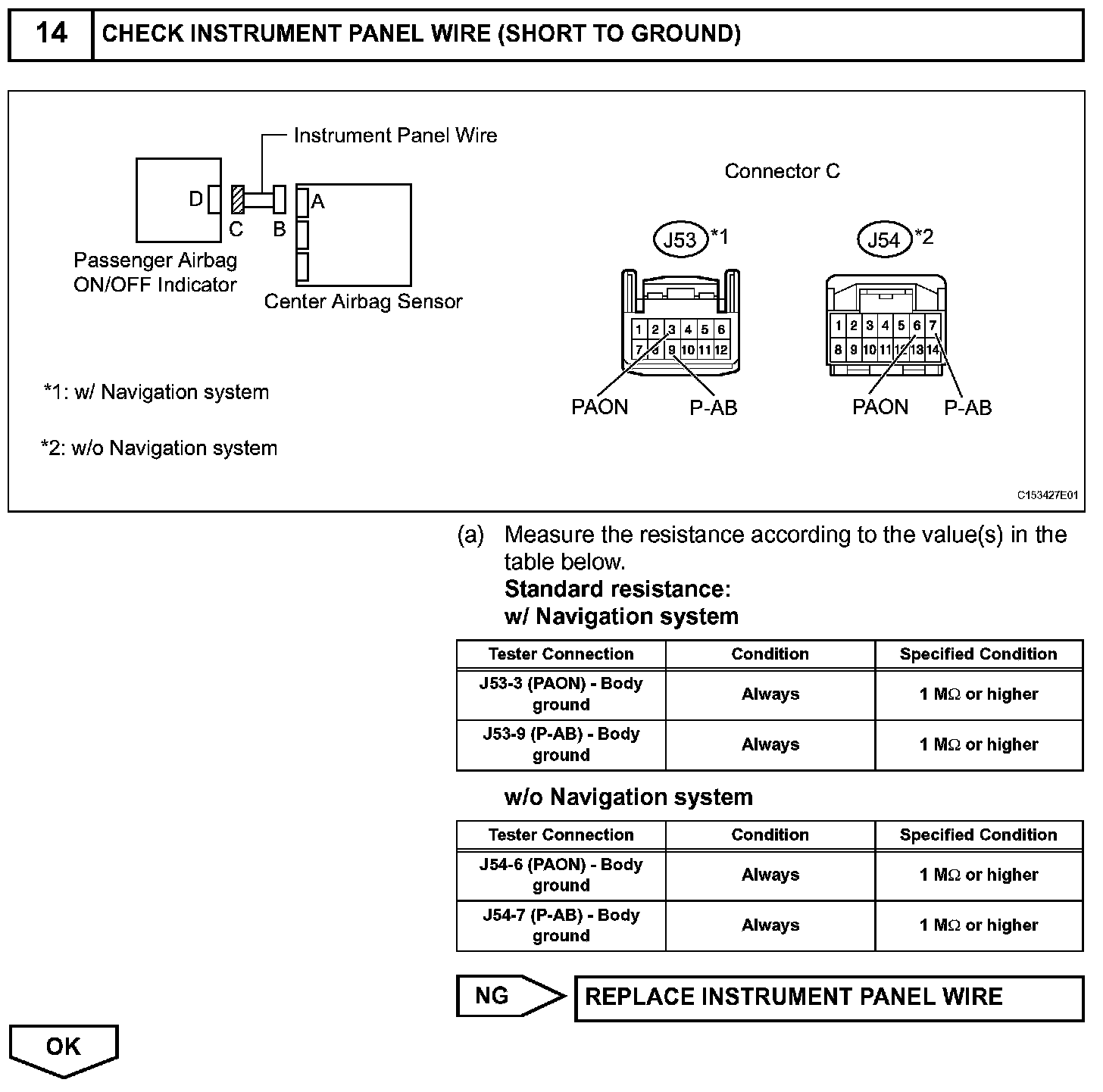

Step 12 (Continued)-13:

Step 14:

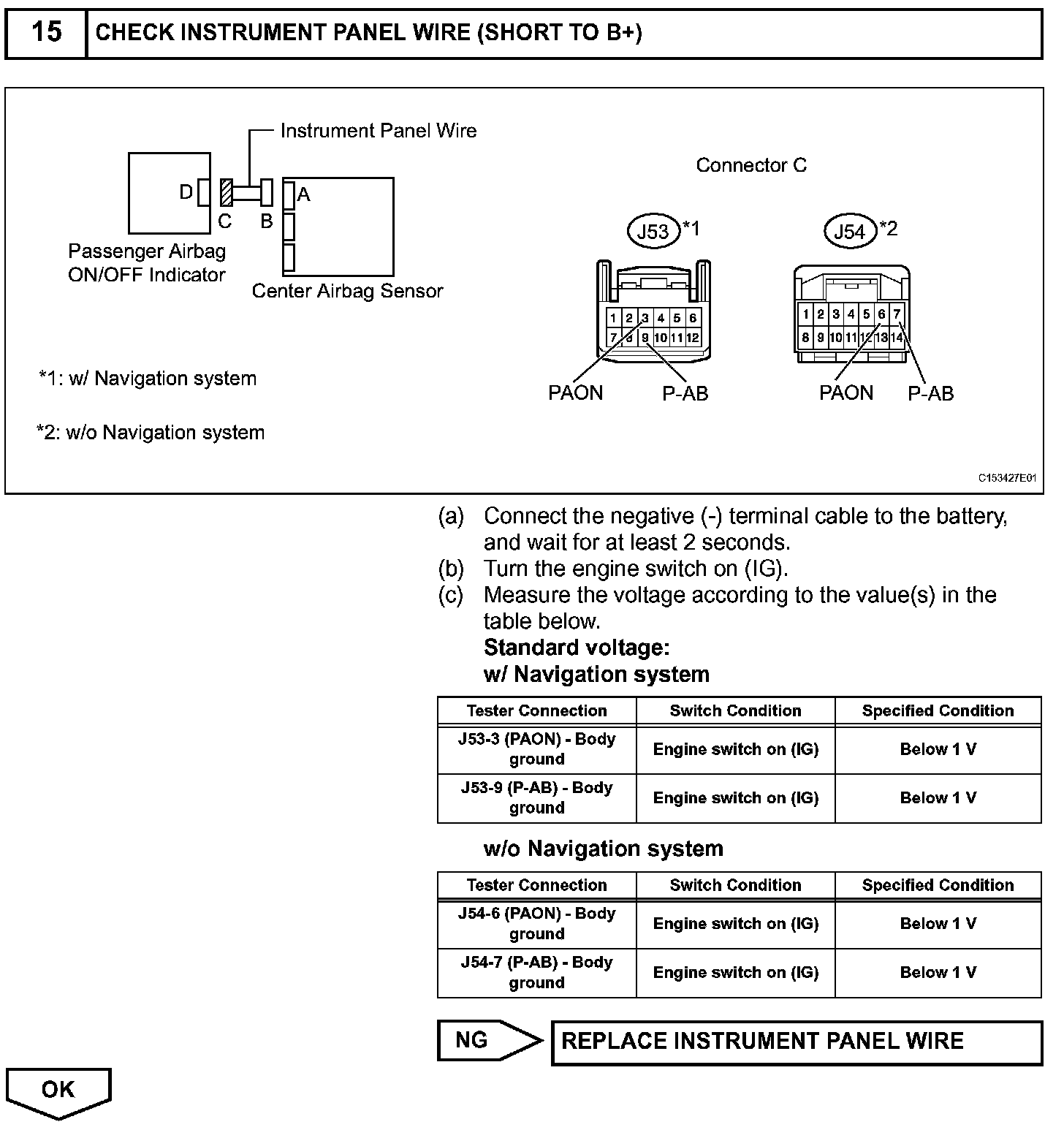

Step 15:

Step 16-17:

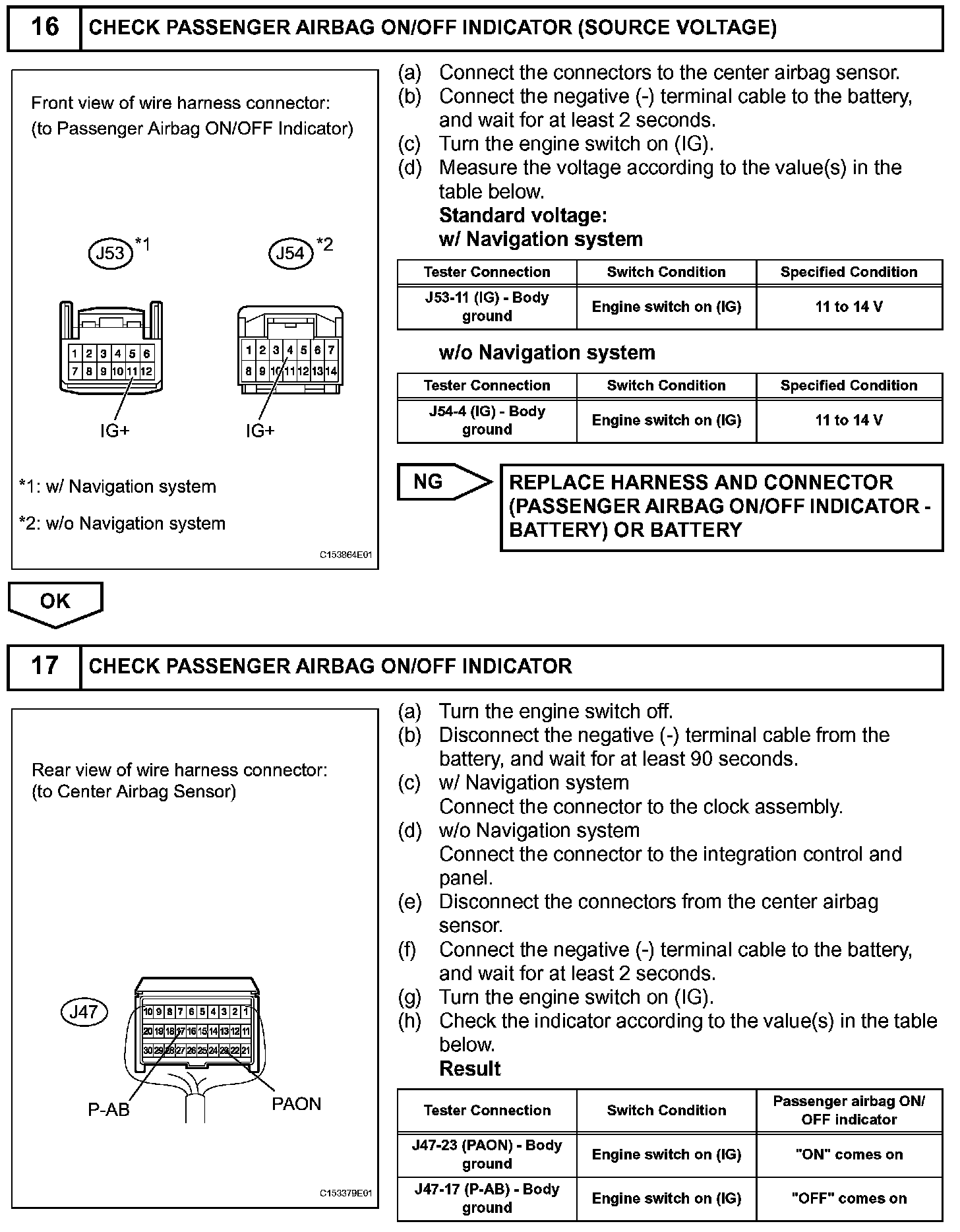

Step 17 (Continued)-18:

INSPECTION PROCEDURE
