B1412

DTC B1412/12 Ambient Temperature Sensor Circuit

DESCRIPTION

DTC Detection Condition:

The ambient temperature sensor is installed in front of the condenser to detect the ambient temperature which is used to control the air conditioner "AUTO" mode. This sensor connected to the ECM and detects fluctuations in the ambient temperature. This data is used for controlling the cabin temperature. The sensor sends a signal to the A/C amplifier via the ECM. The resistance of the ambient temperature sensor changes in accordance with the ambient temperature. As the temperature decreases, the resistance increases. As the temperature increases, the resistance decreases.

The ECM applies voltage (5 V) to the ambient temperature sensor and reads voltage changes as the resistance of the ambient temperature sensor changes. The ECM sends the signal to the A/C amplifier via CAN and body multiplex communication.

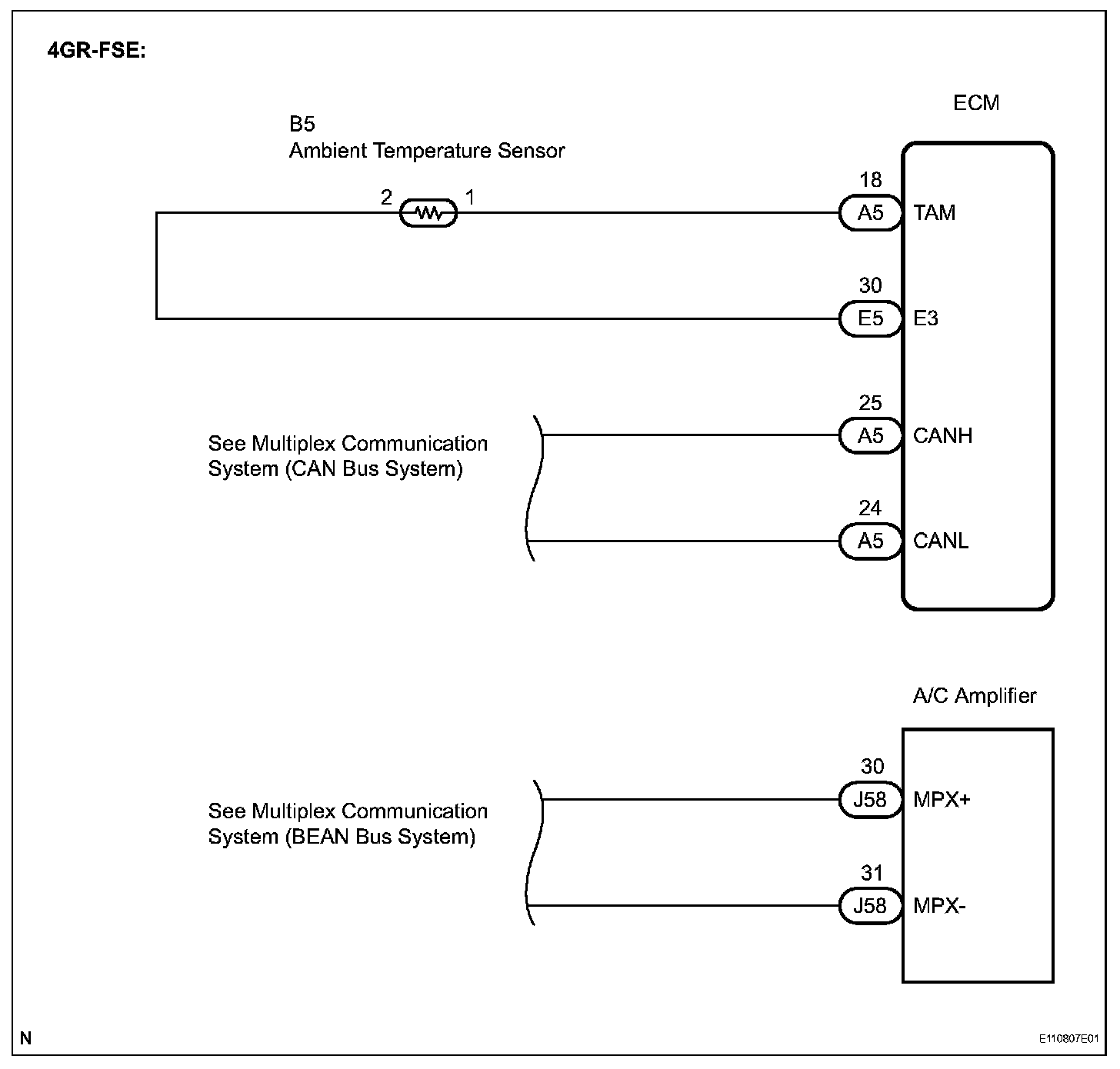

Wiring Diagram:

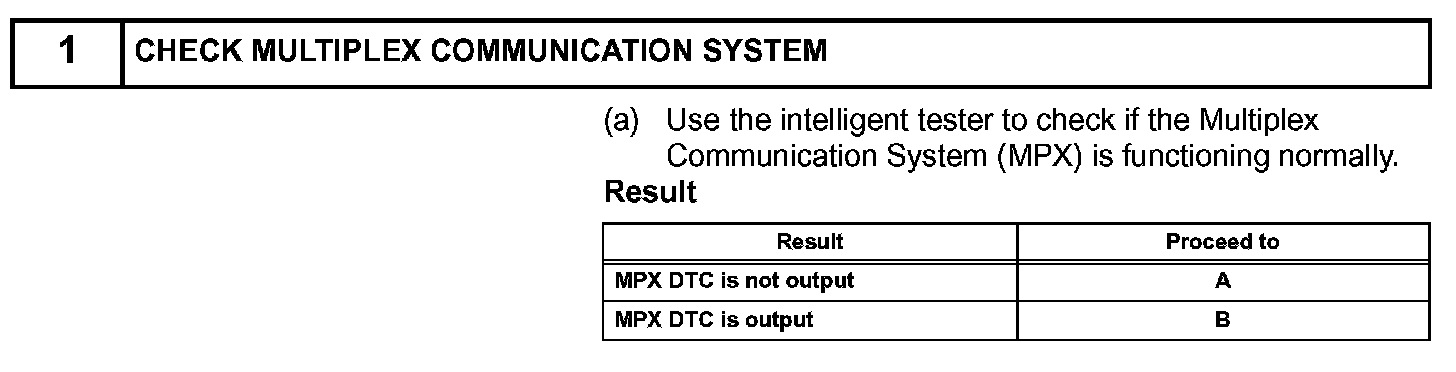

Step 1:

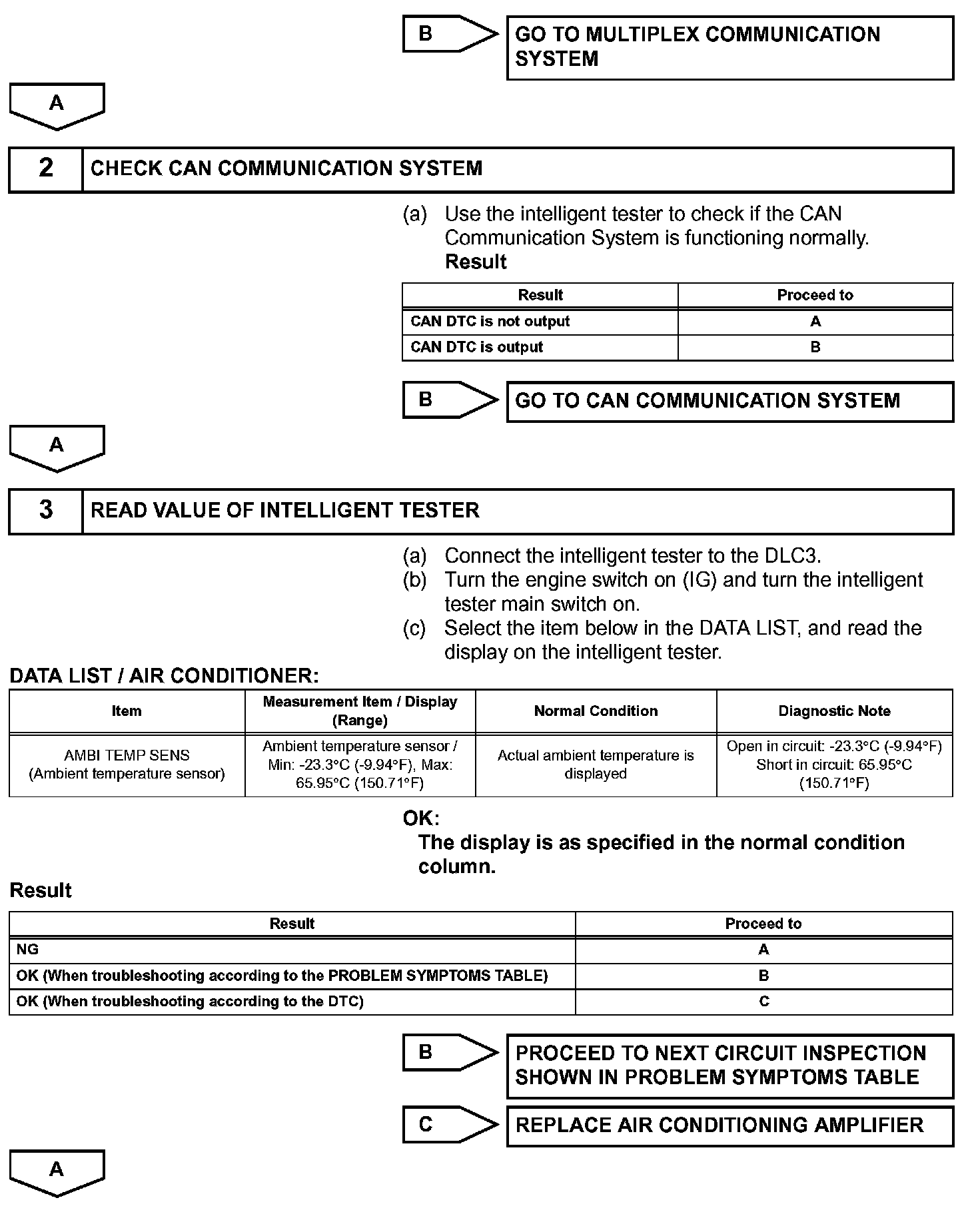

Step 1 (Continued)-3:

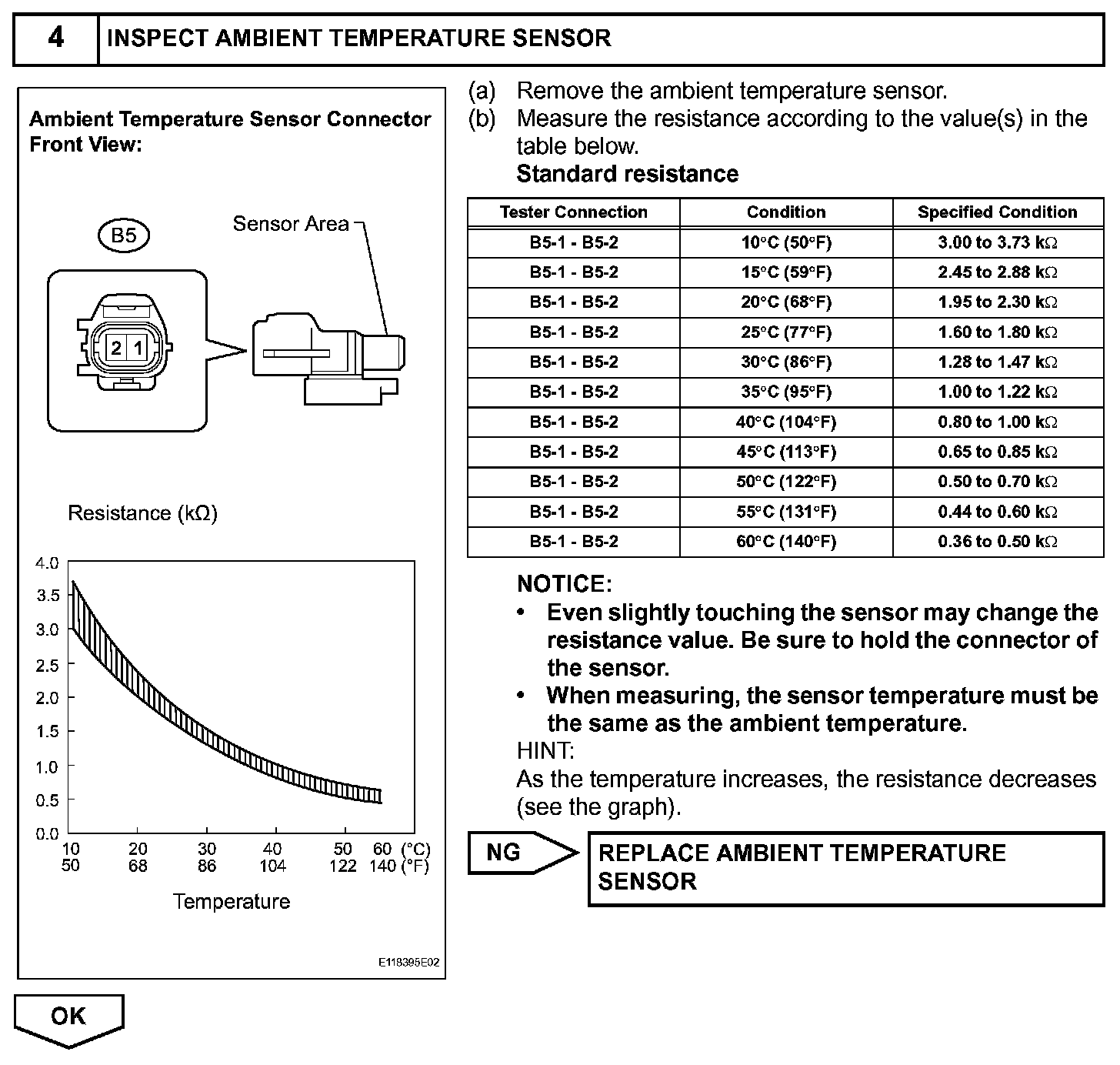

Step 4:

Step 5:

INSPECTION PROCEDURE
