B1297

DTC B1297 Clearance Sonar ECU Communication Stop

DESCRIPTION

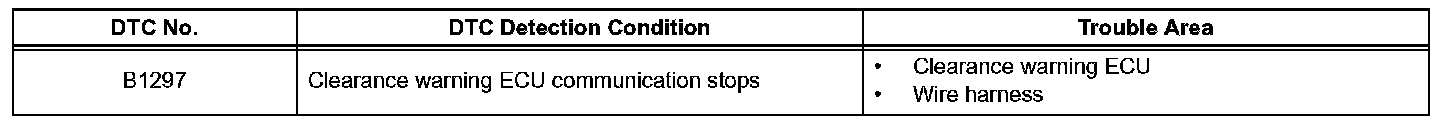

DTC Detection Condition:

This DTC is detected when communication between the clearance warning ECU and gateway ECU stops for more than 10 seconds.

HINT: When "+B of GND short malfunction of communication bus" DTCs (B1266 and B1267) are detected at the same time as "communication stop" DTC B1297, repair the "+B or GND short malfunction of communication bus" DTCs first.

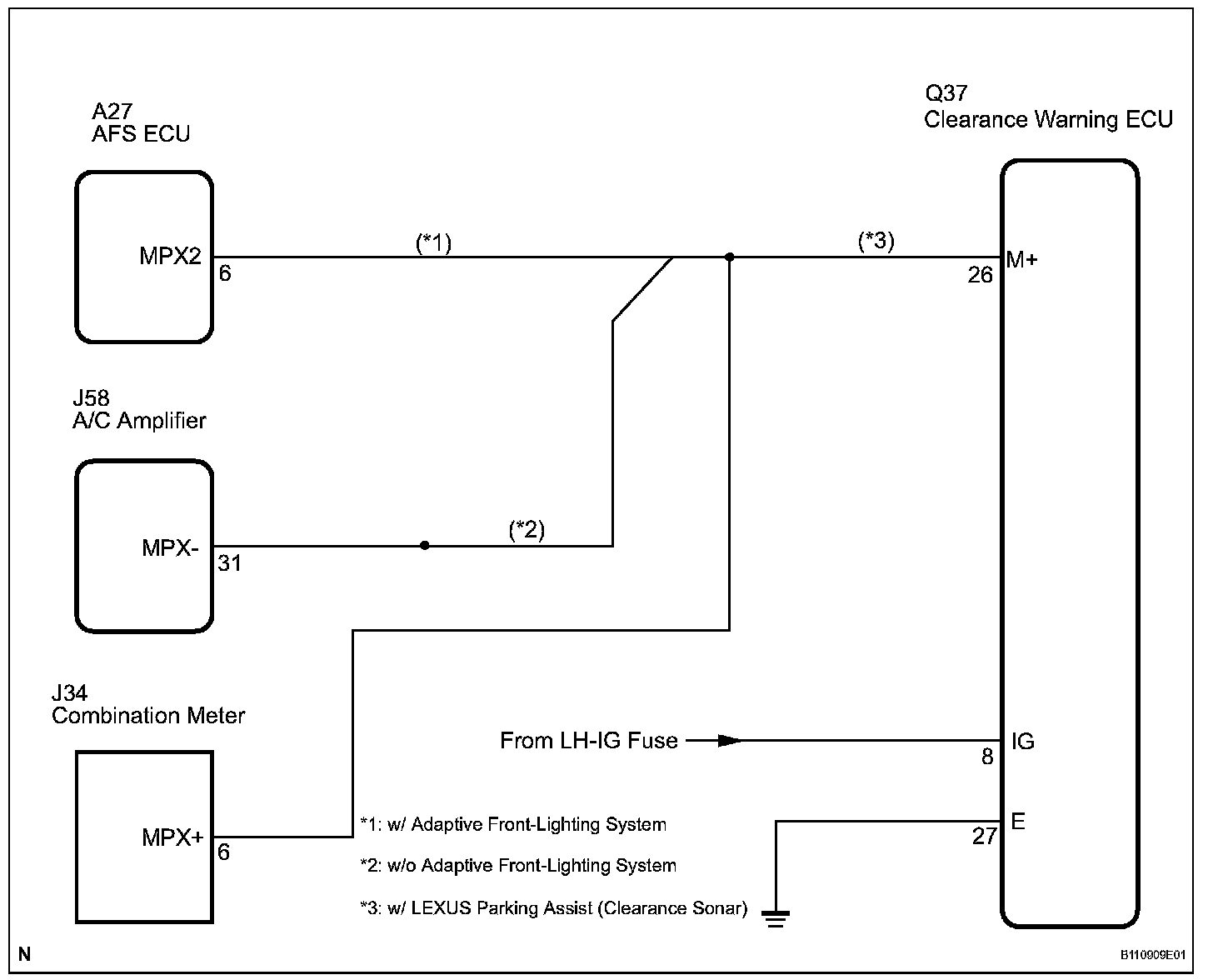

Wiring Diagram:

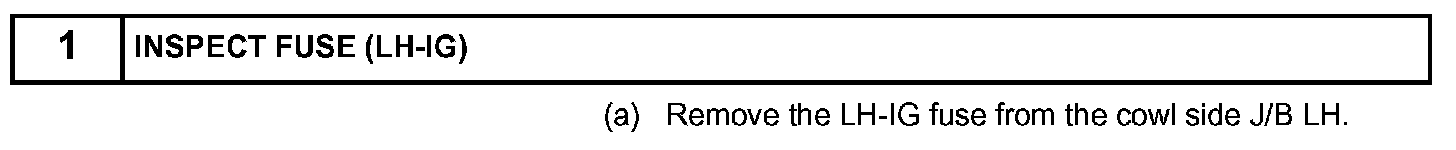

Step 1:

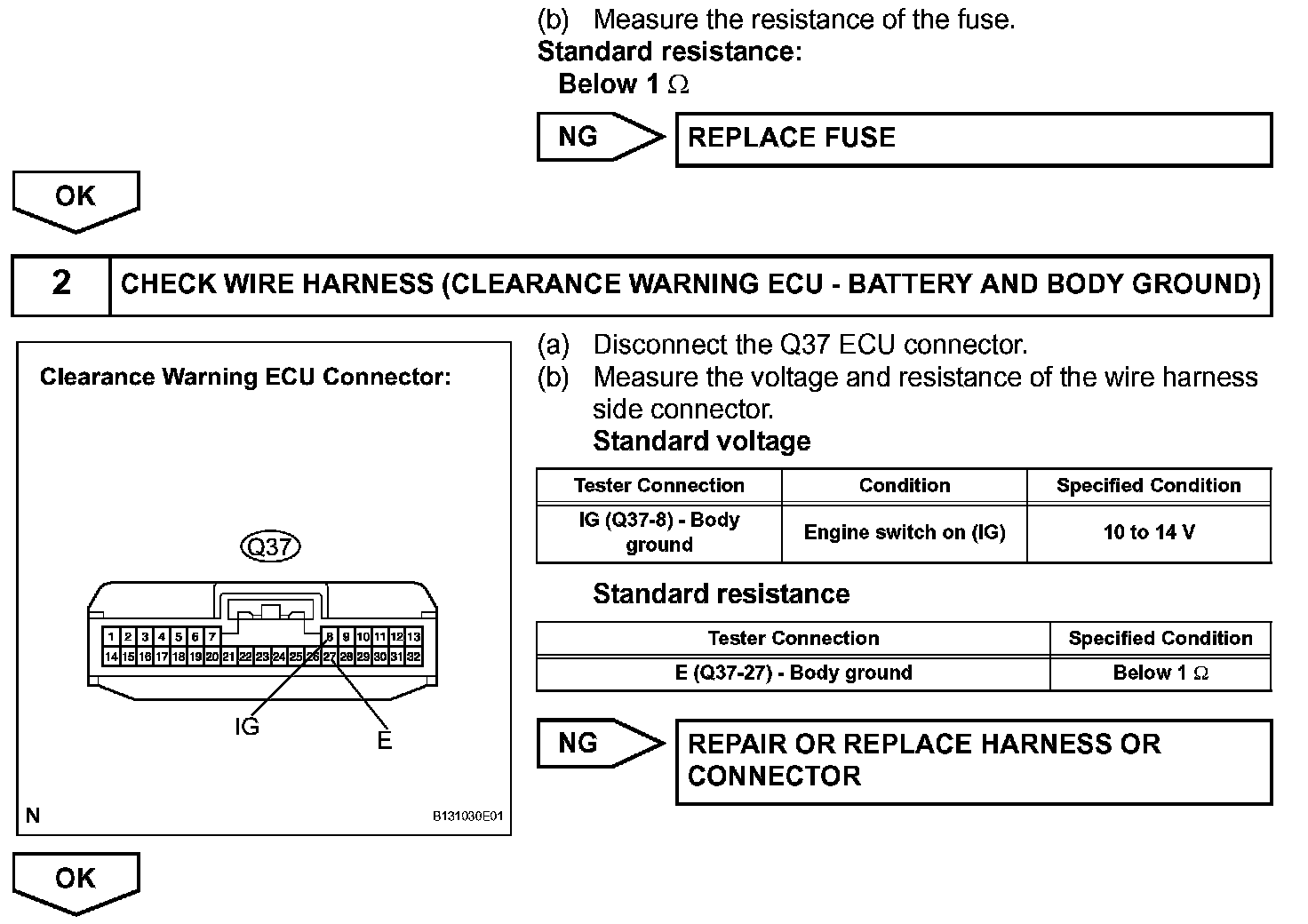

Step 1(continued)-2:

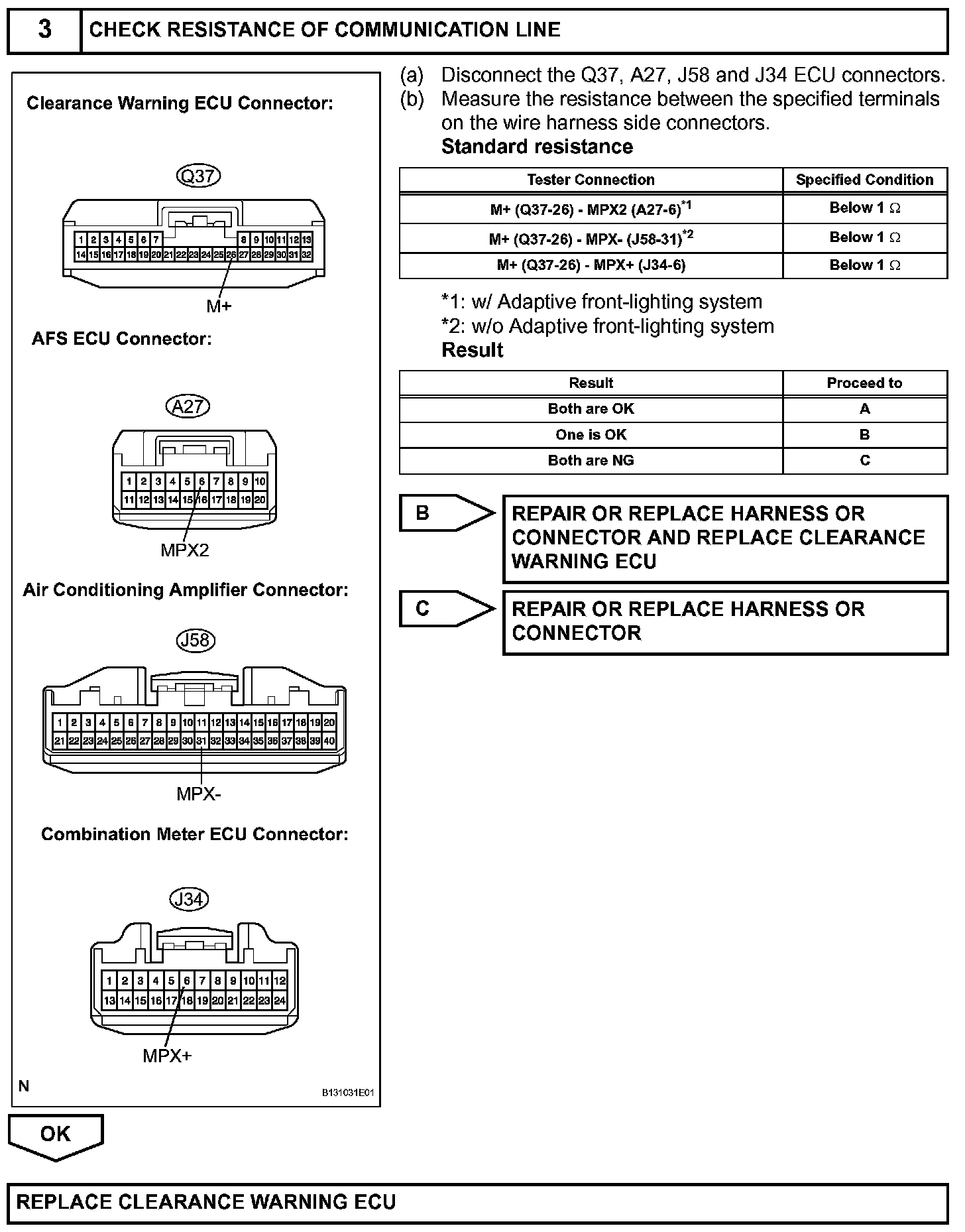

Step 3:

INSPECTION PROCEDURE
