B1272

DTC B1272 Power Seat ECU Communication Stop

DESCRIPTION

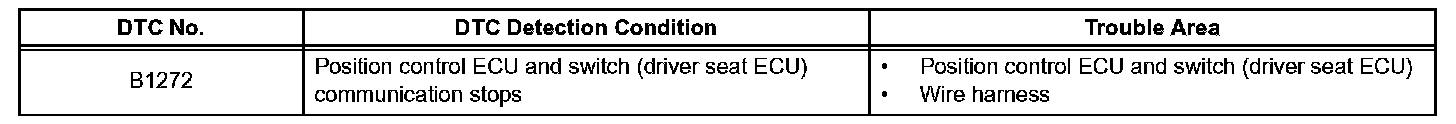

DTC Detection Condition:

This DTC is detected when communication between the position control ECU and switch (driver seat ECU) and multiplex network gateway ECU stops for more than 10 seconds.

HINT: When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1272, repair the "+B or GND short malfunction of communication bus" DTCs first.

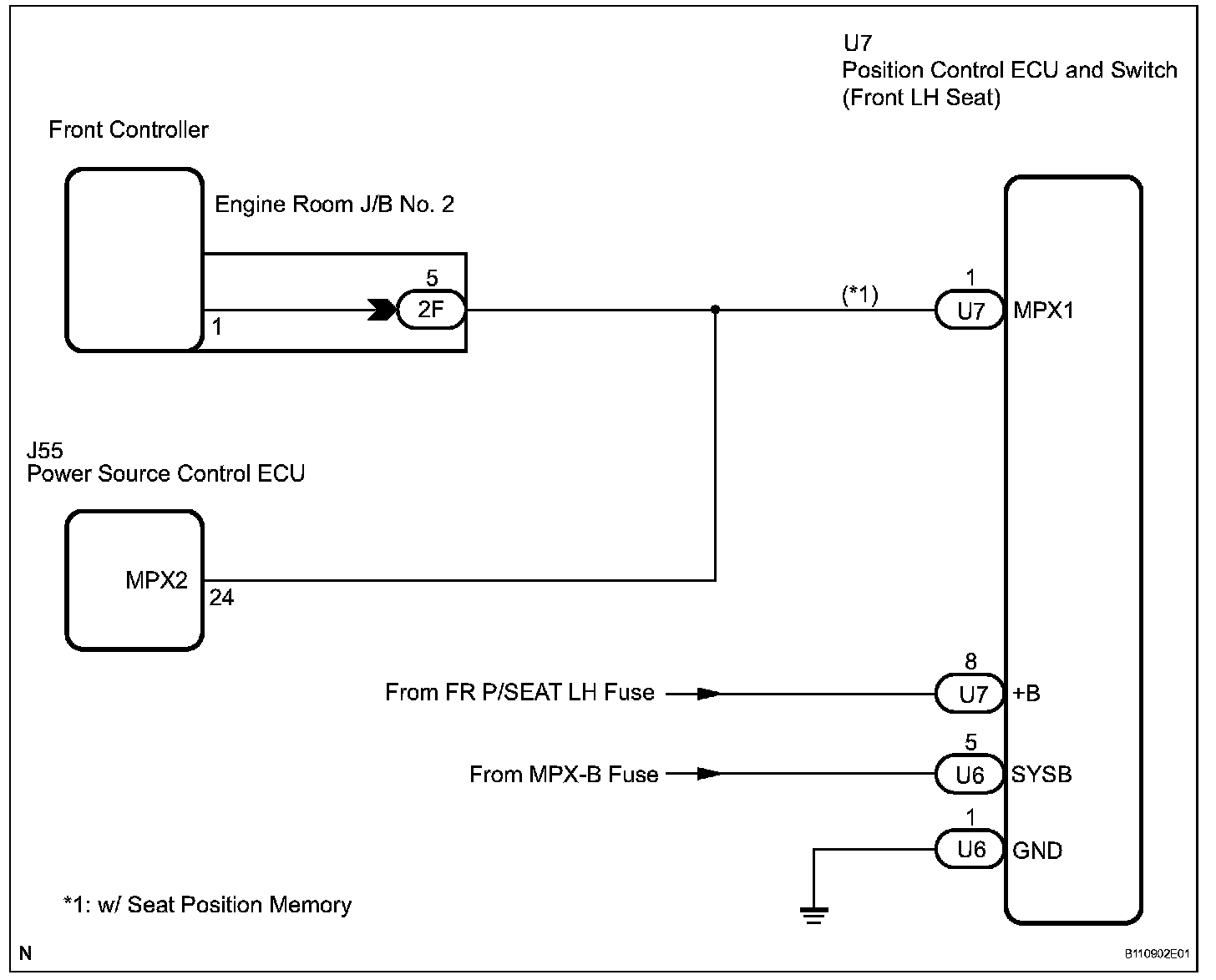

Wiring Diagram:

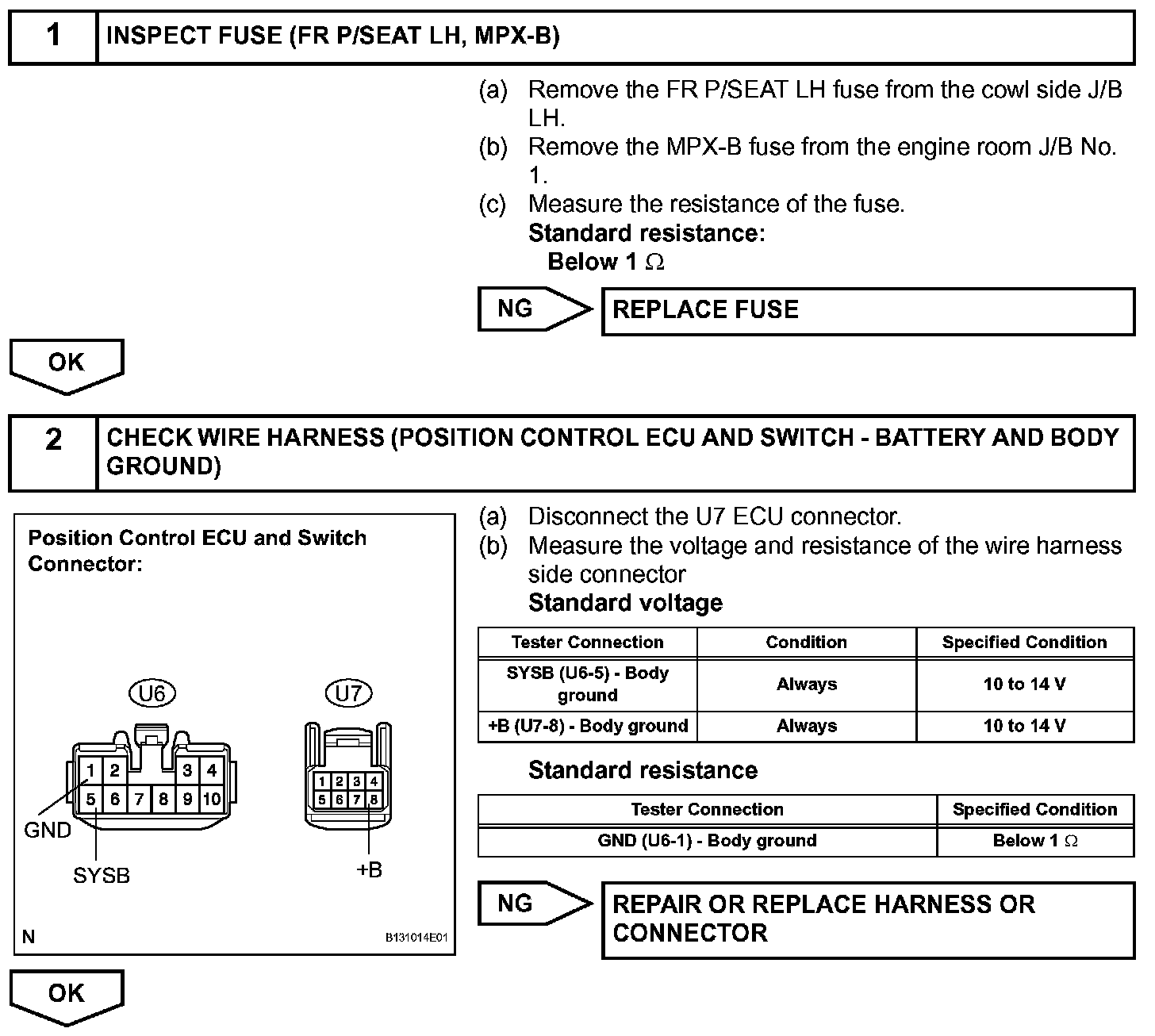

Step 1-2:

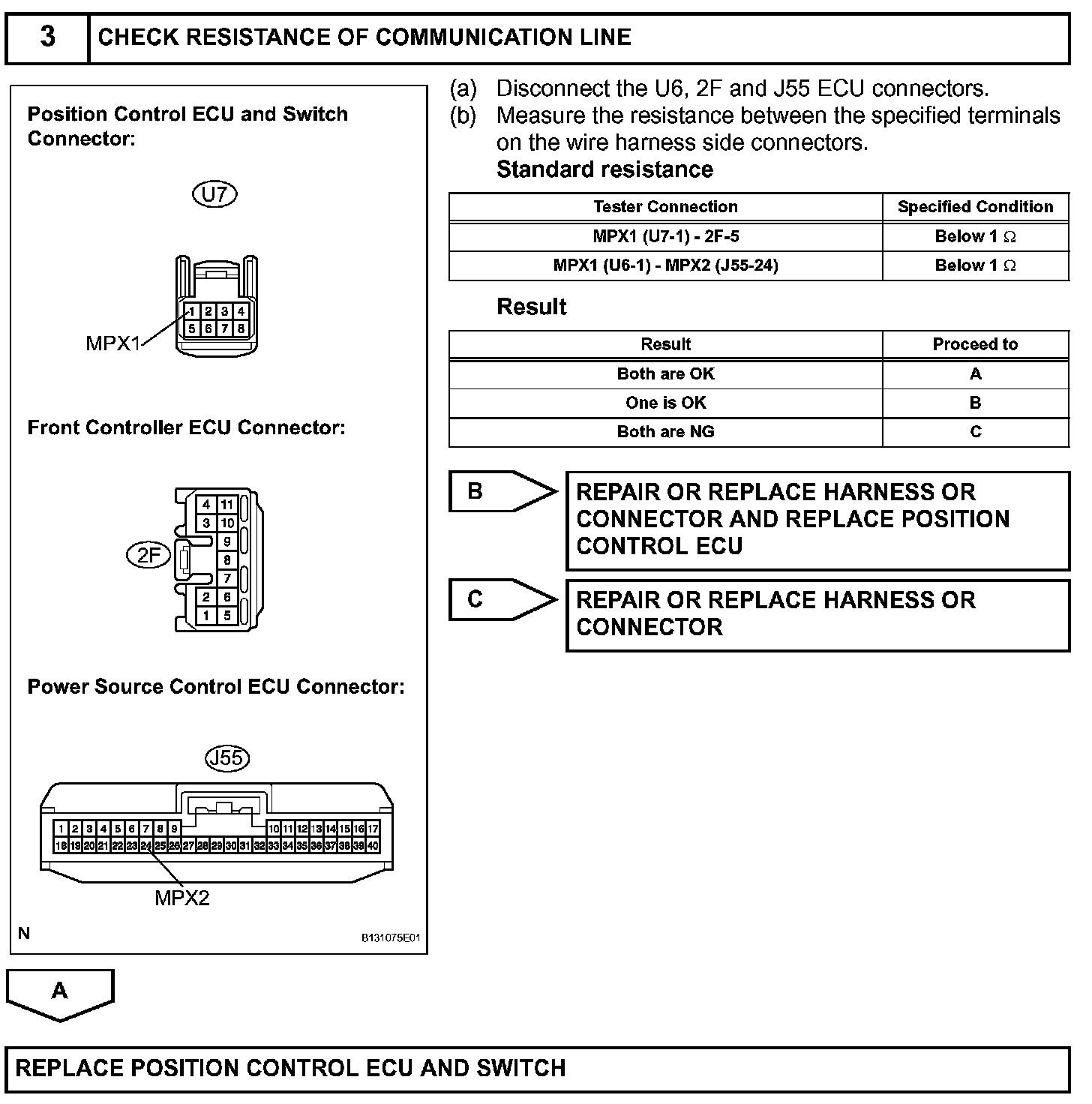

Step 3:

INSPECTION PROCEDURE
