B1267

DTC B1266 Short to B+ in Instrument Panel System Communication Bus Malfunction
DTC B1267 Short to GND in Instrument Panel System Communication Bus Malfunction

DESCRIPTION

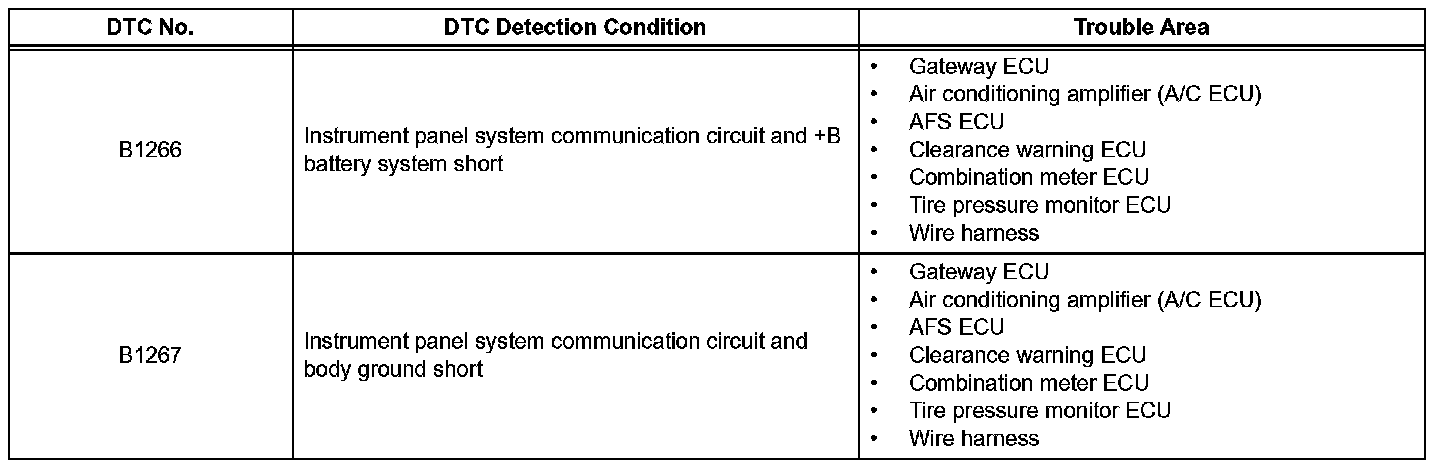

DTC Detection Condition:

When a +B short circuit or body ground short circuit is detected on the instrument panel system communication bus (BEAN), the instrument panel system communication bus (BEAN) is disabled and a DTC code is output.

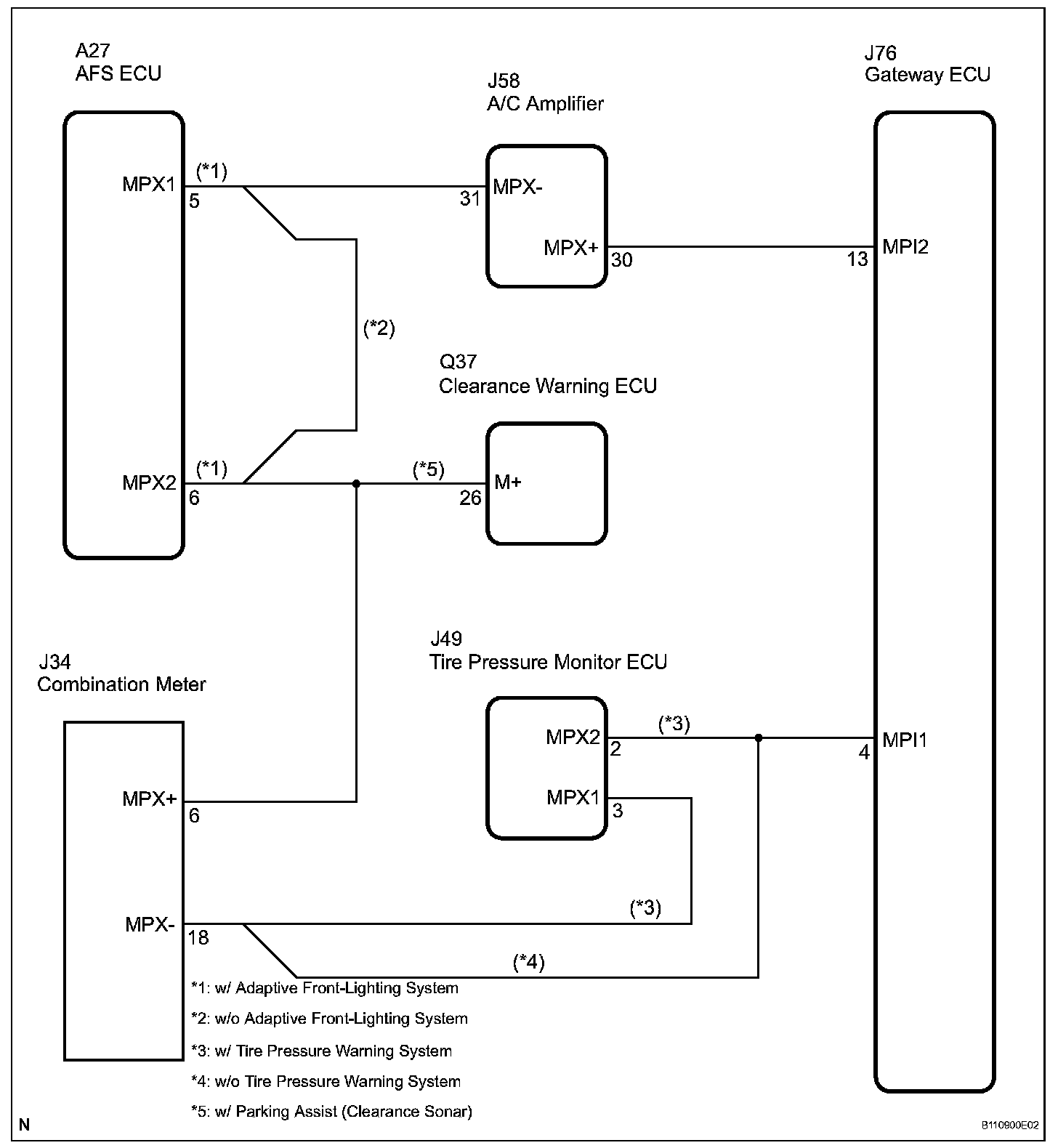

Wiring Diagram:

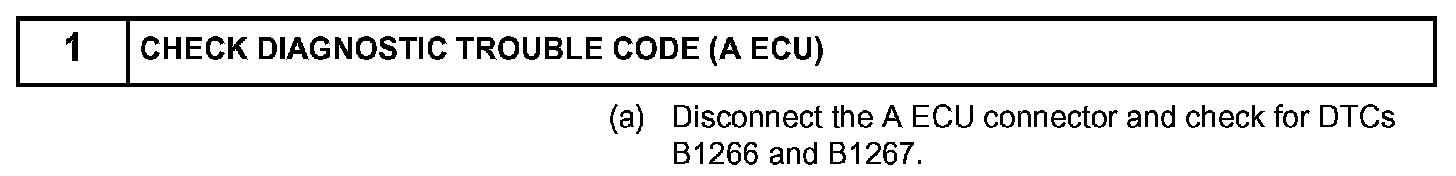

Step 1:

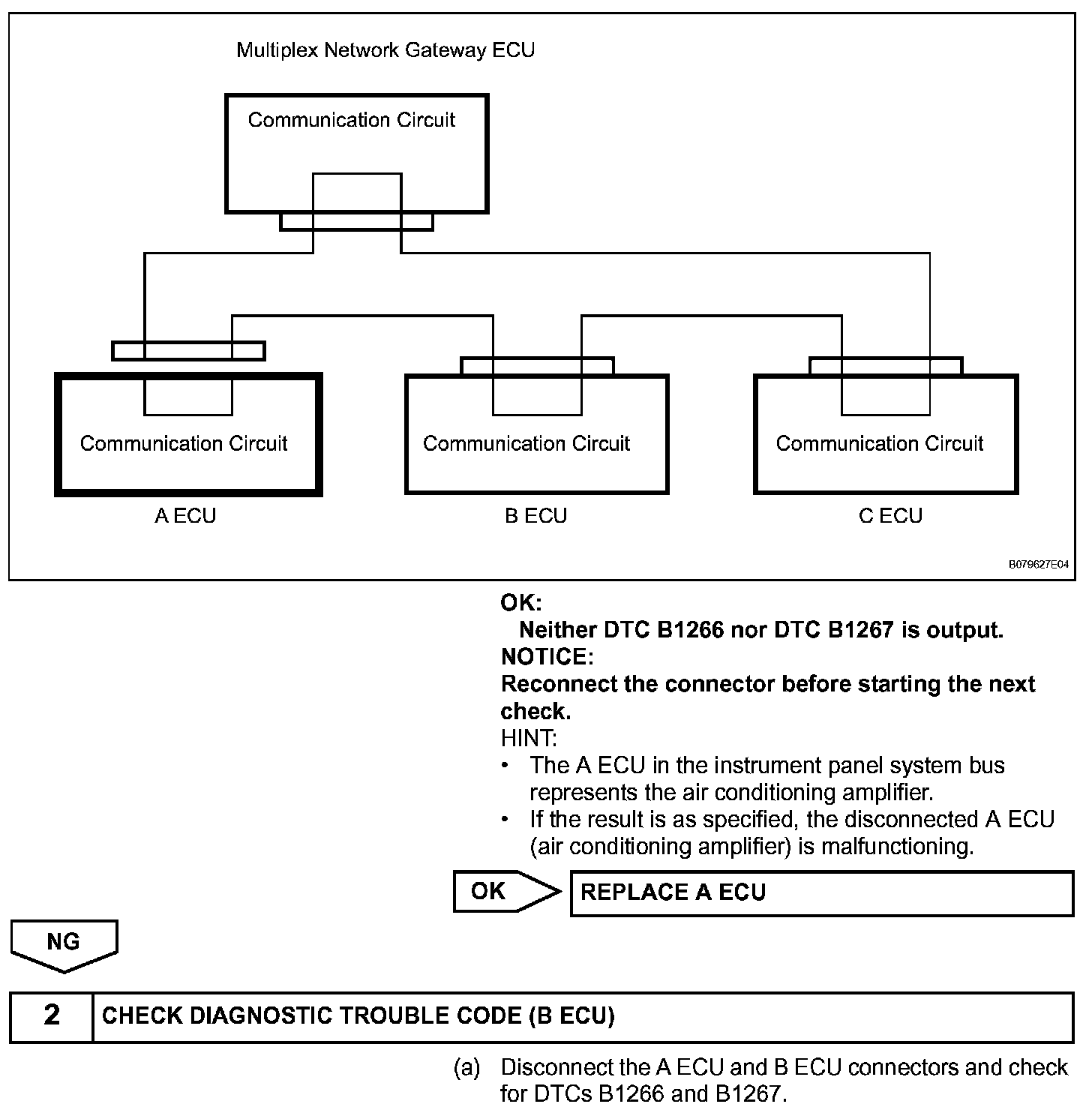

Step 1(continued)-2:

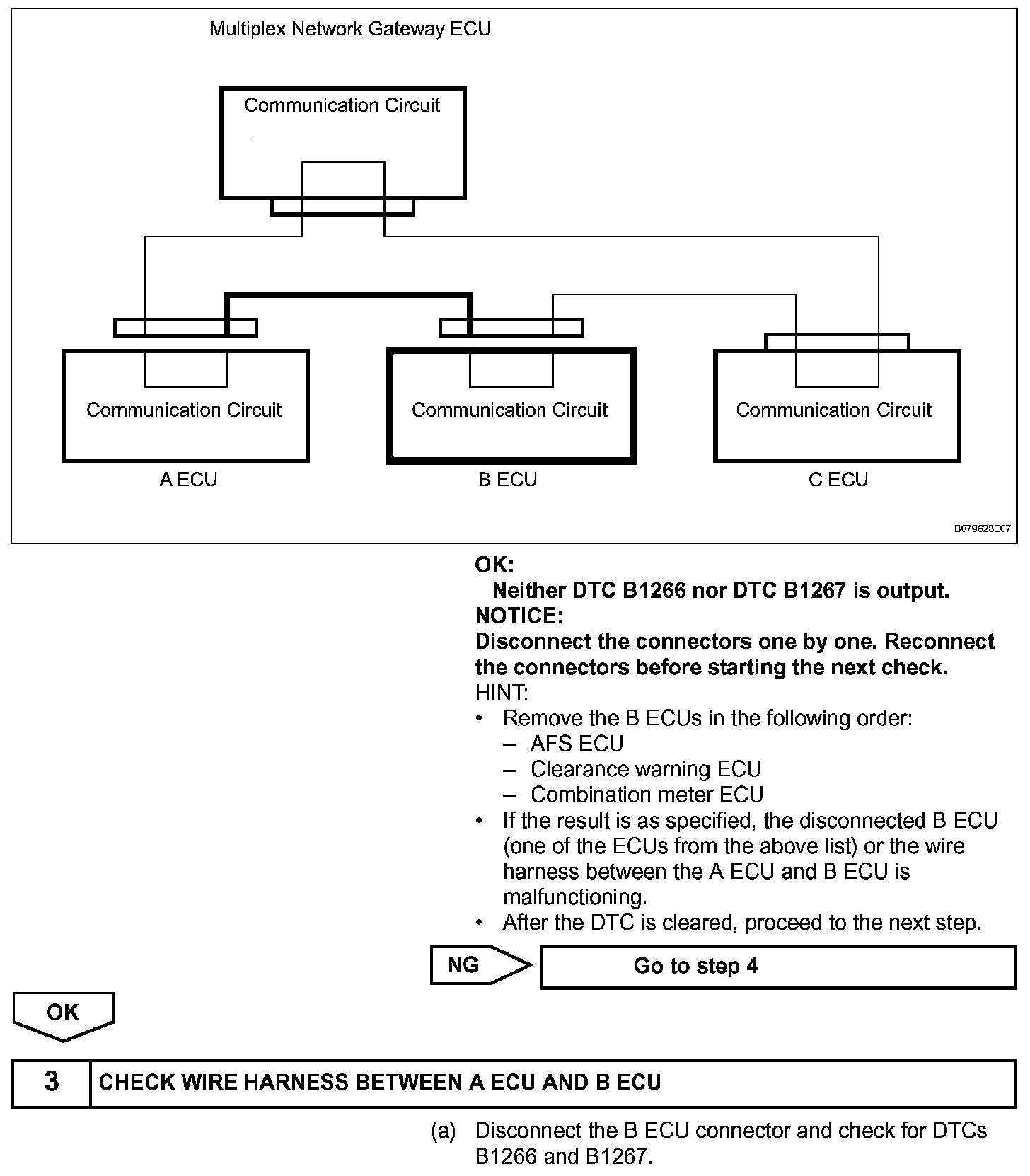

Step 2(continued)-3:

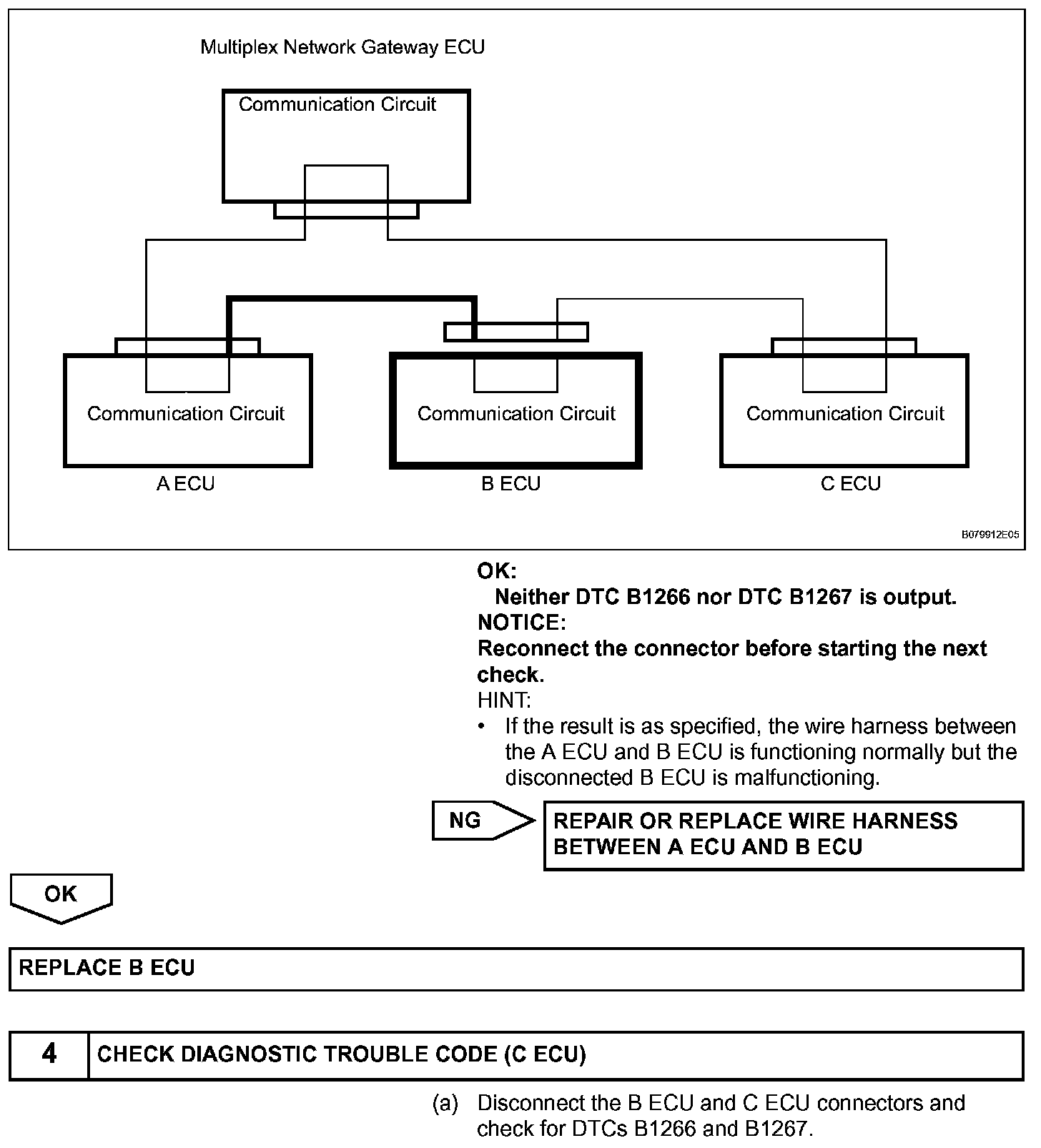

Step 3(continued):

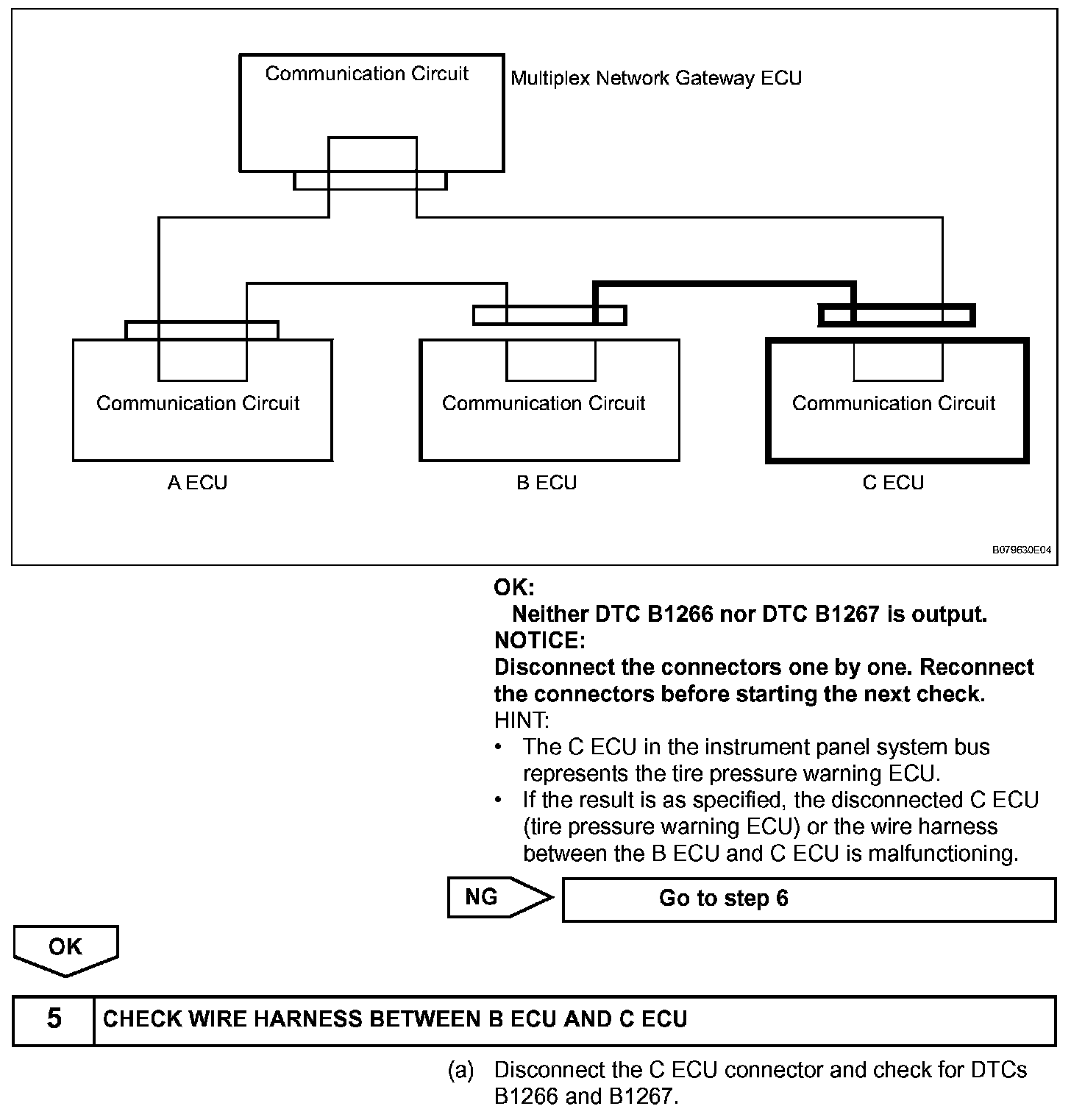

Step 4(continued)-5:

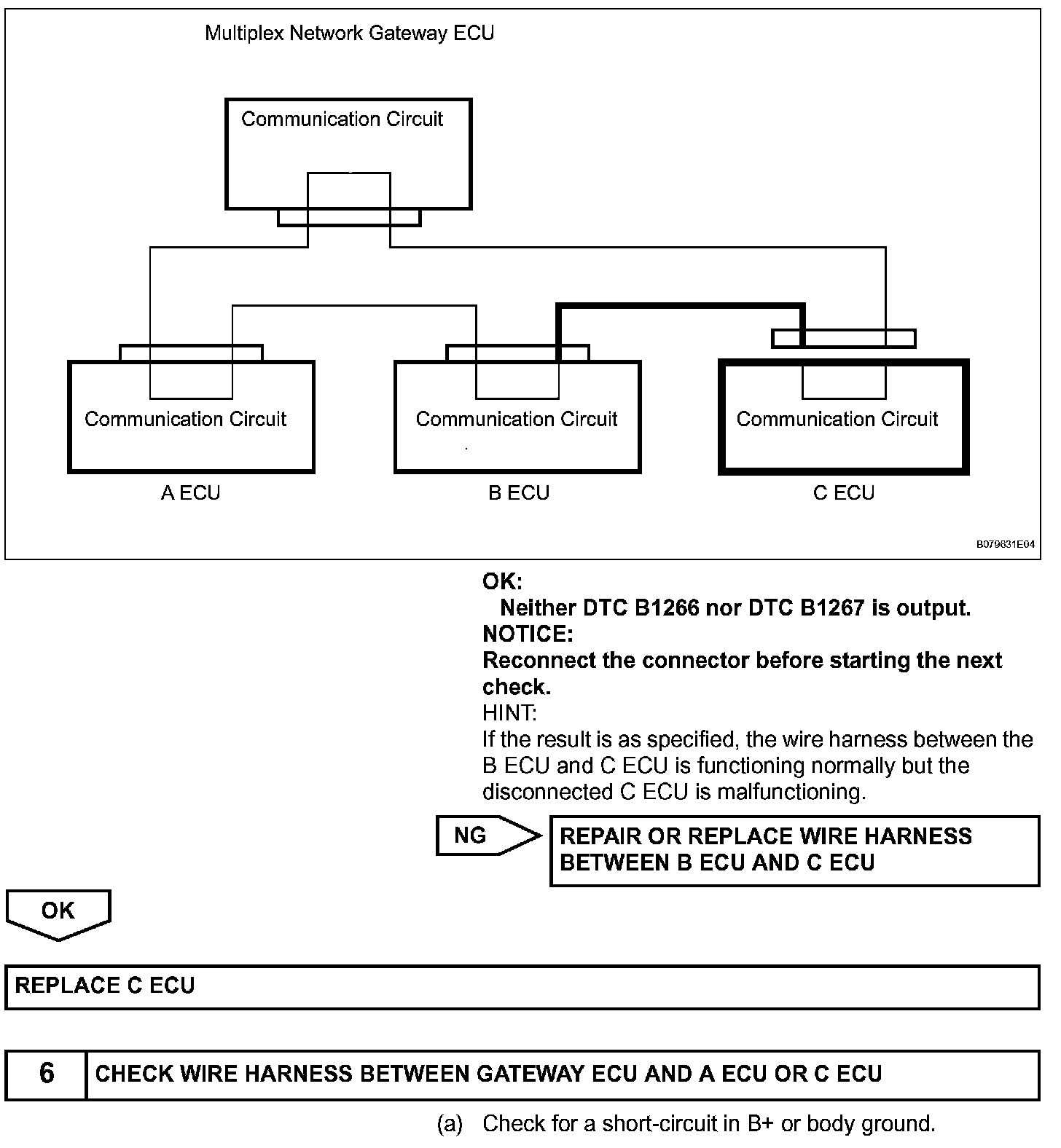

Step 5(continued)-6:

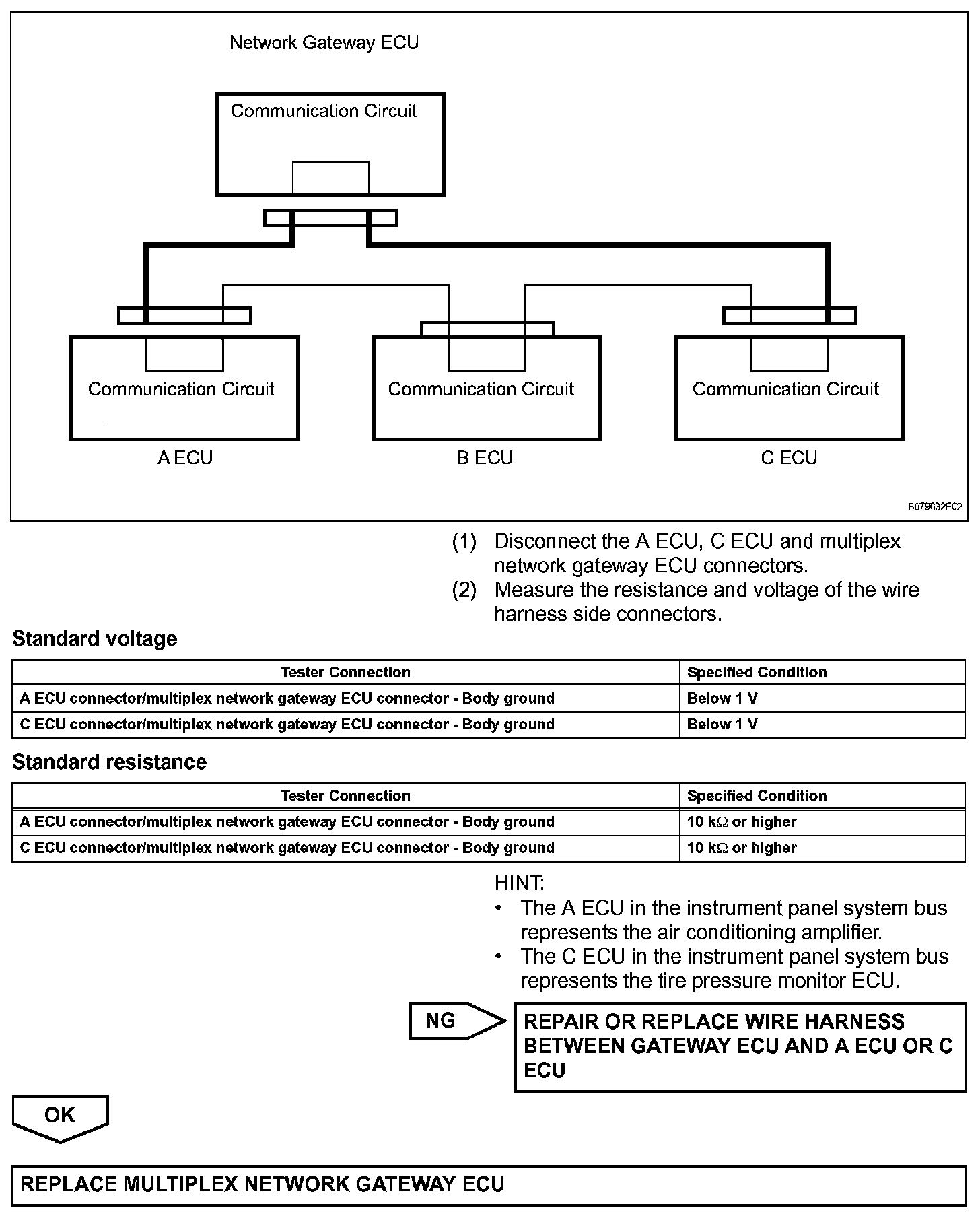

Step 6(continued):

INSPECTION PROCEDURE
