B1244

DTC B1244 Light Sensor Circuit Malfunction

DESCRIPTION

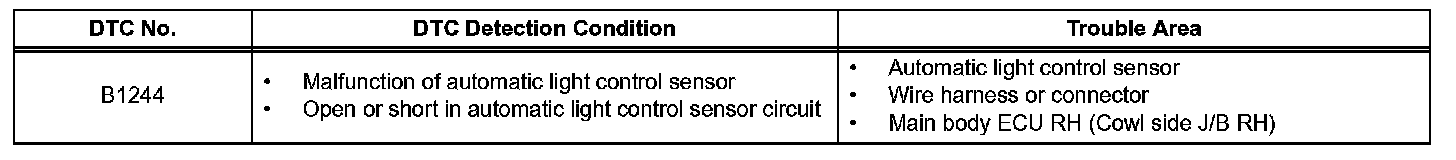

DTC Detection Condition:

This DTC is output when a failure of the automatic light control sensor circuit is detected.

Wiring Diagram:

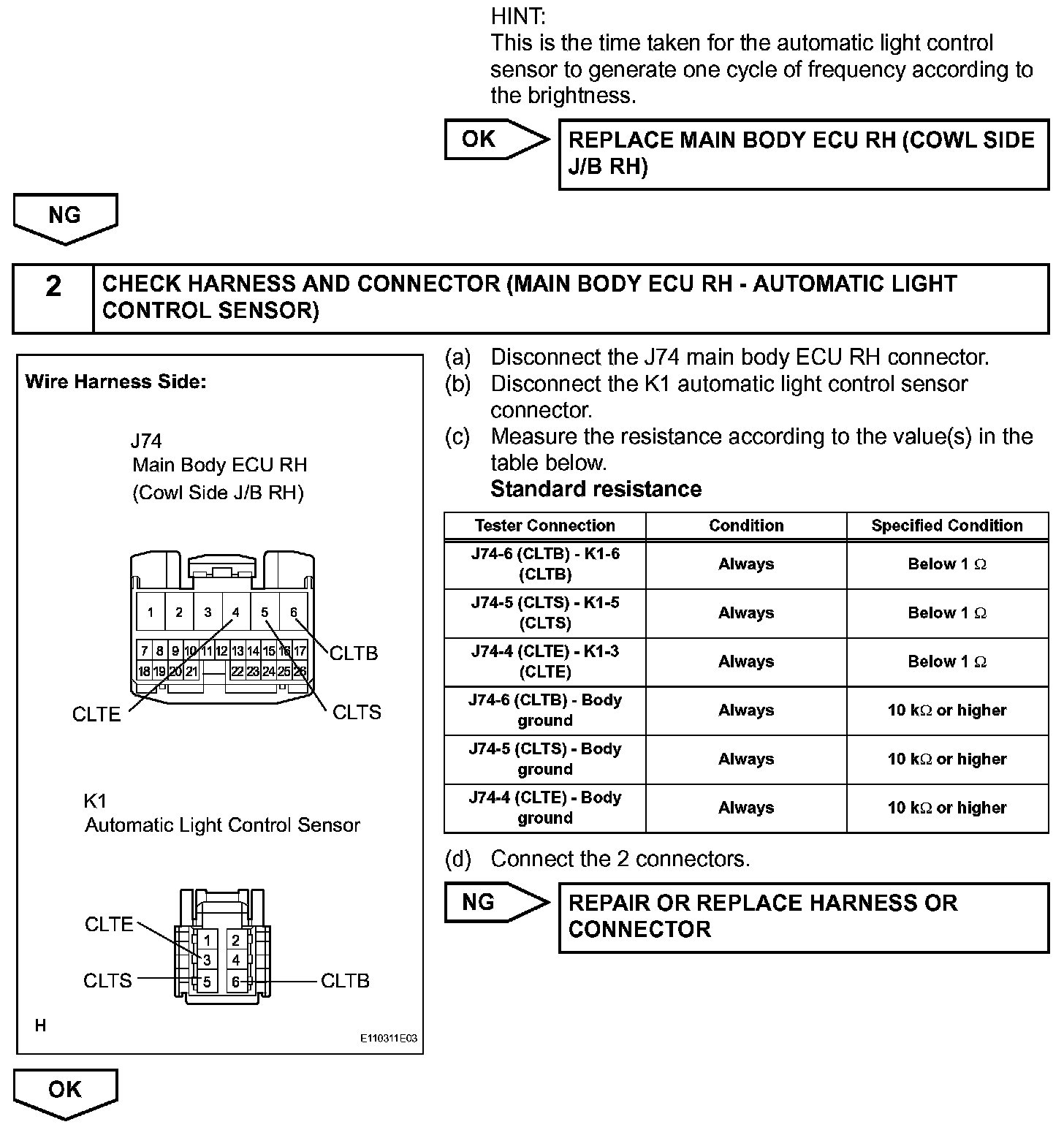

Step 1:

Step 1 (Continued)-2:

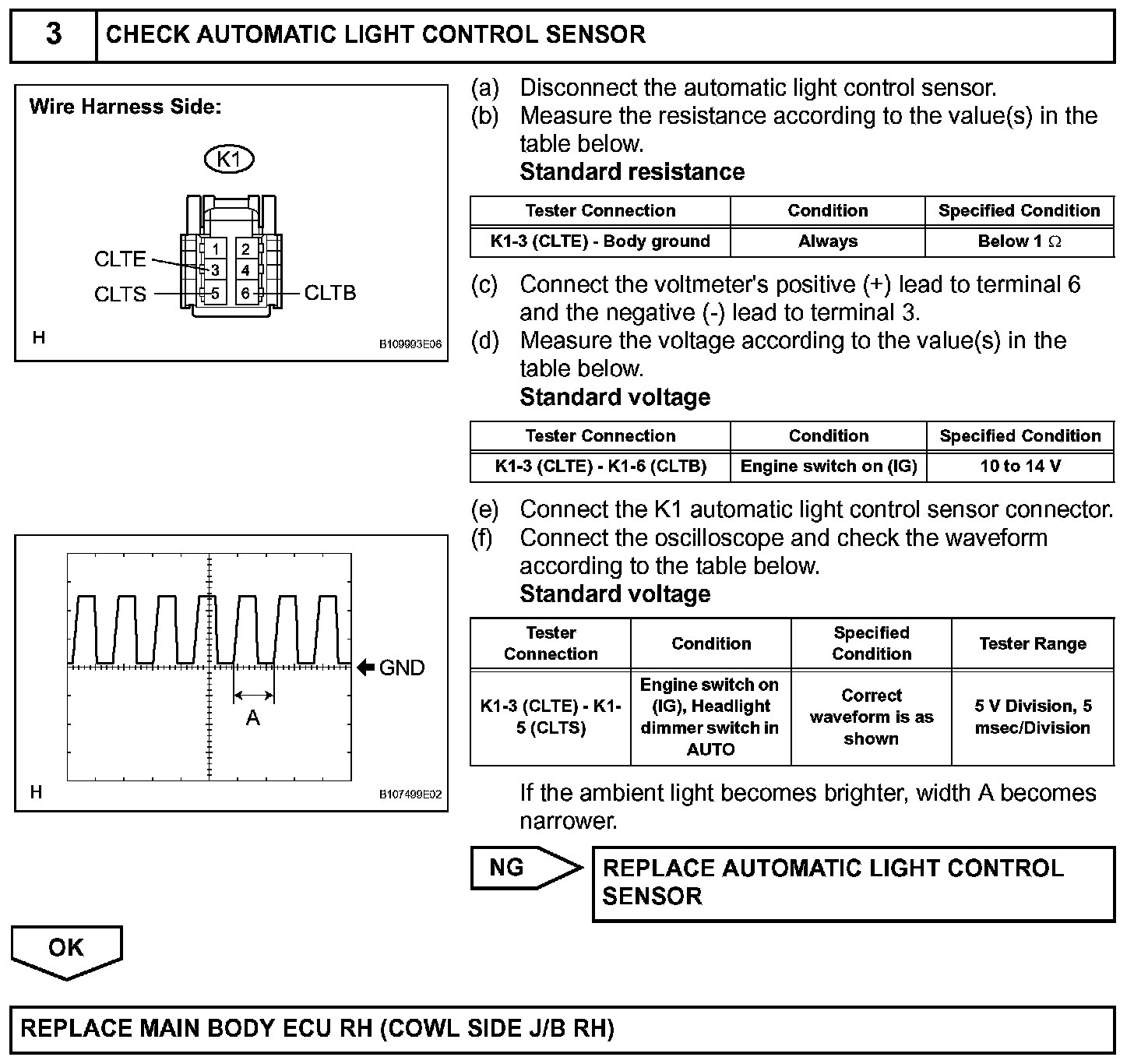

Step 3:

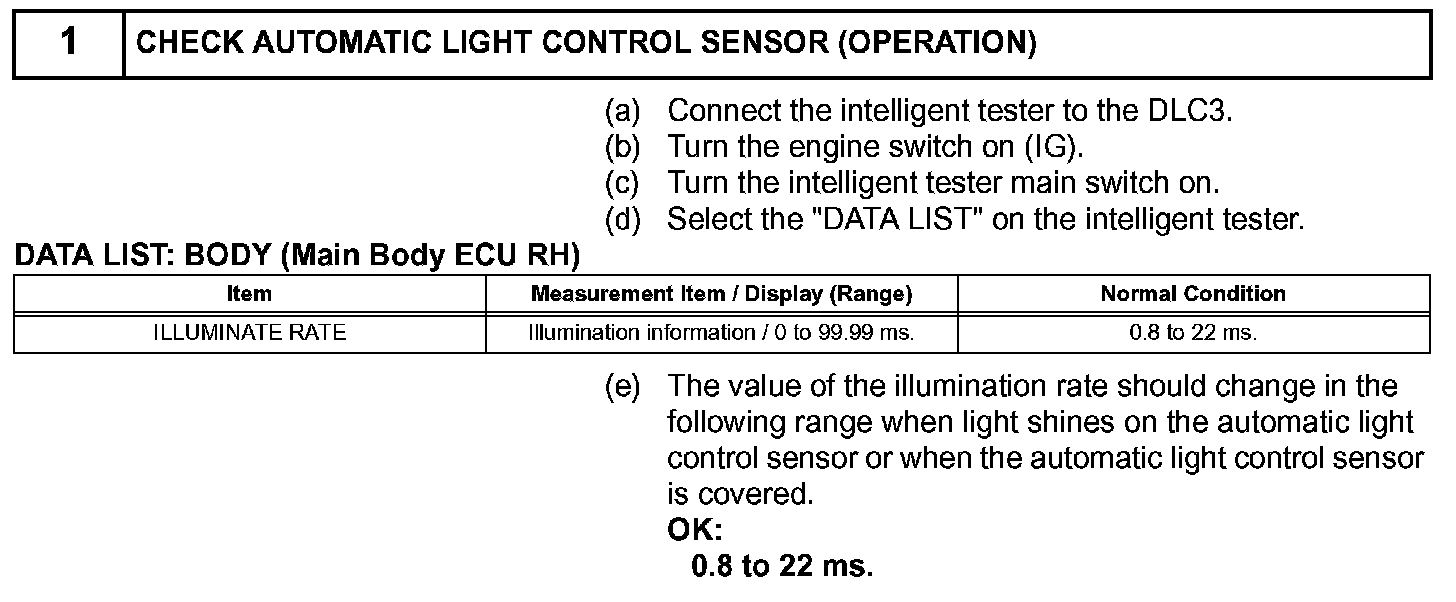

INSPECTION PROCEDURE
