Windshield Washer Spray Nozzle: Testing and Inspection

WASHER NOZZLE

ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE




a. With the engine running, check the position that the washer fluid hits the windshield.

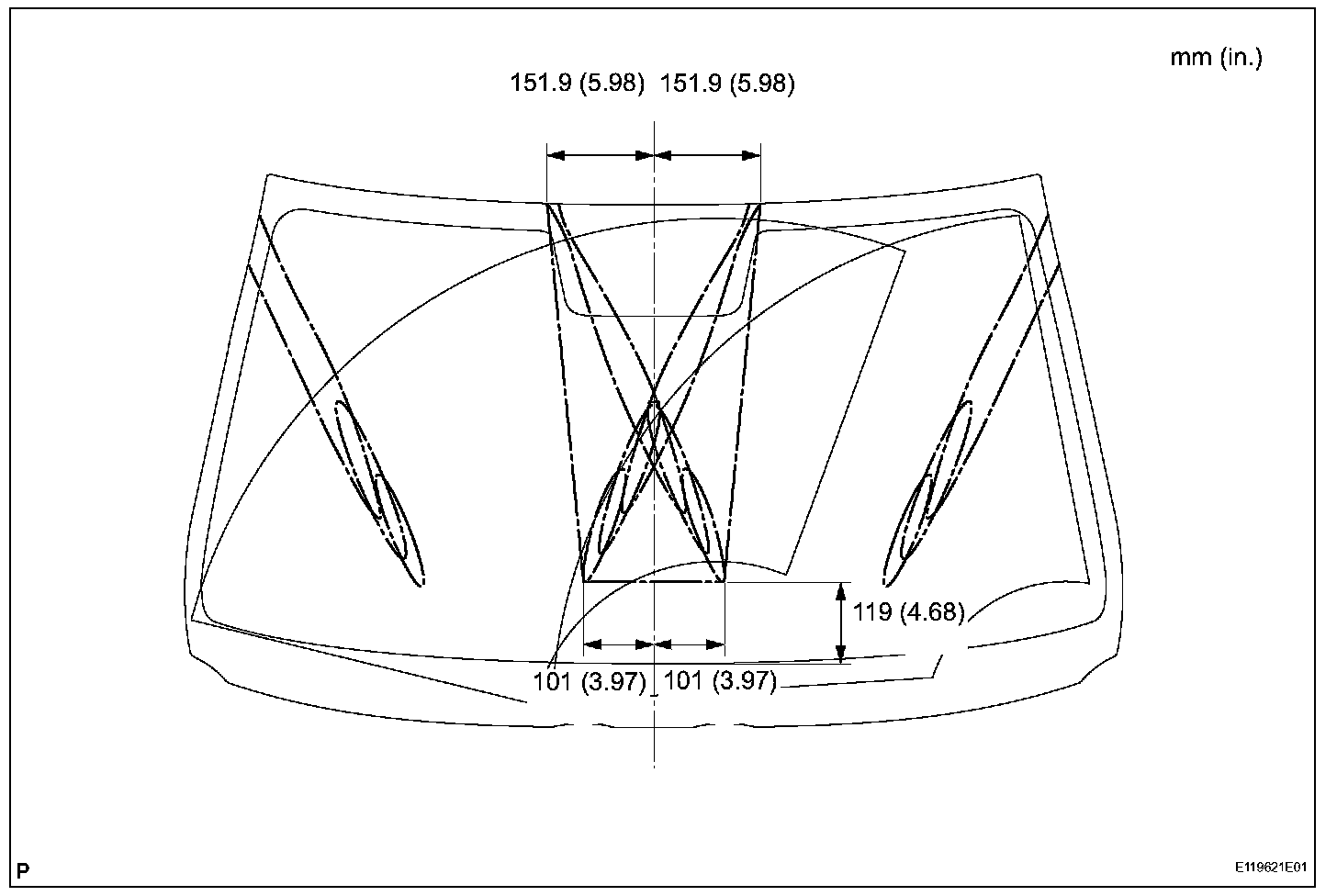

Standard: Washer fluid hits the windshield in the areas shown in the illustration.

NOTE: If the result is not as specified, replace the washer nozzle.
