Windshield Washer Spray Nozzle: Adjustments

WASHER NOZZLE

ADJUSTMENT




1. ADJUST WASHER NOZZLE

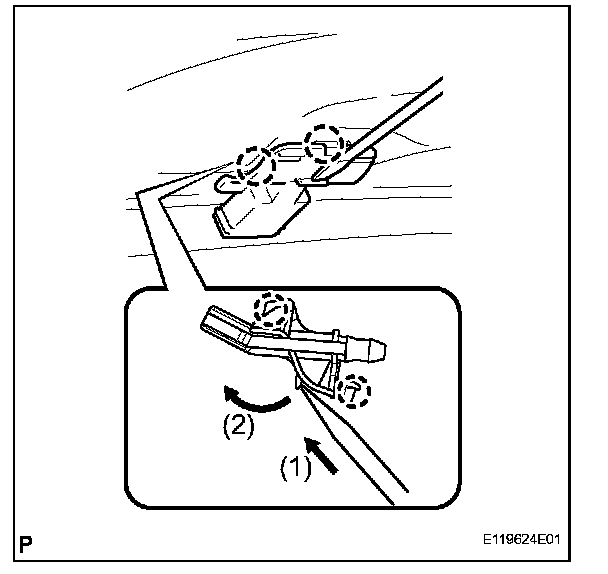

a. Using a screwdriver, disengage the 2 claws and separate the washer nozzle.

NOTE: Be careful not to damage the windshield.

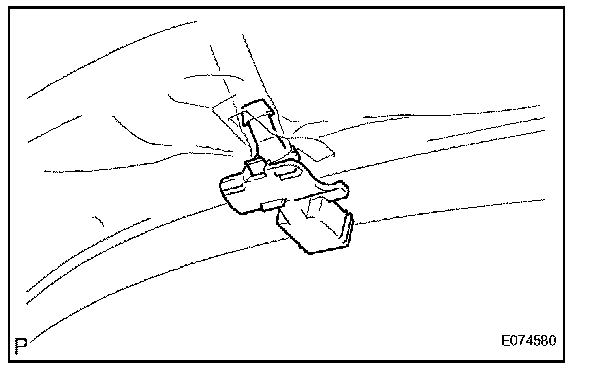

b. Remove the washer nozzle from the washer hose.

NOTE: Washer nozzles cannot be reused.

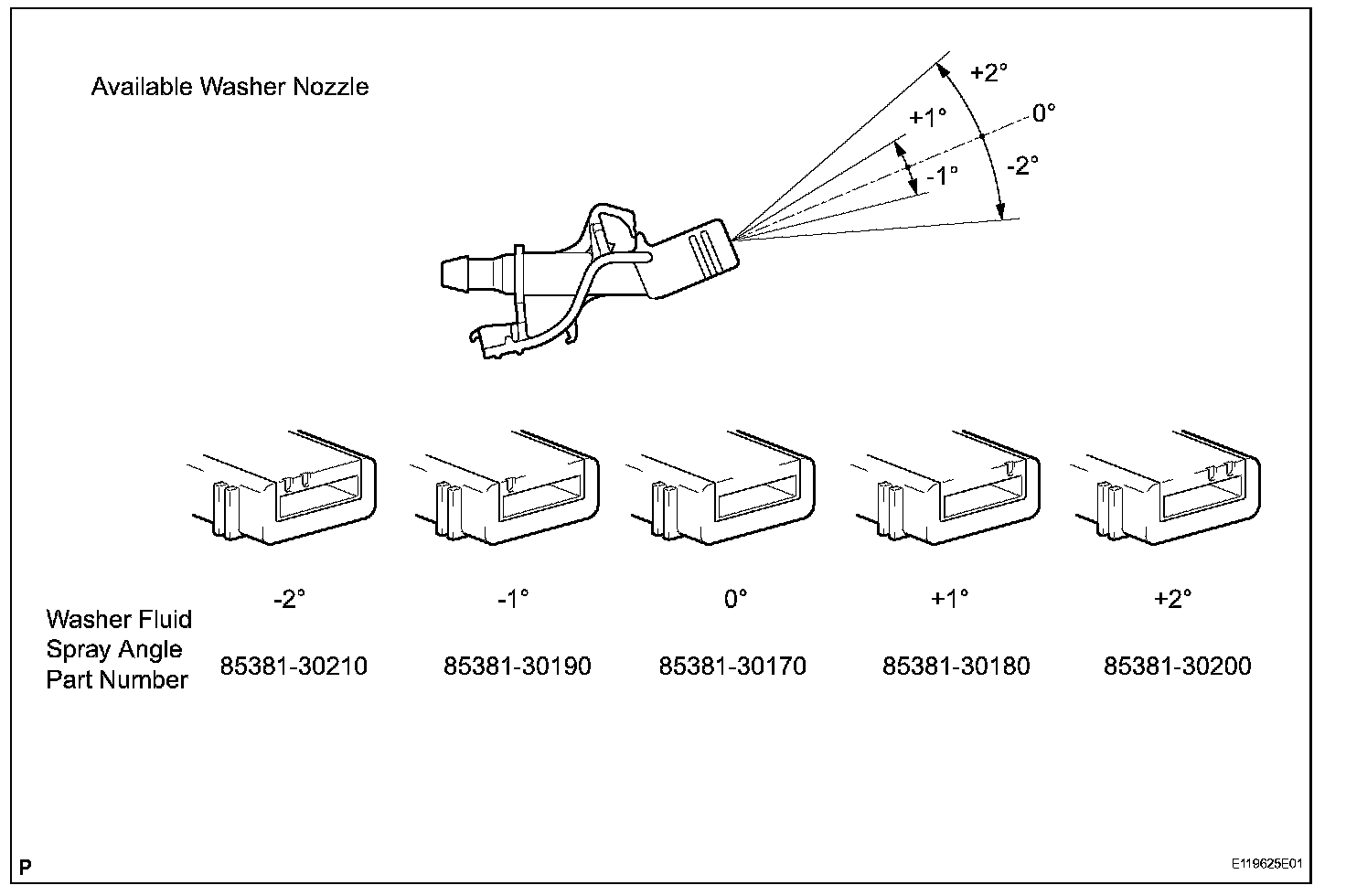

c. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.
