Headlamp Washer Motor: Service and Repair

Headlight Cleaner Actuator:

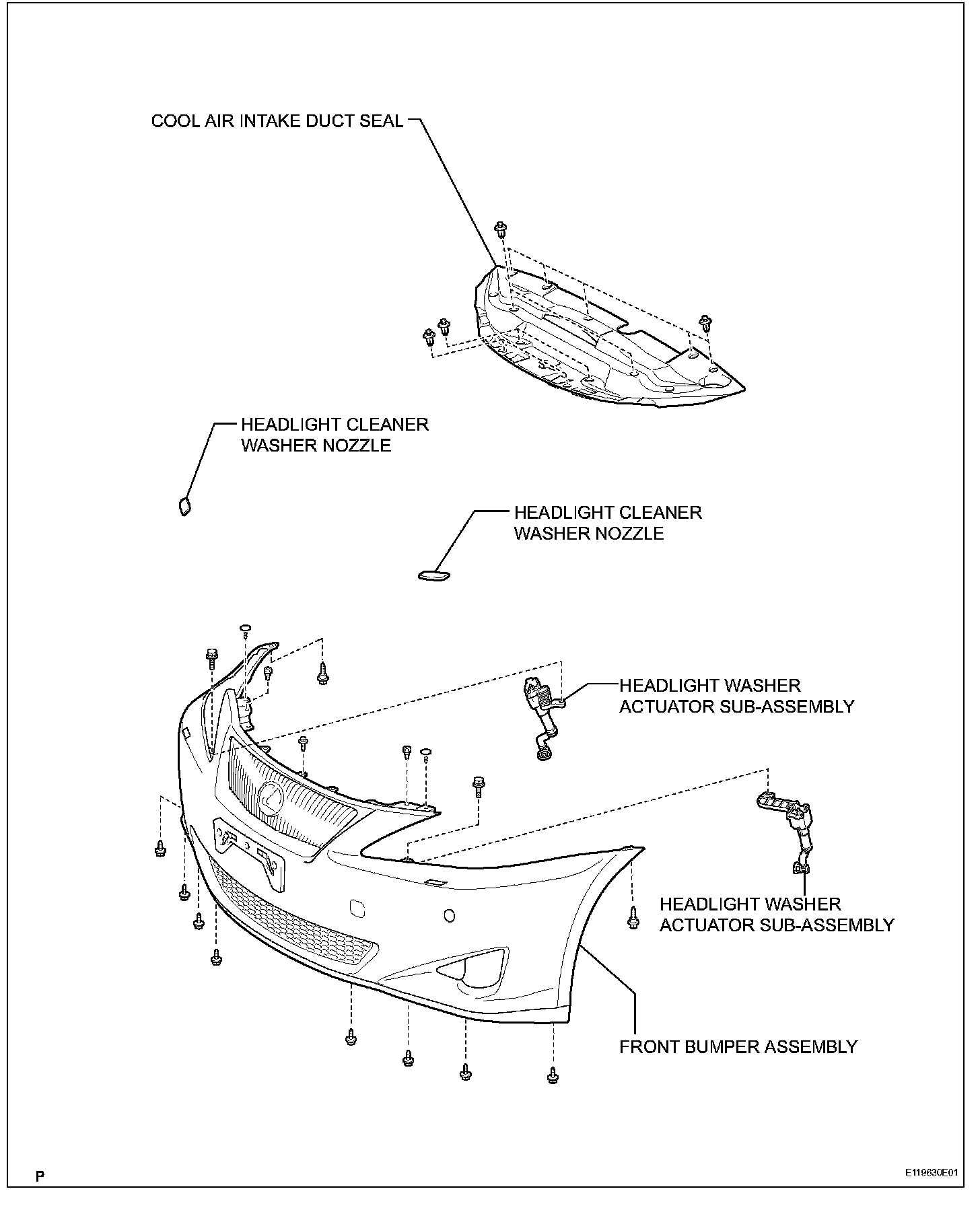

HEADLIGHT CLEANER ACTUATOR

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE FRONT BUMPER ASSEMBLY




3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE

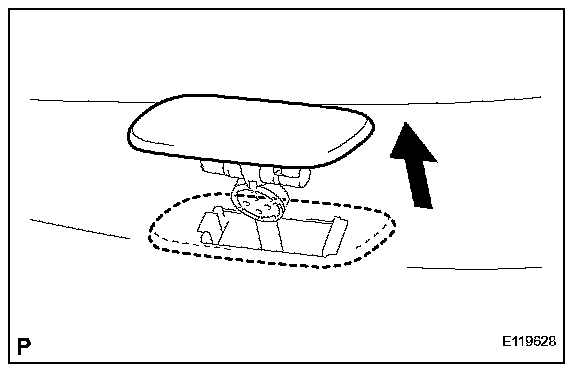

a. Extend the headlight cleaner washer nozzle.
b. Remove the headlight cleaner washer nozzle.

HINT: Use the same procedures for the RH side and the LH side.

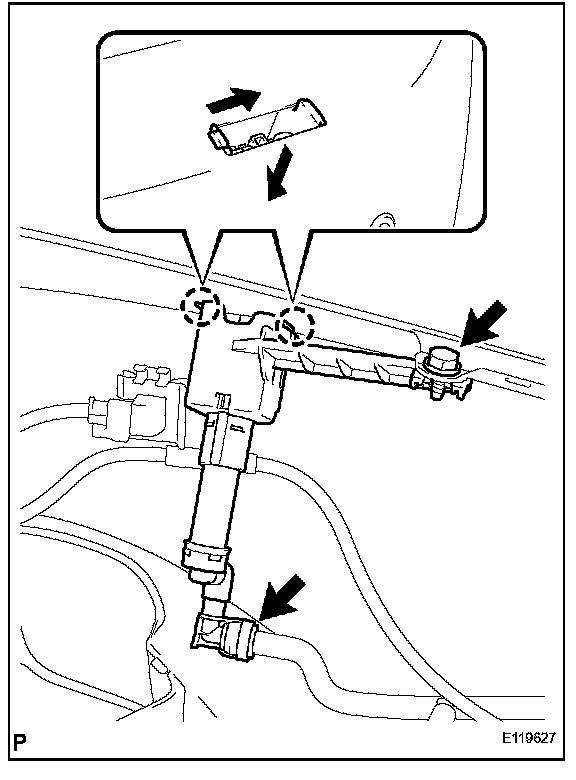

4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY
a. Disconnect the headlight washer hose.
b. Remove the bolt.
c. Disengage the 2 claws and remove the headlight washer actuator sub-assembly as shown in the illustration.

HINT: Use the same procedures for the RH side and the LH side.

INSTALLATION

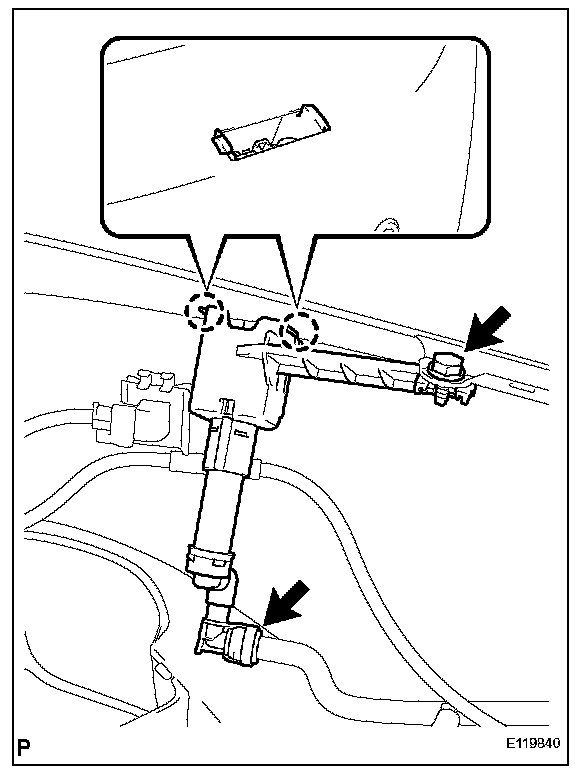

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY
a. Engage the 2 claws.
b. Install the headlight washer actuator sub-assembly with the bolt.
c. Connect the headlight washer hose.

HINT: Use the same procedures for the RH side and the LH side.




2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE

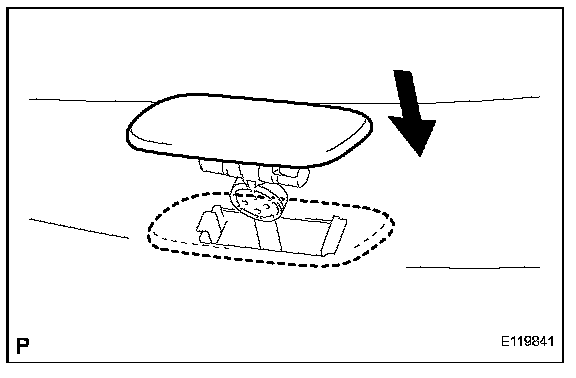

a. Install the headlight cleaner washer nozzle.

HINT: Use the same procedures for the RH side and the LH side.

3. INSTALL FRONT BUMPER ASSEMBLY
4. INSTALL COOL AIR INTAKE DUCT SEAL
