Home >> Lexus >> 2007 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Specifications >> Mechanical Specifications >> Torque

Torque

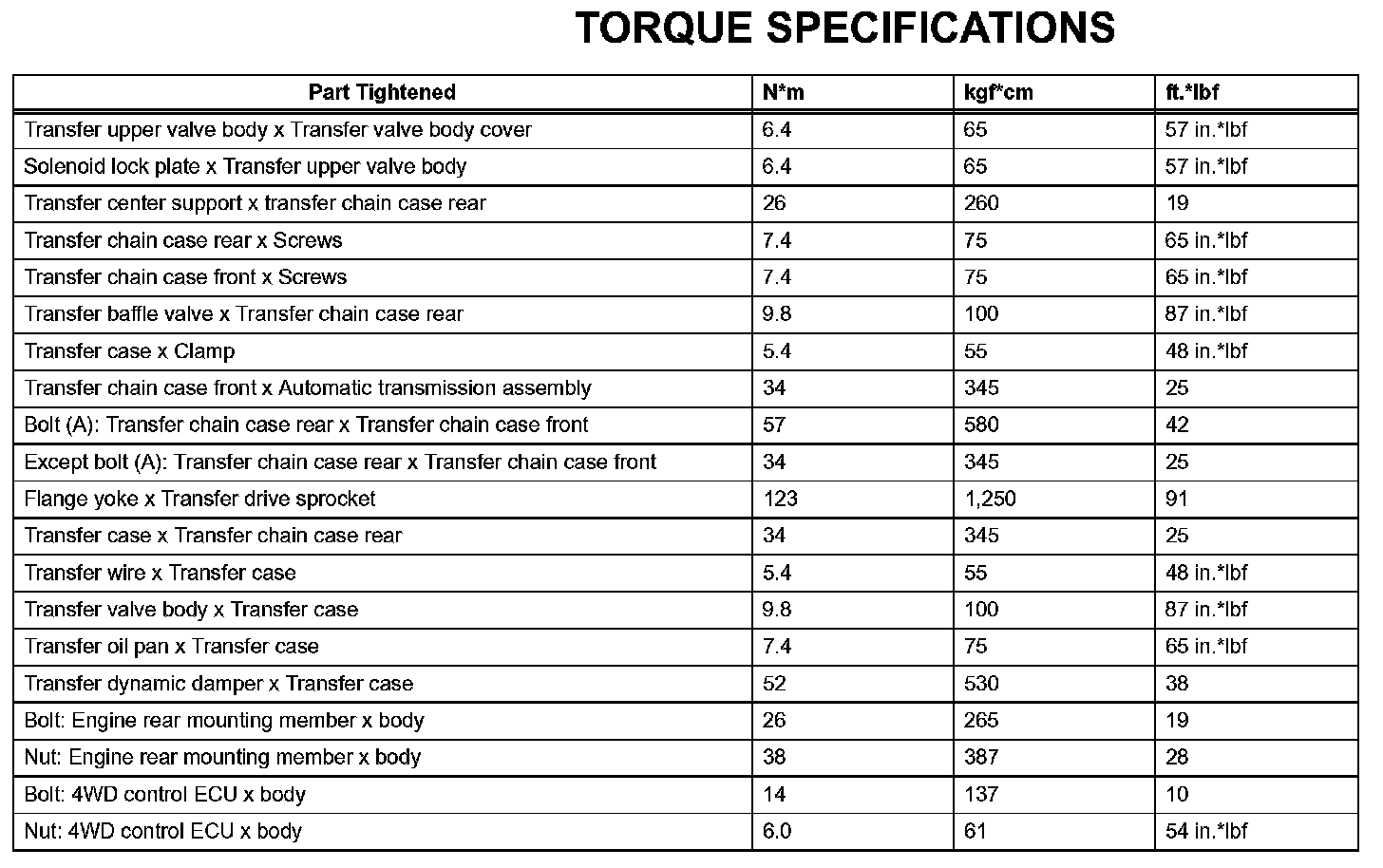

Transfer - Torque Specifications:



Transfer-Torque Specifications:
