Shift Paddle Switch Circuit

Shift Paddle Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (first range) and "6" (sixth range).

Shifting up "+" once raises one shift range position, and shifting down "-" lowers one shift range position.

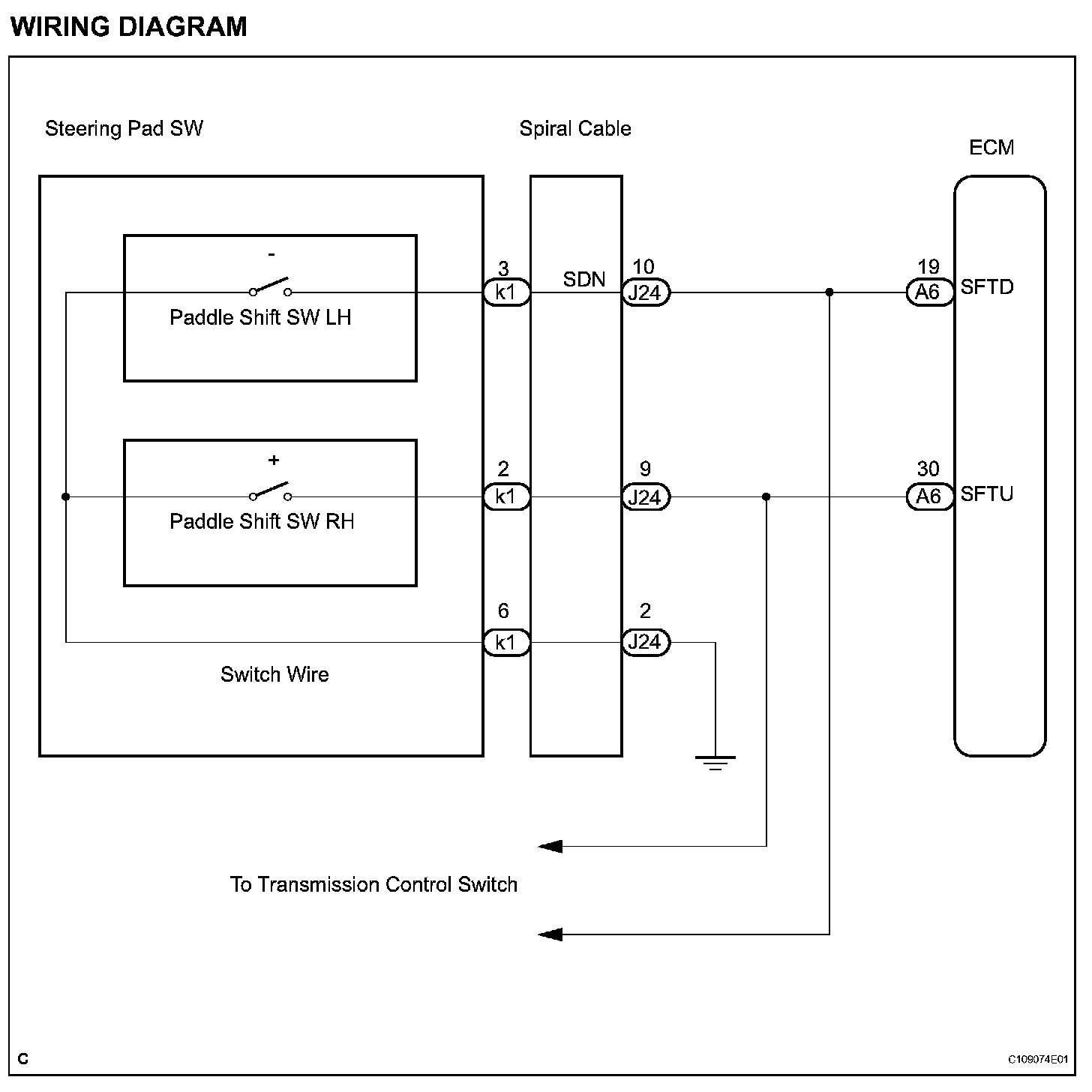

WIRING DIAGRAM:

INSPECTION PROCEDURE

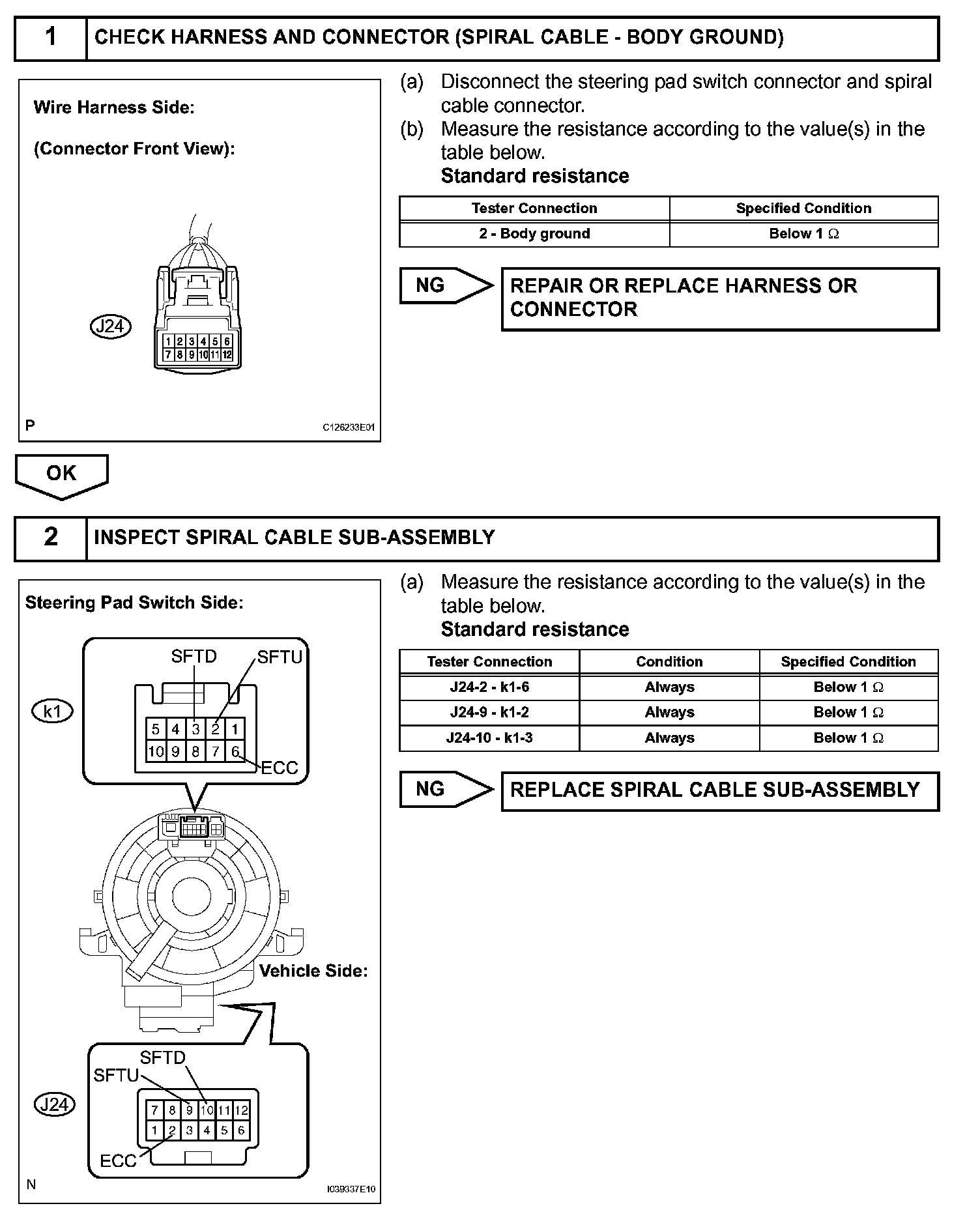

Steps 1-2(Part 1):

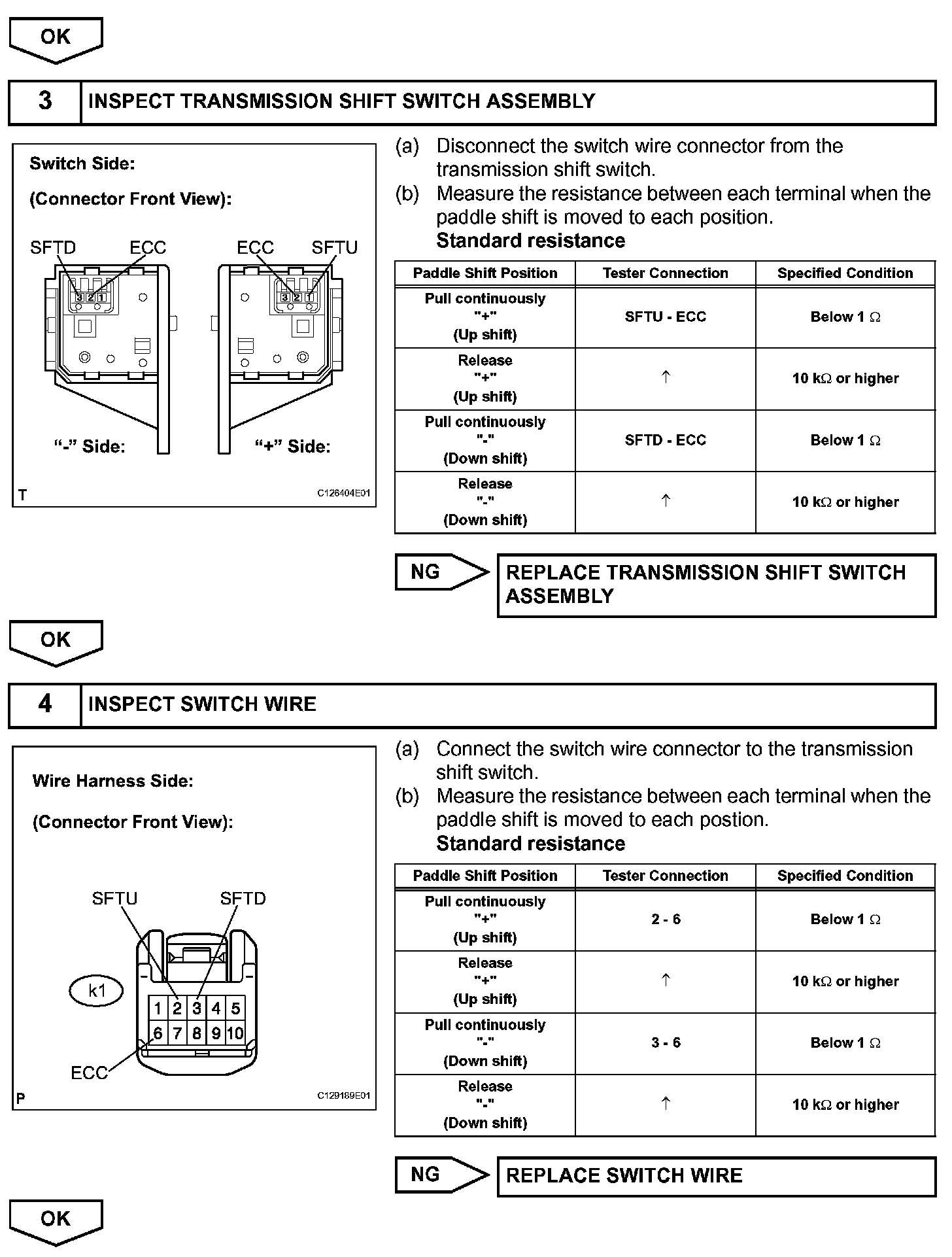

Steps 2(Part 2)-4:

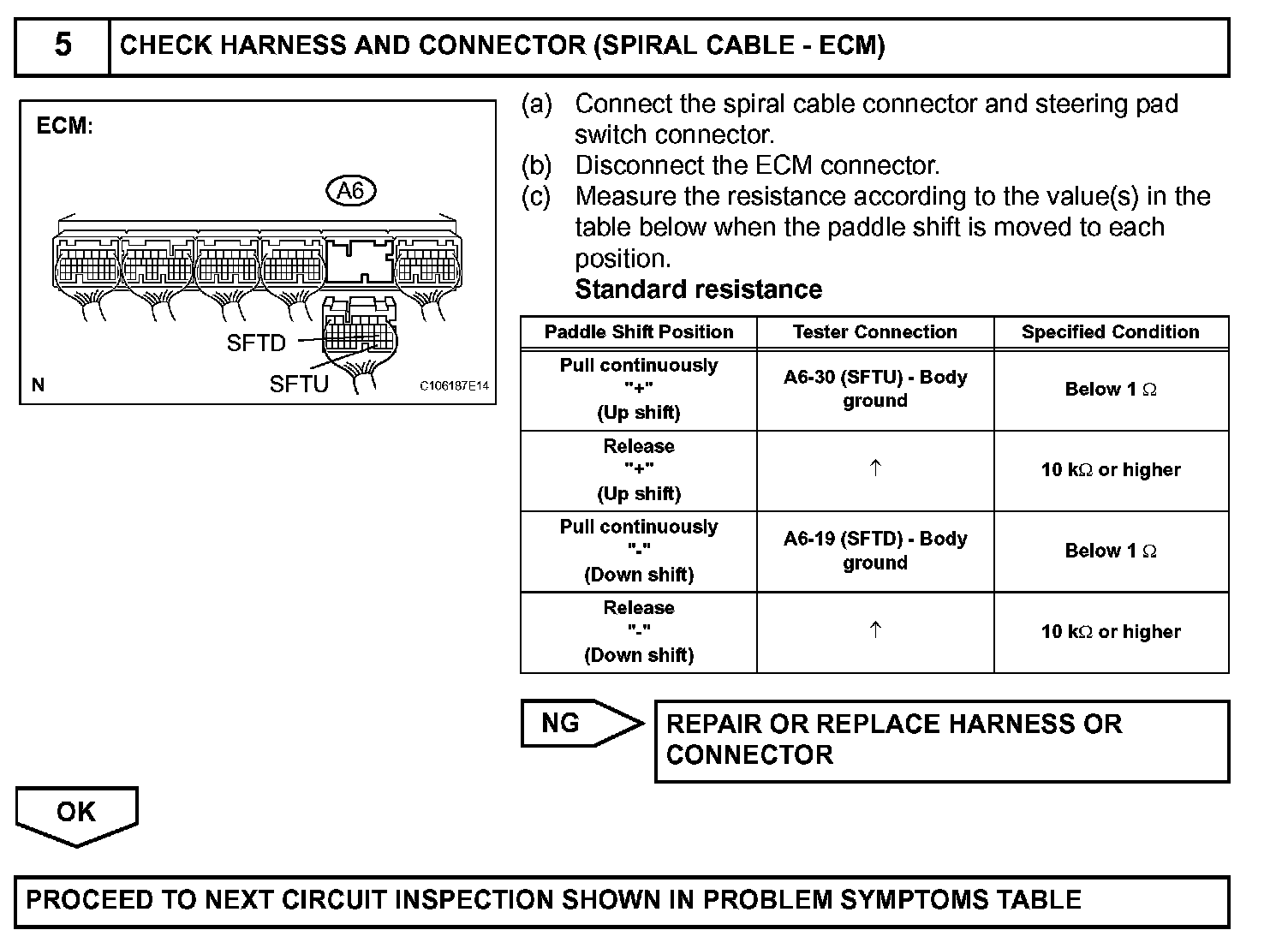

Step 5:
