Front Speed Sensor
REMOVALHINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.
1. REMOVE FRONT WHEEL

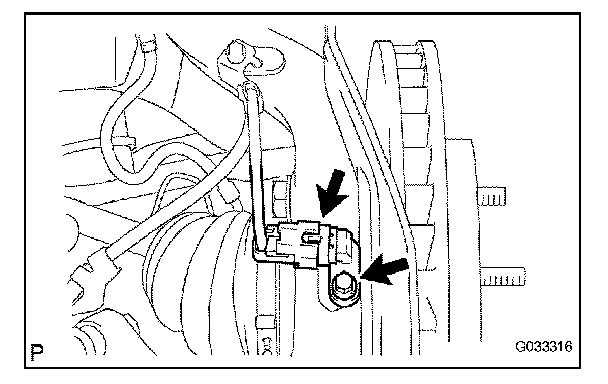

2. REMOVE FRONT SPEED SENSOR
a. Disconnect the front speed sensor connector.
b. Remove the bolt and front speed sensor.
NOTE: Prevent foreign matter from attaching to the sensor tip.
INSTALLATION

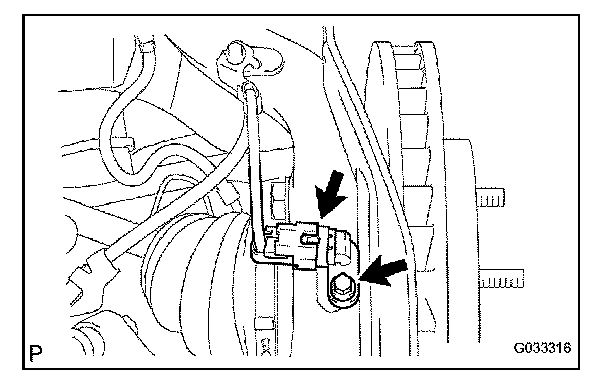

1. INSTALL FRONT SPEED SENSOR
a. Install the front speed sensor with the bolt.
Torque:8.5 N.m (87 kgf.cm, 75 in.lbf)
NOTE: Prevent foreign matter from attaching to the sensor tip.
b. Connect the front speed sensor connector.
2. INSTALL FRONT WHEEL
Torque:103 N.m (1,050 kgf.cm, 76 ft.lbf)
3. INSPECT SPEED SENSOR SIGNAL
