CHILD RESTRAINT SEAT TETHER ANCHOR

REMOVAL

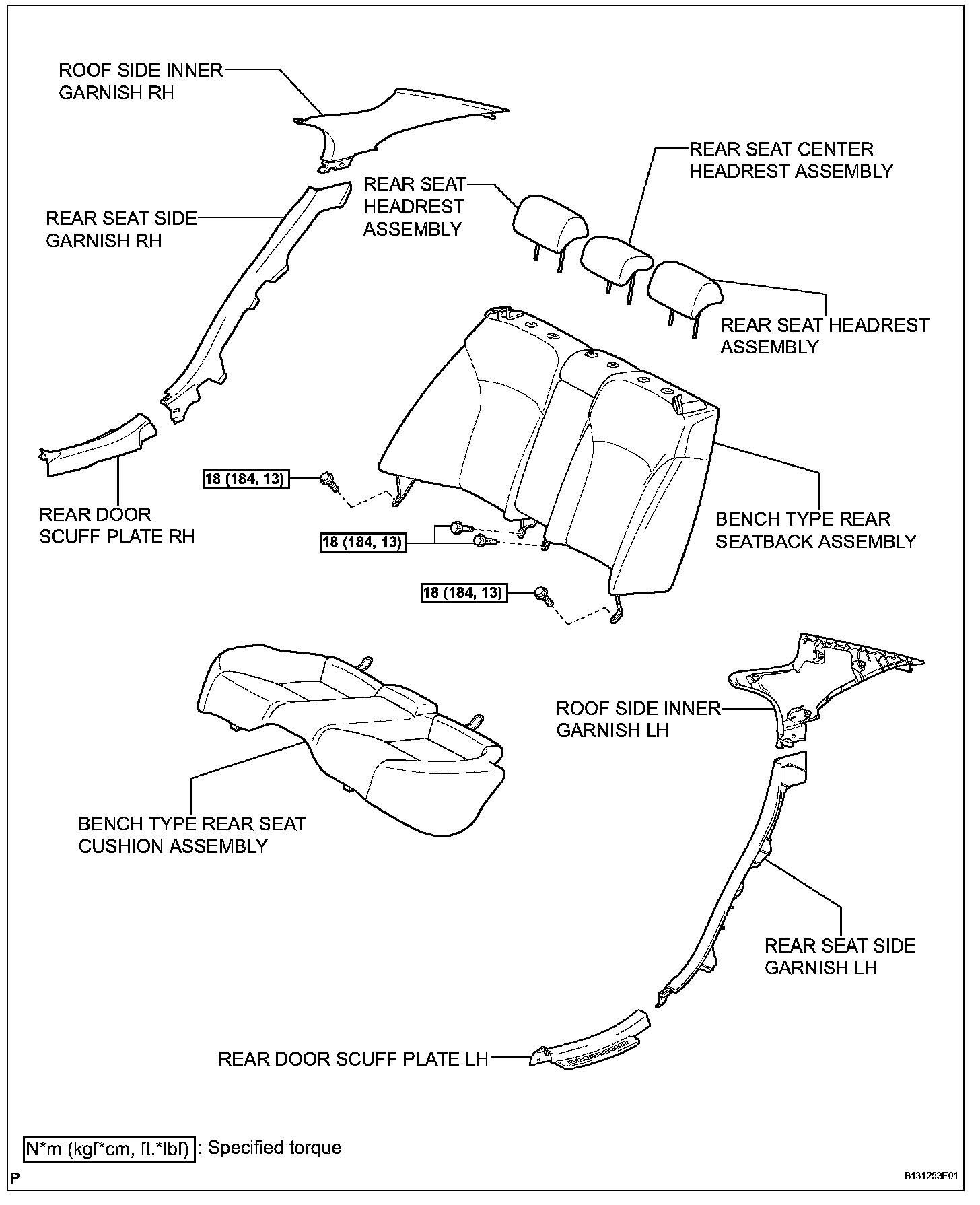

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
4. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY
5. REMOVE REAR DOOR SCUFF PLATE LH
6. REMOVE REAR DOOR SCUFF PLATE RH
7. REMOVE REAR SEAT SIDE GARNISH LH
8. REMOVE REAR SEAT SIDE GARNISH RH
9. REMOVE ROOF SIDE INNER GARNISH LH
10. REMOVE ROOF SIDE INNER GARNISH RH
11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

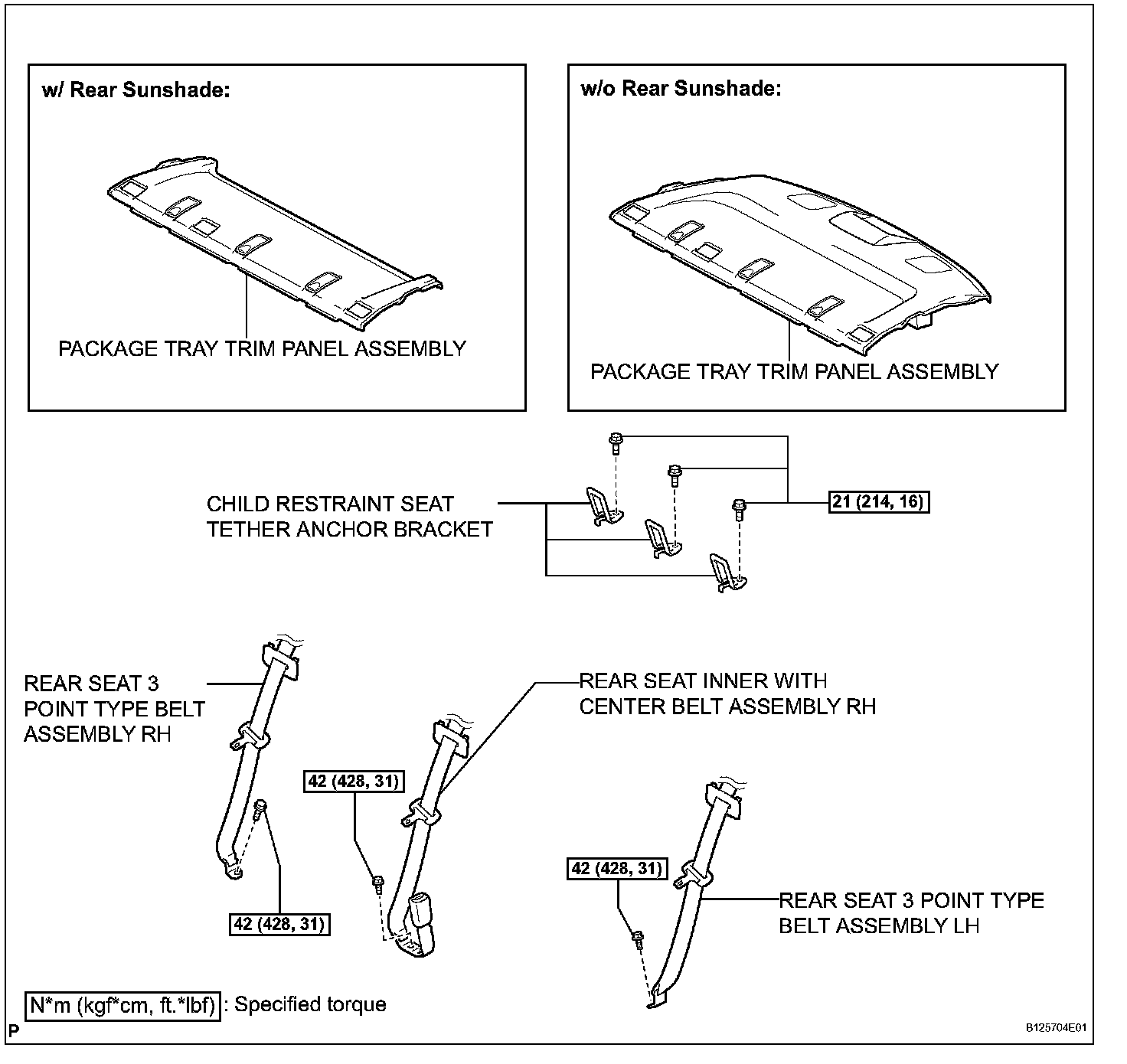

13. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

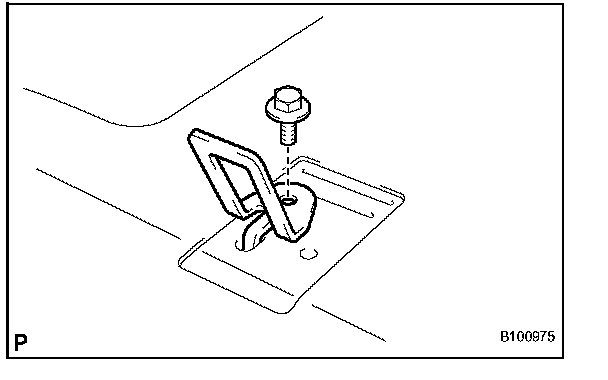

a. Remove the 3 bolts and the 3 child restraint seat tether anchor brackets.

INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

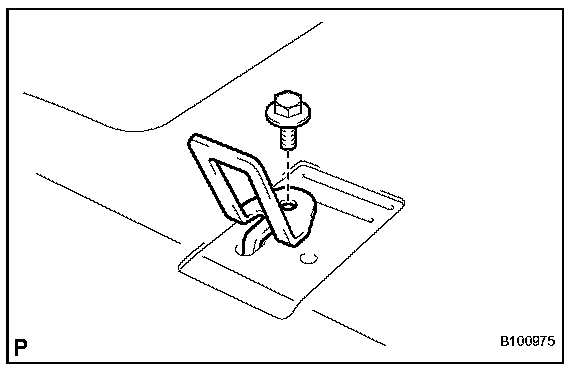

a. Install the 3 child restraint seat tether anchor brackets with the 3 bolts.

Torque: 21 N.m (214 kgf.cm, 16 ft.lbf)

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
4. INSTALL ROOF SIDE INNER GARNISH LH
5. INSTALL ROOF SIDE INNER GARNISH RH
6. INSTALL REAR SEAT SIDE GARNISH LH
7. INSTALL REAR SEAT SIDE GARNISH RH
8. INSTALL REAR DOOR SCUFF PLATE LH
9. INSTALL REAR DOOR SCUFF PLATE RH
10. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY
11. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
12. INSTALL REAR SEAT HEADREST ASSEMBLY
13. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
