CHILD RESTRAINT SEAT ANCHOR BRACKET

REMOVAL

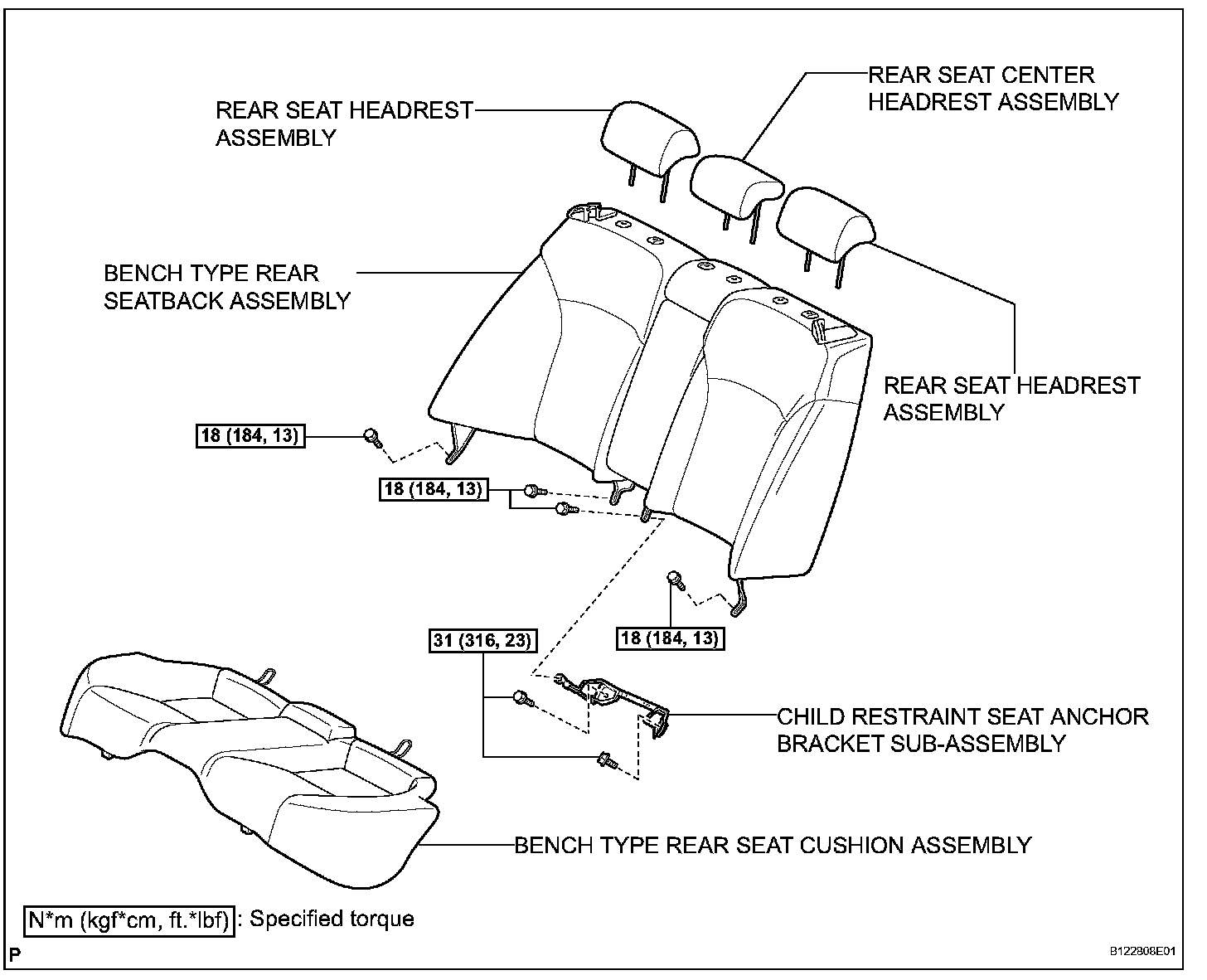

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
4. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY




5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

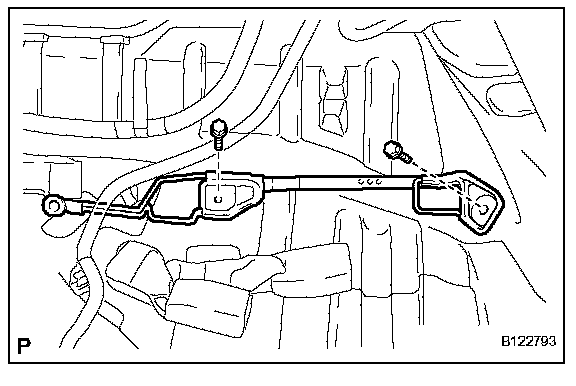

a. Remove the 2 bolts and child restraint seat anchor bracket sub-assembly.

INSTALLATION




1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

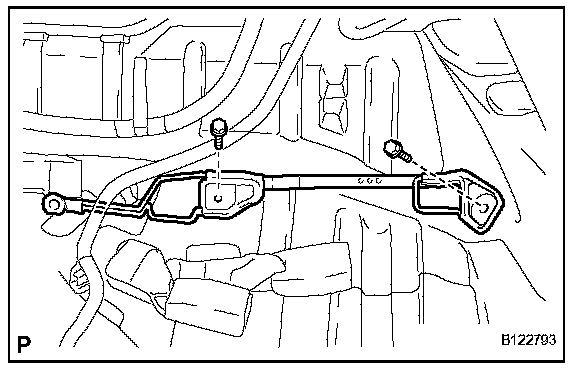

a. Install the child restraint seat anchor bracket SUB-ASSEMBLY with the 2 bolts.

Torque: 31 N.m (316 kgf.cm, 23 ft.lbf)

2. INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY
3. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
4. INSTALL REAR SEAT HEADREST ASSEMBLY
5. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
