Clockspring Assembly / Spiral Cable: Testing and Inspection

INSPECTION

1. INSPECT SPIRAL CABLE
a. If there are any defects as mentioned below, replace the spiral cable with a new one:
Scratches, cracks, dents or chips on the connector or the spiral cable.

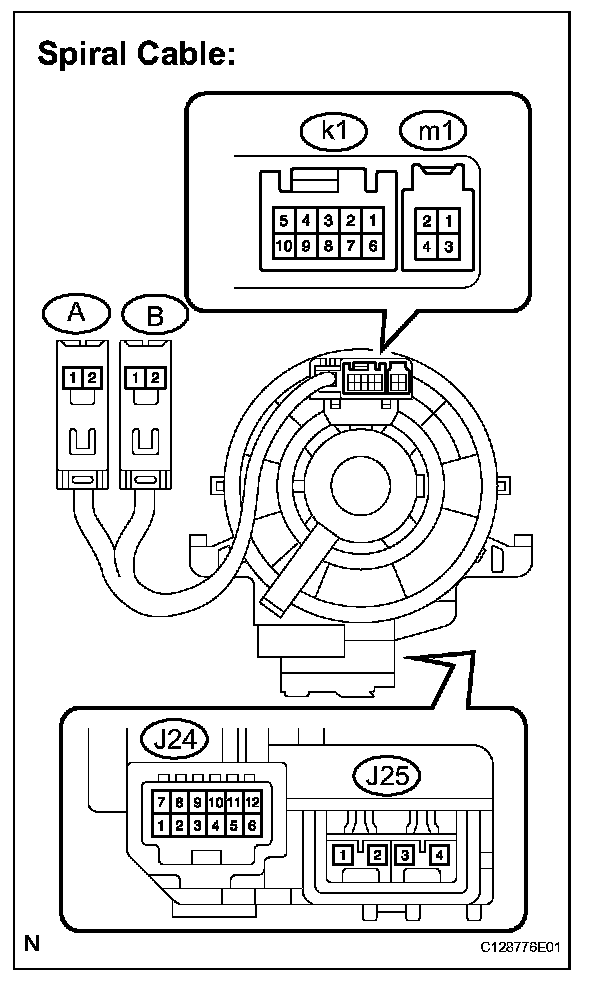

b. Inspect the spiral cable.

Part 1:

Part 2:

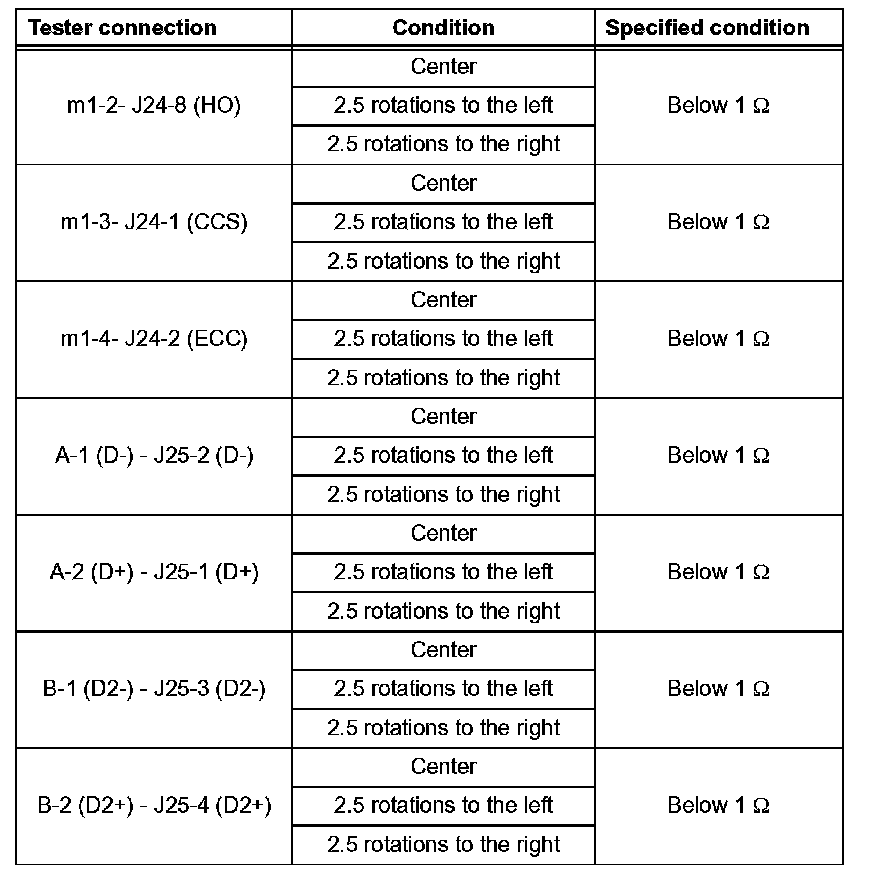

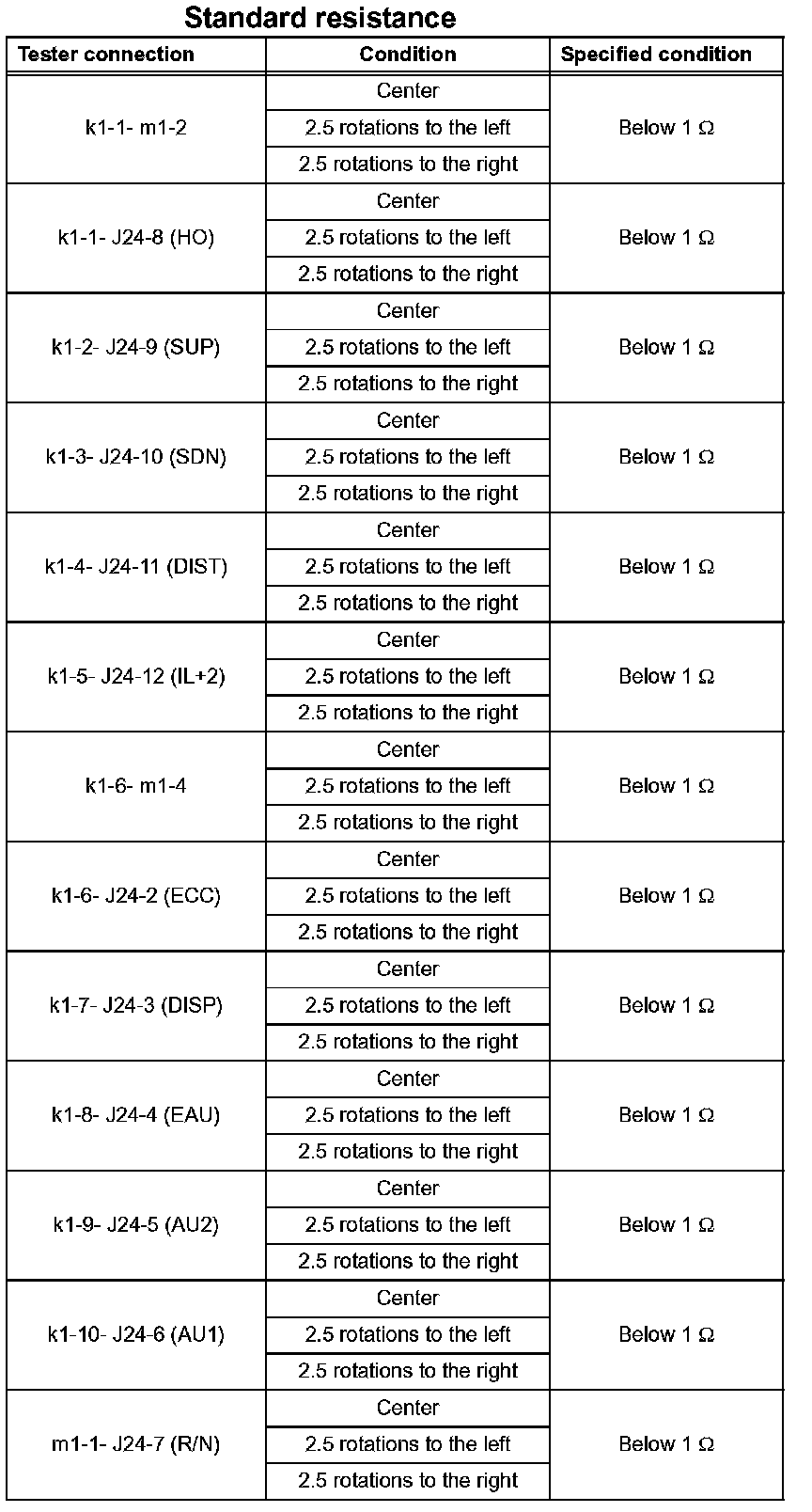

1. Measure the resistance according to the value(s) in the table given.
