CURTAIN SHIELD AIRBAG ASSEMBLY

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. PRECAUTION

CAUTION: Be sure to read the Restraint Systems Service Precautions thoroughly before servicing.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTE: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedures up to "REMOVE ROOF HEADLINING ASSEMBLY".

4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY
a. Disconnect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

b. Remove the 2 clips.

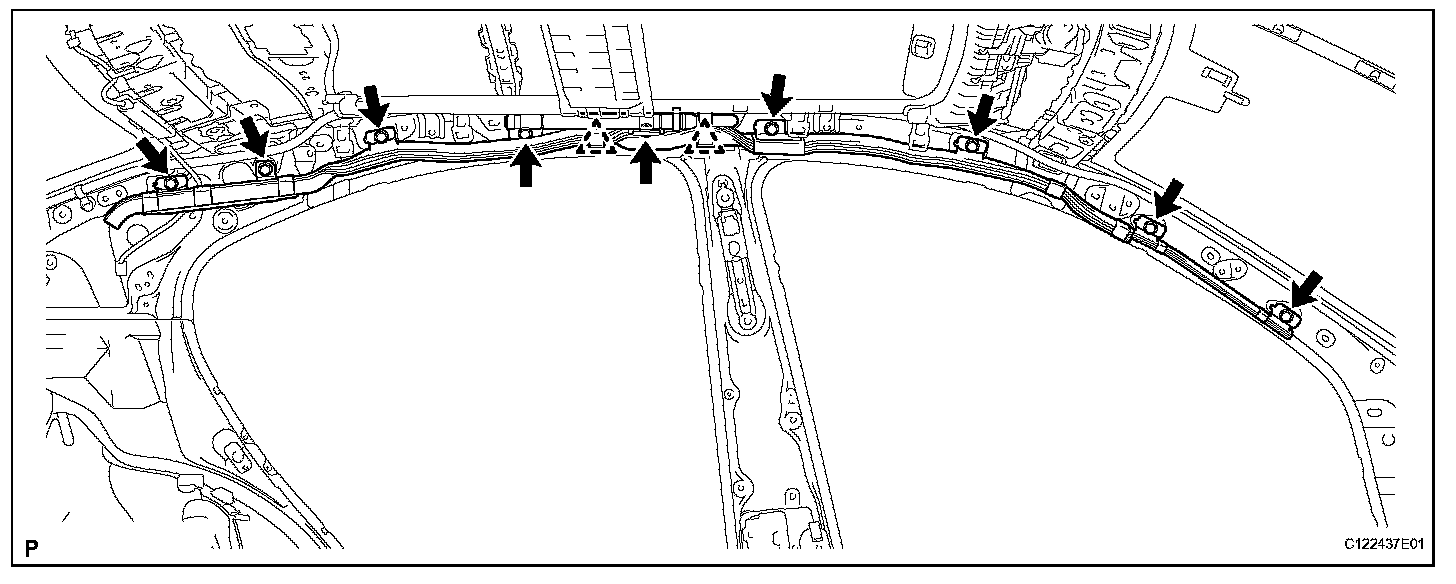

c. Remove the 9 bolts and curtain shield airbag assembly.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

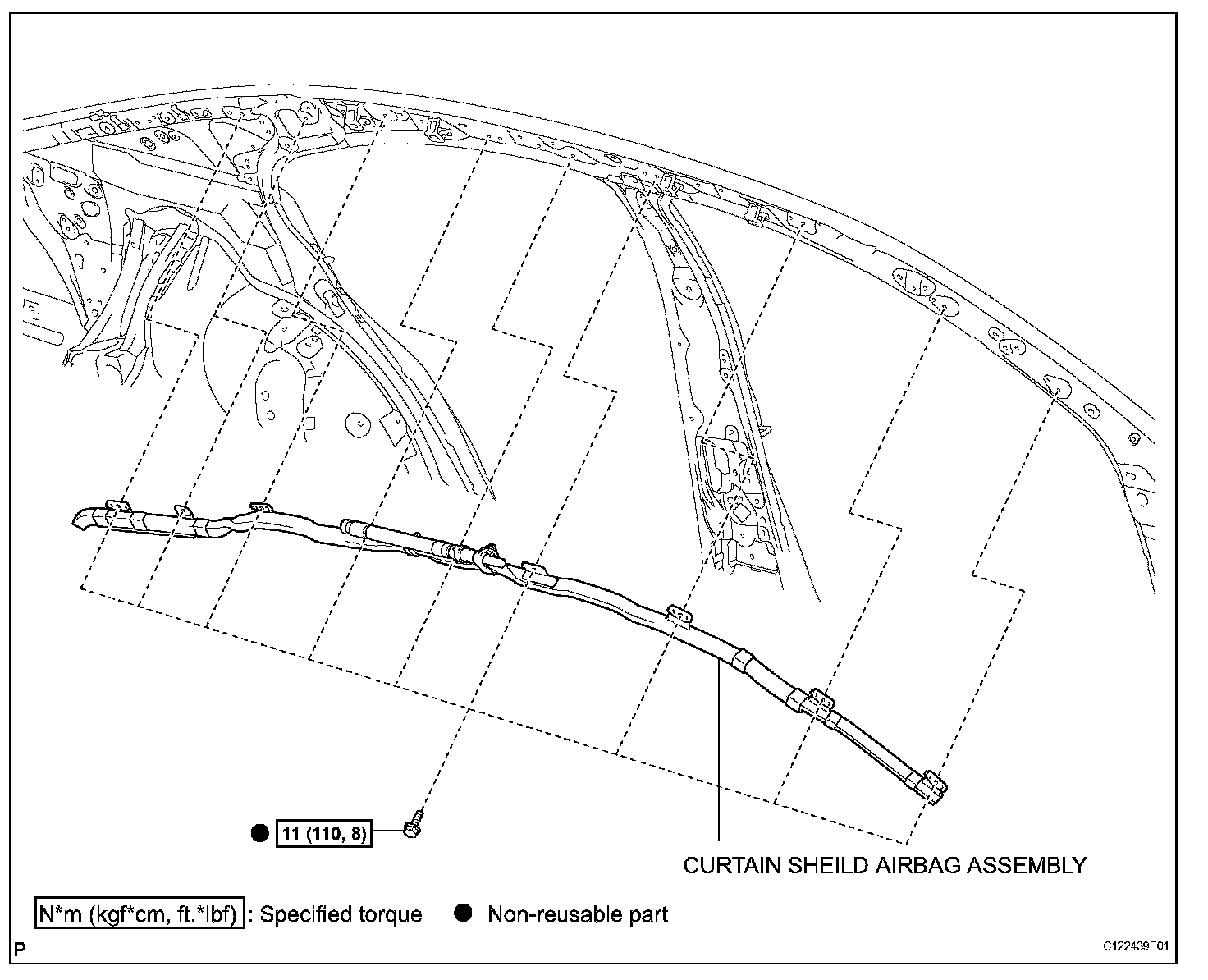

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY




a. Install the curtain shield airbag assembly with the 2 clips and 9 new bolts.

Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

NOTE: Do not twist the curtain shield airbag assembly when installing it.

b. Connect the connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL ROOF HEADLINING ASSEMBLY

HINT: Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY".

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization.

HINT: Some systems need initialization after reconnecting the cable to negative battery terminal.

5. INSPECT SRS WARNING LIGHT
a. Inspect the SRS warning light.
