II. Preparation For 2006-2007 IS250/350

A. Tools

^ Standard hand tools
^ Torque wrench
^ 22 mm union nut wrench
^ SST: (non-essential) 09612-24014 (09617-24011)
^ SST: Stud Bolt - 04007-32331 (2 stud bolts have been included in each Service Manager's Package.)
^ SST: 09260-39015 Injector seal tool set. (02968-03020, 09268-03010) Lexus drawer 1

B. Equipment

^ Techstream

C. Material

^ Protective Tape
^ Wooden boards (for clamping purposes)

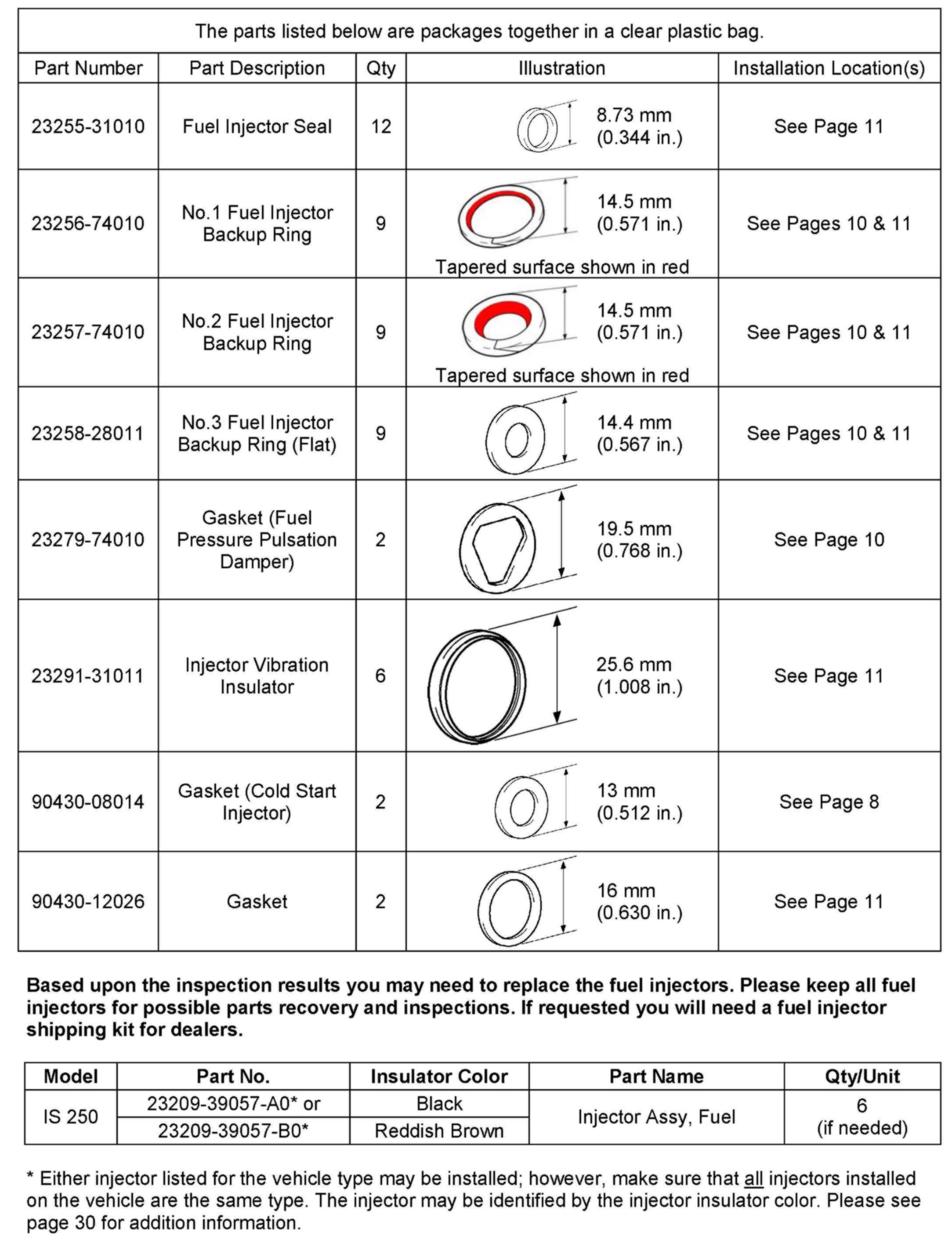

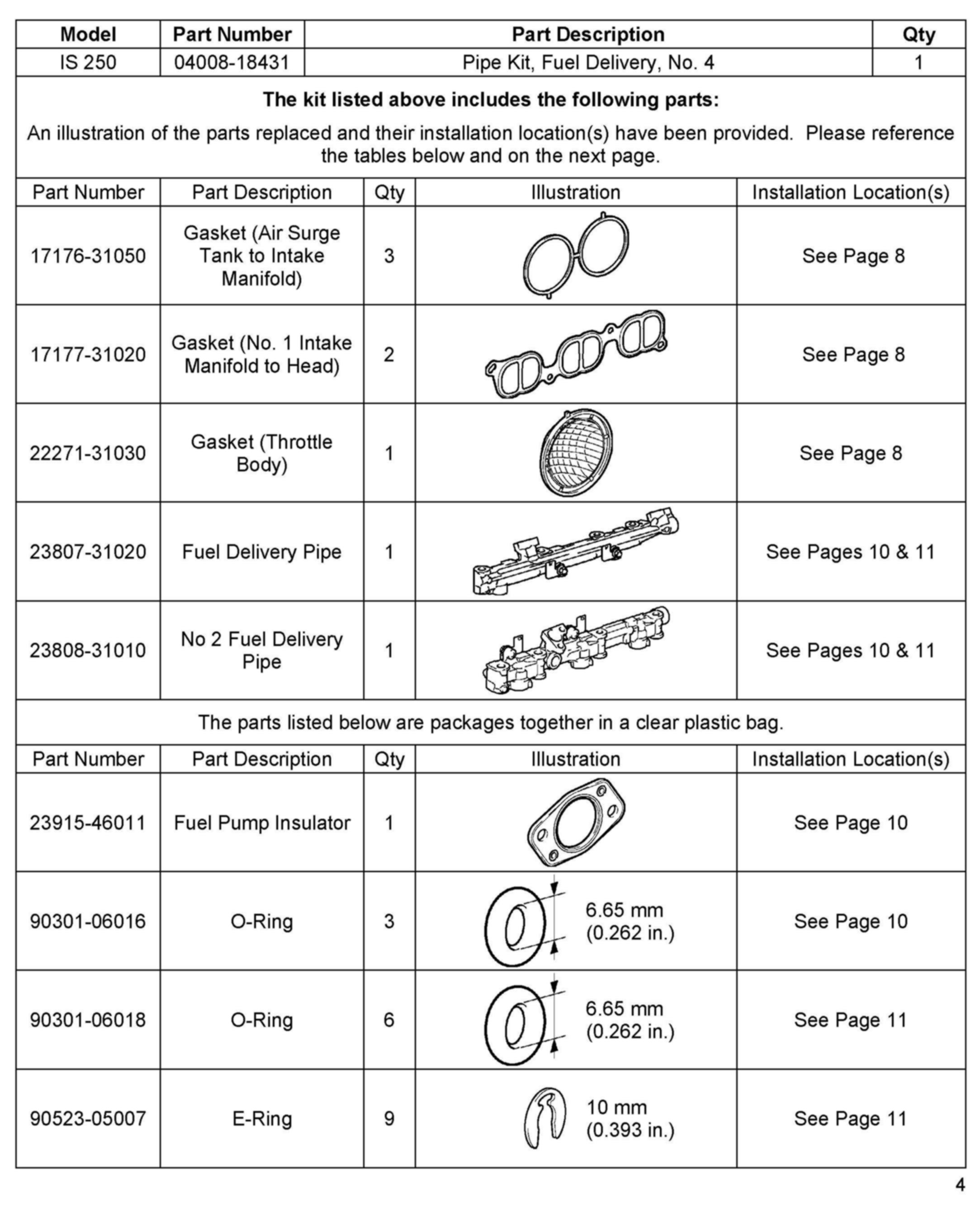

D. IS 250 Parts

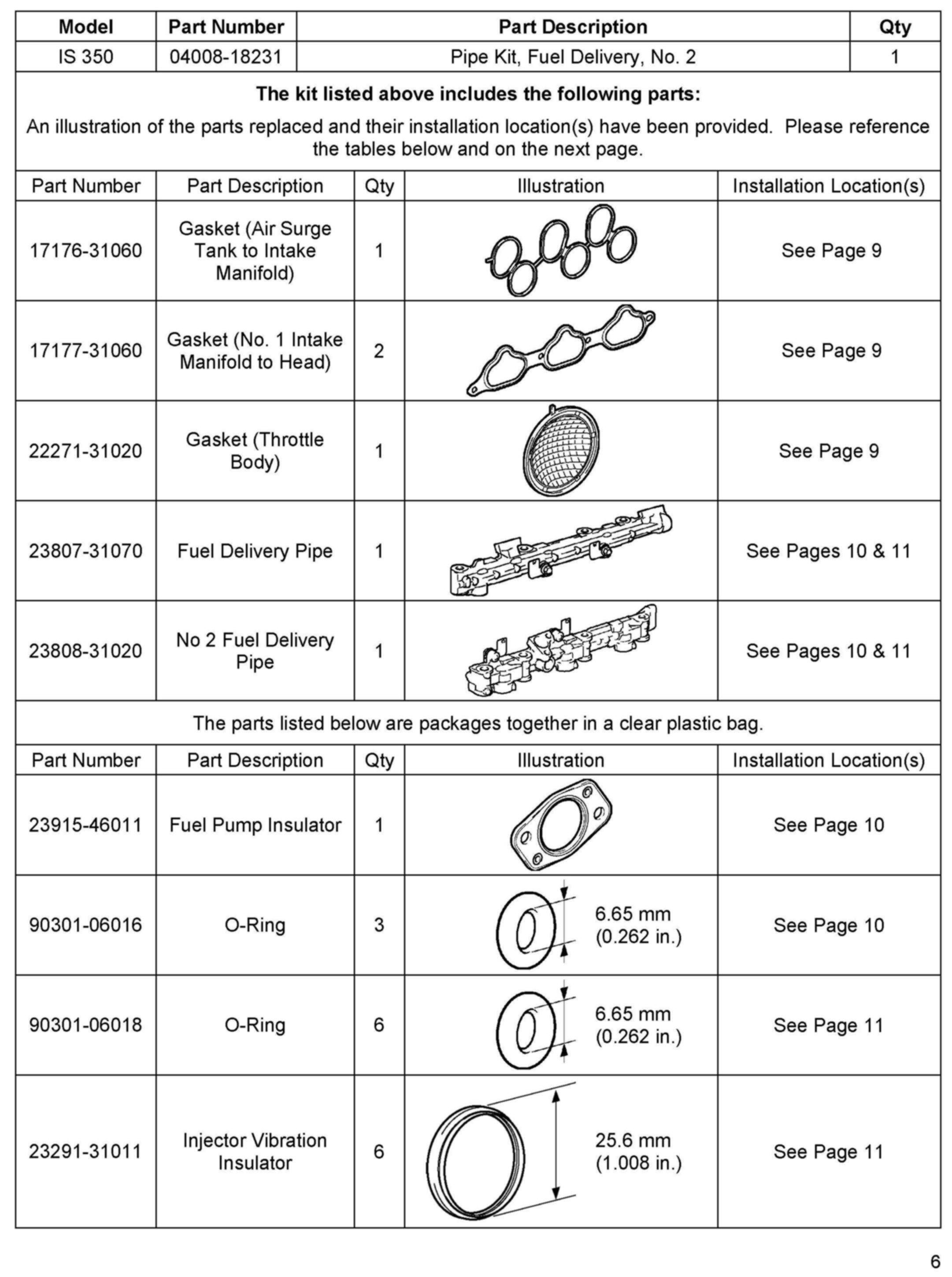

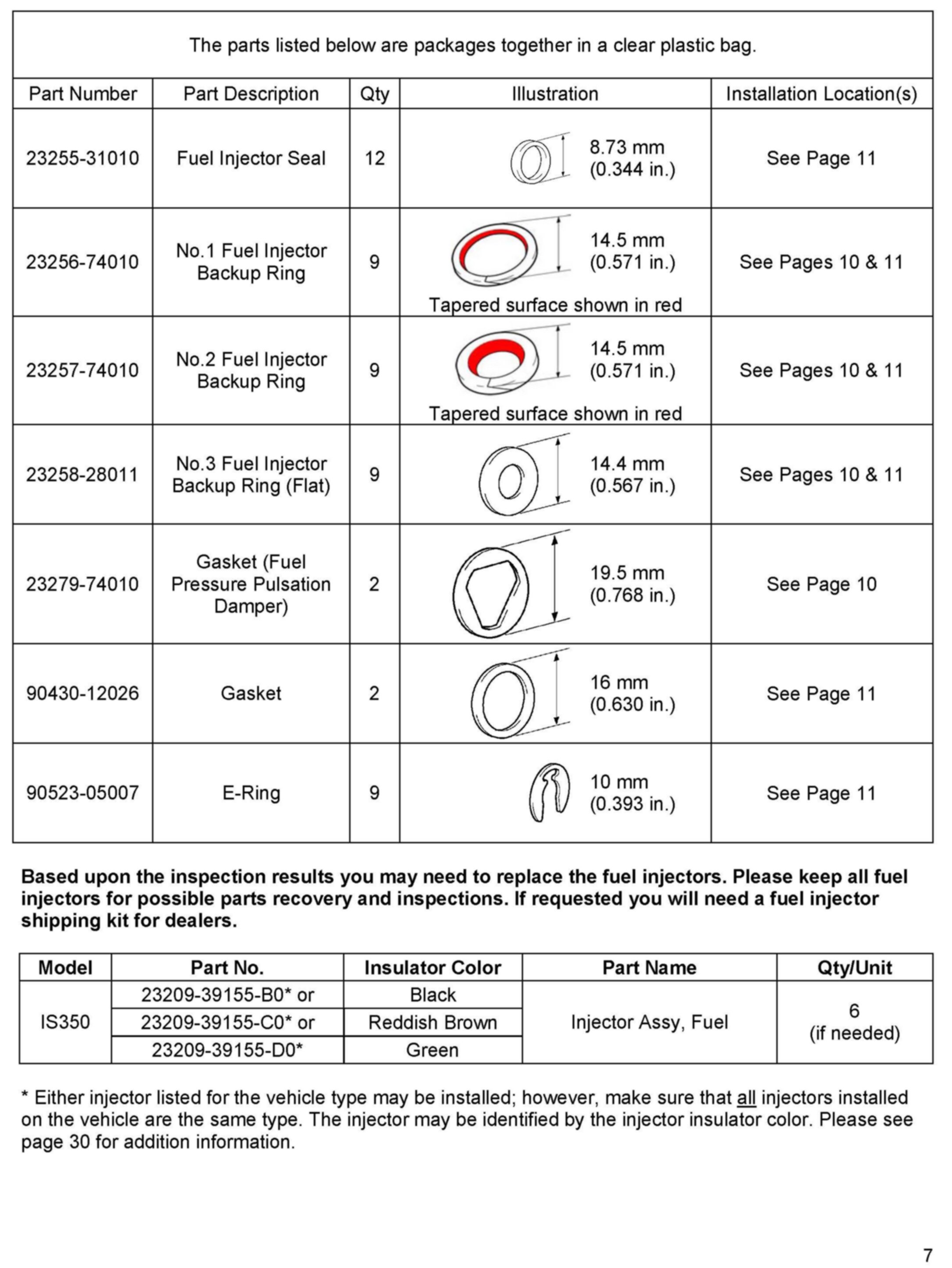

E. IS 350 Parts

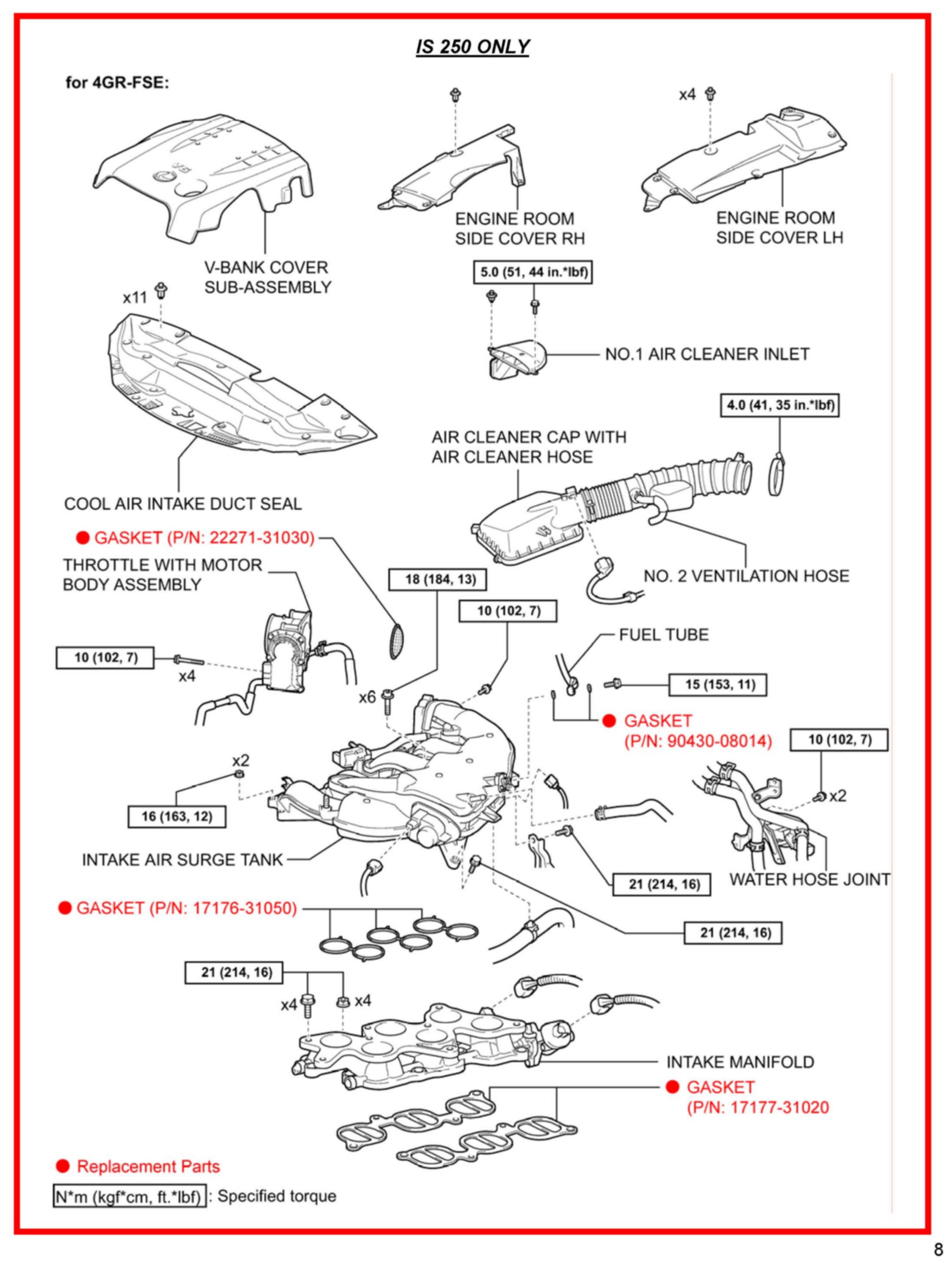

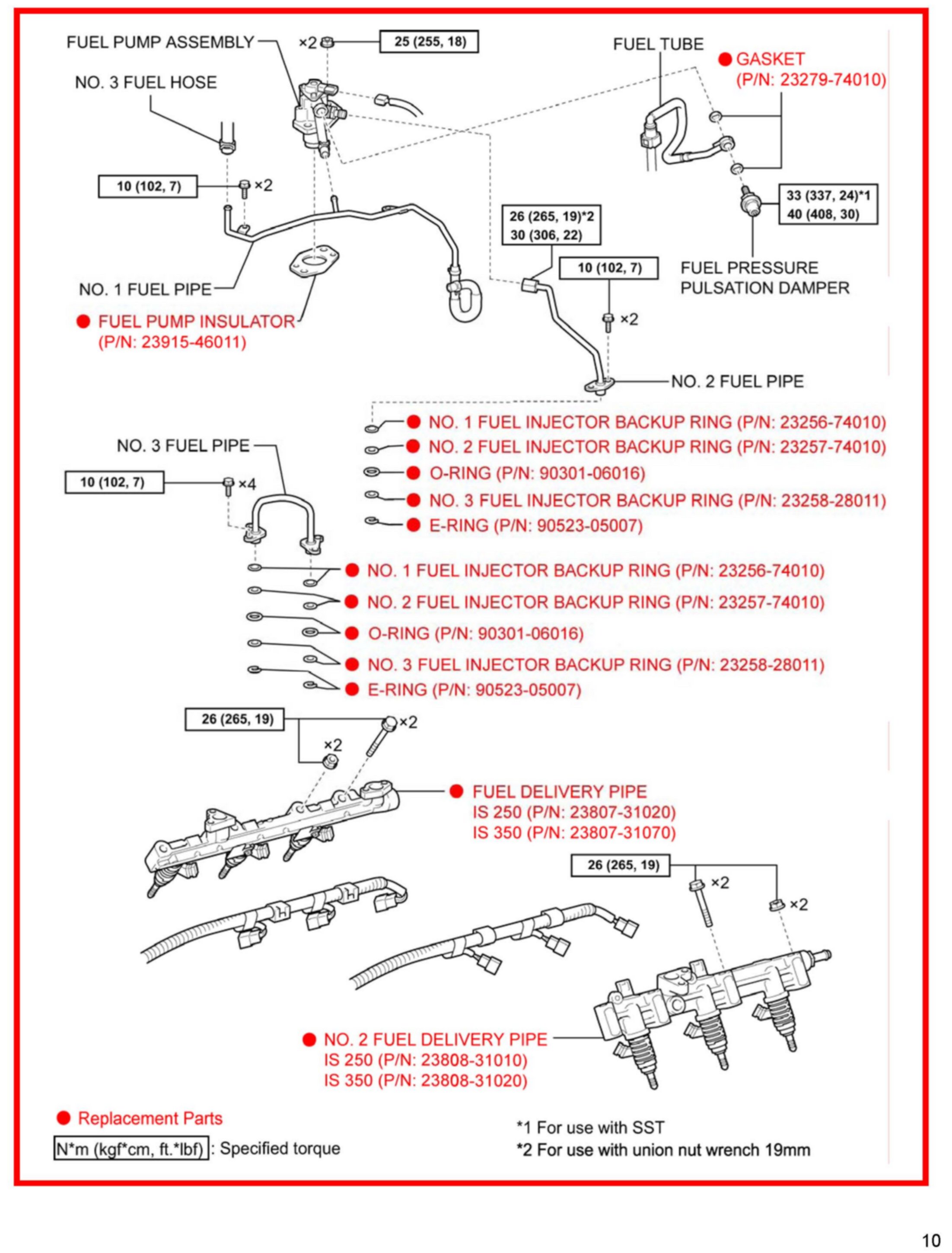

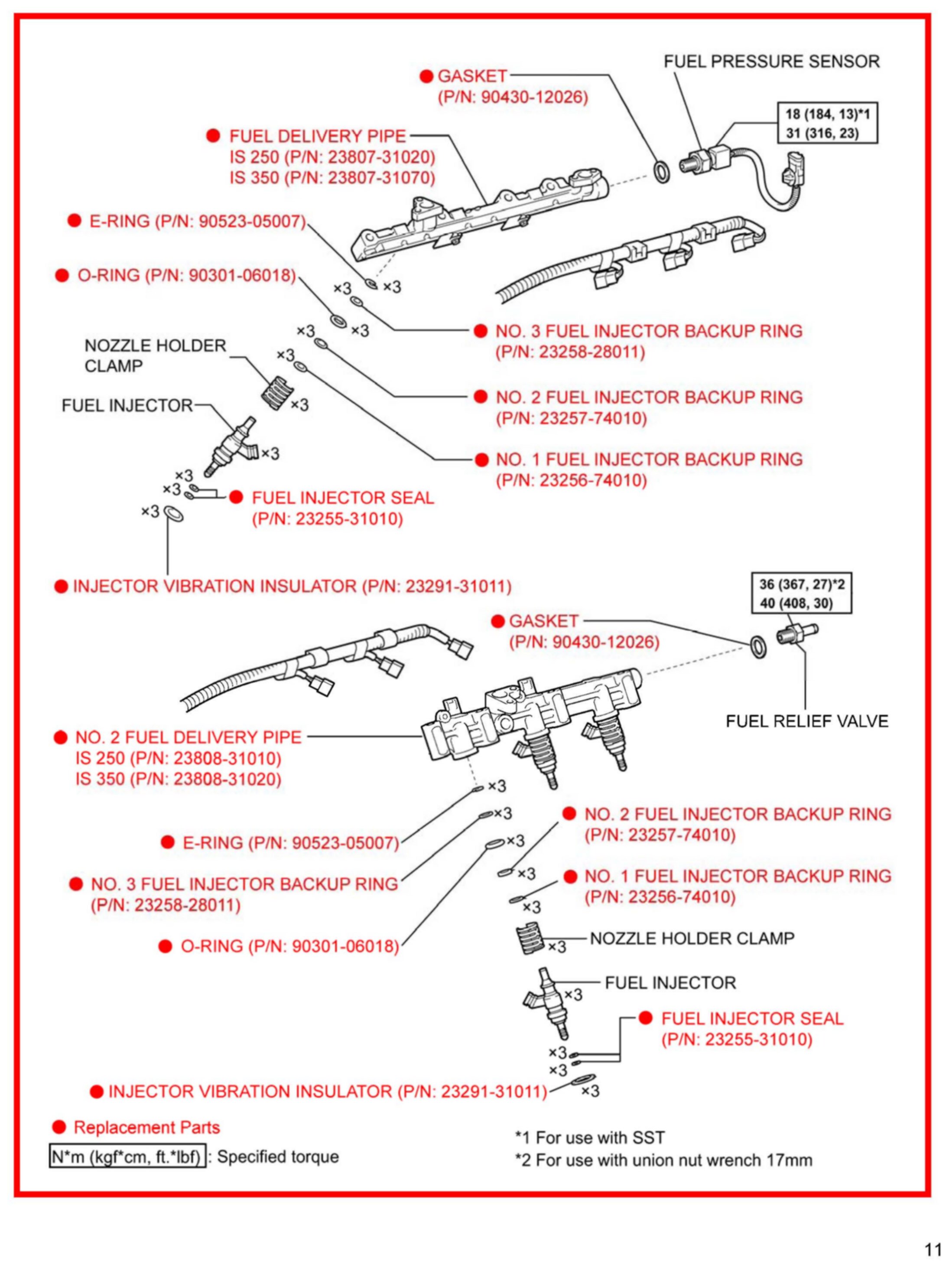

F. PARTS INSTALLATION LOCATION(S)
