Fuel Pump Relay

ON-VEHICLE INSPECTION




1. INSPECT FUEL PUMP RELAY (Marking: F/PMP)
a. Remove the No. 2 relay block cover.
b. Remove the fuel pump from the engine room No. 2 junction block.

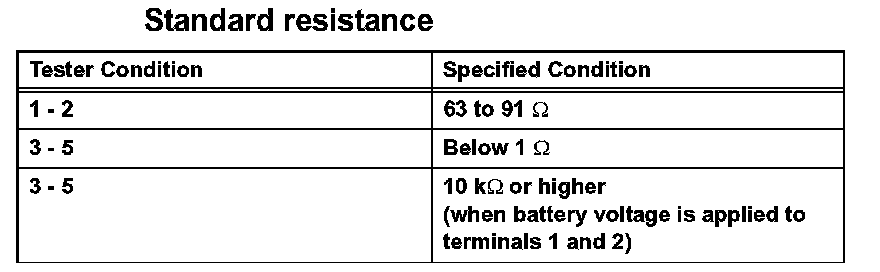

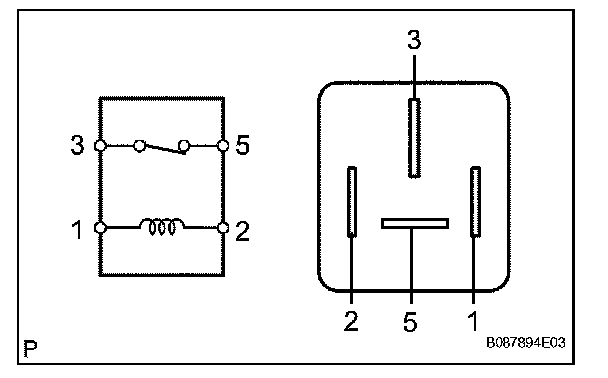

c. Measure the fuel pump relay resistance.
d. Reinstall the fuel pump relay to the engine room No. 2 relay block.
e. Reinstall the No. 2 junction block cover.
